Price: US $ 33000-35000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Application of PVC electrical conduit pipe machine:

PVC electrical conduit pipe manufacturing machinery is mainly used to produce PVC conduit pipes with various diameters and wall thickness in the aspects of electric conduit pipe for construction and so on.

Characterizer of MT extruder:

 Capacity increased (20% higher),
standard (Bimetallic & PLC Intelligence),
 Reliable quality (vertical gearbox by SKF bearing)

Equipmnet List :

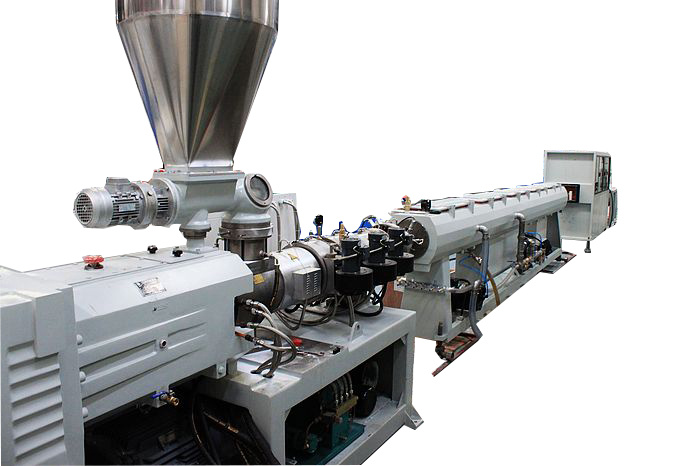

PVC conduit  pipe extruder machine line : consists mainly of

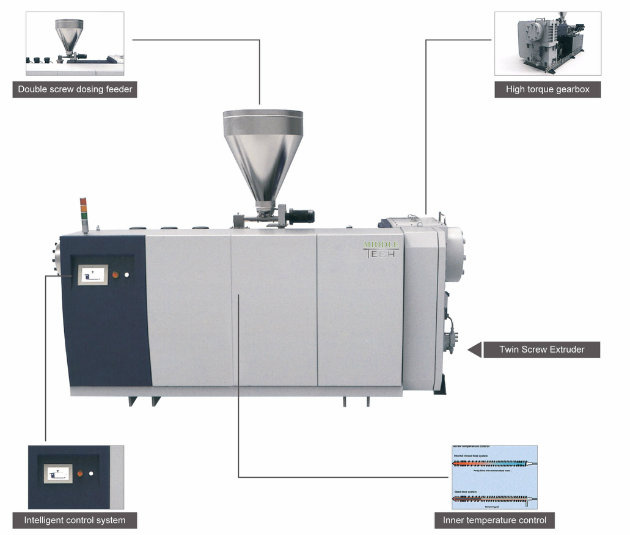

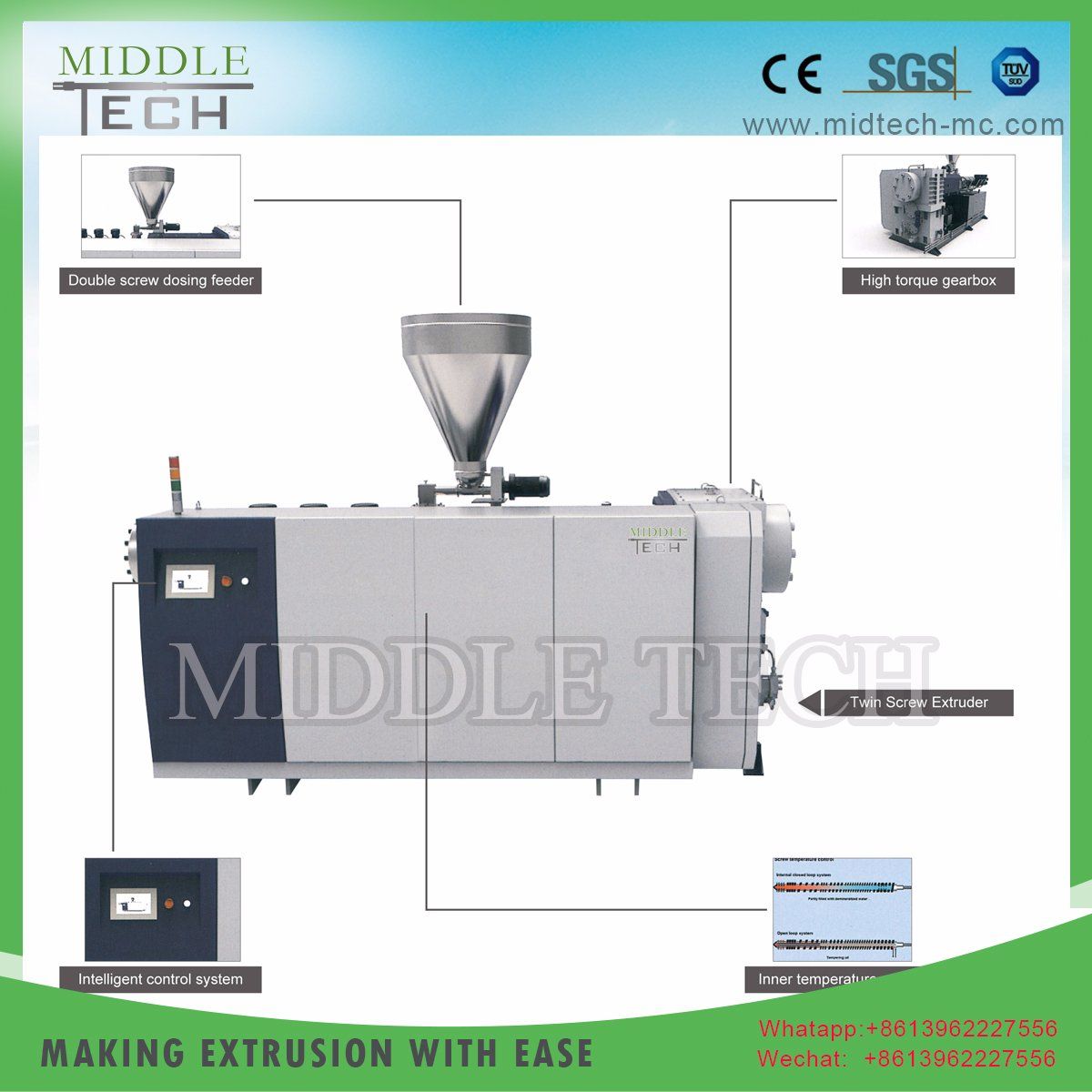

Twin screw conical (parallel) extruder,

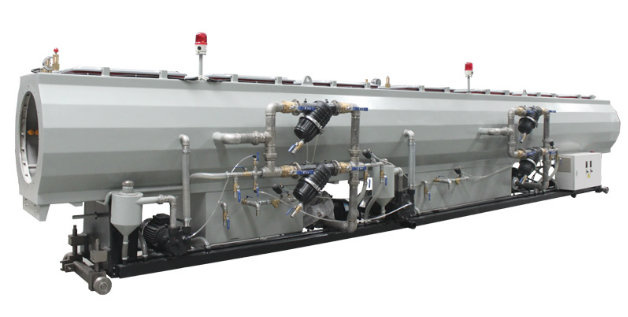

Vacuum calibrating tank,

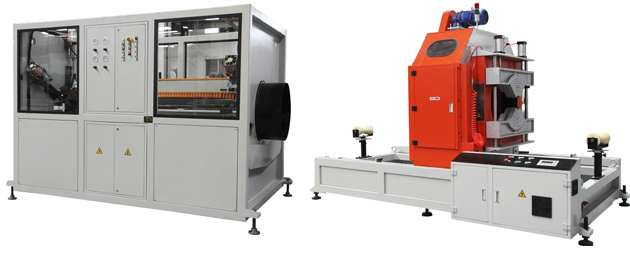

 Haul-off unit &Cutting unit,

Feature of Machine:
1. Applied with imported A/C inverter.
2. Famous brand of vacuum pump and driving motor
3. Hal-off Machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.
4. Saw cutting or planet cutting can be applied
5. it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.

If you are interest in our machine, that would be our honor to provide information for you.

Main parameter of PVC pipe production line extruder machine
Extruder modelSJZ-51/105SJZ-55/110SJSZ-65/132SJSZ-80/156SJSZ-92/188
Driving motor (kw)1537375590
Pipe diameter range(mm)16-4020-11050-200200-400400-630
Water pump3kw4kw5.5kw5.5kw X 2pcs7.5kw X 2pcs
Vacuum pump2.2kw X 2pcs4kw4kw4kw X 2pcs7.5kw 5.5kw X 2pcs
Caliber Length(mm)50006000600080006000, 3000
Water cooling tankNoNo50006000100000
Hauling motor0.75kw 4pcs2.2kw3.7kw7.5kw18.5kw
Hauling belt4pcs2pcs2pcs4pcs6pcs
Cutting motor1.1kw 2pcs2.2kw3.7kw3.7kw3.7kw
Contactor brandSchneiderSchneiderSchneiderSchneiderSchneider
If you need any support, please don't hesitate to contact us on 0086-13962227556.
Prod Model: SJZ65/132
High Capacity: 800kg/H Capacity
Haul Off: Servo Motor
Inverter: Schneider
Contacter: Schneider
Cutter: Dust Free
Screw: Bimetallic
Product Type: PVC Pipe
Automation: Automatic
Computerized: Non-Computerized
Certification: ISO9001:2008
Middle Tech Industry Co., Ltd-- the leading manufacture for plastic extrusion technology in China.

We established in 2009 which occupied more than 5000sqm modernized workshop and 30 stuffs including more than 10 rich-experience engineers specially for the engineer teams and after-sell service team. With the step of internationalization, we have gain a high reputation by cooperate with more frontier, such as Batternfeld.

We inherit develop target: "manufacture+innovation+dedicate"; And our belief: "Creating sustainable value for customer ". We concentrate on provide turn-key solution and provide services through our typical products and services; Meanwhile professional service teams insure more stabilize operations.

Now We pride that our footprint spread all over China and world around: We have exported our product to more than 40 countries and 100 groups customers, like USA, Brasil, Nigeria, UAE, Spain, etc. And our after sell services center have been setup in Nigeria, Brasil and UAE.

We provide various constant solutions and customized products on:

PVC/PE/PPR/PERT plastic pipe extrusion solutions

WPC+PVC/PE profile/sheet board extrusion solutions

PVC foaming sheet/board extrusion solutions

We warmly welcoming domestic and international personage by full enthusiasm to cooperate mutually, creating fruitful tomorrow together.
