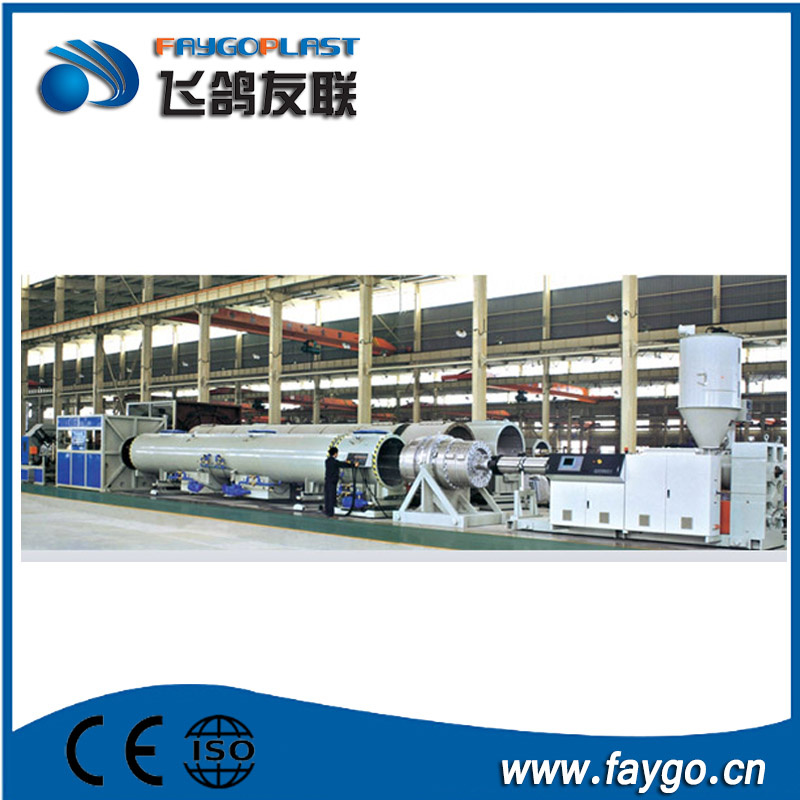

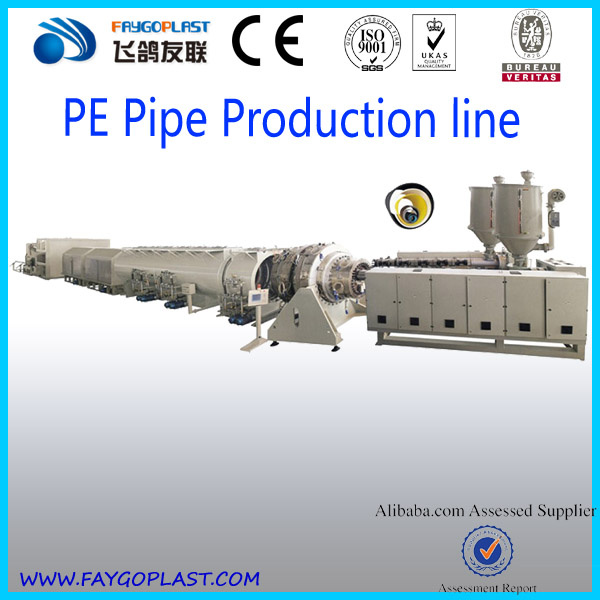

Plastic HDPE water and gas pipe making machine
This machine is mainly used to produce agricultural/water supply pipes, gas supply pipes, architectural water supply/drainage pipes, cable laying pipes etc. This HDPE pipe making machine adopts advanced design concept to ensure the efficient extrusion of PP,PE material combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
Technical data
| Model/data | Pipe diameter | Extruder model | Speed | Max capacity |
| FE63 | 16-63mm | SJ65 | 1-12m/min | 80kg/h |
| FE110 | 50-110mm | SJ75 | 1-8m/min | 150kg/h |
| FE160 | 75-200mm | SJ90 | 1-5m/min | 260kg/h |
| FE400 | 200-400mm | SJ120 | 0.5-1.5m/min | 450kg/h |
| FE630 | 400-630mm | SJ120,SJ90 | 0.1-0.8m/min | 650kg/h |
| FE800 | 630-800mm | SJ 150,SJ120 | 0.1-0.8m/min | 800kg/h |
Components of HDPE pipe making machine
a. Single screw extruder:
Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.
b. pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.
c. Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.
d. Haul off machine:
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.
e. Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.
6. Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.
Equipment list of HDPE pipe making machine
| Compulsory devices |
| 1 | Material charge | 1 set |
| 2 | SJ single screw extruder | 1 set |
| 3 | Pipe die head | 16-800mm, 1 set or several sets |
| 4 | Vacuum calibrating tank | 1 set or several sets |
| 5 | Water spraying cooling tank | 1 set or several sets |
| 6 | 2-3-4-6-8-10-12 caterpillars hauling off machine | 1 set |
| 7 | no dust-cutting machine or planetary cutting machine | 1 set |
| 8 | Pipe stacker-4000-6000mm length | 1 set |
| 9 | Electrical cabinet(ABB, Omron, RKC, Schneider etc) | 1 set |
| 10 | Spare parts | 1 set |
| Optional Devices | |
| 1 | color mixer | 1 set |
| 2 | Plastic crusher | 1 set |
| 3 | Plastic shredding machine | 1 set |
| 4 | Industrial water chiller | 1 set |
| 5 | Air compressor | 1 set |
| 6 | Thermocontroller for die head | 1 set |
| 7 | Ink jet printer | 1 set |
| Payment, delivery and after sales services |
| 1 | Payment terms | 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable |
| 2 | Delivery time | 60 days after receipt of prepayment |
| 3 | Packing method | Wooden cases/pallets with stretching films |
| 4 | Guaranteed time | 18 months for mechanical parts, 12 months for electrical parts |
| 5 | After sale service | Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable |
| 6 | Contact information | |
Company information:

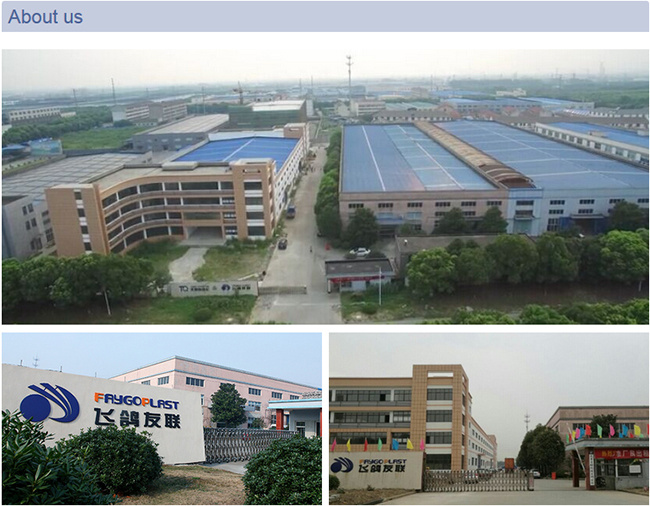

Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Warmly welcome to visit our factory (next to Shanghai)!
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
FAYGO UNION GROUP has 3 branch factories. One is FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world. Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE, PPR pipe line. Third factory is FAYGO RECYCLING, which research new technology in plastic bottle, film recycling processing and pelletizing. Now FAYGO RECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Now FAYGO UNION had get many orders from Alibaba by Trade Assurance. Till February our Trade Assurance is more than USD 1000, 000. So you are free to buy from FAYGO without any worries.
Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland, Italy, Turkey Russia etc. From Europe, and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia, Iran, Syria, India, Thailand, Indonesia etc. From Asia, and many customers from Africa.
Our factory is located in Zhangjiagang city, covers an area of 26, 650 square meters. It only takes around two hours driving from Shanghai international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
