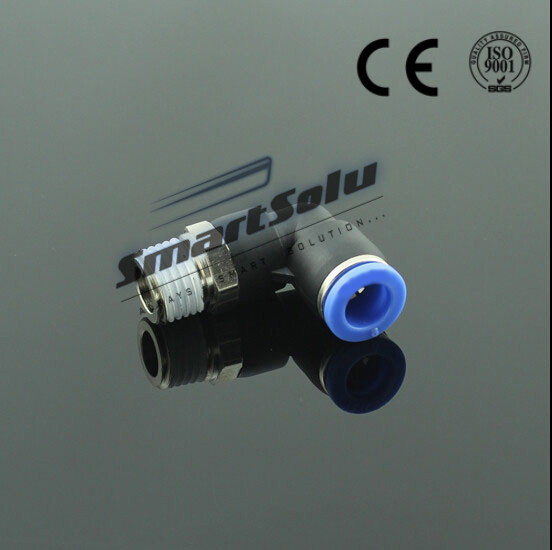

Applications:*One touch type connection tool for air pressure piping.
*Various uses depending on the user's environment.
Features:*One-Touch push-to-connect configuration allows an instant tubing connection.
*Smooth-Edge release sleeve design facilitates a quick tubing disconnection
*Aesthetically pleasing nickel-plated metallic optional feature ensures anti-containation
Properties of an extended product lift.
*Pre-applied sealant on all external threads eliminates the additional sealing requirement.
*Internal and/or external flat-to&flat hexagonal configurations for both metric and inch specifications
Allow a proper tightening or directional orientation upon installation by using L key or allen wrench
For the applicable model types.
Specifications:*Fluid Type: Air(No other gases or liquids)
*Working Pressure: 0-150Psi
*Negative pressure: -29.5 in Hg
*Working temperature: 32 -140° F / 0-60
*Applicable Tube: Polyurethane, Polyethylene and Nylon
Company frofileOur company is specialized in manufactuing all kinds of valves, hydro-pneumatic components, alumium parts and plastic parts. Our main products are including pneumatic cylinder, solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes etc. As below;
*ISO Standard Cylinder: DNC/SI(ISO6431&6432)
*Standard Cylinder: SC/SU,
*Mini Cylinder: MAL, MA, , MI, CJ2B, CDM2B
*Compact Cylinder: SDA, CQ2
*Cylinder: CU, TN, STM, MGP
*Solenoid Valve: 3v1, 3v, 4v, 4M, 3A, 4A, etc
*Air Source Treatment Unit: A, HA, HNA, T, A/B, etc

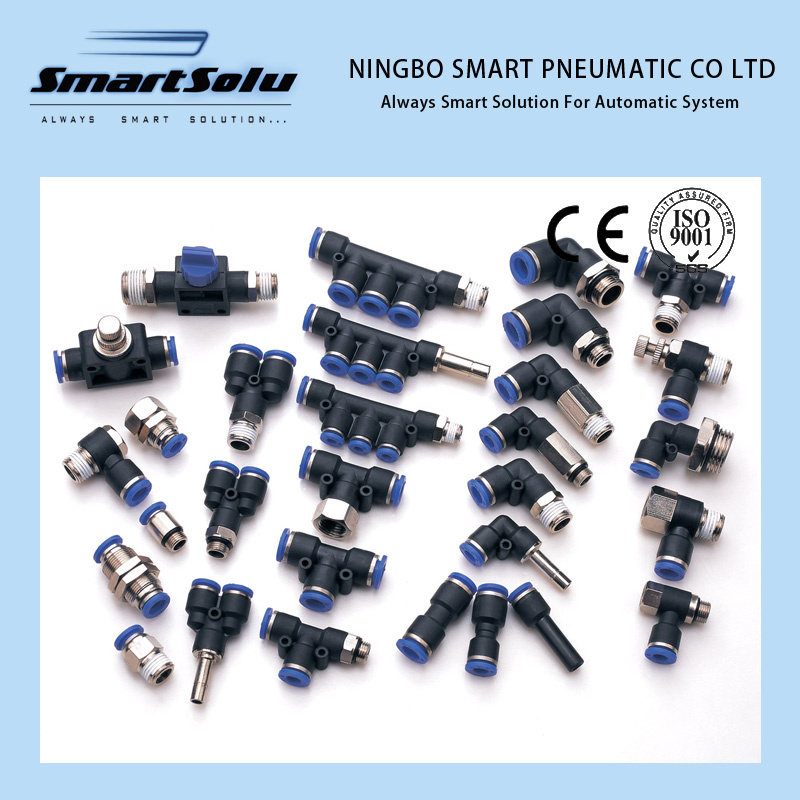

*pneumatic accessories: Fitting, hand valve, muffler, tube, pressure switch
| MODEL(ΦD-T) |
| Tube(Metric)-Thread(R) | Tube(Inch)-Thread(R) | Tube(Inch)-Thread(NPT) |
| PL 4-M5 | PL 6-04 | PL 10-04 | PL 5/32-01 | PL 5/16-04 | PL 5/32-N1 | PL 5/16-N4 |
| PL 4-M6 | PL 8-01 | PL 12-01 | PL 5/32-02 | PL 3/8-01 | PL 5/32-N2 | PL 3/8-N1 |
| PL 4-01 | PL 8-02 | PL 12-02 | PL 1/4-01 | PL 3/8-02 | PL 1/4-N1 | PL 3/8-N2 |
| PL 4-02 | PL 8-03 | PL 12-03 | PL 1/4-02 | PL 3/8-03 | PL 1/4-N2 | PL 3/8-N3 |
| PL 6-M5 | PL 8-04 | PL 14-03 | PL 1/4-03 | PL 3/8-04 | PL 1/4-N3 | PL 3/8-N4 |
| PL 6-M6 | PL 10-01 | PL 14-03 | PL 1/4-04 | PL 1/2-01 | PL 1/4-N4 | PL 1/2-N1 |
| PL 6-01 | PL 10-01 | PL 16-03 | PL 5/16-01 | PL 1/2-02 | PL 5/16-N1 | PL 1/2-N2 |
| PL 6-02 | PL 10-02 | PL 16-04 | PL 5/16-02 | PL 1/2-03 | PL 5/16-N2 | PL 1/2-N3 |
| PL 6-03 | PL 10-03 | | PL 5/16-03 | PL 1/2-04 | PL 5/16-N3 | PL 1/2-N4 |
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "
SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.
SMART PNEUMATIC hopes to work together with you, developing in parallel!
