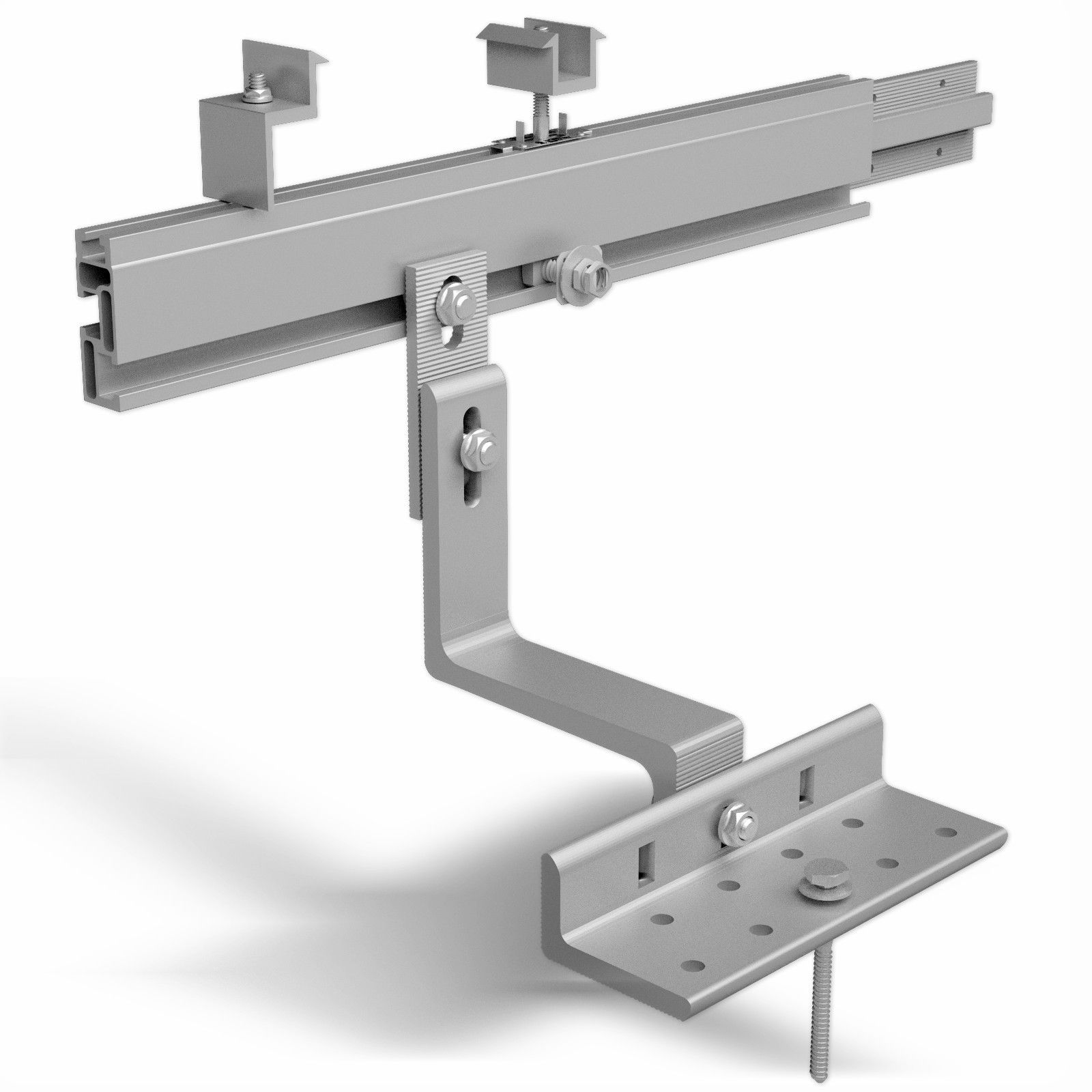

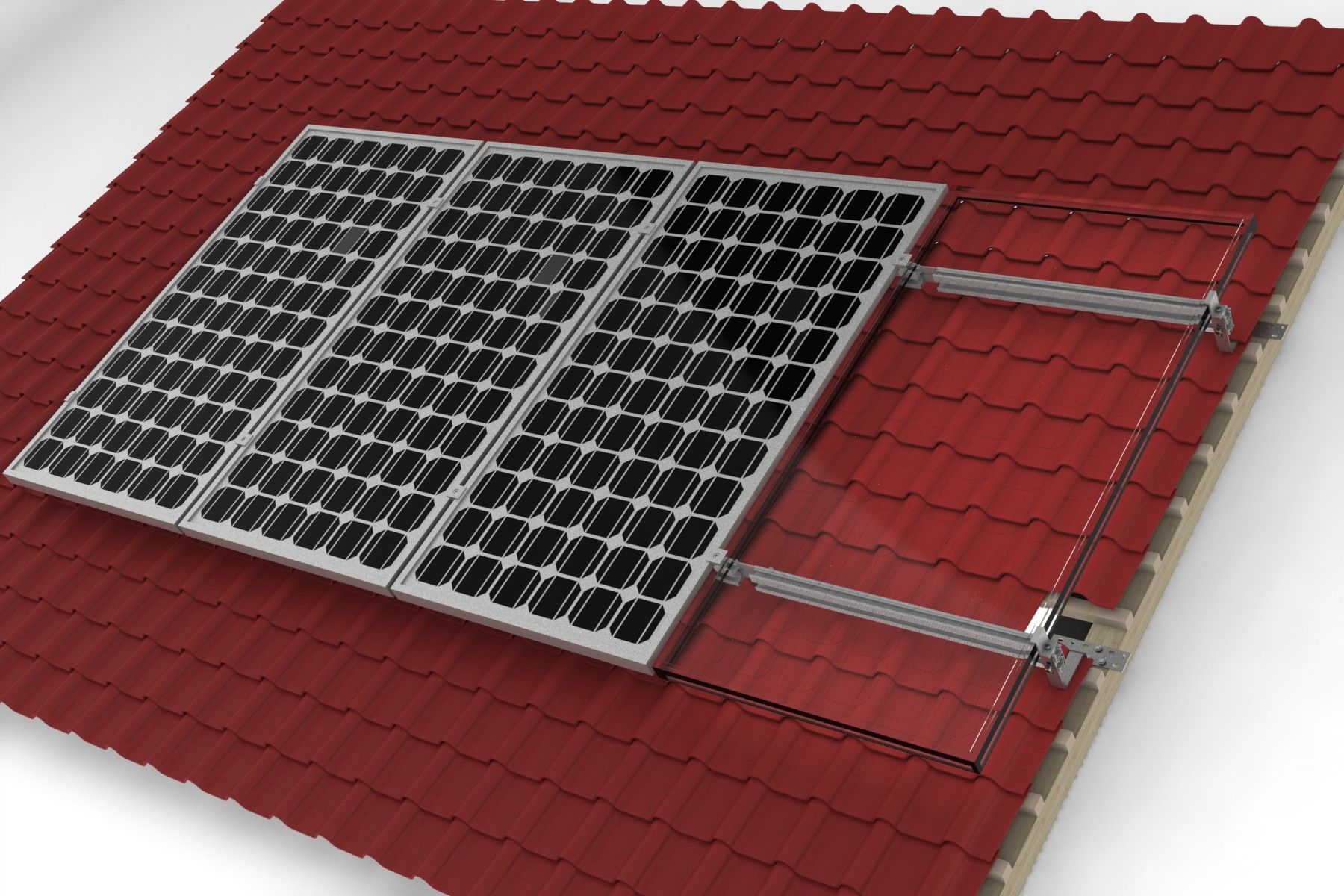

Pitch Tile Roof PV Solar System/Panel Mounting BracketsIntroductions of hook bracketstile roof mount system,accommdating a wide range of modules framed or frameless,is suitable for most types of roof with different roof hooks.With innovative rail and module,our tile roof mounting enables significantly faster and easier installation than others.| material | aluminum 6005-T5 |
| fasteners material | stainless steel |
| application | pitched tile roof |
| module array | 2*2/ 4*1 or customized |
| panel type | framed or frameless solar panel |
| panel orientation | horizontal/vertical |
| wind speed | up to 130mph(60m/s) |
| snow load | up to 30psf(1.4kn/m2) |
| warrenty | 10 years warranty,25 years service life |
| certifications: | ASNZS1170/UL/SGS/Gamcorp/MCS/Intertek/SPAD |
| OEM mounting parts | accepted |
| place of origin | Jiangsu,China |

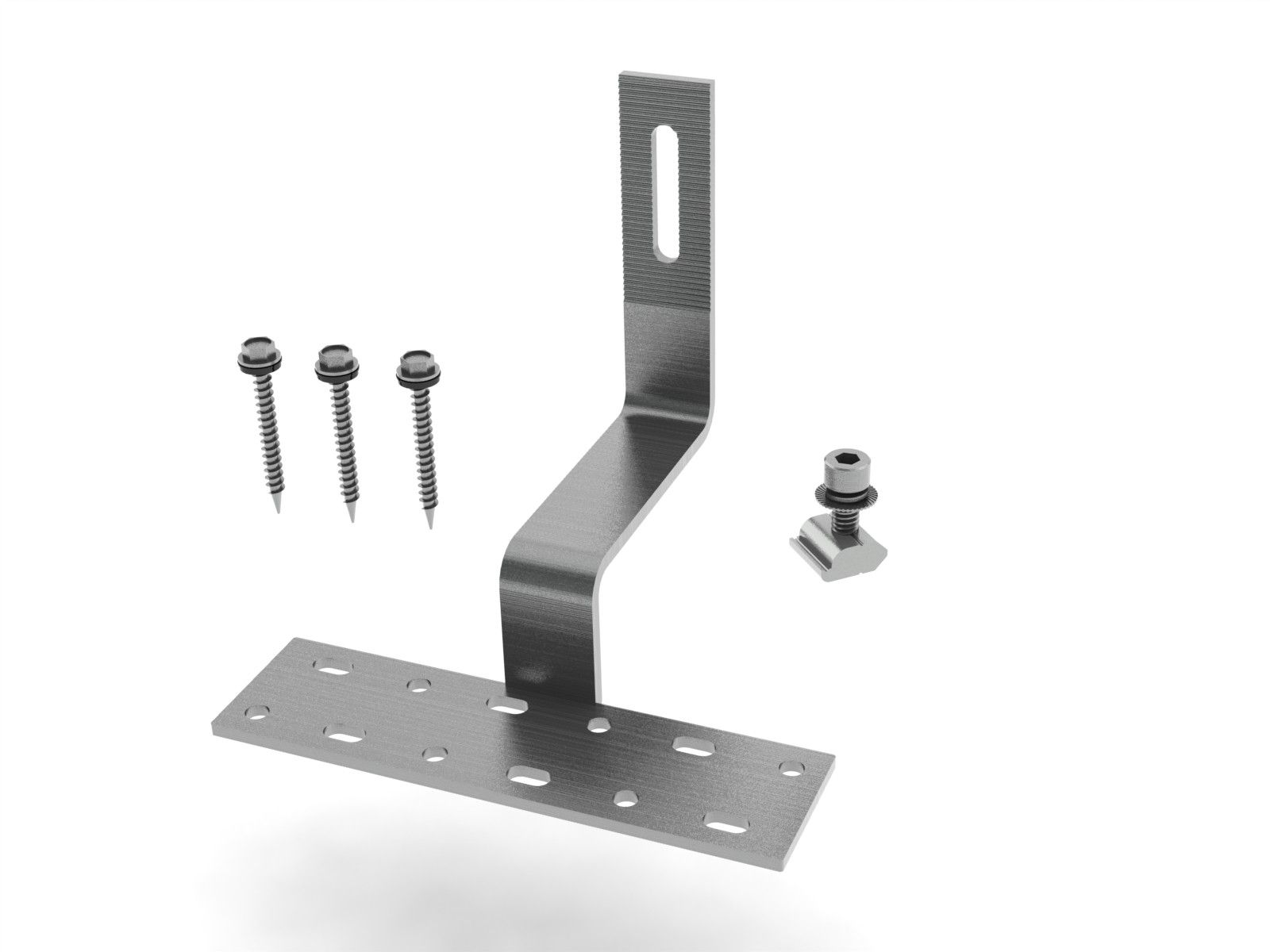

Features of hook brackets1. Easy Installation.
The design brief of roof tile hook is to facilitate customers' understanding and installation. Compared to other products ,it can be installed easily with a single hexagon key and standard tool kit and also save a lot of energy and time. 2. Great Flexbility
The roof tile hook have an excellent compatibility. It can be easily mounted on almost every roof cladding available.
3. Maximum Lifespan
The roof tile hook is made of quality extruded stainless steel and aluminium which come from local well-known suppliers.
4. Excellent Adaptability
No matter how rough the roof ,the roof tile hook can be made height adjustment according to customers' demands at any time.
5. Guaranteed Durability
Our company provides a guarantee of 25 years on the durability of all materials use.

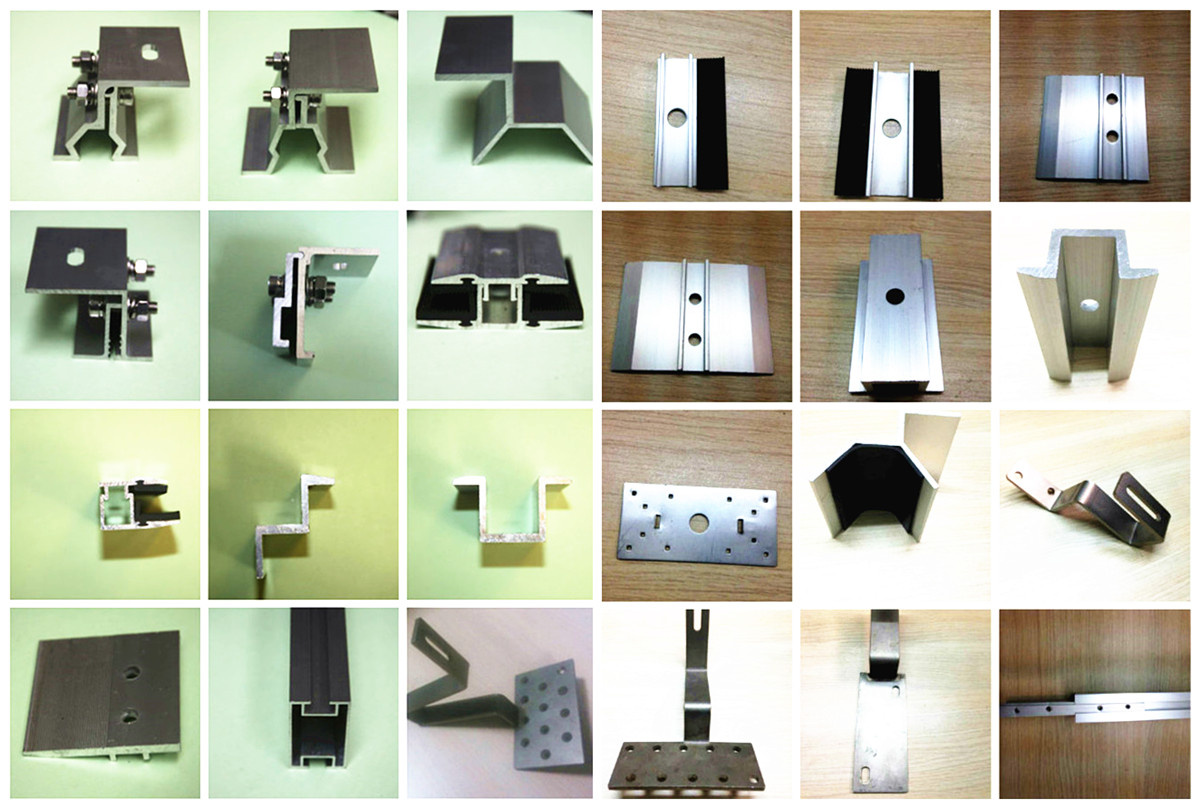

Mounting Parts OEM| OEM parts | material |
| middle clamp with rubber | anodized aluminum |
| end clamp with rubber | anodized aluminum |
| tile roof hook | hot dipped galvanized steel |
| up-right bracket | anodized aluminum |
| joint bracket | anodized aluminum |
| hanger bolt-L bracket | anodized aluminum |
| mounting rails | anodized aluminum |
| rail connector | hot dipped galvanized steel |
| ground mounting purline | hot dipped galvanized steel |
| ground mounting beam | hot dipped galvanized steel |
| ground screw pile | hot dipped galvanized steel |
| steel pile | hot dipped galvanized steel |
| rail joiner | anodized aluminum |
| L-bracket | anodized aluminum |
| earthing lug | andoized aluminum |
| klip-lok bracket | anodized aluminum |
| clamped rail piece | anodized aluminum |
Company Profile
Wuxi Solarfu Mechanical Equipment Manufacturing Co.,LTD is a high-tech enterprise specialized in the R&D, Manufacturing and Service of solar mounting systems,Founded in 2010 and has a manufacturing base in Yangtze Delta with 4000m2, just one hour distance t away from Shanghai port by car.
In the past 6 years, Solarfu has developed into one of the major solar mounting systems suppliers in China mainland.our products line include ground mounting system/roof mounting system/carport mounting system and OEM solar mounting parts like clamps/rails/hooks.all the brackets we offer are made of Anodized Aluminum and Galvanized Steel which quality are highly-apprecaited.
Solarfu has passed ISO 9001 and other various qualified certifications,The production process is always adhere to the ISO 9001:2000 quality management system and the industry standards. The company continues to forge ahead, and strives to become a world-class leading enterprise of pv products.We warmly welcome you for popularizing the clean energy together with us.As a manufacture,what we can offer
Contact us now In order to help you get the right system, please offer the following necessary info:
1. Dimension of solar panels(length*width*thickness)?
2.Solar panels array?
3. Where to install (which kind of rooftop or ground)?
4. Tilt angle?
5. Any requirements about wind load and snow load?
Wuxi Solarfu Mechanical Equipment Manufacturing Co., Ltd is a high-tech enterprise specialized in the R&D, Manufacturing and Service of solar mounting systems, Founded in 2010 and has a manufacturing base in Yangtze Delta with 4000, just one hour distance t away from Shanghai port by car.
In the past 6 years, Solarfu has developed into one of the major solar mounting systems suppliers in China mainland. Our products line include ground mounting system/roof mounting system/carport mounting system and OEM solar mounting parts like clamps/rails/hooks. All the brackets we offer are made of Anodized Aluminum and Galvanized Steel which quality are highly-apprecaited.
Solarfu has passed ISO 9001 and other various qualified certifications, The production process is always adhere to the ISO 9001: 2000 quality management system and the industry standards. The company continues to forge ahead, and strives to become a world-class leading enterprise of PV products. We warmly welcome you for popularizing the clean energy together with us.
