Percussive-Rotary Reverse Circulation Drills

Percussive-Rotary Reverse Circulation Drills
Price: US $ 20000-200000/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Percussive-Rotary Reverse Circulation Drill,reverse circulation drilling machine,
countercirculating drilling rig,reverse driller




This kind of Reverse Circulation Rock Drill is manufactured by Xuzhou Hercules Manufacture Co., Ltd. The common Reverse Circulation Drilling Rig could bore the holes within the diameter 2000mm, but could bore through solid rock. This new model of Reverse Circulation Rock Drill meets all the function of common Reverse Circulation Drilling Rig, and it has an important feature that could bore through solid rock. The machine will be use as a common reverse circulation drill in general In general foundation, but when meet rock layer, the machine could be equipped with percussion hammer to bore through rock stratum. Now we prepare two chassis for you to choice, crawler type and foot-step type.

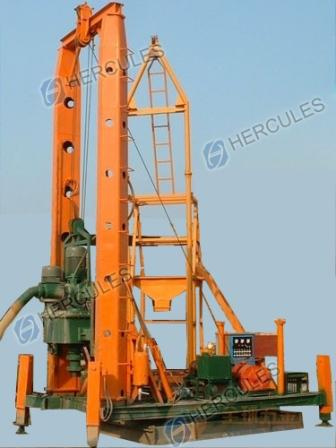

Foot-step Reverse Circulation Drilling Rig FXZ-150 is the perfect combination of drilling rig and percussion drill. It could meet most customers' requirement with max. Drilling diameter 1500mm and max. Drilling depth 100m. This machine has adopted a novel appearance which is currently the most advanced hydraulic foot-step chassis that could rotate 360° . The alloy bit of the machine also could improve the impaction of the hard rock and it has significantly improved the performance of reverse circulation and the work efficiency.
Model       FXZ-150Rotary Drive Power37kw
Max. Drilling Diameter 1500mm Rotary Drive Speed10rpm
Max. Drilling Depth100m Travel Speed1km/h
Winch6TGrade Ability  30°
Max. Torque380kn. mOverall Dimension  740*364*768cm
Rotate Angle    360°  Overall Weight   22T
Prod Model: FXZ-150
Max. Drilling Diameter: 1500mm
Max. Drilling Depth: 100m
Type: Drill
Pile Hammer Type: No
Xuzhou Hercules Machine Manufacture Co., Ltd. is ISO9001 quality management system certification enterprise, the certified supplier by SGS, the high-tech private enterprise in Jiangsu province, Jiangsu province AAA grade Credit enterprise; Jiangsu province AAA grade Quality, Integrity Services enterprise and the company also was "Xuzhou Piling Machinery (Hercules) Engineering Research Centers".

Hercules piling machinery was awarded the title of Jiangsu High-tech Products. Our company has 20 state grade patents and new practical patents. Our machine had become the new benchmark for quality piling machinery!

Our main products include Long Auger Drilling Rigs (drilling diameter: Φ 300-Φ 1500mm, drilling Depth: 10m-35m), Diesel Hammer Pile Drivers (4T-10T), Rail Type and Electric Crawler Wick Drain Drivers, Percussion Drilling Rigs (drilling diameter: Φ 800-Φ 3000mm). Especially the machine Multi-function Pile Drivers integrated with expansion pile, compaction pile, gravel pile, pilling rig and prefabricated pipe pile, which favored by the users and lead the sale. We can also make the machinery and the components according to the customers' Requirement.

With the characters of first-class R & D team, controlling the overall design, pursuit of the details, continuously improving according to the users' Experience and lesson in practical engineering, especially the strengthening processing for the key parts, our machines ensure to afford higher-intensity operations and meet user higher efficient construction requirements.

Hercules always believes that the interests of customers are more than our own interests which is also the standard for you to trust us. Hercules treasures your trust and confidence and we always begin from maintaining your construction efficiency.
