| Price: | US $ 199-4999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P |
Xutai MachineryTM

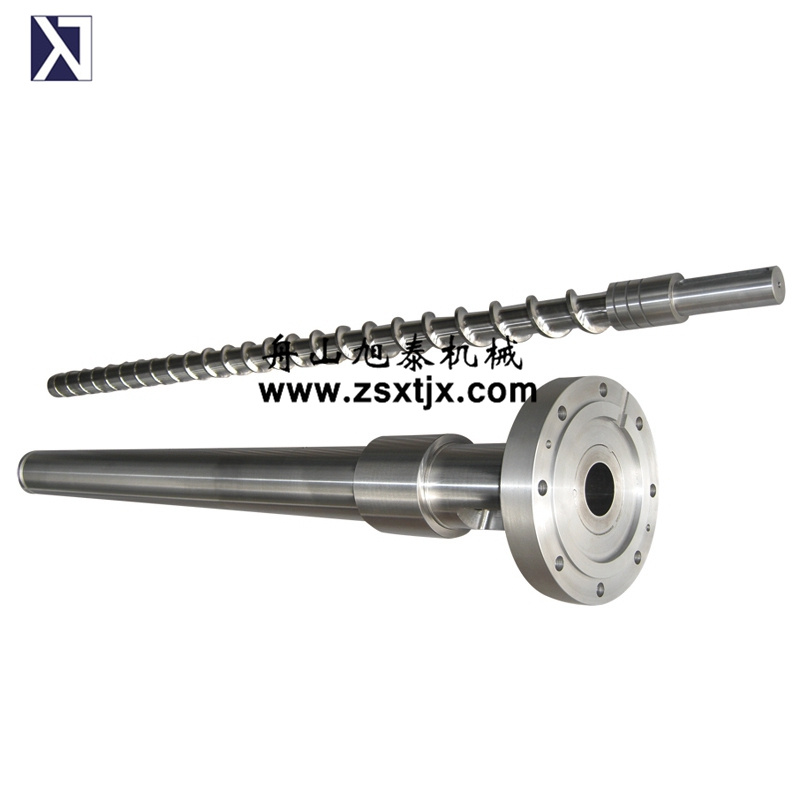

Screws are designed to provide improved melt quality and increased production.

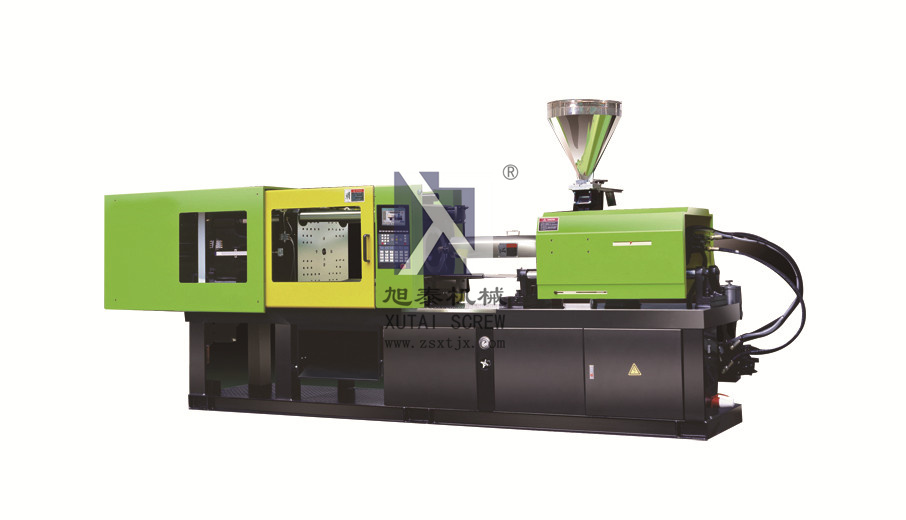

We Xutai machinery is a leading supplier of Extruder Feed machine, Injection machine, Blow molding machine Screws and Barrels.
1) Located in the hometown of screw and barrel--Jintang Town, Zhejiang Province, China.Where has raw material market, screw machining and heat treatment technology and much improved technicals to make sure of screws quality.
2) High quality control system, tolerance 0.01 are available.
3) Within 2.5 hours distance from Shanghai airport, and 1 hour from Ningbo airport, we also have very convince transportation port.
4)100% totally manufactory made with an experience international trade team.
5) ISO9001 and SGS certification
| Place of Origin: Zhejiang | Brand Name: XT | Model Number: SSE001 |
| Application: Extrude machine | Applica.Material:PE/PS/PVC | Material: 38CrMoAla |
| Surface treatment: Nitriding | Warranty:12months | Advantage:improving working life |
| Techical Index | Nitriding layer depth: 0.5-0.8mm | Processing | 1.Heat treatment |
| Nitration hardness: 900-1020HV | 2.Quenching | ||
| Depth of bimetallic layer: 3mm | 3.Nitriding Treatment | ||
| Hardness of bimetallic layer:HRC55~72 | 4.Bimetallic alloy welding for screw | ||
| Thickness of Cr-coating layer: 0.03-0.08mm | 5.Bimetallic alloy centrifugal casting for barrel | ||
| Hard-Chrome plating hardness after nitriding≥950 | 6.Hard-Chrome electroplating | ||
| Surface roughness :Ra 0.4 | 7.Linearity of Screw:0.015mm | ||
| Main Material | 1.38CrMoAla/ JIS SCM645 | Main Alloy Material | 1. Ni-based alloy/Deloro alloy |
| 2.SKD-61 | 2. Tungsten carbide/Wolfram carbide | ||
| 3.42CrMoAla(SCM440) | 3. NiCo-based alloy | ||
| 4.W6Mo5Cr4V2 | 4. Fe-based alloy | ||
| 5.9Cr18MoV | 5. Co-based alloy |
| Amount of injection(g) | Diameter of Screw X Length(mm) | Diameter of Barrel X Length(mm) | Amount of injection(g) | Diameter of Screw X Length(mm) | Diameter of Barrel X Length(mm) |
| 30-90 | Φ30x900 | Φ85x860 | 800-1250 | Φ75x1825 | Φ170x1725 |
| 60-125 | Φ35x910 | Φ85x860 | 1000-1500 | Φ80x2000 | Φ180x1805 |
| 100-150 | Φ38x935 | Φ95x900 | 2000-3000 | Φ85x2300 | Φ190x1900 |
| 125-160 | Φ40x980 | Φ95x910 | 2500-5000 | Φ90x2700 | Φ210x2000 |
| 125-300 | Φ42x1030 | Φ105x1880 | 2500-5000 | Φ100x2600 | Φ230x2405 |
| 250-400 | Φ45x1210 | Φ115x1165 | 3000-6000 | Φ110x2600 | Φ256x2590 |
| 300-500 | Φ50x1300 | Φ125x1260 | 4000-10000 | Φ120x2800 | Φ256x2800 |
| 450-600 | Φ55x1335 | Φ130x1320 | 6000-8000 | Φ130x3010 | Φ256x2970 |
| 500-700 | Φ56x1350 | Φ130x1350 | 8000-10000 | Φ145x3010 | Φ256x3200 |
| 500-700 | Φ60x1380 | Φ140x1350 | 10000-15000 | Φ160x3500 | Φ270x3200 |
| 650-800 | Φ65x1415 | Φ150x1420 | 13000-25000 | Φ170x3415 | Φ317x3380 |
| 700-1000 | Φ70x1790 | Φ160x1685 | - | - | - |
| Prod Model: | XT001 |
|---|---|
| Material: | 38crmoala 42crmoala SKD61 |
