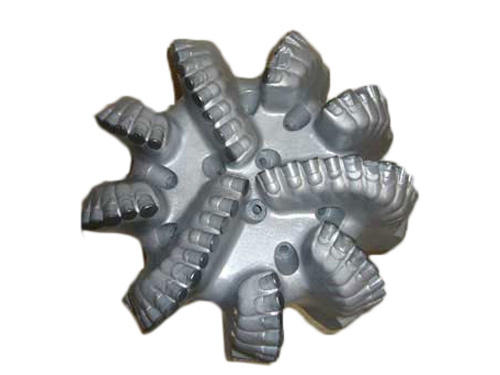

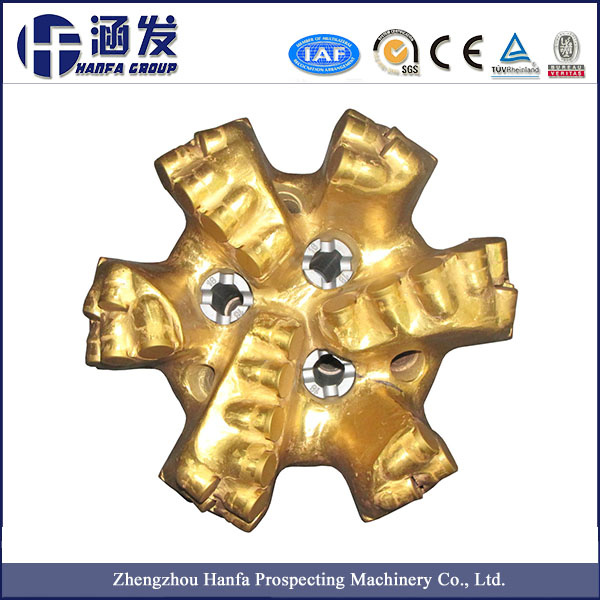

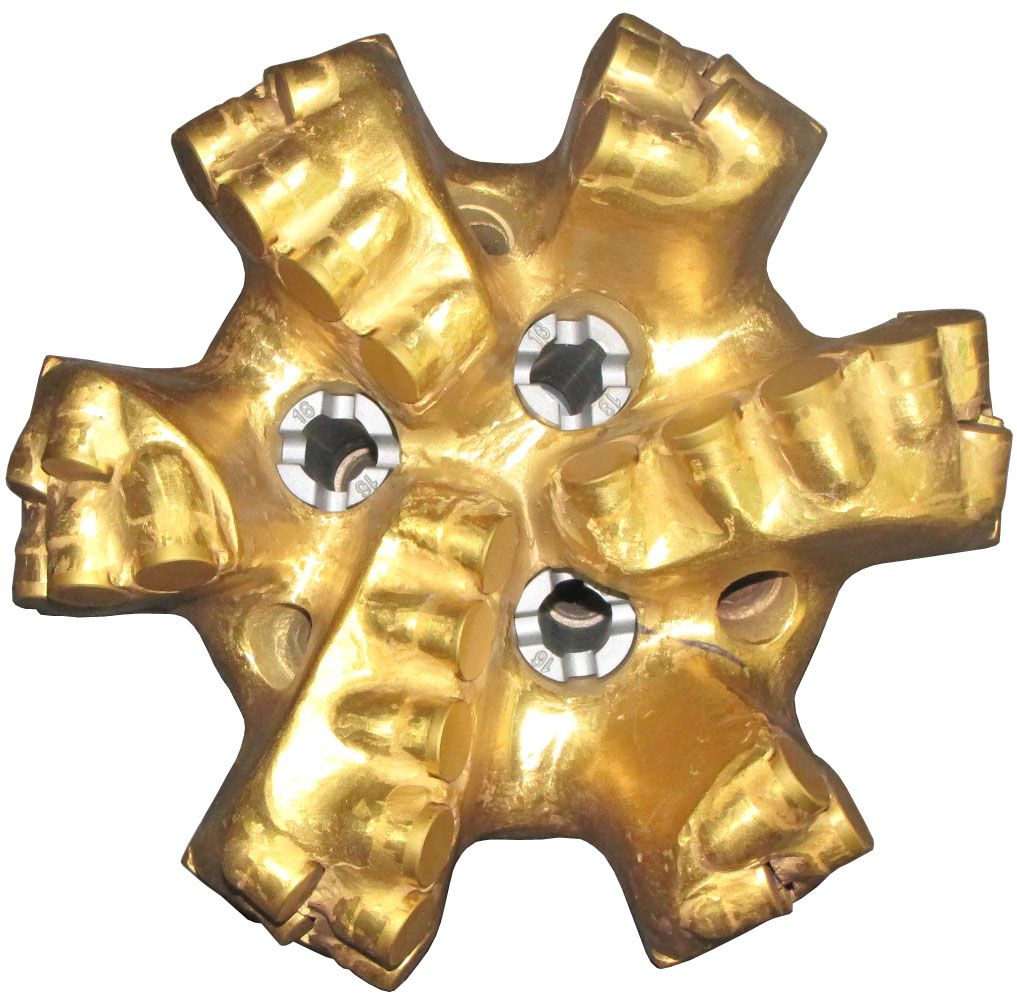

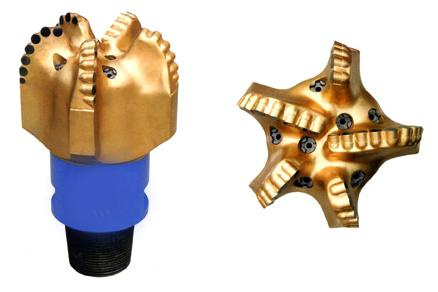

PDC Bits for Oil Well Drilling

PDC Bits for Oil Well Drilling
Price: US $ 1000-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union

Matrix Body PDC Core Bit



1. MEDIUM TO HARD FORMATION DRILLING

Medium short parabolic profile with medium cuter density and blade-style cuter layout helps to obtain ROP in medium hard formations with medium compressive and small hard layers.

2. HIGH PERFORMANCE CUTTER

 8mmhigh performance cutters promote drilling ability in formations with layers

3. DURASET GAUGE

 Super strong material promotes gauge wear resistance to provide long bit life.

Size available: 8-1/2"*4"

Natural Diamond Core Bit

Features:

Double core parabolic profile and heavy natural diamonds placement are designed for coring in the hard and abrasive formation. High grade and suitable size natural diamonds improve increase bit's ROP and duration.

Applications:

Application formation: Hard and compact formation with very high compressive strength and some abrasive layer. Rock type: Calcareous shale. Sandstone.

Size available: 215.4*105

Matrix Body PDC Drill Bit

1.SOFT TO MEDIUM AND HARD FORMATION DRILLING

Short parabolic profile with lower cutter density helps to obtain better ROP in soft to medium hard formations with lower compressive strength and small hard layers.

Parabolic profile with medium to lower cutter density helps to obtain better ROP in soft to medium formations with low compressive strength and small abrasive layers.

Medium Parabolic profile with medium cutter density helps to obtain better ROP in medium hard formation with medium compressive strength and small abrasive layers.

Parabolic profile with heavy cutter density helps to obtain better ROP and long life in hard dense formations with high compressive strength and small abrasive layers.

2. DURASET GAUGE

Super strong material promotes gauge wear resistance to provide long bit life.

3.SPECIAL CUTTER LAYOUT

Balanced force cutter layout combined with straight blade design to improve the bit stability.

Balanced force cutter layout combined with backside cutter design to improve the bit life and impact resistance.

4. HYDRAULICS

Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with the proportional fluid flow.

Big junk slot with balanced hydraulics design improves anti-balling ability within high penetration.

5. UNIQUE BACKRACK DESIGN

The cutter's back rake has been unique design, reducing the bit torque and increasing aggressiveness .

6.UNIQUE BLADE DESIGN

Curved blade design makes the bit work stability.

Straight blade mixed with curved blade make the bit work stably.

Size available:6", 8-1/2", 9-1/2", 12-1/4",16", 17-1/2"

Steel Body PDC Drill Bit

1. SOFT TO MEDIUM HARD FORMATION DRILLING

Medium short parabolic profile with medium cutter density helps to obtain better ROP in soft to medium hard formations with lower compressive strength and small hard layers.

2. DURASET GAUGE

Gauge cutter promotes gauge wear resistance to provide long bit life.

3. HYDRAULICS

Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with the proportional fluid flow.

4. UNIQUE BACKRACK DESIGN

The cutter's back rake has been unique design, reducing the bit torque and increasing aggressiveness .

Size available: 8-1/2", 12-1/4"

Prod Model: PDC Bits
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use: Drill Rig
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.

Presently, it has three subsidiaries which are Zhengzhou Hanfa Prospecting Machinery Co., Ltd, Zhengzhou Hanfa Imp & Exp Trading Co., Ltd, HK Hanfa Imp & Exp Trading Co., Ltd. It has experienced engineers, professional R&D team, special after service team, world class sophisticated equipment and advanced technology guarantee the best quality drilling equipments and best service to its customers.

Hanfa Group perennially committed to the development, production and sales of drilling machine, mainly including water well drilling rig, core drill, DTH drill, rotary/piling rig, trenchless centering drill, hydraulic tunnel drilling rig, etc. Hanfa Group send all kinds of drill for the global market, the products are sold to all over the world, exports more than 60 countries and regions, is the leading brand of drilling rig in China. At present, Hanfa Group built Beijing, Tianjin, Shandong, Hubei R&D and manufacturing base.

Hanfa Group always adhere to the "two audit", one is must through the international authoritative certification bodies's audit; The second is needs to be approved by customers and the public. It is also true, Hanfa Group, all kinds of drilling rig, has passed the ISO9001: 2008 and ISO9001: 2000 quality management system, the national military standard GJB9001-2001 and ISO14001-2004 environmental management system and GB/T28001-2001 occupational health and safety management system certification, CE and other international well-known certification bodies audit and certification, obtained the international recognition of authority;

At the same time, the development of the new and old customers, numerous customers from all corners of the world's praise, confirming the quality of Hanfa products is already deeply rooted in the hearts of the people, pass the "audit" of masses of the people. High quality is the the faith and the most basic bottom line of Hanfa Group since it founded twenty years ago. For more than 20 years, the countless praised, care, support have been produced a large web of trust, like the Hanfa's reputation today, global coverage, influence the world.

Hanfa Group do not forget good service while in adhere to the quality. In Hanfa Group, the quality is the root, service is the source. Hanfa Group, after long-term development, formed a very perfect service system, the service system covering the pre-sale, sale, after-sale three important links, fully satisfy the customer service requirements at different times, leave no dead angle of service to the customer. Hanfa Group has a strong service team, including 30 senior engineers, more than 50 technical personnel, hundreds of after-sales service personnel. After many years of accumulation, the service team had rich experience, is the most perfect service industry, service quality of the best team. Hanfa Group, has send technicians abroad to after-sales service more than 20000 times, operation training for more than 10000 times, machine repair about 5000 times...Large and small data, not only explain Hanfa has send thousands of customer operation method, construction technology, drilling technique, machine maintenance knowledge, the fault of the machine function again...But also record with the brilliance of Hanfa's service team, the footprints on the road, confirm the powerful strength and service quality of Hanfa Group.
