PCI 4.0 Ik07 IP65 New Wincor V5 ATM Machine Metal Pin Pad

• PCI 4.0	Yes
  DES, TDES, RSA algorithm	Support
  Wosa/XFS standard	Follow
  Remote key loading	Support
  Lifespan of buttons (pressing times)	>3,000,000
  Interface	USB or RS232
  Layout	can customize for any language


  Dimensions:

  Faceplate: (W× H): 160× 102.4mm

  Basic information:

  1. Keypad made of high quality stainless steel
  2. Customizable layout, dimension and installation design
  3. Dustproof, waterproof, shake-proof, pickproof, drill-proof, bombproof
  4. Braille key design for visually handicapped people
  5. Latest professional security processing chip
  6. Optional USB and RS232 connection
  7. Ports for optional eight external function keys, beeper and guide light
  8. Two types of power supply ports
  9. Tamper protection box
  10. Secure and reliable protection against power cut

  Logical Features:

  1. Standard firmware that supports common encryption/decryption algorithms
  2. Customizable firmware design for specific application requirement
  3. Full function and easy-to-use driver Application Programming Interfaces (API)
  4. Secure, complete and flexible encryption key management architecture and technology
  5. Support of multiple PIN block formats
  6. Secure PIN processing
  7. Unlimited length of data for user data encryption/decryption and MAC calculation

  Supported Algorithms:

  1. DES user data ECB/CBC encryption/decryption
  2. 3DES user data ECB/CBC encryption/decryption
  3. DES MAC calculation
  4. 3DES MAC calculation
  5. DES PIN encryption
  6. 3DES PIN encryption
  7. Multiple PIN Block formats: ANSI, ISO0, ISO1, ECI2, ISO3, IBM3624, DIEBOLD, DIEBOLDCO

  Physical Security Features:

  1. Automatic detection of disassembling the keypad
  2. Automatic detection of disassembling the encrypting module
  3. Automatic detection of drilling on the PCB board and encrypting module
  4. Automatic detection of low battery warning
  5. Automatic detection of high and low temperature

  Tamper Detection and Protection:

  The tamper detection leads to the following protection responses:
  1. Erasure of master keys which are used to decrypt the encrypted working keys
  2. Erasure of working keys which are used to encrypt the user data or PIN
  3. Erasure of the user data in the memory
  4. Erasure of the program in the memory
  5. Resetting the device to an unusable state

  Reliability and Performance Data:

  1. Key lifetime > 3, 000, 000 cycles per key
  2. Force on keys: 3-5 N
  3. Key travel: 0.45mm
  4. Wide voltage input: 5V DC +/- 20%
  5. In running state, 5 V +/- 20% is needed; The electrical current is up to 100 mA and the actual power consumption is below 1.5W.
  6. Running lifetime > 5 years; Battery lifetime > 5 years (without external power supply)
  7. Calculation time on 256 bytes by 3DES MAC calculation < 500 milliseconds

  3DES IP65 NEMA 4X ATM Metal Keypad;
  Self-destruction when dissembling is detected;
  Dustproof, water proof, vandalism resistance,
  Shake-proof, pickproof;
  Interface: RS232, USB;
  Supply Voltage: +5V DC +/-5%;
  Lettering: Sunk laser legends & characters in high quality ink;
  Switch life: More than 2 million of operations;
  Actuator/keys materials: 316#(RoHS) stainless steel;
  Customizable keys;

  Pass the certification of:

  China Central Bank card testing center;
  CE, RoHS, FCC
  ANSI 9.8 PINBLOCK:
  ANSI, IBM3624, ISO0, ISO1, ISO2, ISO3, DIEBOLD, DIEBOLDCO;
  IP Protection Class IEC/DIN/EN/ 60529: IP65
  IK Protection Class DIN EN 50102: IK07

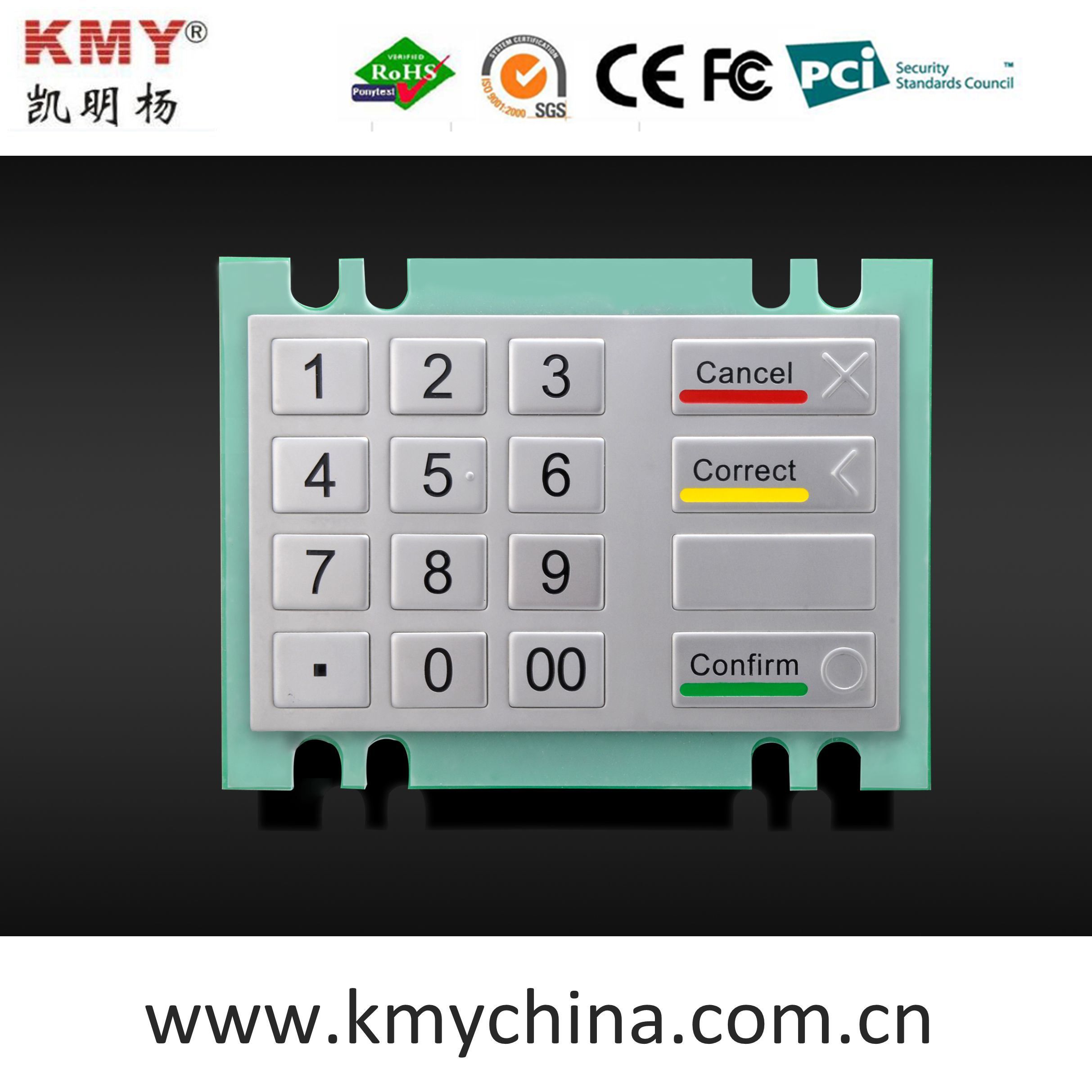

Product Pictures





Company Introduction

      KMY (SZ KMY Co., Ltd) is a worldwide leading manufacturer of self-service kiosks, metal keyboards, and telephone POS. The company is located in Shenzhen, China, a beautiful seaside city, which is the most developed and high-tech driven area in China, only 45 minutes ride from Shenzhen to Hong Kong and very convenient for international business discussion.

      KMY products and solutions are popular both in the domestic and global markets in over 40 countries, mainly in America, Europe, Asia, Africa, and the Middle East and have gained a strong reputation in this industry. KMY is not only a profitable company with robust financial performance and stable cash flow, but is also a company with growing potentials and prospects. Looking forward, KMY defines its strategic goal of "becoming a worldwide leader in the self-service world and achieving leapfrog evolution from excellence to preeminence". To this end, KMY will adhere to its core value proposition of "Responsibility Makes Perfection" and will spare no effort to improve its competitiveness by implementing the concept of scientific development.

      KMY's Team is our core competence. We know that all the quality products and services come from a conscientious and enthusiastic team. The intellectual staff and over 75% of the engineering technology staff have at least 10 years experience in manufacturing kiosks, developing technology and researching self-service terminals

      Our belief is that "Integrity, Teamwork, Innovation and Sustainability" are the factors that will keep KMY growing stably and healthily and provide better services to our customers.

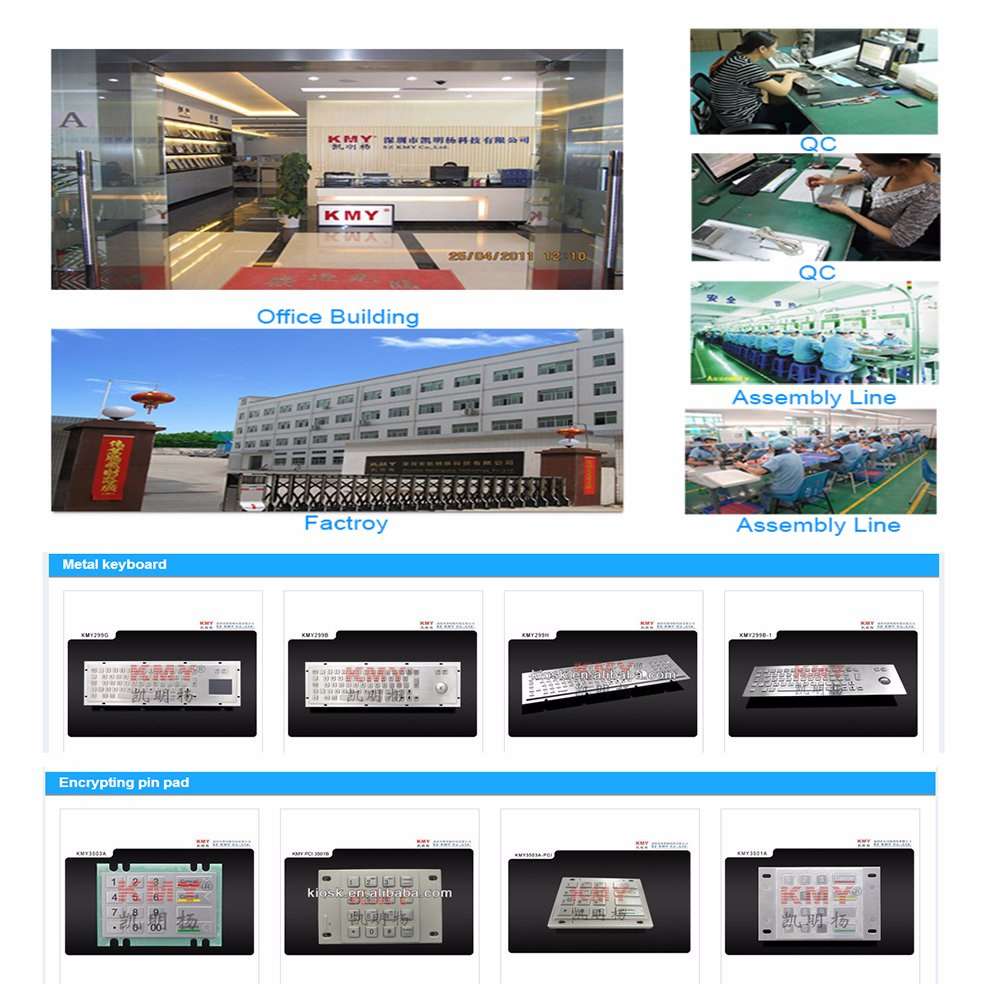

Factory Production
