Panel Saw with 2800mm Sliding Table (MJ6128TZ)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |

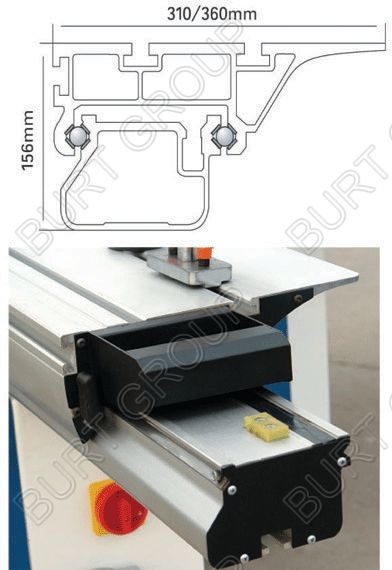

| 01) Dimensions sliding table:2800×360mm |
| 02) Gross cut capacity:2800mm |
| 03) Width of cut between saw blade and rip fence:1250mm |
| 04) Standard accessory Saw blade φ:300mm(Capacity φ250-φ315) |
| 05) Height of cut with saw blade φ315mm at 90°:95mm |
| 06) Height of cut with saw blade φ300mm at 45°:55mm |
| 07) Speed of main saw blade:4000/6000rpm |
| 08) Spindle diameter:30mm |
| 09) Tilling saw blade:0-45° |
| 10) Main motor:4kw |
| 11) Scoring saw blade:120mm |
| 12) Speed of scoring saw blade:8000r/min |
| 13) Spindle of scoring saw:20mm |
| 14) Motor:0.75kw |
| 15) Net weight:620kgs |
| 16) Gross weight (wooden packing case):770kgs |
| 17) Overall dimensions:2850×3150×900mm |
01) Dimensions sliding table:2800×360mm
02) Gross cut capacity:2800mm
03) Width of cut between saw blade and rip fence:1250mm
04) Standard accessory Saw blade φ:300mm(Capacity φ250-φ315)
05) Height of cut with saw blade φ315mm at 90°:95mm
06) Height of cut with saw blade φ300mm at 45°:55mm
07) Speed of main saw blade:4000/6000rpm
08) Spindle diameter:30mm
09) Tilling saw blade:0-45°
10) Main motor:4kw
11) Scoring saw blade:120mm
12) Speed of scoring saw blade:8000r/min
13) Spindle of scoring saw:20mm
14) Motor:0.75kw
15) Net weight:620kgs
16) Gross weight (wooden packing case):770kgs
17) Overall dimensions:2850×3150×900mm
* Z style sliding table fitted as standard
| Prod Model: |
MJ6128TZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gross Cut Capacity: |
2800mm |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
CE |
