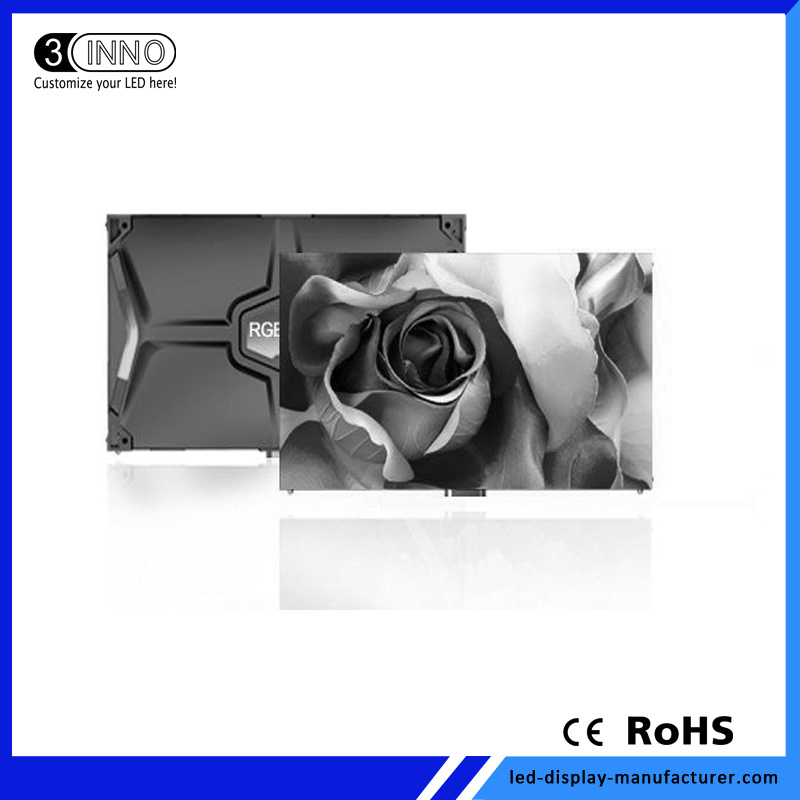

P1.25mm Ultra High Definition High Brightness Fine Pixel Pitch LED Display
1. 16:9 Golden division ratio
It can be point to point spliced to the led screen of standard 720P ,1080P ,2160P , 3840P ,etc.
2.Ultra high definition
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED screen .
3.precisely seamless splicing
The splicing gap< 0.01mm
4.Anti-slid handle design
Easy for transportation ,loading and uploading
5.High strength Aluminum alloy material
The integral die-casting aluminum molding workmanship has provided with excellent flatness of the cabinet
6.Front serviceable led screen for better experience
The front serviceable ultra HD led screen cabinet has fully described the strength of its light weight,met the needs of small space or where the needs of the cabinet thickness is needed, enhanced the vision of the space as well as its visionary effect. it allows for easy maintenance ,saving time and labor site.
7.Ultra wide viewing angle , different experience
Both 160 from horizontal and vertical fro the viewing angle. Seeing from five directions,it would be still the natural and clear image in an led screen.
| OPTICAL | Pixel Pitch | mm | 1.25mm |
| LED No. Per Pixel | pcs/pixel | 1 |
| Brightness(Adjustment) | cd/m² | 800 |
| Pixel Configuration | - | SMD0808/1010 |
| Module Resolution(W*H) | pixels | 160*135 |
| Cabinet Resolution(W*H) | dots | 480*270 |
| Pixel Density | dots/sqm | 640,000 |
| Viewing Angle(H/V) | degree | H160/V160 |
| Color Depth/Number | bit | 16bit |
| Grey Scale | - | 65,536 |
| ELECTRICAL | Frame Frequency | Hz/s | 50/60 |
| Refresh Rate | Hz | ≥3,840 |
| Contrast Ratio | - | 5000:1 |
| Max Power Consumption | W/m² | 800 |
| Ave Power Consumption | W/m² | 250 |
| Working Voltage | AC | AC90~264V |
| Drive Voltage | DC | 5V |
| Working/Storage Temperature | ºC | -20ºC - 60ºC |
| Humidity | - | 10%-85%RH |
| Driving Method | - | 1/27scan |
| MECHANICAL | Frame Material | - | Die-casting aluminum |
| Module Size | mm | 200 * 168.75 |
| Net Weight | kg/pcs | 7.8 |
| Weight Per Tile | lbs | 17.21 |
| Cabinet Size | mm | 600*337.5*80 |
| IP Rating | - | IP30 |
| Lifetime | hours | 100,000 |
| Service Access | - | front |
| Application | - | Indoor |
Shenzhen 3Cinno Optoelectronics Co., Ltd. Was found to be an integrated custom LED solution supplier which devoted to building impressive brand experiences to customers. Brand experience is becoming a more effective and efficient part of brands which involves Retail, Landmark, Airport, Bar, Casino, Hotel, Mall, etc. Brand experience is an immersive and holistic messaging platform that builds relationships, engages audiences, and catch valid data. To provide this experience, you can turn to for creative, flexible, and inspirational LED screen products, along with integration service that highlights customization. The purpose of the brand experience is advertising the user experience. In a word, we share the same goal: Individualized customization and abundant creative LED solutions give users an immersive experience.
We are trying our best to let all the clients to be our PARTNERS growing with us together!
