Outdoor SMD RGB P10 Advertising LED Display Screen
| Price: |
US $ 12-15/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
√ Over 10 Years == √ Factory == √ Own Exporting License
√ Quality Control == √ Competitive Price
√ Own Technology == √ OEM==Short Delivery Time
P10 full color out door SMD 3 in 1 LED display:
| Item | Parameter |
| Specification | P10 Outdoor single color LED moving display |
| Pixel Pitch | 10mm |
| Pixel Configuration | 1R//1G/1B |

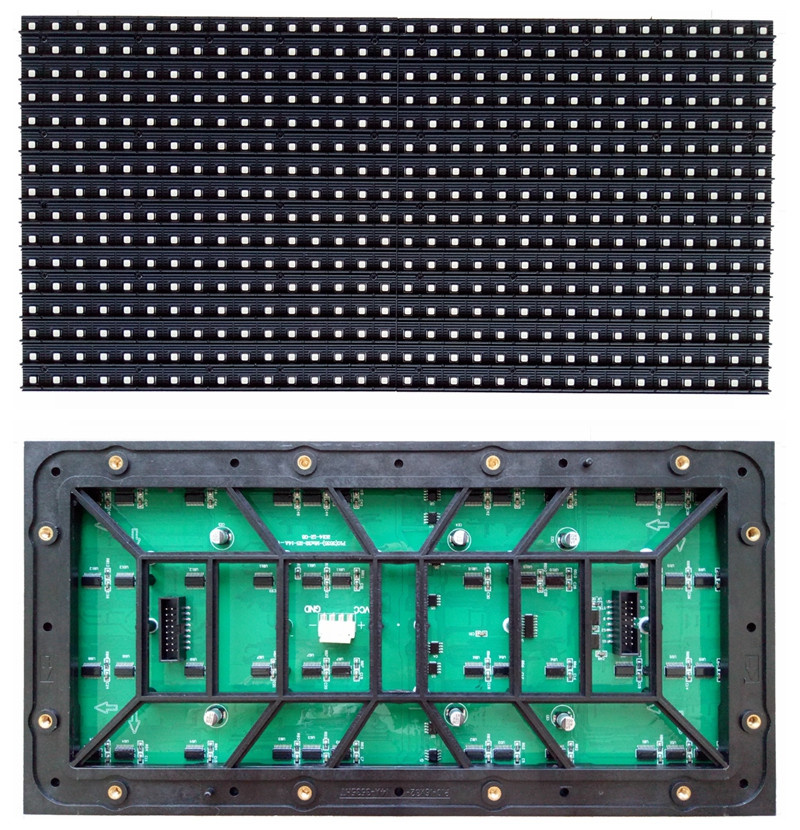

| Dimension of module | 320mm * 160mm |
| Module resolution | 32*16 |
| Gray scale | ≥ 1024 |
| Scan mathod | 1/2 scan |
| Brightness | 7000-7500 nits |
| Frame frequency | 60 frame/s |
| Fresh rate | 38400 Hz/s |
| Ave. Power consumption | 400W/m2 |
| Max. Power consumption | 750W/m2 |
| Operation Voltage | 110-220 V |
| Suitable voltage | Direct Current 5V |
| Working humidity | 10%-90% |
| Power supply | G-energy/Novastar |
| Driving IC | MBI 5124 |
| Best Viewing distance | 10-100m |
| Modules Weight | 520g |
| Cabinet | Simple cabinet/ Waterproof cabinet/rental cabinet |
| Working System | Synchronization or asychronization |
| Application | Road guiding, broadcasting and other attention. |
Brilliantopto and Evosson Brilliantopto co.,ltd [JingCai (Fujian) photoelectronics Co., LTD] is professional development manufacturing LED display system products and lighting products, was founded in 2005, with the registered capital 20.18 million, own workshop area 20000 m2, branch office and agents cover all over China, with about 400 employees.
Evosson Co.ltd is a subsidiary of Brilliantopto settled in Shenzhen, which not only succeeds Brilliant's professional in manufacturing high quality LED display and excellent service, but also have much more advantages.As Shenzhen is a center of globle source, we can get more superior price raw material and advanced information and technology, alll of these give Evosson a best environment in promoting its high-end products.
Packaging
Trade Terms:1. Package: anti-shaking wooden package, air flight case or carton package.
2. Payment: T/T, 30% deposit before production, 70% balance to be paid before delivery.
3. Free to support and train your operator.
4. Shipping port: Shenzhen, Mainland China.
5. Warranty time: 1 year
6. Delivery time: 3-14 working days. Our service:
1. Enquiry response time: within 12hrs.
2. OEM&ODM: design and produce your customized requirements.
3. Provide distributors customized design and models we already have.
4. Protect your sales area, design idea and all your private information.
5. Top quality + reasonable price + patient after-sales service.
6. Brilliant Opto can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display.
| Prod Model: |
P10 |
| Product Name: |
P10 Full Color LED Display |
| Brightness: |
>7000nits |
| Module Resolutionots: |
(W) 32 Dots * (H)16dots |
| LED Chip Spec: |
3535 (3 in 1) |
| Lamp Origin: |
Nationstar |
| Driving IC: |
Mbi 5124 |
| Weight: |
35 Kg/M2 |
| Power Supply: |
Meanwell, Chenglian and E-Energy etc. |
| Certificates: |
Ce, CCC, FCC, RoHS |
| LED Chip: |
Epistar |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Market Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/2 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
ISO9001 |
Brilliantopto Co., Limited Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
