| Price: | US $ 10500-36800/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

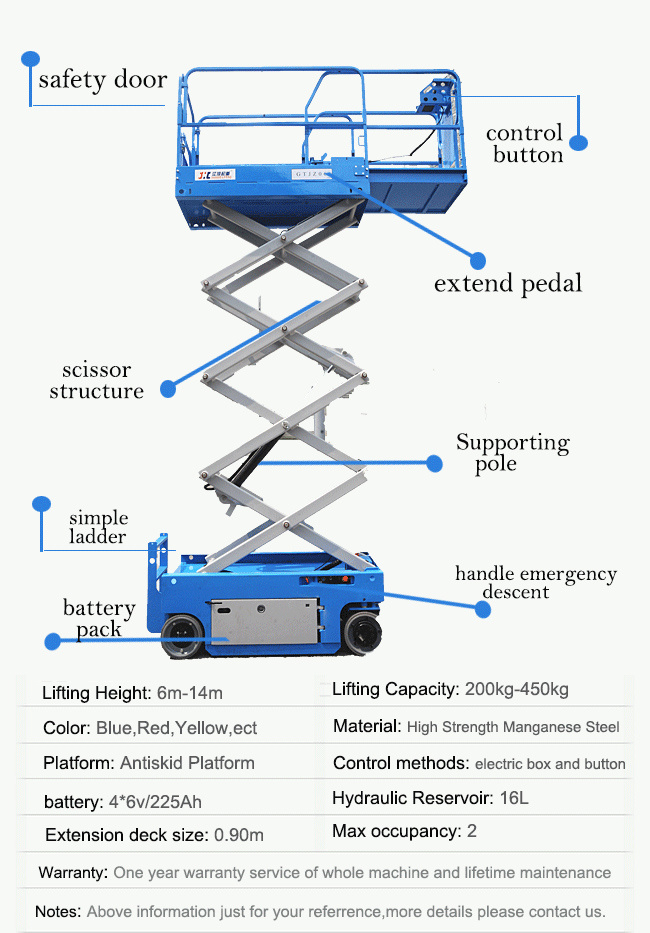

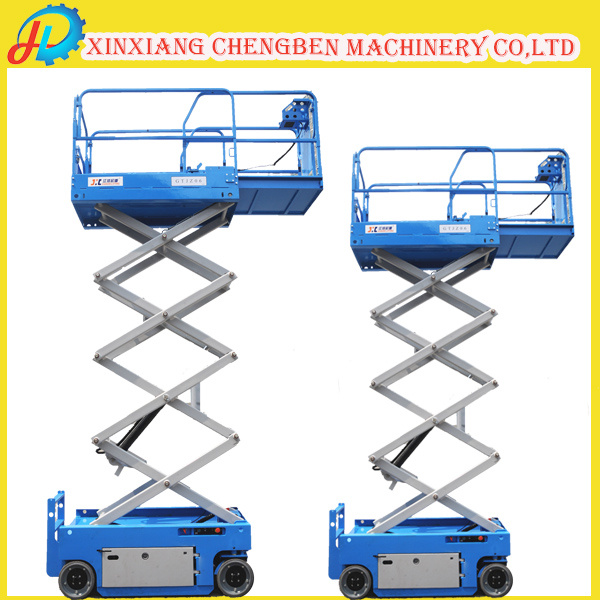

| outdoor portable scissor lift platform with DC / AC power |
| Model | GTJZ06 | GTJZ08B | GTJZ10A | GTJZ10B | GTJZ12 | GTJZ14 |
| Working Height | 6.0m | 8.0m | 9.8m | 10.0m | 11.8m | 14m |
| Platform Height | 4.0m | 6.1m | 7.8m | 8.2m | 9.8m | 12m |
| Capacity | 270kg | 320kg | 320kg | 450kg | 450kg | 350kg |
| Platform dimension | 2.3*0.77m | 2.3*0.85m | 2.3*0.85m | 3.22*1.2m | 2.65*1.15m | 3.22*1.2m |
| Length | 1.88m | 2.3m | 2.3m | 2.45m | 2.56m | 2.55m |
| Height | 1.9m | 2.25m | 2.38m | 2.26m | 2.4m | 2.5m |
| Width | 0.77m | 0.85m | 0.85m | 1.2m | 1.15m | 1.2m |
| Weight | 1335kg | 2005kg | 2180kg | 2330kg | 1500kg | 3350kg |
| Grade ability | 25% | 25% | 25% | 25% | 25% | 25% |
| security assurance |
| 1. Control voltage is DC24V.Keeping working person safe. 2. Electrical control box is water-proof design. 3. Installing Emergency button,Can keeping working person safe 4. Self-locking funtion will work when electricity is suddenly cut off. 5. System have Emergency drop valve,which can let platform down safely. when electricity is suddenly cut off. 6. Four telescopic supporting legs in buttom.which can keep machine stable. |
| Safe guarantee control system | |

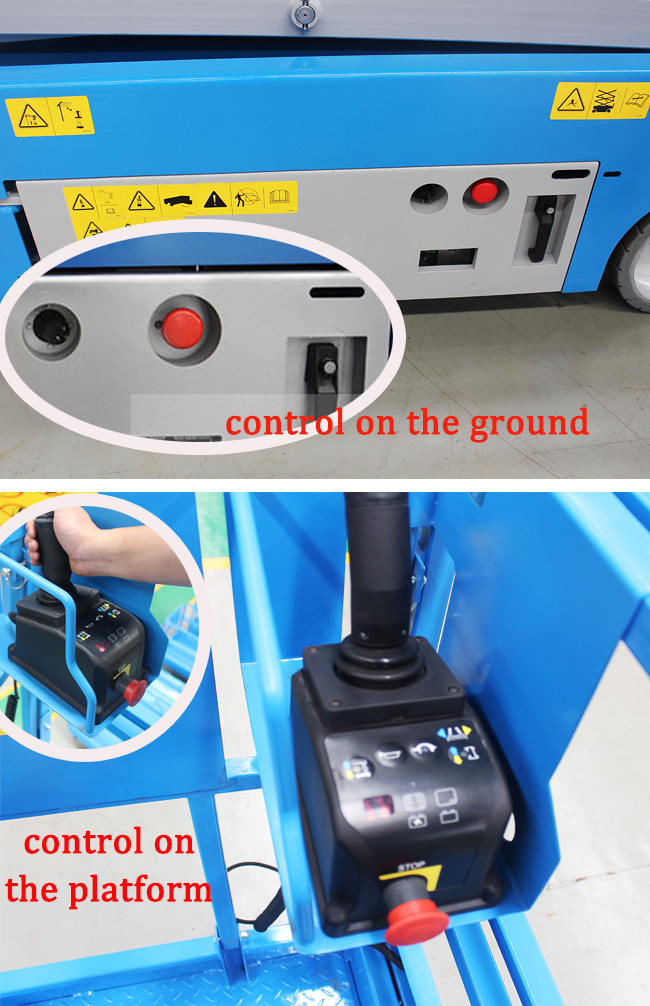

| · Electric control: | A.manual button box, which may be placed on the platform for the convenience of operation. B.electric control box, which is supported with emergency stop button for prevention of any accident. |
| · Manual control: | It can install manual lowering valve, in case of power cut off suddenly |
| About Power | |
| A. Electric Powered / AC powered | · When the electricity is available at work place, usually for Indoor use · No noise and air pollution |

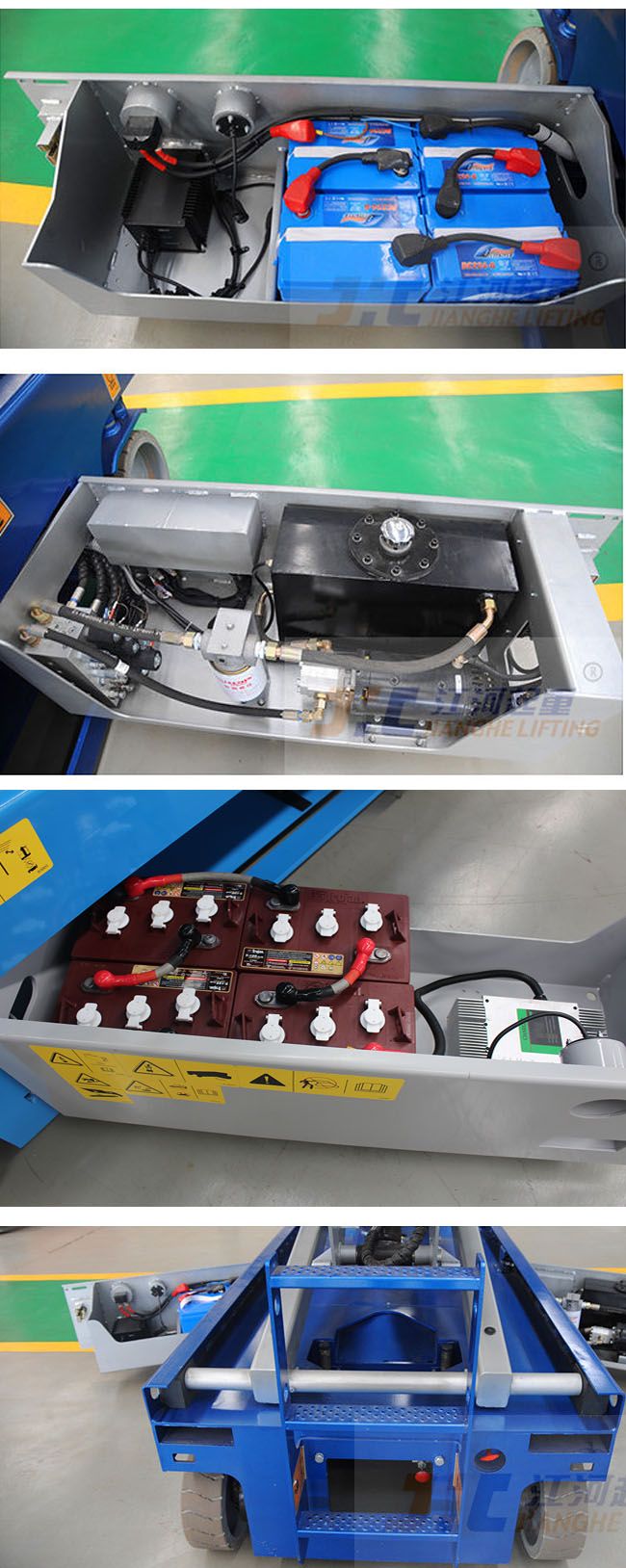

| B. Battery Powered / DC powered | · When the electricity is not available at work place, usually for Outdoor use · No noise and air pollution |
| Why you choose this type aerial platfrom? |
| Some aerial work methods seems low cost, but the fact is not like this: 1. ladder-waste of time and cost, operator will spend lot of time and power to reach the work position, it is inconvenient, and working area is small. 2. Scaffolding-waste of time, it needs lot of time and professional skill for installation and teardown. 3. Telescopic Handler-waste of time and resource,low effect. |
| 1.This type scissor lift platform own automatic walking function.It can be used in different working condition,and do not need external power supply and artificial traction. 2.It is mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk. It's easily moved with high working efficiency. 3.This type scissor lift can be move while extended and controlled from platform by the operator. 4.It is walking,reversing, turning and lifting can be achieved on the platfor |
| Any question pls feel free to contact Ms. Julia at any time. Thanks! |
| Office No.: +86 373 5895178 Web: www.crane-lifts.com / www.cn-cbjx.com |
| To satisfy your needs is always our first job.Since your first purchase,training,parts,maintenance and repair everything are included | |
| 1.Presale service: | we could be your personal service team,call us any time you facing problem. |
| 2.In sale service: | Professional guidance from our genius enjineer will let you know more about your equipment,both machine control and inside mechanism. |
| 3.After-sale service: | One year warranty service of whole machine and lifetime maintenance.our service team will provide you full service,inspection,repair,maintainance to improve performan |
| Xinxiang City Chengben Machinery Co,Ltd. | Henan Xinxiang Chengben Machinery Co.,Ltd is a professional manufacturer and trading company, specializing in all kinds of cranes which was founded in 1985. We serve our clients with professional skills, high responsibility, rigorous working attitude, cohesive teamwork and have ability to provide a complete set of advanced lifting projects. Our company focuses more on innovation and development about products in the future and accumulates more rich experiences and support in production from our co-partners. Assimilating and seeking the most developed trends and advantages, we design and develop series of high, new and intelligent p |
| Prod Model: | GTJZ06 |
|---|---|
| Material: | High Strength Manganese Steel |
| Platform: | Antiskid Platform |
| Control Mode: | Electric Box and Button |
| Tire: | Non-Marking Tires |
| Color: | Blue, Red, Ect |
| Usage: | Hotel, Airport, Station, Dock, Ect |
| Capacity-Extension Deck: | 113kg |
| Max Platform Heifht: | 6m |
| Extension Deck Size: | 0.9m |
| Max Gradeability: | 25% |
| Carrying Capacity: | Light Level |
| Driven Type: | Hydraulic |
| Running Mode: | Moving |
| Application: | Widely Used |
| Feature: | Energy Conservation |
