Outdoor P8 Fixed Full Color LED Display for Advertising Screen

Outdoor P8 Fixed Full Color LED Display for Advertising Screen
Price: US $ 520-968/Square Meter
Min Order: 1/Square Meter
Pay Type: T/T
Contact Supplier
Shenzhen Canlight Technology Co., Ltd.
Showroom Product Company Profile
15 years in Manufacturing & Selling LED displays.
Reliable quality & Competitive prices & Long time warranty & Easy to use & Easy to maintenance.

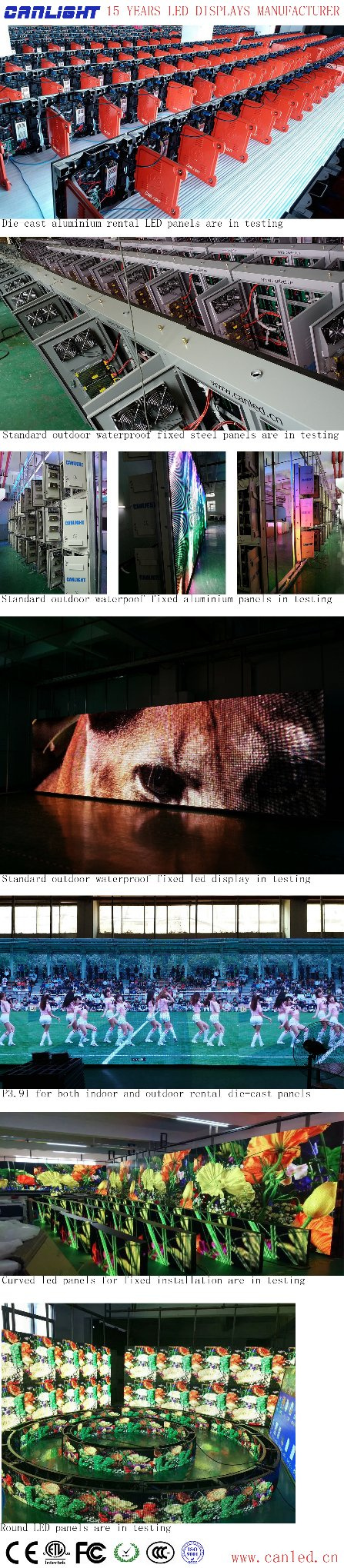

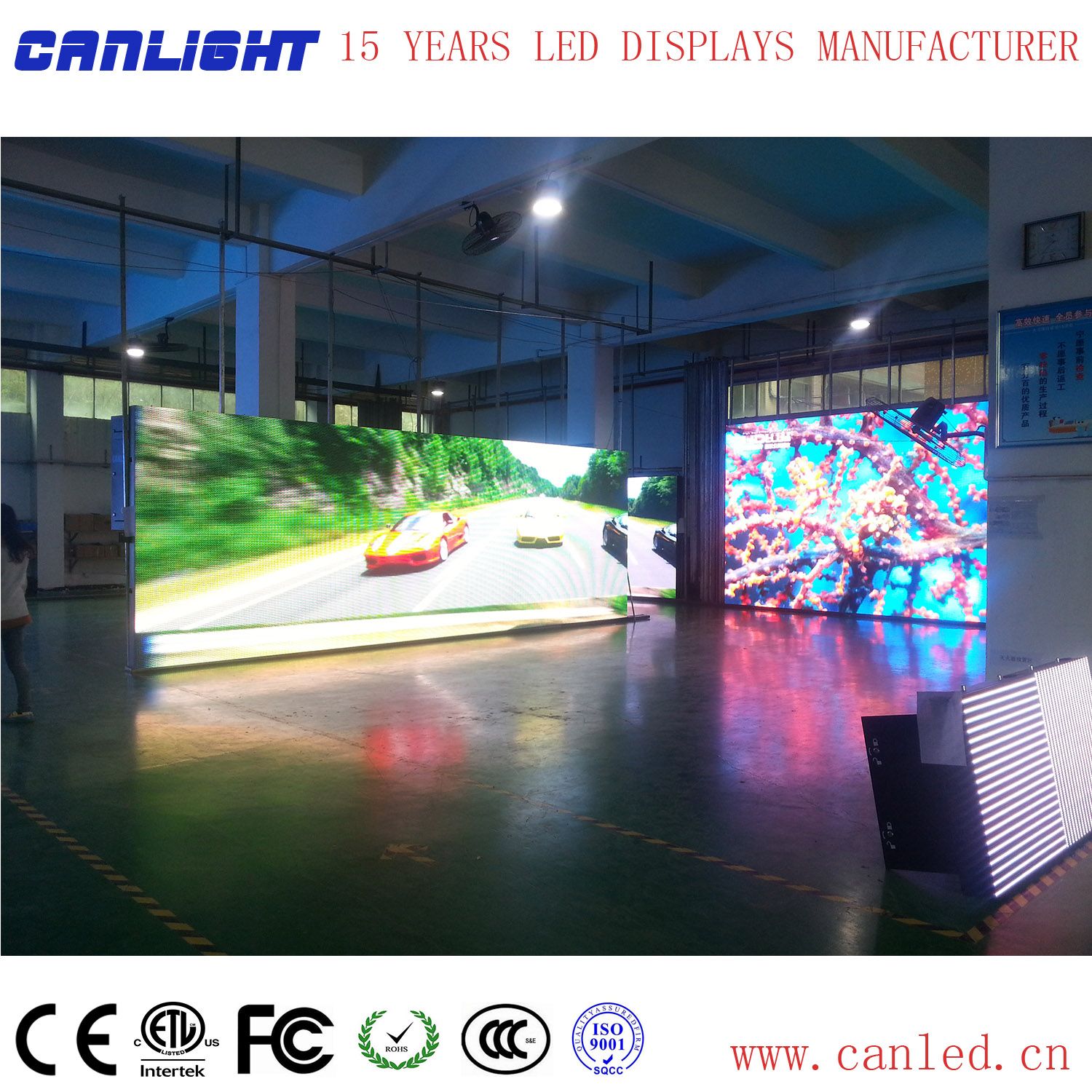

Our LED displays panels in Testing:

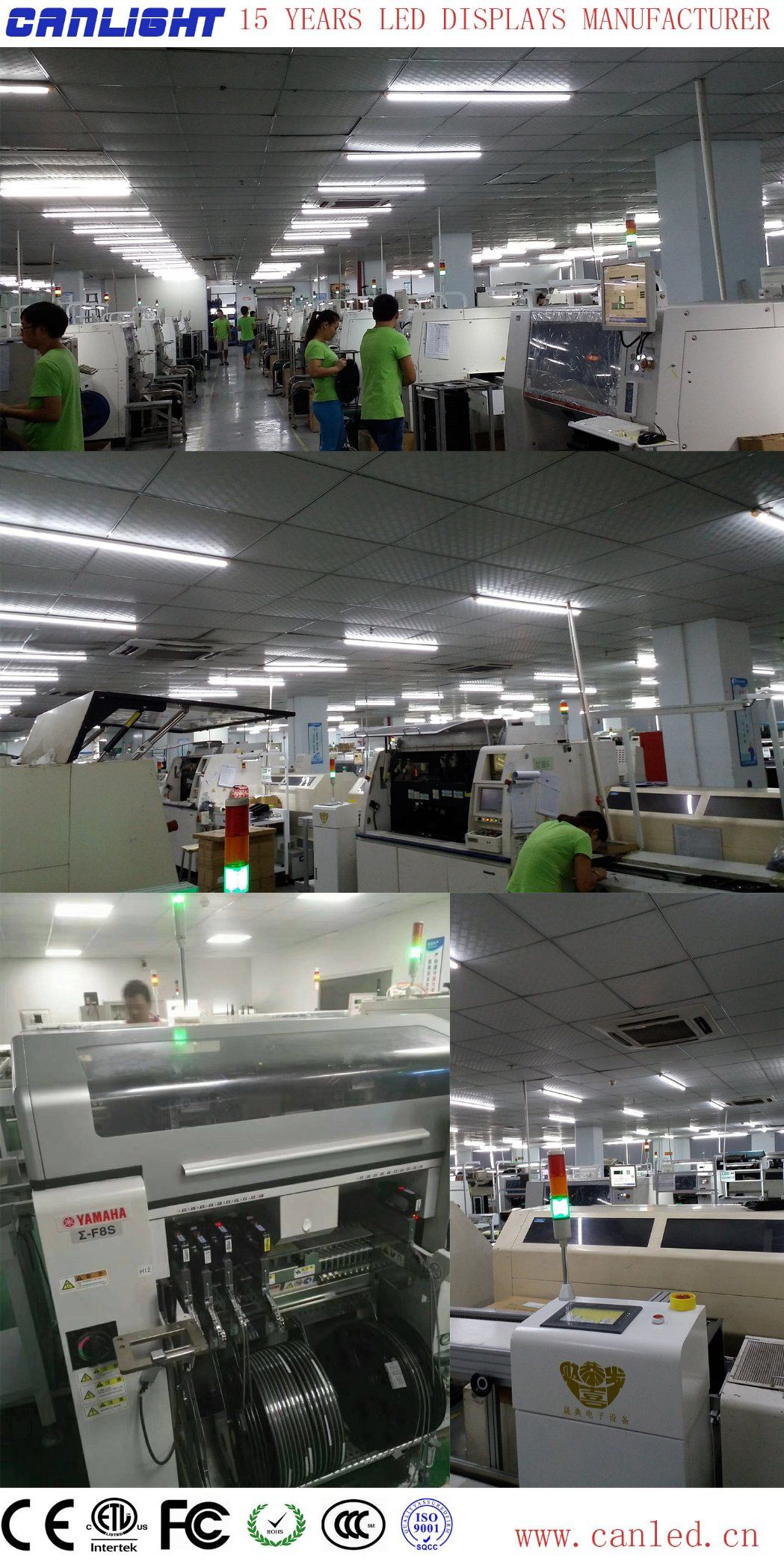

Our High speed SMT machines

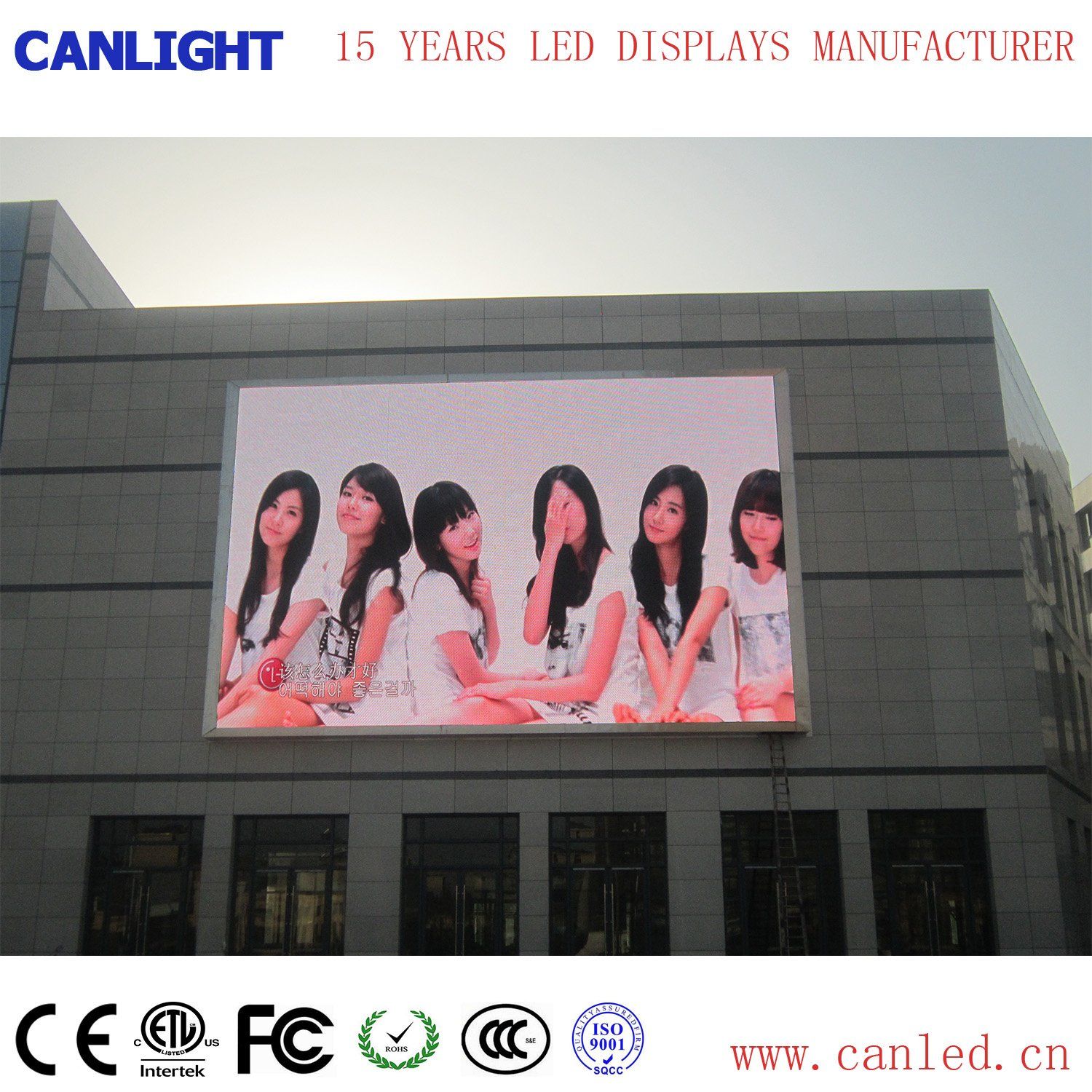

Application
Outdoor commercial advertising billboard, Stage, Banks, Stock exchange centers, Bus station, Theme park, Airport, Schools, Government agencies, Exhibition, Meeting rooms, Cinemas, Hotels, Mobile media, and a variety of  public facilities and etc.

Product feature
1. Thanks to the SMD triad technology, the screen is capable of wide viewing angle, smoother surface and stability.
2. Seamless splicing.
3, High gray level and lower brightness delivers good display performance and vivid image.
4. Quick installation and easy maintenance, front or rear maintenance.

Specification
ItemsP4 outdoor fixedP5 outdoor fixedP6 outdoor fixedP8 outdoor fixedP10 outdoor fixed
Module ParameterPixel pitch4mm5mm6mm8mm10mm
Pixel Density62500 pixels/40000 pixels/27777 pixels/15625 pixels/10000 pixels/
LED typeSMD1921 blackSMD2727SMD2727SMD3535SMD3535
Pixel combination1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B
Module size320x160mm320x160mm192x192mm256x128mm320x160mm
Module resolution80x40 pixels64x32 pixels32x32 pixels32x16 pixels32x16 pixels
Driving mode1/10 scan1/16 scan1/8 scan1/4 scan1/2 scan
Panel ParameterNumber of modules2W*4H2W*4H4W*4H4W*4H4W*4H
Panel size640x640mm640x640mm768x768mm1024x1024mm960x960mm
Panel resolution160x160128x128128x128128x12896x96
Maintain wayRearRearRearRearRear
IP RatingIP65IP65IP65IP65IP65
Flatness≤0.1mm≤0.1mm≤0.1mm≤0.1mm≤0.1mm
Cabinet materialDie-cast aluminium
Iron		Die-cast aluminium
Iron		Die-cast aluminium
Iron		Die-cast aluminium
Iron		Die-cast aluminium
Iron
General ParameterViewing distance≥5M≥6M≥7M≥9M≥11M
Brightness≥6500CD/≥6500CD/≥5000CD/≥6000CD/≥6500CD/
Viewing angle120°/120°120°/120°120°/120°120°/120°120°/120°
Weight40kg/40kg/40kg/40kg/40kg/
Power consumptionMax. 900W/
Aver. 360W/		Max. 900W/
Aver. 360W/		Max. 700W/
Aver. 280W/		Max. 800W/
Aver. 320W/		Max. 900W/
Aver. 360W/
Frame frequency≥60HZ
Refresh frequency≥1920HZ
Working Temperature-30ºC~50ºC
Working VoltageAC90~260V±20%,50-60HZ
Grey scale/color16384x16384x16384
Brightness adjustment0-255
MTBF5000 hours
Life100000 hours
Malfunction dot rate<0.0001
Control distanceEthernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control systemControl systemNovastar / Linsn / Colorlight ( Optional )
Input signalDVI / HDMI / SDI / VGA / S-video / Composite
Video processorVDWALL / RGBlingk / Novastar ( Optional )
Audio systemAudio systemBOSE / JBL / PAL / Customized ( Optional )
InstallationInstallationFixed installation / Rental installation ( Optional )
Hanging barOptional
Certification CE / RoHS / ETL / CCC / FCC / BS476
PackingPacking TypePlywood case / Flight case ( Optional )


Case

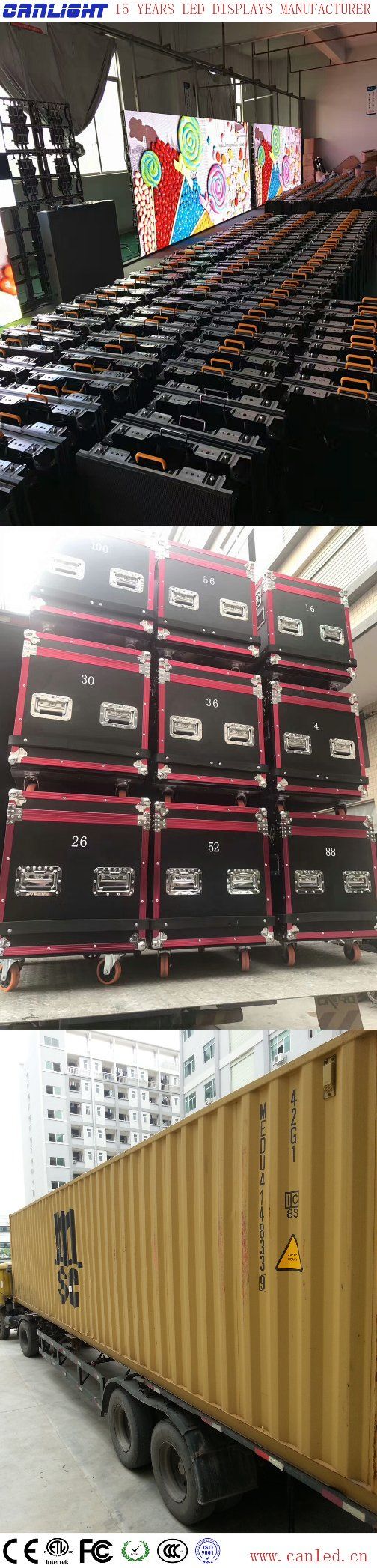

Packing and Shipment



Remark
1. Price term: Total quotation is based on FOB Shenzhen
2. Warranty period: 2 years
3. Payment term: 30% deposit, balance before shipping.
4. Packing method: Flight case or plywood case
5. Delivery time: 20 days after deposit.


Prod Model: P8 outdoor full color LED display
Brightness: ≥6500 CD/Sqm
Viewing Angle: 140°/140°
Viewing Distance: ≥9m
Reflash Rate: ≥1920Hz
LED Module Size: 256mm*128mm
LED Module Resolution: 32X16 Pixels
LED Panel Size: 1024mm*1024mm
LED Panel Resolution: 128X128 Pixels
Power Supply: Input AC220V, Output DC5V
Weight: Around 50kg/Sqm
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Full Color LED Display
Average Power Consumption: 350W / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: BS476 Fire Test
Pixel Pitch: 8mm
Pixel Density: 15625 Dots / Sqm
Shenzhen Canlight Technology Co., Ltd. Was founded in 2009, The main members entered LED display industry from 2003.

Canlight is a professional LED display manufacturer, including R & D, Production department, QC department, Sales and international Trading department, Installation department, After sales department. We have our own brand, we also can do OEM & ODM. Our products were sold to America, Europe, Australia, Asia, Africa...More than 100 countries.

Our products including fixed outdoor LED display, fixed indoor LED display, rental outdoor LED diplay, rental indoor LED display, sports stadium LED display, Mesh LED display, floor LED display, transparent LED display, Creative LED display, and customized LED display.

We can produce the smallest pitch 1.2mm super HD LED display, this is the highest precision product in LED display industry, now.

Our indoor LED display have: P1.2mm, P1.5mm, P1.6mm, P1.8mm, P1.9mm, P2mm, P2.5mm, P3mm, P4mm, P5mm, P5mm, P7.62mm, P10mm.

Our outdoor LED display have: P3.91mm, P4mm, P5mm, P6mm, P6.67mm, P8mm, P10mm.

Our design concept: Easy to use, reliable, light weight, thin thickness, humanized.

Our target: Customer's satisfaction is our target.

Our certifications: CE, ETL, RoHS, FCC, CCC, ISO9001.

Our LED display used to advertising walls, billboards, TV stations, sports stadiums, Plazas, Railway stations, Bus stations, airports, bars, stages, Vocal concerts, exhibitions, monitoring and command and dispatch system, and so on.
