| Price: | US $ 60-70/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |

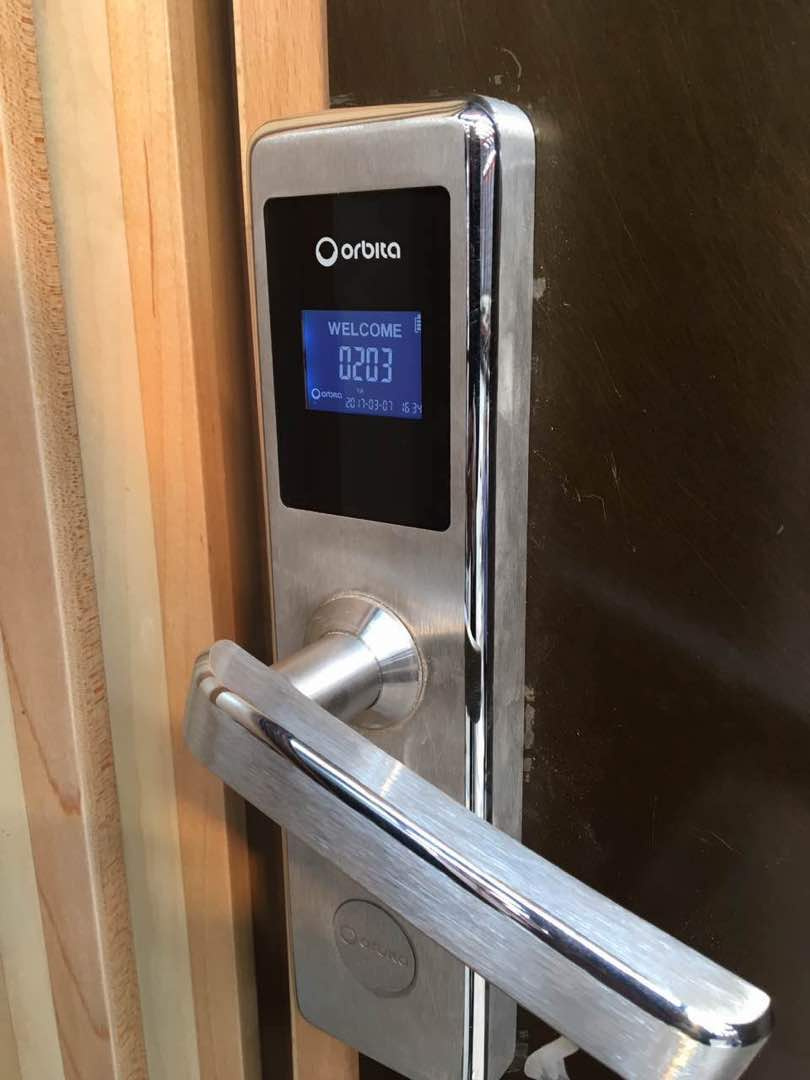

Orbita 304 Stainless Steel Hotel Card Door Lock as Promotion Door Hardware
Electronic hotel door lock features
1. To show room number, status of batteries, time and date
2. Indication of lock status such as "Welcome","Don't Disturb","Wrong card"...etc
3. Error self-detective info is available as well
Electronic hotel door lock technical paremeters
1.Dimension of external panel:L290mm*W60mm*H34mm
2.Material:stainless steel,moisture proof,fire retardant
3.Worining voltage:DC6V or 4pcs #5AA alkaline batteries
4.Power consumption:static load<10Ua dynamic load 100~150Ma
5.Working environment: working humidity:20%~90%,working temperature:-50 ºC~60ºC
6.Keycard: MF 1 card
Electronic hotel door lock functional characteristics

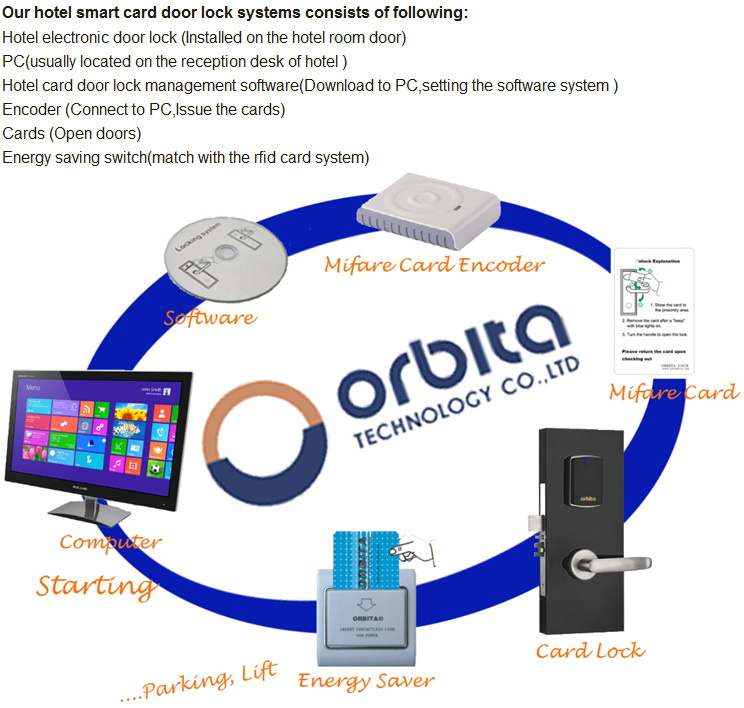

Technical and system of electronic hotel door lock
1. Interface with most of the PMS systems,Fidelio/opera registered!
2. All hotel door lock passed CE & FCC Certification
3. Brushed stainless steel color lasts more than 10 years
4. ANSI standard mortise
5. Inside deadbolt .Inside handle retracts lathes and deadbolt
6. Override computer key for emergency use,individual/master cylinder
7. Personalized locking system and cylinder cover
8. Wireless stand alone lock realizes 95% of on line lock function
9. Classified access authorization for safety management
10. Meeting room function and three levels of passage door functions.
11. Step by step installation software,easy operation.OEM locking system available
Power and warning of electronic hotel door lock
1. Power:4pcs #5AA alkaine battery 18 month's duration
2. Low battery voltage warning (Lower than 3.5V)
3. Self error detecting by LED and "beep"
4. Improper Lock warning
Card of electronic hotel door lock
1. Mf 1 card is compatible with Mf energy saver
2. General master card,building master card,floor master card,guest card,Fire-alarm card
3. All card with validity,guest card expires automatically at default check out date and time
4. Lost guest card suspension simply by issuing a new guest card with suspending function
5. Multiple operators with different card issuing authorizations
6. Lock operation record printable.240 pcs or more
7. Receptionist card issuing records printable
Application area of electronic hotel door lock
Lift, Parking, Swimming Pool, Sauna Room, Tenniscourt, Gym...
Electronic hotel door lock software
•Step by step user friendly software.
•Software operation records.
•Classified operating authorization.
•Download the lock opening records.
•Support Winxp,win7, win8, vista.
•Support 32/64 digit system.
•Interface with major PMS.
•Suspend lost card, blacklist certain users.
Electronic hotel door card function:
-Guest card: Reception complete program Guest card by give a begin and expiry date for a
room(rooms).Guest access room by -read this card on lock
-Master card: Hold by housekeeping to access to all rooms of hotels
-Floor card: Hold by clean staff to enter the rooms in one floor.
-Building card: Hold by manager to enter the rooms in one building
-Passage card: Once this card been read on one door,this door could be acceess by without
reading keycard
-Emergency card: Enter the all room

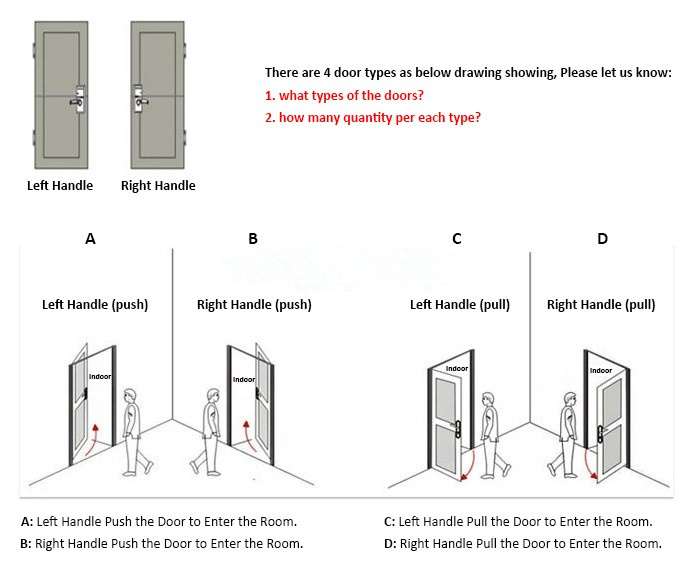

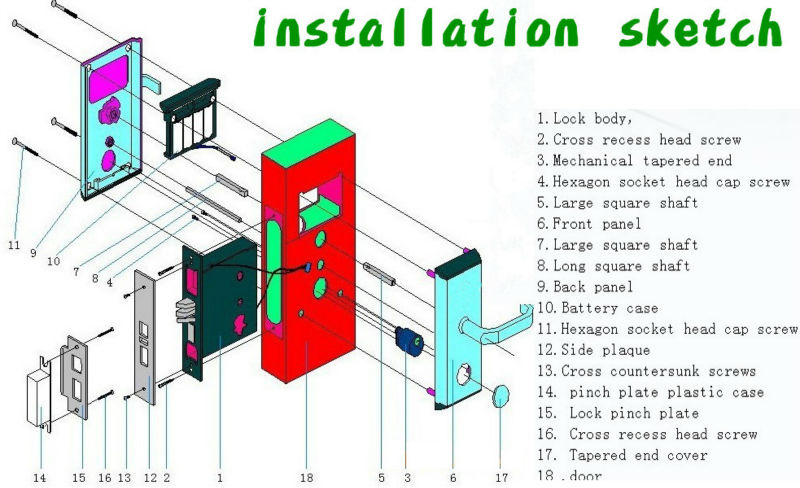

The installation of electronic hotel door lock
Confirm the door type of electronic hotel door lock before place order
Orbita Presentation:
Orbita was founded in 2004, manufacturing innovative hospitality products to overseas market. Till now, more than 5000 hotels ranging from 3 to 5 star covering 100 countries and most of the hotel chains are using Orbita hotel card locks, safes, minibars and other guest room accessories.
46,000 square meters garden factory with complete facility and 100,000 units monthly production capacity makes Orbita the biggest productivity in the industry in China. We produce more than 100 models and provide OEM or ODM services.
Varies tests have been conducted to ensure the quality of the products, Orbita locking system integrated with Fedelio/Opera PMS and has wide range of compatibility, and our products are CE, FCC, RoHS, SONCAP, SASO and ANSI/BHMA A156 UL certified.
Orbita owned high reputation in hospitality industry from offering high quality products, reasonable price with professional and effective service. We keep moving to bring more benefits and satisfaction to our worldwide customers.
FAQ:
Q: Can your locking system connect to PMS system?
A: Yes. our locking system interfaces with Opera Fidelio and most of PMS systems.
Q: What is the minimum thickness of the door?
A: Thickness range is from 32mm to 80mm. If door thickness is less than 32mm, we suggest to use
our Euro standard type.
Q: How do I know whether the battery expires?
A: Warning by 3 times beep and 3 times red light flash indicates low battery, and still can use around
100 times.
Q: How do you pack goods? Is it safe for freight ?
A: We pack goods by foam case and carton, 6units/ carton. It's safe, no damage on the way.
| Prod Model: | E4031 |
|---|---|
| Mortise: | ANSI Standard Mortise |
| Certificates: | Ce, FCC, ANSI/Bhma A156 UL, Fidelio/Opera |
| Key Features: | Waterproof, Unique Design, High Sensitivity |
| Color Optional: | Silver, Gold (PVD) |
| Keycard Type: | M1 S50 |
| Static Current: | <30ua |
| Dynamic Current: | <150mA |
| Working Humidity: | 20%-90%Rh |
| Working Temperature: | -50 Celsius-60 Celsius |
| Power Supply: | 4PCS AA Alkaline Batteries |
| Type: | Electronic |
| Style: | Modern |
| Anti-theft Standard: | A |
| Part: | Lock |
| Backset: | 60mm |
| Door Thickness Fits: | 35-50mm |
| Lock Cylinder Length: | 90mm |
| Usage: | Hotel,Resort,Office, University, Apartment |
| Material: | 304 Stainless Steel, 2.0mm |
| Shape: | Classic |
