The Neuwall Operable partition walls is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.
These sophisticated acoustic operable walls do not require a floor track and yet once positioned the interlocking panels form a rigid structure giving all the properties and appearance of a permanent wall.
The Neuwall operable wall system comprises panels up to 1200mm wide. Actual panel widths are determined by the site aperture, there are no standard sized panels or 'make up' panels
Features & Benefits
Movable, top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility

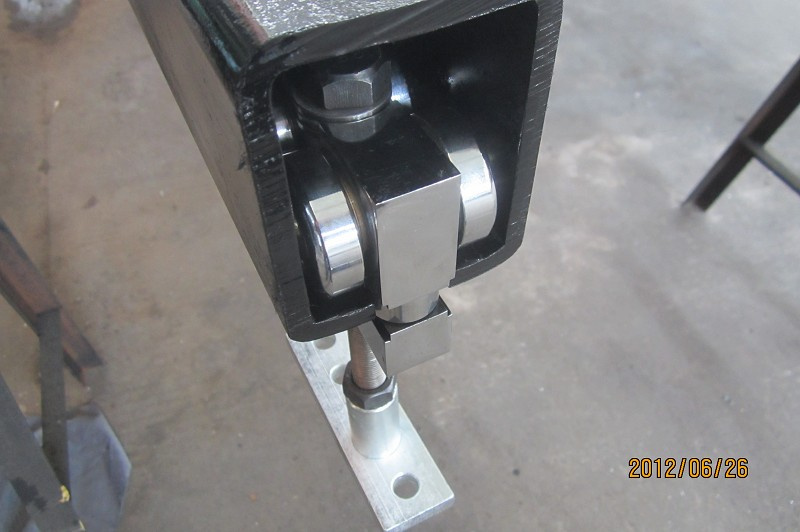

Sealed for life roller assemblies provide smooth and silent movement
The system offers various levels of sound reduction
Available in a wide range of colors and finishes, including:
Vinyl, fabric, Leather,
Natural wood veneer, Melamine,
Wood moldings, etc.
| Neuwall |
|
|
|
| Movable Partition Walls System-Technical Information |
|
|
|
|
| TYPE | 65A | 80A | 100A&125A |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Our easy lock-up set, Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.
Retractable Pressure SealsOnce the panel is positioned, they are sealed in place with retractable pressure seals. Our easy lock-up set provide the easiest in-field operation - a simple 180°turn of the waist-high removable handle extends or retracts the seals. The handle is inserted into the lock bar located in the panel edge approximately one meter from the floor. Both seals on top and bottom extend or retract at the same time. It's important that the sound seal be properly extended to provide sound isolation.
Telescopic sleeve panelFinal closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panel can seal the wall tightly to reach acoustic integrity.
FAQ
1)How to select the suitable movable wall for your site?
We have 4 types of movable wall,65type,80type,100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following,
65type-- Max height 3.5m, soundproof: 38dB to 43dB
80type- Max height:5.5m,Soundproof: 43dB to 53dB
100type--- Max height:7m,Soundproof: 43dB to 58dB
125ultra-height---Max height:17m,Soundproof: 38dB to 43dB
2)What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
3)What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation
Thirdly, we quote the movable wall in accordance with confirmed drawings.
4)How do the goods packing.
corrugating paper packaging, MDF batten cover all around corner.
The movable wall panel and track, fittings will be packed separately.
5)How to transport.
Sea transport is a common mode of transportation. In an emergency, can be air freight.
6)What is lead time?
The lead time is 7 days to 10 days.
7)How to install.
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
8)What you should do on site?
A beam(truss) should built on site for track installation.
Neuwall Partition Wall, established since 2004, was developed from Shanghai Gibo Group whose reputation for providing high-quality, cost-effective and energy efficiency Building Materials and today we offer the wide ranges of Movable Partition walls and Glass walls in the world, targeting large organizations, such as Hotel, Office, Conference room, Restaurant and Public area in the world that required the flexibility, quickly and efficiently reconfigure their space environments.
Our partitions are known for their quality construction, durability, beauty, versatility, easy movement, and quiet operation. All are customized to the project requirements. Although our partitions are most commonly finished with high pressure laminate, optional surfaces such as Fabric, Wall covering, Wood veneer and Melamine, etc, may be used as well. Panels may also be shipped unfinished for field application of murals or other custom surfaces to match or coordinate with the perimeter room construction.
Innovative Engineering
Dedicated to quality and customer service, we have an extensive engineering department that thoroughly evaluates and tests all products and materials. Our innovative engineers are always seeking the unique; And, as a result, we have more accomplished and more advancements in the Movable partition field than other manufacturers in our industry. So we are Industry-leading acoustics, Multi-directional track systems, fire safety, and ease of operation.
Worldwide Availability
Neuwall's headquarters are located in Shanghai, China, composed of two manufacturing facilities in Shanghai and Guangzhou city. We provide the movable partition walls and service for the clients in USA, Brazil, the Middle East and Southeast Asia.
Customized Products
Although we have a comprehensive selection of movable partition walls, glass wall occasionally our standard products won't meet your needs. Most products may be modified for specific design requirements. Examples include: Notched panels to soffits, window inserts, or special sized panels to seal against sloped floors or stairs
We offer
Detailed initial client consultation
Bespoke design
Digital CAD drawings
Highest quality manufacturing and production
Professional and efficient Installation service
12 month guarantee
Guaranteed customer satisfaction
