OD110mm Diamond core bit for stone

OD110mm Diamond core bit for stone
Price: Negotiable/Piece
Trade Terms: FOB,FCA
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
OD110mm Diamond core bit for stone
Why choose us:
1.  SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2.  Well approved by our worldwide clients, export more than 70 countries.
3.  Success formula for concrete saw blade
4.   Quick Delivery time.
5.  One-Day reply to your inquiry and question.

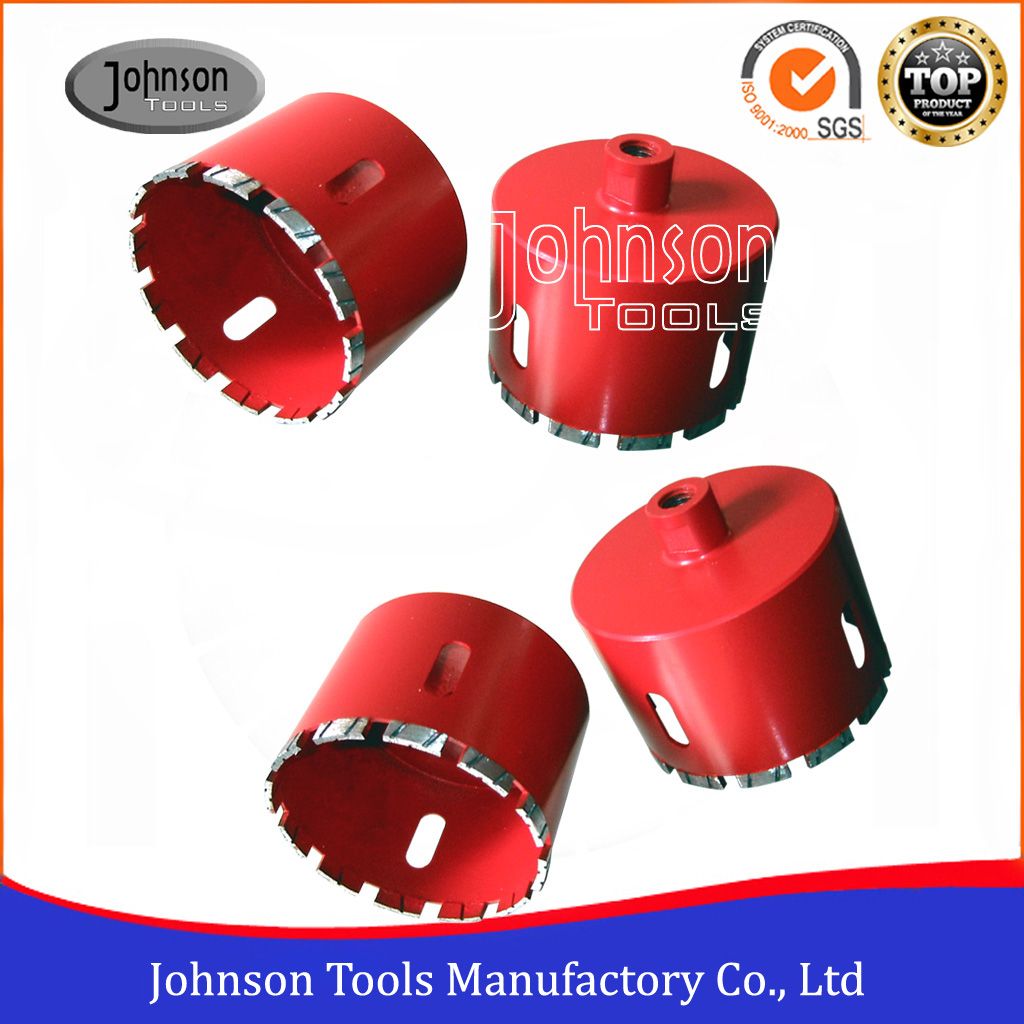

1.Description of Drilling Tool: 110mm Diamond Core Bit for Stone


Excellent diamond segment which especially design for stone drilling, such as granite, marble, sandstone, limestone, Engineered stone, etc. Made for countertop, kitchen or any other stone fabrication applications.

2.Features of Drilling Tool: 110mm Diamond Core Bit for Stone

110mm (4 5/16 inch) outside diameter.

M14 thread / 5/8"-11 thread

Total length is 103mm (4 1/16 inch).

Great segment in 8mm height.

More durable for industrial or business use.

3.Specification information of OD110mm diamond drill for stone
Item No.DiameterSegment DimensionTotal Length Teeth Model
mmHeightThickness
BGB(UNC)101082.093Crown
Other specifications we can offer
Diamond core bits for stone, with thread 5/8"-11 or M14
Item No.DiameterSegment DimensionTotal LengthTeeth No.
mmHeightThickness
BGB(UNC)6.56.58-93C
BGB(UNC)888-93C
BGB(UNC)10108293Crown
BGB(UNC)121282.593Crown
BGB(UNC)141482.593Crown
BGB(UNC)161682.593Crown
BGB(UNC)181882.593Crown
BGB(UNC)202082.593Crown
BGB(UNC)222282.593Crown
BGB(UNC)252582.593Crown
BGB(UNC)282882.593Crown
BGB(UNC)30308393Crown
BGB(UNC)35358393Crown
BGB(UNC)4040831034
BGB(UNC)4545831035
BGB(UNC)5151831036
BGB(UNC)5555831036
BGB(UNC)6060831037
BGB(UNC)6565831037
BGB(UNC)7070831038
BGB(UNC)7676831038
BGB(UNC)8585831039
BGB(UNC)1001008310310
BGB(UNC)1051058310310
BGB(UNC)1101108310311
BGB(UNC)1151158310311
BGB(UNC)1201208310312
BGB(UNC)1271278310312
BGB(UNC)1501508310314
How dose a diamond core bit work?
A diamond core bit does not cut but works by milling. During the sharpening process performed at the factory, individual diamond crystals are exposed on the face and sides of the segment and it is these that do the milling work. The metal matrix holds each diamond in place. During the work, each diamond is supported by a comet's tail which strengthens the supporting action of the bond immediately "behind" the diamond crystals.
A diamond tool properly suited to the material to be cut, the equilibrium between the work of the diamond and the abrasion-resistance of the bond is optimum; the diamond is held in place until it is destroyed and new crystals appear. It is in this equilibrium that all the quality of the diamond tool resides.
A core bit intended for cutting hard, dense (less abrasive) materials requires a softer segment bond. This wears out more rapidly, by replacing the worn diamonds relatively quickly so that the blade continues to cut.
Otherwise, for cutting soft, abrasive materials must have a hard, abrasion-resistant segments in order to retain the diamonds longer.

 4.Packing and shipping of 110mm core bits for stone


According to the size, normally put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 10-15days. If not, around 25-30days.
Delivery way: By air,  by sea, by land, by courier, etc.

5. Payment term
 T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.

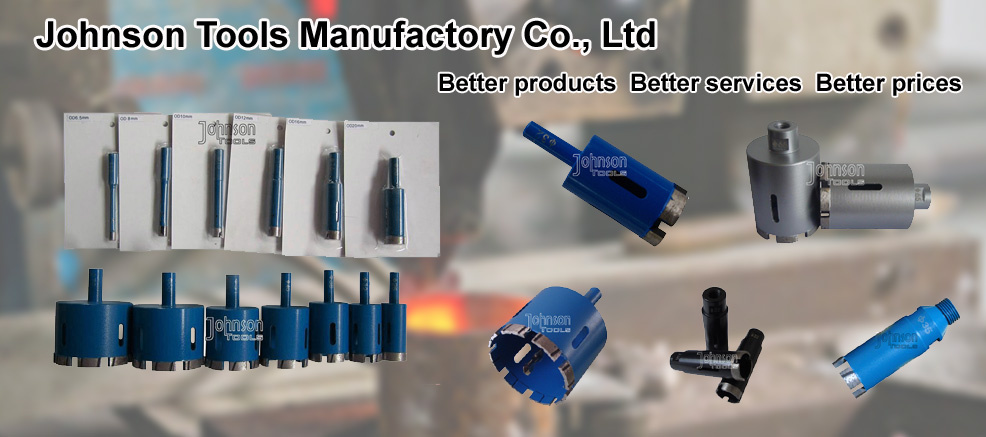

6.Our Related Products

7.Our technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
8.Certification

9.Our exhibition

10.Company Information





Prod Model: 15.2.2.3.4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MOQ: 50PCS
Delivery Time: Around 35days
Company Type: Direct Manufacturer and Trading Company
Establishing Year: 2000
Brand: Johnson Tools
Market: All Over The World
Warehouse: with Enough Capacity
Usage: Stone Drilling
Why clients choose Johnson?

1) Quality & Service:

We, Johnson Tools Manufactory Co., Ltd have very strict quality control system. There is one QC team in our factory on examination of every product before dispatching. We try our best to achieve zero defects.

2) Convenience of One-Stop Sourcing:

On stone and construction industry, from cutting, grinding, drilling, polishing, profiling field, till stone and its cutting machine, we can help you select the best tools, finish your project perfectly.

3) Flexible payment term:

T/T, Letter of Credit, PayPal, West Union, Credit Card, etc.

4) Delivery time:

Around 5-30days based on quantity of clients' order.

Repeated orders, we help our clients prepare one order's raw materials to shorten the producing time.

5) Good evaluation of our clients' from our deferent's countries.

6) Sales Teams:

We have a friendly, enthusiastic, energetic sales team, ready to service with you all the time.

Professional Manufacturer on Diamond Tools since Year 2000.

Above 95% Diamond Tools products export to Six Continent, over 70 Countries.

Our diamond tools differ diamond Cutting tools, diamond Grinding tools, diamond Polishing tools, diamond Drilling tools, and other accessories & stone cutting machine. Wildly used on Stone and Construction industry.

*****Customer Evaluation*****

To do the same bond as we use is very important. We did many tests at your blades And the performance is very good. -- Remco

The cutting of the blade on concrete road was very good. Cutting life is estimated at 800 meters. Note: Client use our 14" laser saw blade. -- Jabar

Segments from you is very good, durable and sharp. Note: Client use our 102mm-300mm diamond segments for core bits for reinforced concrete. -- Zainul

First of all I would like to thank you for the sending the samples of the Diamond Saw Cutting Blades. We have tested it and are very much impressed. -- Ancila

About your 200mm&250mm tuck point saw blade, we made about 11000 meters and it' s a very good indice! -- Julia

And its good, We need more: ) Saw blade 20X 600mm 20X 800mm 3X 1000mm 10X1200mm.

-- Kovacevic
