Nipple Welding Machine Silicone Fitting PPR Reducing Coupling

Nipple Welding Machine Silicone Fitting PPR Reducing Coupling
Price: US $ 0.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Stainless Steel Press Fitting Pipe System


Hopewell press fitting system joins pipe without welding or bolting, can be widely used in cold and hot water supply, heating supply, fire protection, medicinal gas, industrial petroleum pipeline system etc. It has already replaced welding fittings in most Europe countries, Asia countries, America, Australia and some other countries.

Standard:
Press fitting standard: GB/T 19228.1-2003, DVGW W534-1995 and JWWA G116
Pipe standard: GB/T 19228.2-2003, BS EN 10312 and JIS G3448
Sealing ring standard: GBT 19228.3-2003, EN681-1:1998

Technical information:
-- Material: Stainless steel 304 and 316 available.
-- Max working pressure 1.6MPa (equal to 232 psi),
testing water pressure: 2.5MPa for JIS sizes (equal to 362.5psi), and 5MPa for EN10312 sizes.
-- Working temperature from -20 to 110 degree centigrade (with Chlorinated butyl rubber O ring),
-- Suit medium: cold water, hot water, compressed air, gas, oil etc

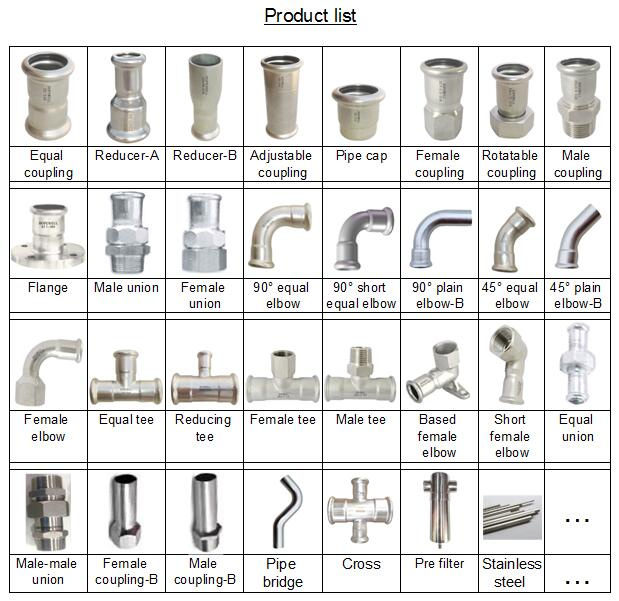

Press fitting range:

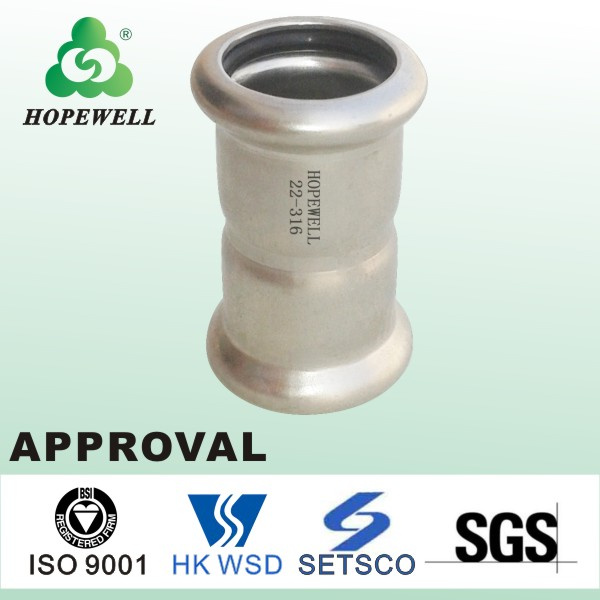

Coupling -- Equal coupling, Reducing coupling, Adjustable coupling, coupling with screw;
Elbow -- equal elbow, reducing elbow, elbow with plain end, elbow with screw;
Tee -- equal tee, reducing tee, tee with screw;
Other fittings -- Pipe cap, pipe bridge and Flange.

Sizes range:
The norminal diameters are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including GB 1 and GB 2.
GB 1 series is same size as EN10312, out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB 2 series is same size as JIS G 3448, out diameters are: 15.88, 22.22, 28.58, 34.00, 42.7, 48.6, 76.1, 88.9, 108mm.
Which sizes is suitable for your market?
GB1(EN10312)GB2 (JIS G3448)
Item No.Nominal Dia.DiameterThickItem No.Nominal Dia.DiameterThick
HW015BDN15181HW015ADN1515.880.8
HW020BDN20221.2HW020ADN2022.221
HW025BDN25281.2HW025ADN2528.581
HW032BDN32351.5HW032ADN32341.2
HW040BDN40421.5HW040ADN4042.71.2
HW050BDN50541.5HW050ADN5048.61.2
HW065BDN6576.12HW065BDN6576.12
HW080BDN8088.92HW080BDN8088.92
HW100BDN1001082HW100BDN1001082
NoteStandard pipe length is 6m. Other lengths and specifications can be customized according to correspondents' needs.

Sealing ring material:
Option 1. CIIR(Chlorinated butyl rubber): Sanitary for human consumption, not oil resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air.
Option 2. EPDM(Ethylene-Propylene-Diene Monomer) : Sanitary for human consumer, not oil resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air and compressed gas.
Option 3: FKM(Fluororubber): It is both oil proof and sanitary. suitable for edible oil, compressed air. But a little more expensive than CIIR, EPDM and NBR.

What application purpose do you want to use the press fit pipeline system? Which O-ring Material do you prefer?


Advantages of Press Fitting Pipeline:
(1). Corrosion-resistant
(2). Easy Installation
(3). Load High Working Pressure(1.6MPa / 232PSI)
(4). Shock Resistant

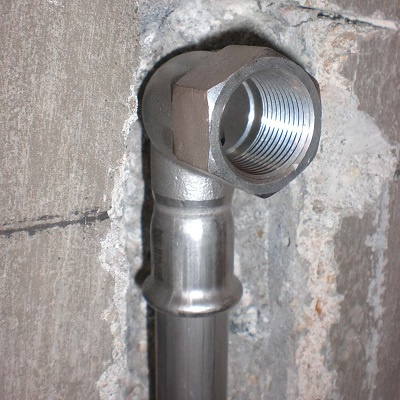

(5). Suitable for In-wall Installation

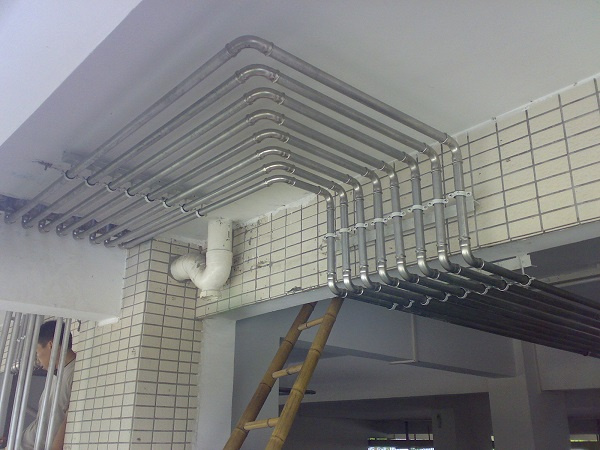

Installation case example:





Packaging & Shipping
For press fittings packing: we pack press fittings in polybag to prevent surface scratch, and then pack them inside brown export cartons.
For pipe packing: we pack the stainless steel pipes inside polybag, so that it can prevent surface scratch, and keep dirts away from the inside of the pipes.
If you have special requirement on packing, please tell us.
Our Services
* Free sample: we can provide a few free sample for evaluation.
* After-sales service: we provide after-sales technical support for clients.
* Strict Quality control: we have 100% inspection before delivery to ensure every pieces are in good quality.

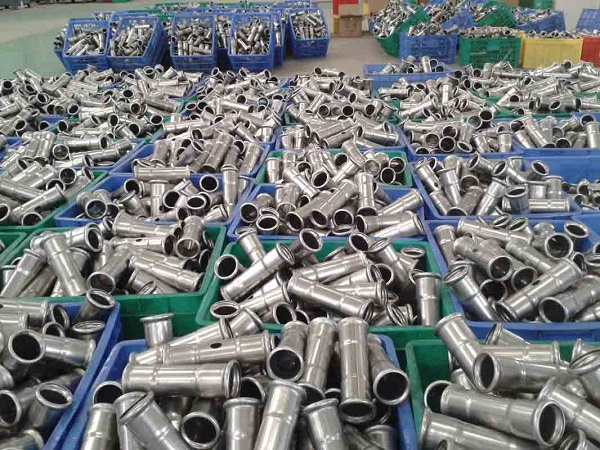

Below you can see pictures of our inspection line:
Company Information
We are an ISO certified professional manufaturer supplying stainless steel press fittings and pipes.

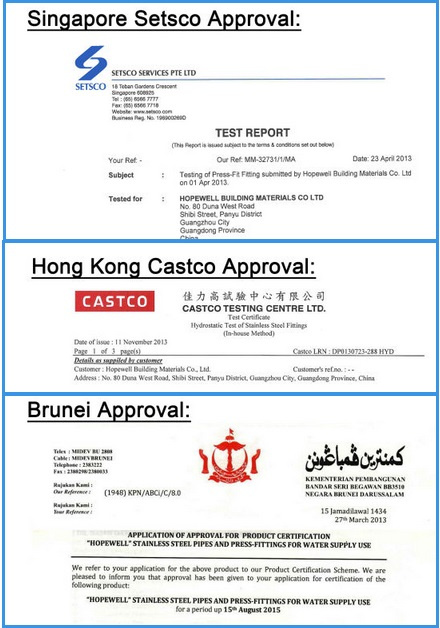

We have the following certificates:
ISO9001:2008 certification,
Brunei approval certificate;
Test report from China Building Material National Research Center
Hong Kong approval certificate;
Sanitary certificate from China government;
SGS witness report;
Singapore Setsco test certificate;

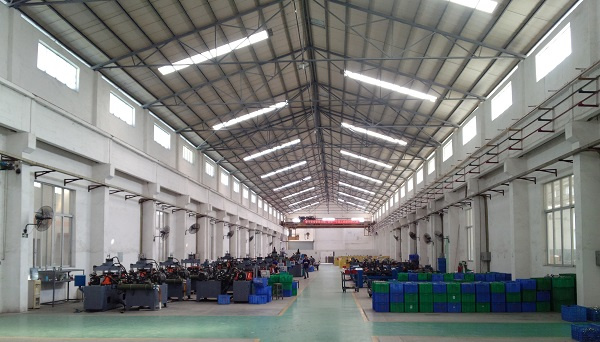

Company and production line view:



Please contact us for free sample and pricelist.
Prod Model: See product list
Quality Level: High Quality Among The World
Profile: M Profile Press Fitting
Standard: BS En10312, JIS G3448, GB/T 19228.1
Sealing Ring Material: Ciir, EPDM, FKM, NBR
Quality Control: 100% Airtight Inspection
Place Of Origin: Guangzhou, Guangdong, China
En10312 Diameter: 15, 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm
JIS Diameter: 15.9, 22.2, 28.6, 34.00, 42.7, 48.6, 76.1, 88.9, 1
Company: Hopewell Building Materials Co., Ltd
Suit Medium: Cold Water, Hot Water, Compressed Air, Gas, Oil Et
Material: Stainless Steel 304, 316, Carbon Steel, Copper
Surface: Pickling
Certification: ISO, Hongkong Approval, Singapore Approval, SGS
Technics: Hydroform, Casting, Welding
Application: for Water(Hot & Cold), Oil, Gas, Fuel, Steam etc.
Connection: Press Connection, Male, Female, Flange
Thread Distribution: Internal, External Thread
Hopewell Building Material Co., Ltd., is a professional enterprise specialized in designing, producing, selling, and construction of stainless steel press-fittings and pipe. HOPEWELL was established in 1998, and located in Zhongcun town which is a transport logistics hub, the seat of Asia's largest new railway station, with the favorable geographic advantage.

Since 2004, with assimilation of progressive technology from Germany, UK, USA, Japan and consideration of the China's national conditions, HOPEWELL developed and exploited 304/316 stainless steel press-fittings and light gauge stainless steel pipe, created the brand of HOPEWELL, and has been providing professional OEM processing services. In recent years, in order to ensure the products can entirely attain national standard and international standard, HOPEWELL introduced some high precision tubulation equipments, advanced equipments of fittings and digital control mould processing equipments into the production lines, so that significantly improved product quality and production efficiency.

HOPEWELL has a prominent management team. Engineers, managerial talents and mould technicians occupy 20% of total staff. Under the management of this excellent team, and with the principle of "quality first, creditworthy brand, continuous improvement, consumer supreme", HOPEWELL passed the strict examination of Guangdong Public Health Department Inspection Center, being awarded the Sanitation Licence of Drinkable Water Hygiene And Safety Related Products by Guangdong Public Health Department.

Our products were tested by National Inspection Center of Building Materials, consistent with national standard and with excellent quality. In addition, HOPEWELL also gained the ISO9001: 2008 certificate of quality management system from BSI, and try our best to be a passionate, creative, and aggressive enterprise with our excellent quality and best reputation.
