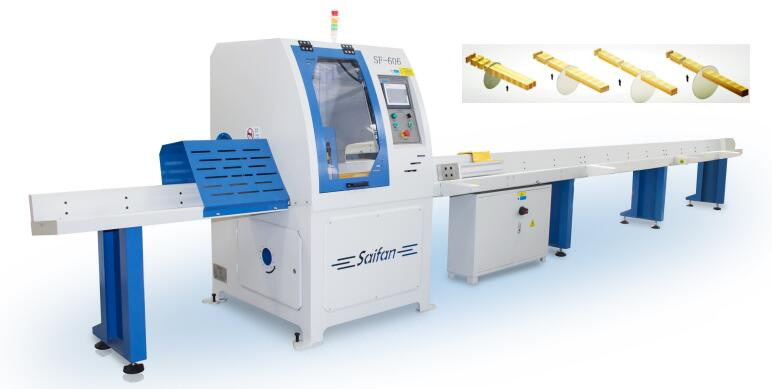

New Computer Controlled Wood Saw

New Computer Controlled Wood Saw
Price: US $ 14000-17000/Set
Min Order: 1/Set
Pay Type: L/C,T/T
new computer controlled wood saw

ModelSF606 cut off sawSF6061 cut off saw
Cutting lengthMax. 2m/ 4m/ 6m (Feeding table length)
Discharge table length1.2m
Cutting height10-120mm10-140mm
Cutting width30- 200mm30-300mm
Cutting section
Thickness*width
Max. 120*150mm/100*200mmMax.140*280mm/120*300mm
Feeding speed5-30m/min
Cutting speed40pcs/min45pcs/min
Blade diameter450mm*30mm600mm*30mm
Cutter spindle rotation speed3000rpm3150rpm
Servo drive motor power0.75kw1kw
Cutting motor power7,5kw/11HP11kw/15HP
Total power8.5kw12.5kw
Pressing methodCylinder, air pressure 0.5-0.7Mpa
Cutting toleranceIn +/-1mm
Machine working dimensionL*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m
Dust collection portDia. 100mm*2pc
Electrical componentsSchneider
PLC Touching screenSiemens






Prod Model: HICAS
Name: New Computer Controlled Wood Saw
Type: Circular Saw
Layout: Horizontal
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.

Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.

We have our own trade services company, currently has online service department, network development department and purchasing department.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
