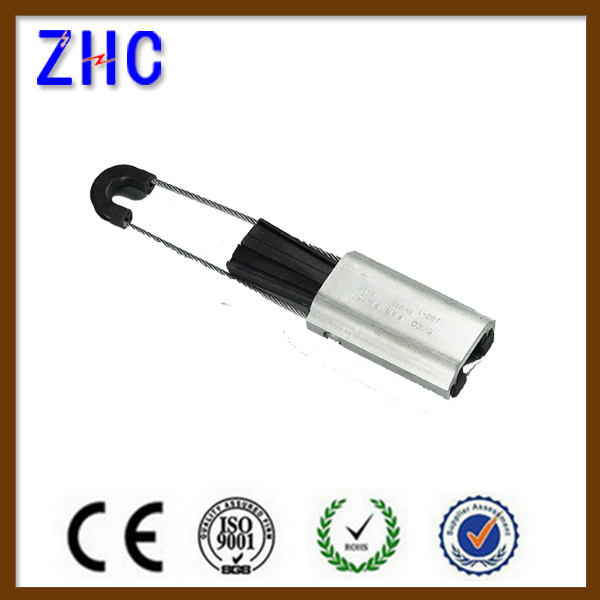

Neutral Transmission Overhead Line Dead End Strain Wedge Clamp

Neutral Transmission Overhead Line Dead End Strain Wedge Clamp
Price: US $ 2-5/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Features of  Neutral Transmission Overhead Line Dead End  Strain Wedge Clamp

Material: High strength aluminum allloy, nylon plus fiber glass, stainless steel

Material: High strength aluminum allloy, nylon plus fiber glass, stainless steel

Product property: They are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp. They are in accordance with NFC 33-041

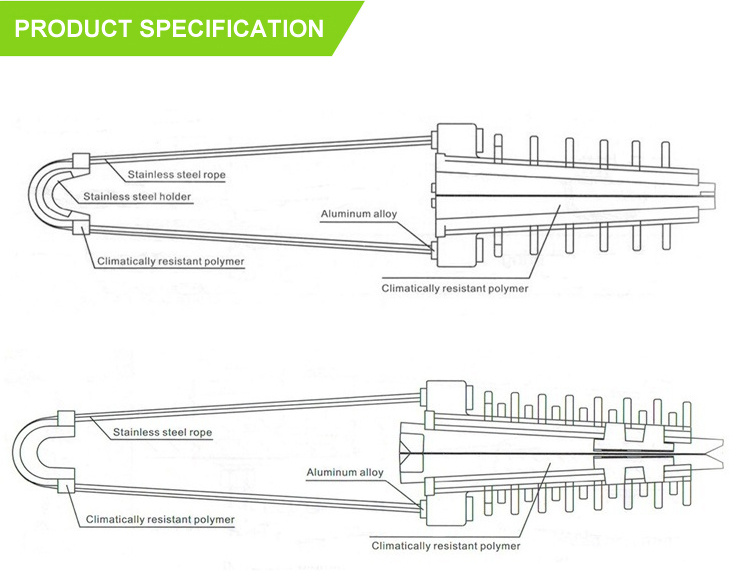

Drawings of  Neutral Transmission Overhead Line Dead End  Strain Wedge Clamp
CodeMaterialCross Section (mm2)Breaking LoadStandard
PAM-06Aluminum Alloy16-20mm2800NNFC33041
PAM-07Aluminum Alloy16-25mm2800NNFC33041
PAM-08Aluminum Alloy16-25mm21KNNFC33041
DR1500Aluminum Alloy54.6-70mm21.5KNNFC33041
DR1600Aluminum Alloy54.6-70mm21.2KNNFC33041
JBG-1Aluminum Alloy54.6-70mm21.2KNNFC33041
STANylon + Fibre glass1x10/1x16 mm2300NNFC33041
STBNylon + Fibre glass2x16/2x25mm2300NNFC33041
STCNylon + Fibre glass4x16/4x25mm2300NNFC33041
STDNylon + Fibre glass1x16/1x70mm2300NNFC33041
LA1Nylon + Fibre glass4x16/4x25mm2300NNFC33041
LA2Nylon + Fibre glass2x6/ 2x16mm2300NNFC33041
DCR-1Nylon + Fibre glass2x4/4x25mm2300NNFC33041
DCR-2Nylon + Fibre glass2x4/4x25mm2300NNFC33041
2.1Nylon + Fibre glass16-25mm2300NNFC33041
PA1500Nylon + Fibre glass25-50mm2800NNFC33041
PA2000Nylon + Fibre glass54.6-70mm2800NNFC33041
NES-B1Mild Steel4x16-50mm21.5KNNFC33041
NES-B2Mild Steel4x25-120mm21.5KNNFC33041
NES-B3Mild Steel4x25-120mm21.5KNNFC33041
NES-B4Mild Steel4x95-150mm21.5KNNFC33041
ZC116Aluminum Alloy4X25-35mm21.5KNNFC33041
ZC117Aluminum Alloy4x50-120mm21.5KNNFC33041
ZC118Aluminum Alloy4x50-120mm21.5KNNFC33041
ZC157Aluminum Alloy2x16-35mm21.5KNNFC33041
ZC158Aluminum Alloy4x16-35mm21.5KNNFC33041
ZC160Aluminum Alloy2x16-35mm21.5KNNFC33041
ZC161Aluminum Alloy4x16-35mm21.5KNNFC33041

Similar  of  Neutral Transmission Overhead Line Dead End  Strain Wedge Clamp

Packing  of  Neutral Transmission Overhead Line Dead End  Strain Wedge Clamp

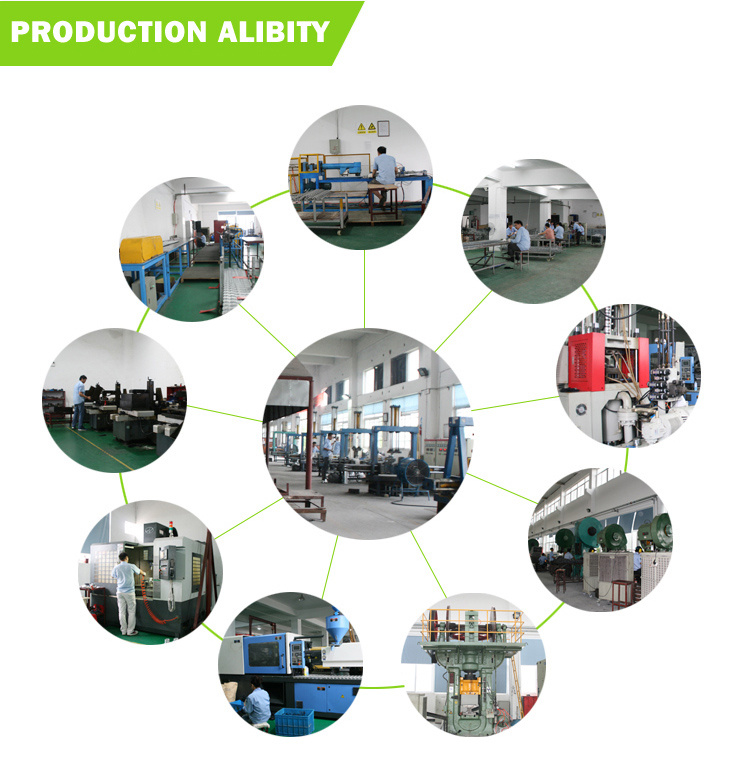

Product Ability  of  Neutral Transmission Overhead Line Dead End Strain Wedge Clamp

Certificate  of  Neutral Transmission Overhead Line Dead End Strain Wedge Clamp

FAQ:

How to Order?

1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed.



Terms of Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.



Terms of Payment:
1. For bulk order, TT or L/C at sight.
2. 30% deposit and 70% against shipping documents.
3. Sample order we accept payment such as paypal, western union, visa card.



Warranty:
1.We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

Contact info:



Prod Model: ZHC
Wire Scope: 54.6-70mm2
Body Material: Aluminum Alloy
Cable Clamp Material: Nylon Plus Fiber Glass
IEC Standard: NFC33-041
Loading Capacity: 1.5kn
About US:

Our company in the R&D, manufacture and sale of low voltage electric applicants, such as industrial plug, aerial fittings, switches, distribution box and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.

1. We already get the certificate of ISO9001, CE, SGS, RoHS

2. We have 10 years of manufacture and 8 years exporting experience.

3. We have completely sales service system, ensure every detail is going smooth.

4. We have new designed products each year by our R&D Department.

5. Perfect testing system ensure each product is qualified.

6. We have a good reputation in Russia, Spain, India, Thailand, south American, MID-east market and so on.

How to Order?

1. Please let us know what kind of model.

2. Proforma invoice (PI) will be sent to you.

3. Please check and confirm the PI.

4. Once we confirmed the order, please pay the discussed deposit soon.

5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.

6. OEM/ODM is welcomed...

Shipping:

1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).

2. We Provide Drop shipping Service.

3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.

4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.

5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:

1. TT or L/C at sight.

2.30% deposit and 70% against shipping documents.

Warranty:

1. We provide 2 year quality warranty.

2. If the product is defective, please notify us within 3 days of delivery.

3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.

Based on mutual benefit, our company development business with more than 50 countries, our main market is south amercian, north Africa, Middle East Asian, south east Asian, east Europe.
