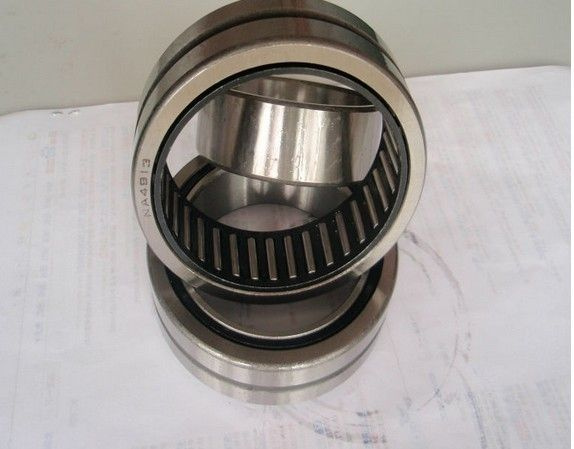

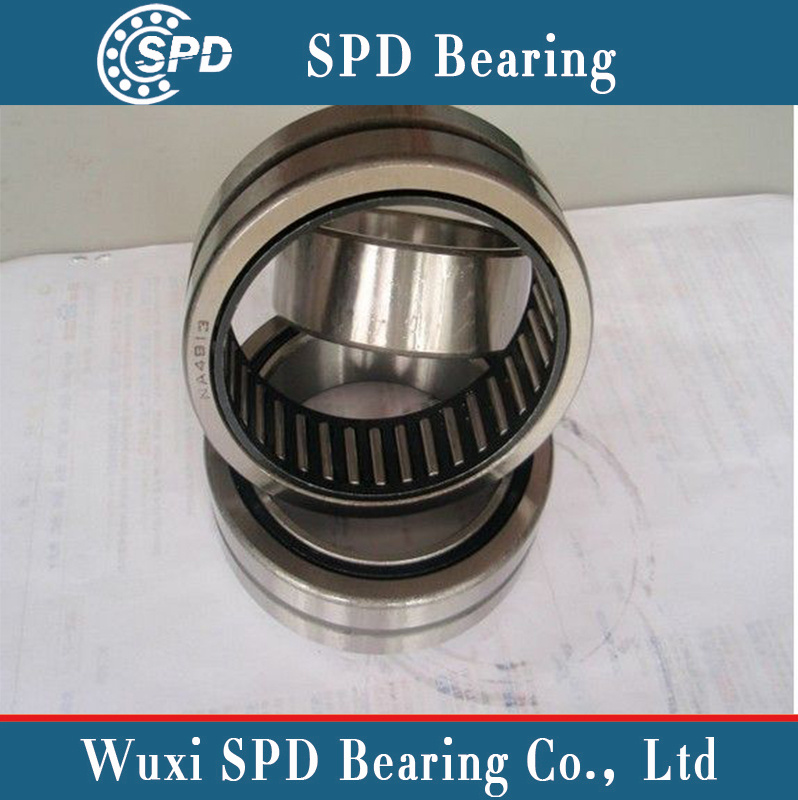

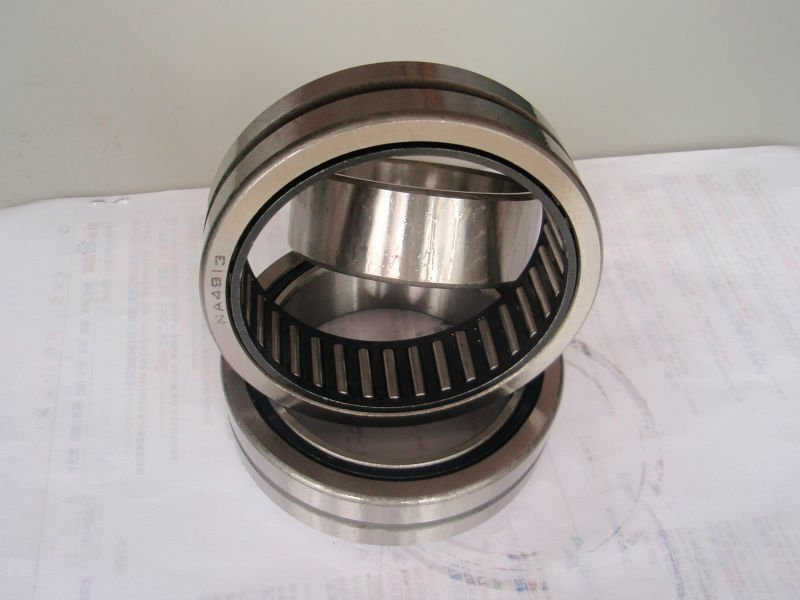

Needle Roller Bearing with Flange Na4913

Needle Roller Bearing with Flange Na4913
Price: US $ 1-1000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Wuxi SPD Bearing Co., Ltd.
Showroom Product Company Profile
Products description

Needle roller Bearing classification  :

1. Radial needle roller and cage assemblies



2. NA, NKI type needle roller bearings



3. RNA, NK model without inner ring needle roller bearings



4. Type HK stamping outer ring needle roller bearing



5. Type BK stamping outer ring needle roller bearing Mounted on the shaft end drawn cup needle roller bearing is open on both sides (1) and unilateral enclosed (2). Closed drawn cup base face can absorb small axial guiding force. Mounted on the shaft end drawn cup needle roller bearing is open on both sides (1) and unilateral enclosed (2). Closed drawn cup base face can absorb small axial guiding force.



Needle roller Bearing Notice :

Needle roller bearing capacity big, applicable to the limited size of installation of supporting structure, Journal as rolling surface hardening on the surface, bearing use force fit into the hole, need not again for axial positioning. Bearings should be injected into the right amount of grease before installation, under normal circumstances, after assembly don't have to BK type lubricating bearing used in shaft neck without out of the bearing, encloses the seal effect, and can withstand the smaller axial winding.

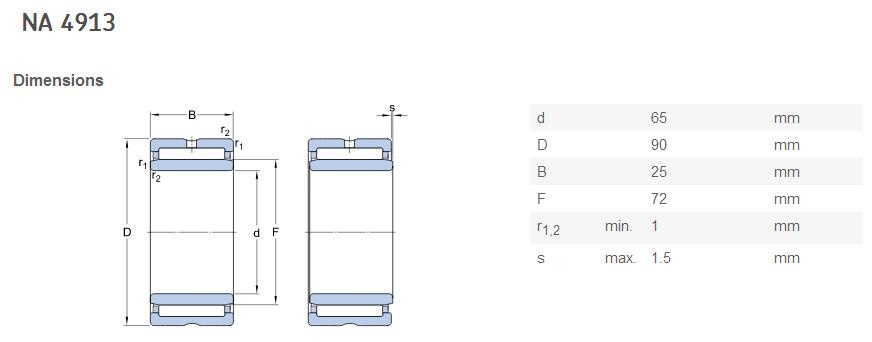

Products specification



Products show







Related Model

Bearing Modle
 weight
ShaftBearing DesignationMassBoundaryDimensionsBasicLoadRatingLimiting Speed
Diameter  ApproxdFwDB   Oil
DynamicStatic
mmCurrentCodeOriginalCodegmmNrpm
90NKI90/26  9010012026260001460004600
NA49184544918131290105125351140002500004600
NA69186534918231090105125631720004250004600
95NA49194544919137195110130351160002600004200
NA69196534919250095110130631740004400004200
NKI95/26  9510512526780001150004200
NKI95/36  95105125361140002500004200
100NA49204544920190010011514040120002740004000
NKIl00/30  10011013030980002100004000
110NA492245449222070110125150401320002900003700
NA4822 108011012014030940002160003900
120NA492445449242860120135165451810008900003400
NA4824 117012013015030990002390003600
130NA492645449263900130150180502230004700003100
NA4826 1810130145165351180003100003200
140NA492845449284150140160190502090005000002900
NA4828 1920140155175351200003250003000
150NA4830 2720150165190401520004000002800
160NA4832 2890160175200401600004350002700
170NA4834 3960170185215451850005100002500
180NA4836 4200180195225451940005500002400
190NA4838 5600190210240502270006900002300
200NA4840 5840200220250502300007200002200
220NA4844 6380220240270502430007900002000



FAQ

Q1: How is your quality ?

A1:Good quality. ISO9001:2008 certificate to ensure the quality.

Q2: Can you privide free samples?

A2: Sample is free (except large bearings),and postage should be paid by buyer. But postage can be refund after order is confirmed.

Q3: What's your brand and service?

A3: We have our own brand  in China with brand SPD
A3: We supply OEM service and after sales service

Q4: What is the Warranty for the bearings?

A4: For the bearings,we have 1 years warranty. If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q5: Is there any cheap shipping cost to import to our country?

A5: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q6: Can we get support if we have our own market position?

A6: Please inform us your detailed information about your market ,we will discuss and propose helpful suggestion for you and to find the best solution for you.
Shipping



Prod Model: NA4913
Rolling Body: Roller Bearings
The Number Of Rows: Single
Outer Dimension: Small and Medium-Sized (',60-115mm)
Material: Bearing Steel
Load Direction: Radial Bearing
Separated: Unseparated
Wuxi SPD Bearing Co., Ltd is located in Wuxi city, Jiangsu province of China, and very close to Shanghai, which has the biggest sea port in China.

Our factory mainly produce spherical roller bearing, 22205-22230, 23218-23226, 22308-22324, 24020-24030, 23120-23130, 21304-21320, 23020-23034, 24120-24126 with cage of CA, CAW33, CAK, CAKW33, CCW33, MBW33

Since our foundation, we already build long term relationship with many customers from all over the world. And we provide a customer orientated approach to bearing sales.

Our mission is to continue to grow our business, by responding to our customers, working closely with our suppliers, and offering flexible, adaptable solutions to each parties needs.

And We also have rich sources for other kinds of bearings to meet customers different requiry, like deep groove ball bearing, self-alingning ball bearing, cylindrical roller bearing, taper roller bearing, thrust roller and ball bearing, pillow block bearing, needle roller bearing, ect.

Our products are widely used in steel factory, metallurgy, mining, railway, agricultural machinery, car, ship, textile, toy, electronic, ect.

If you want to find good quality bearing and good after sale, please feel free to contact us!
