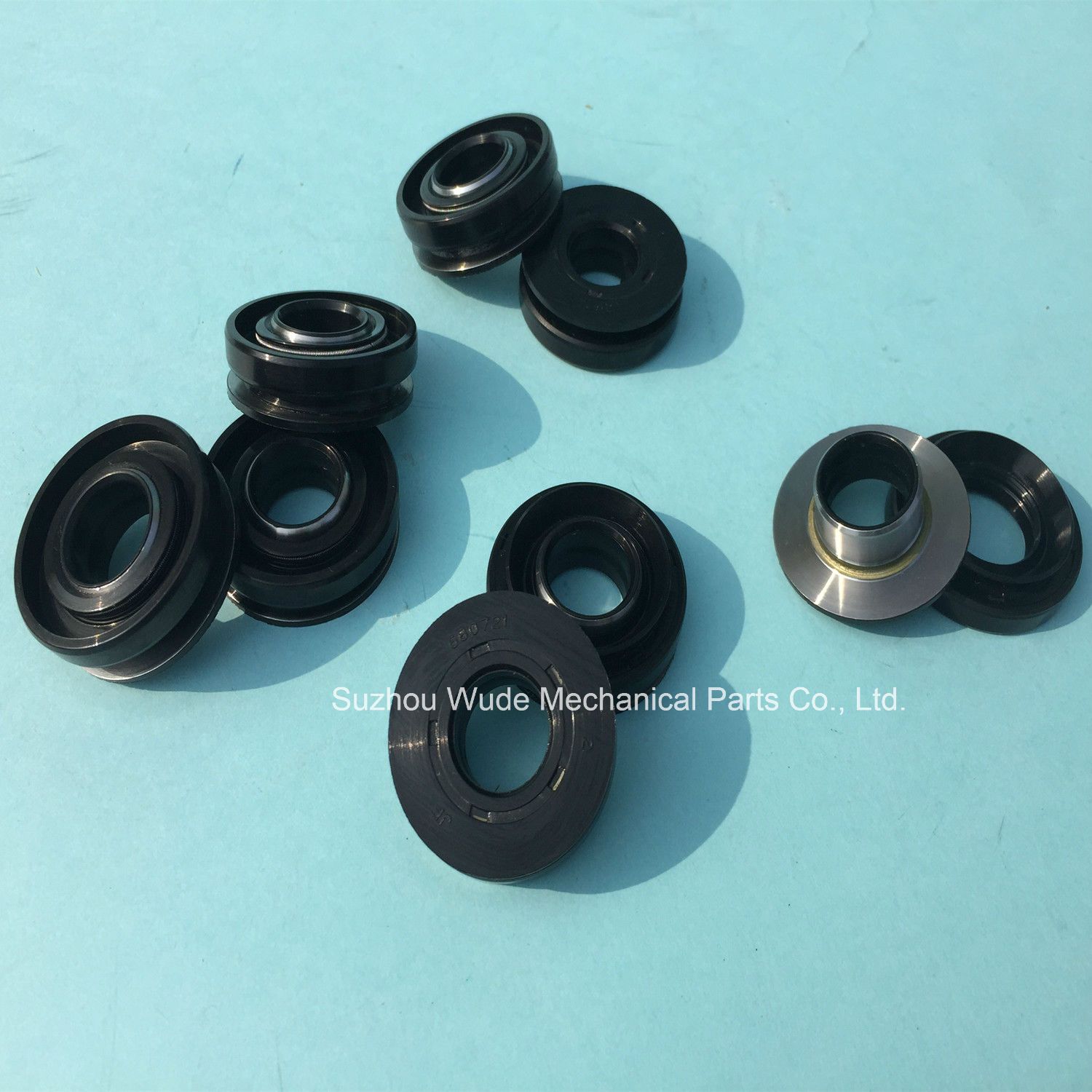

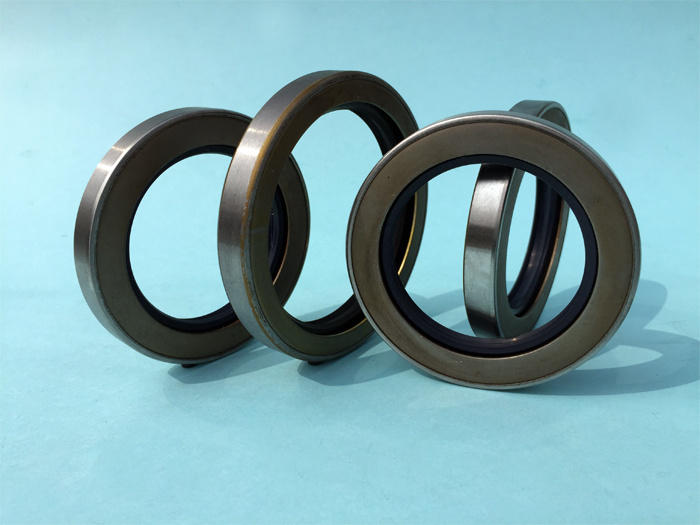

NBR Viton Oil Seal for Agriculture Machine Application Taiwan

NBR Viton Oil Seal for Agriculture Machine Application Taiwan
Price: US $ 0.01-5/Piece
Min Order: 3000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

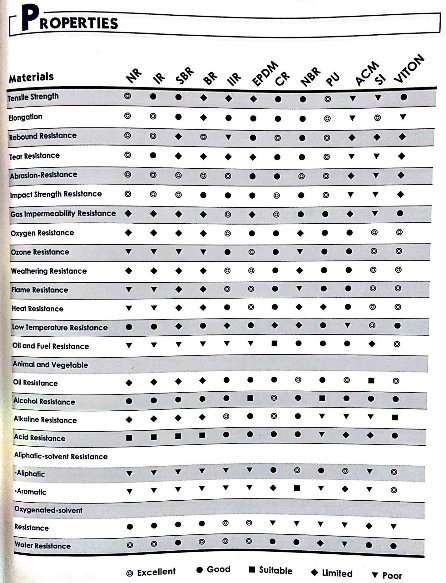

PROPERTIES



SHAFT SPEEDS AND LIP MATERIALS

An important consideration when selecting the lip material is the shaft speed (measured in rotations per minute),circumferential speed (measured in feet per second),and shaft diameter(measured in inches).These conditions determine whether or not a given elastomer will operate properly.

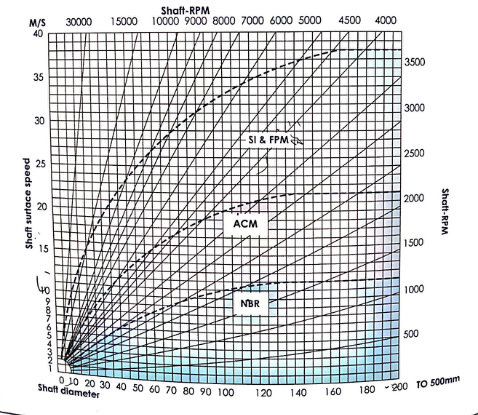

The graph below offers general guidelines for determining the compatibility of silicone.fluorocarb
-on,polyacrylate and nitrile with specific shaft and circumferential speed.For more information,ple
-ase contact with us.





METAL CASE AND SPRING
The other major components of an oil seal are the metal case and garter spring.
Below lists the material specification MKS uses of its components.
There are basic types of seals:

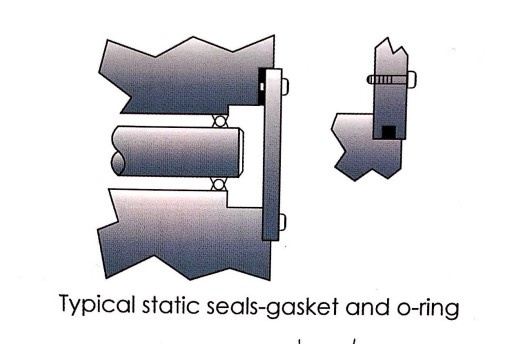

1)      Static Seals:
The function of a static seal is to creat a barrier between non-moving surfaces. Typical examples would be a valve cover gasket or O-ring.

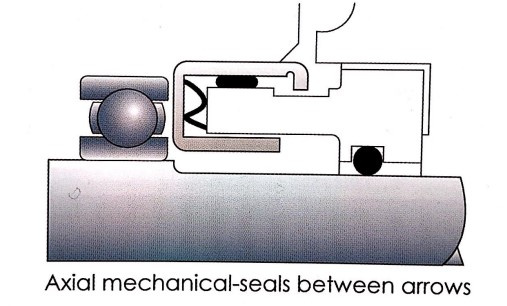

2)      Axial Mechanical Seals:
These are face type seals in which the sealing contact is between radially mounted components. One is usually stationary and seal contact pressure is applied by a spring mechanism.

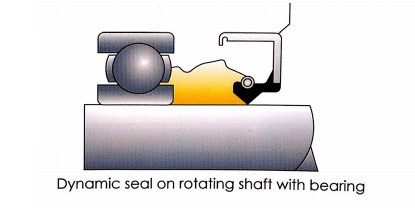

3)      Dynamic "Radial"Seals:
A dynamic radial seal creates a barrier between surfaces in relative motion. One is usually stationary while the other rolates.The cross-section shown below identifies the most common parts of a shaft seal.




PRODUCTS




FITS&TOLERANCES:
Bore DiameterBore ToleranceNominal Press FitSeal O.D.Tolerance
InchInchInchInch
Up to 3.000±.001.004±.002
3.001 to 4.000±.0015.005±.002
4.001 to 6.000±.0015.006+.003
6.001 to 8.000±.002.006-.002
8.001 to 9.000±.002.007+.006
9.001 to 10.000±.002.007-.002
10.001 to 12.000±.002.007+.006


SHAFT RECOMMENDATIONS

Shaft Diameter                                     Tolerance
Up to 4.000 shaft                                     ±.003
4.001 to 6.000 shaft                                ±.004
6.001 to 10.000 shaft                              ±.005



PRESSURE LIMITS
Shaft Speed-FPM Maximum               Pressure-PSI
0-1000                                                           7
1001-2000                                                     5
2001 and Higher                                            3


ECCENTRICITY LIMITS
Speed Range         Max.Misalignment          Max Shaft Run-Out
0-800 RPM                              0.015  in ECC                            0.025 IN TIR
800-2200 RPM                        0.010  in ECC                            0.020 IN TIR
2200-4200 RPM                      0.010  in ECC                            0.015 IN TIR

For Further require, please kindly connect with us,Thanks
Prod Model: NA01
Temperature: -25ºC - 100ºC
Hardness: 75-90 Shore
Color: Black,Brown, or Color Required
Application: Automobile, Engineering Machinery,Agricuture
Certificates: SGS
Shipping: by Sea,by Air,by Railway
Material: NBR
Usage: Engineering Machinery
Standard: Nonstandard
Suzhou Wude Mech delicates to the research and produce the blue belt which has best quality and highly trasmission perfermance in the Wheat, Rice and Combine Harvester. We have the most advanced production equipment and technology, import the best and special raw material. "ZhongXiang Blue Belt" has been widely used in different domestic harvester producing factory and after sales market, such as Star Harvester, World Harvester, FengYuan Harvester, Zoomlion Harvester, AGCO Harvester, Sida Harvester, etc. We are keep working on improving the quality and research the best and durable belt. We have worked and copperate with our clients from the design to the production work, We have been clients best coworker and loyal parnter.

Suzhou Wude Mechanical Parts Co., Ltd also contributes to the accessories industries, such as Oil seal, Filter, DC Conductor. Wheel Rim, etc. We aim to be the professional and efficient parts company which provide and offer the whole package service for our clients.

Professional Produce, Passional Service, Precision meets permission! We are looking forward to our cooperation!
