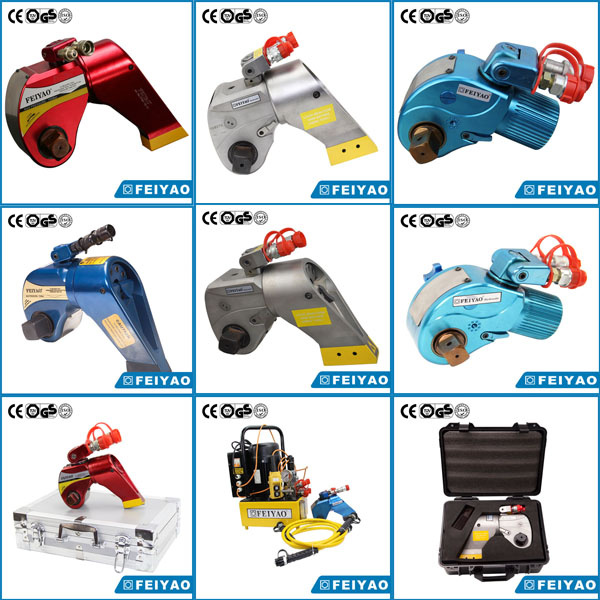

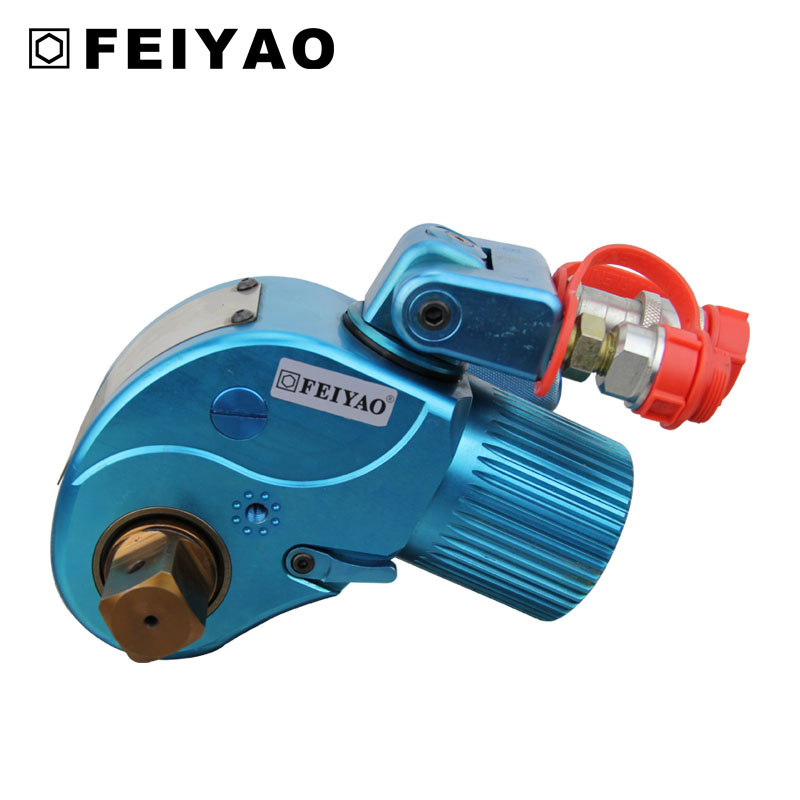

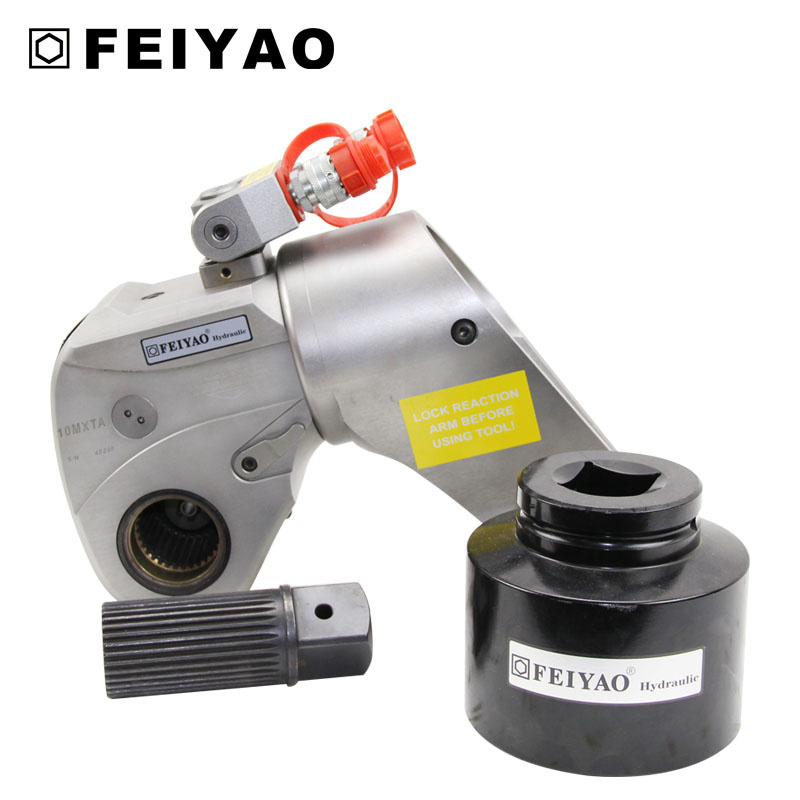

MXTA Series Standard Square Drive Hydraulic Torque Wrench
Features:
1.Very high torque-to-weight ratio
2.High speed,double acting operation
3.High degree of rotation angle
4.Never-jam mechanism
5.High repeatability,with accuracy ±3%
6.Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas
7.Few moving parts means durability and low maintenance
8.Push button drive release;no tools needed to reverse square or allen key drives for tighening or loosening

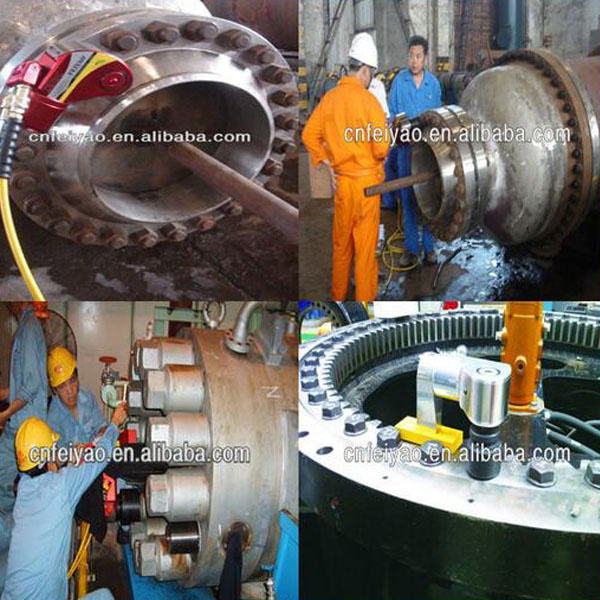

ApplicationOur products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.Brief introduction of FEIYAO

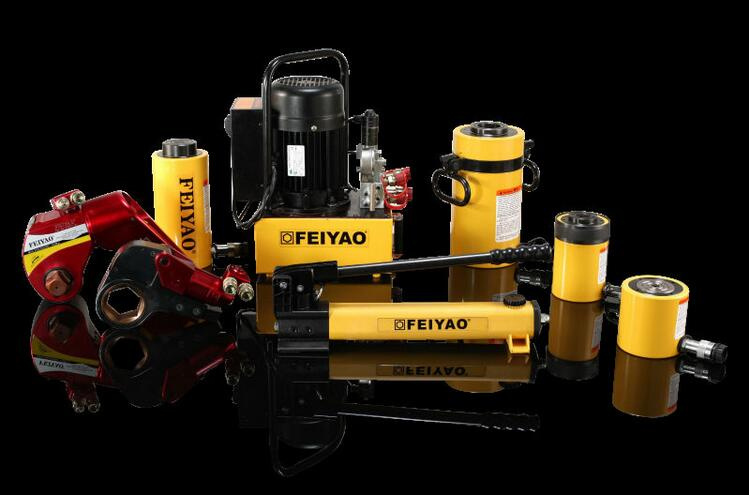

Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.

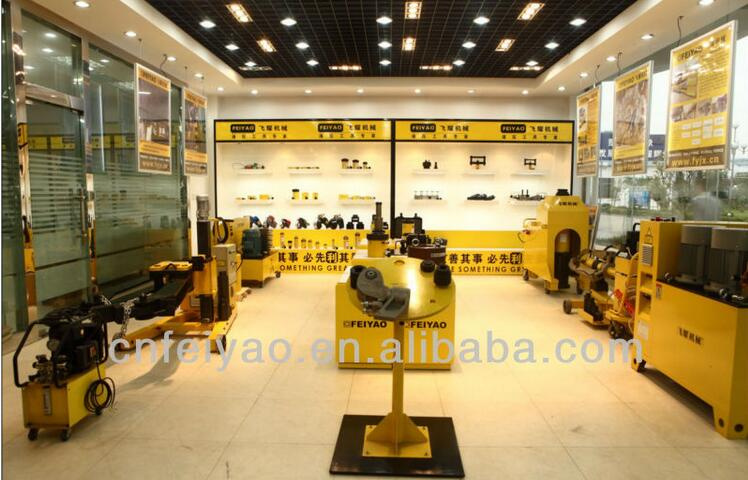

Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.Showroom

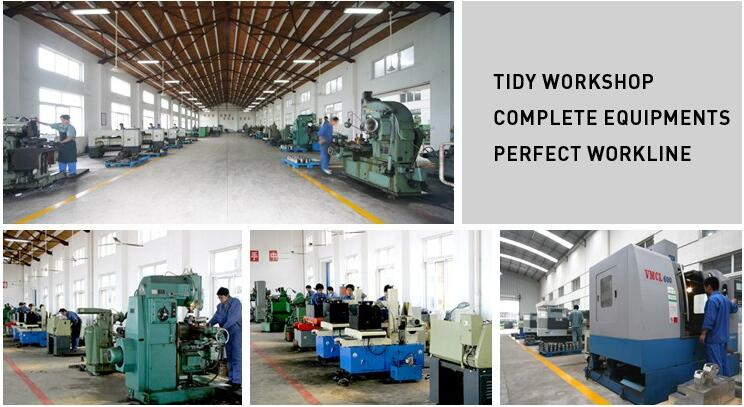

Factory Show
We warmly welcome all overseas customers to talk with us about business or other cooperationAny phone call, E-mail, fax from you would be a beginning of happy cooperation.For more information please visit our website:www.fyhydraulic.cn We are professional manufacturer, offer you competitive price.If you have any questions about these products , please contact us ,we will try our best to help you !CONTACT US
Tel: +86-523-86183388
Fax: +86-523-86186999
Mobile: +86 18036786358
: +86 18036786358
IMO: 0086 18036786358
Parameter informationModel
| FY- 02MXTA
| FY- 05MXTA
| FY- 08MXTA
| FY- 10MXTA
| FY- 16MXTA
| FY- 20MXTA
| FY- 27MXTA
| FY- 39MXTA
| FY- 50MXTA
| FY- 60MXTA
|
Max. Torque (N.M)
| 1940
| 4763
| 8012
| 10704
| 15633
| 20782
| 28286
| 39584
| 50844
| 58673
|
Min.torque(N. M)
| 139
| 340
| 572
| 765
| 1117
| 1484
| 2020
| 2827
| 3632
| 4263
|
Screw size(mm)
| 24-55
| 32-75
| 41-85
| 46-95
| 55-105
| 60-115
| 65-130
| 75-145
| 95-170
| 105-185
|
Bolt size(M)
| 16-36
| 22-48
| 27-56
| 30-64
| 36-72
| 39-80
| 42-90
| 48-100
| 64-120
| 72-130
|
axle
| 3/4"
| 1"
| 1-1/2"
| 1-1/2"
| 1-1/2"
| 2-1/2"
| 2-1/2"
| 2-1/2"
| 2-1/2"
| 2-1/2"
|
weight (kg)
| 2.3
| 5.2
| 8
| 12
| 14.8
| 18.9
| 28
| 41.2
| 46.3
| 53.5 |
Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.
Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.
Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.
At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.
The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
