Mxta Series Square Drive Hydraulic Torque Wrench

Mxta Series Square Drive Hydraulic Torque Wrench
Price: US $ 180-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

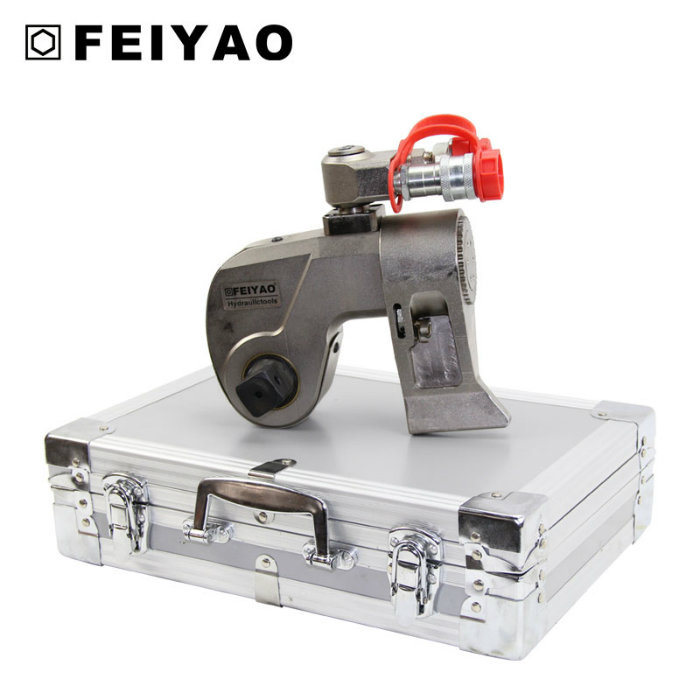

MXTA Series Square Drive Hydraulic Torque Wrench




Features:

1.Very high torque-to-weight ratio

2.High speed,double acting operation

3.High degree of rotation angle

4.Never-jam mechanism

5.High repeatability,with accuracy ±3%

6.Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas

7.Few moving parts means durability and low maintenance

8.Push button drive release;no tools needed to reverse square or allen key drives for tighening or loosening

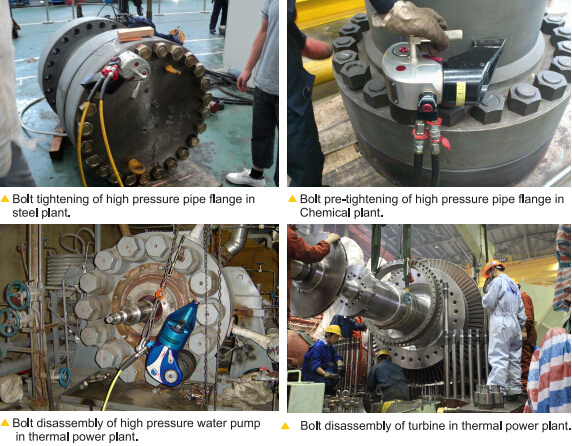

Application
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and
refinery, bridge, railway construction and maintenance.
Company Introduction

Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.
Factory Show


FAQ
Q1: How to contact sales?
A1: Please email or call: +86-180-1829-0911 for pre-sales.
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.

Contact Us
Jiangsu Feiyao Machinery Manufacturing Co., Ltd
Contact Person: Miss. Bella Liang
Tel: +86-180-3679-7771
Web: www.fyhydraulic.com

Parameter information
Model

FY- 02MXTA

FY- 05MXTA

FY- 08MXTA

FY- 10MXTA

FY- 16MXTA

FY- 20MXTA

FY- 27MXTA

FY- 39MXTA

FY- 50MXTA

FY- 60MXTA

Max. Torque (N.M)

1940

4763

8012

10704

15633

20782

28286

39584

50844

58673

Min.torque(N. M)

139

340

572

765

1117

1484

2020

2827

3632

4263

Screw size(mm)

24-55

32-75

41-85

46-95

55-105

60-115

65-130

75-145

95-170

105-185

Bolt size(M)

16-36

22-48

27-56

30-64

36-72

39-80

42-90

48-100

64-120

72-130

axle

3/4"

1"

1-1/2"

1-1/2"

1-1/2"

2-1/2"

2-1/2"

2-1/2"

2-1/2"

2-1/2"

weight (kg)

2.3

5.2

8

12

14.8

18.9

28

41.2

46.3

53.5
Prod Model: FY-MXTA
Material: Steel
Usage: Lifting, Supporting and Jacking
Structure: Piston Cylinder
Standard: Metric
Pressure Direction: Single-Acting Cylinder
Double-Acting Cylinder Type: Common Cylinder
Special Cylinder Type: Number of Cylinders
Combination Cylinder Type: Pressurized Cylinder
Type: Torque Wrench
Power Supply Type: Charging Power
Power Supply Voltage: 220V
Power Source: Hydraulic
Power: Hydraulic
Brand: Feiyao
Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.

Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.

Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.

At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.

The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
