Mxta Series Square Drive Hydraulic Torque Wrench

Mxta Series Square Drive Hydraulic Torque Wrench
Price: US $ 150-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T

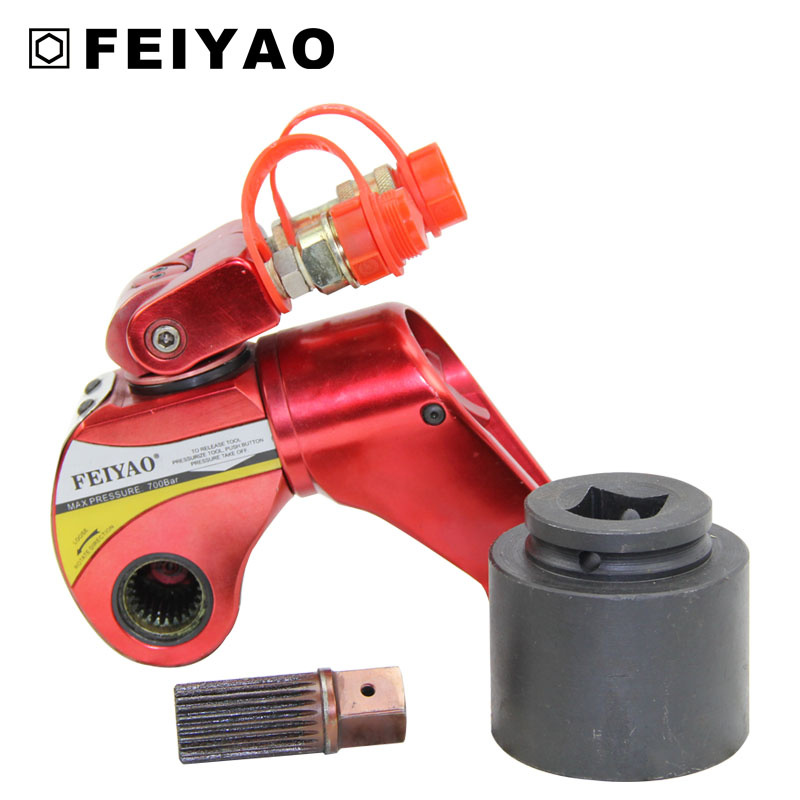

MXTA series square drive hydraulic torque wrench
Features:
1. Very high torque to weight ratio
2. High speed, double acting operation
3. High degree of rotation angle
4. Never jam mechanism
5. High repeatability, with accuracy ± 3%
6. The 360 degree swivel coupler can be freely operated, and allow easy access in all position.
7. The trigger style lock can be pressed easily, and it may situate the reaction arm of 360 degree trimming style on the support freely.
8. Push button drive release; No tools needed to reverse square or allen key drives for tighening or loosening


Pictures

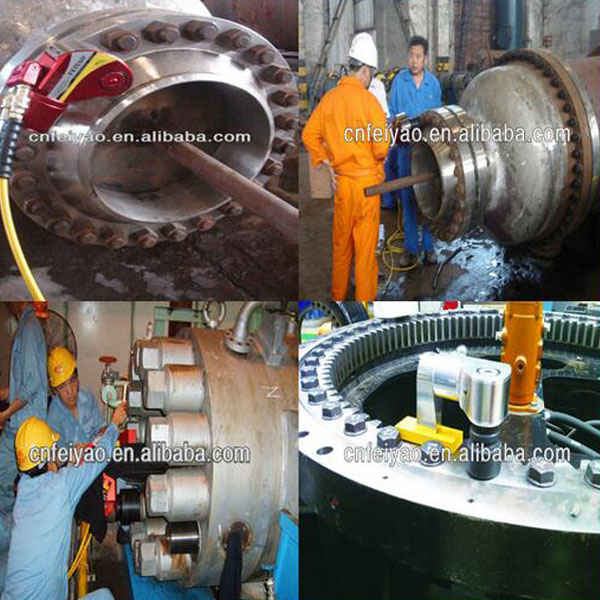

Application

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Parameter information
Model

FY- 02MXTA

FY- 05MXTA

FY- 08MXTA

FY- 10MXTA

FY- 16MXTA

FY- 20MXTA

FY- 27MXTA

FY- 39MXTA

FY- 50MXTA

FY- 60MXTA

Max. Torque (N.M)

1940

4763

8012

10704

15633

20782

28286

39584

50844

58673

Min.torque(N. M)

139

340

572

765

1117

1484

2020

2827

3632

4263

Screw size(mm)

24-55

32-75

41-85

46-95

55-105

60-115

65-130

75-145

95-170

105-185

Bolt size(M)

16-36

22-48

27-56

30-64

36-72

39-80

42-90

48-100

64-120

72-130

axle

3/4"

1"

1-1/2"

1-1/2"

1-1/2"

2-1/2"

2-1/2"

2-1/2"

2-1/2"

2-1/2"

weight (kg)

2.3

5.2

8

12

14.8

18.9

28

41.2

46.3

53.5
About our company


Established in 2004, Jiangsu feiyao machinery manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifting system, hydraulic cylinder, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories ect.
Our products have been widely sold to Europe, south East Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please remember our company is always your reliable friends.
Our well equipped facilities and excellent quality control enables us meet customers` satisfaction. Besides, we have gained CEand ISO9001certificates.


We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.

IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE, 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

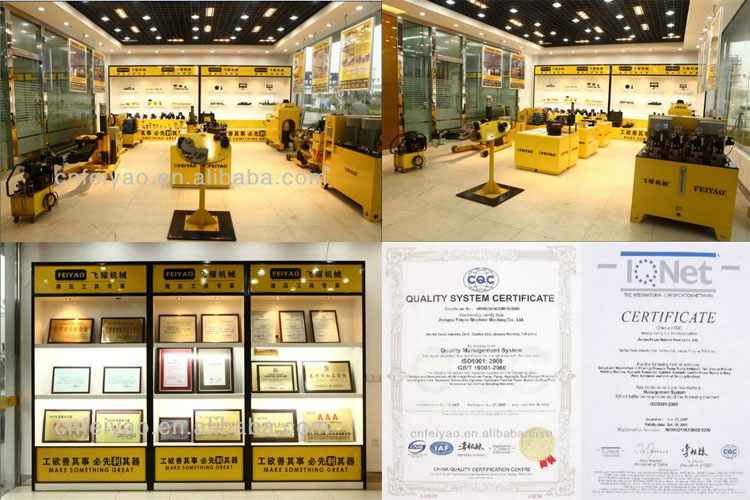

Showroom&Certification

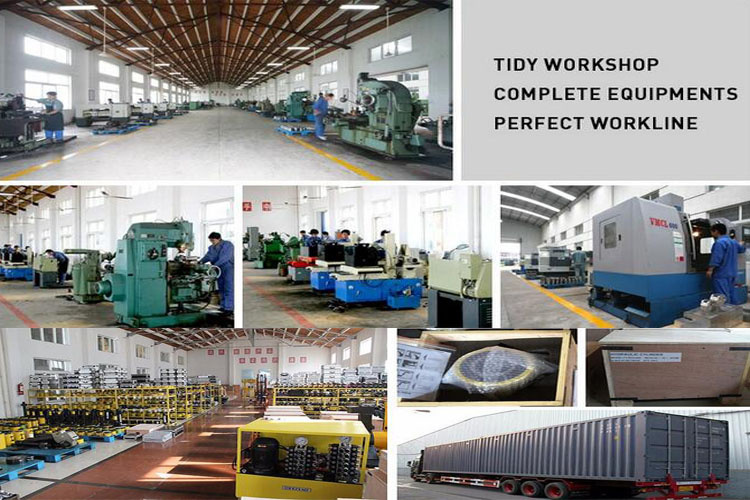

Factory Show & Packaging&shipping



CONTACT US

Contact Information

Sales Manager:Angela Zhang

Tel: +86-523-86183388
Fax: +86-523-86186999

Mobile: +86 18036786358
Facebook:+86 18036786358
IMO: 0086 18036786358

Web: www.fyhydraulic.com

Prod Model: FY-MXTA
Material: Steel
Usage: Lifting, Supporting and Jacking
Structure: Piston Cylinder
Standard: Metric
Pressure Direction: Single-Acting Cylinder
Double-Acting Cylinder Type: Common Cylinder
Special Cylinder Type: Number of Cylinders
Combination Cylinder Type: Pressurized Cylinder
Product Name: Mxta Series Square Drive Hydraulic Torque Wrench
Bolt Size(M): 16-130
Type: Torque Wrench
Power Supply Type: Charging Power
Power Supply Voltage: 220V
Power Source: Hydraulic
Power: Hydraulic
Brand: Feiyao
Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.

Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.

Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.

At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.

The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
