Multifunctional Down The Hole Drill Down Hole Hammer

Multifunctional Down The Hole Drill Down Hole Hammer
Price: US $ 800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

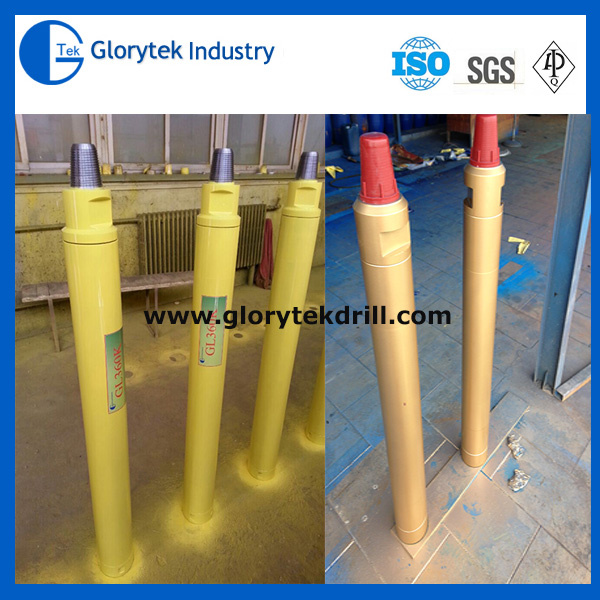

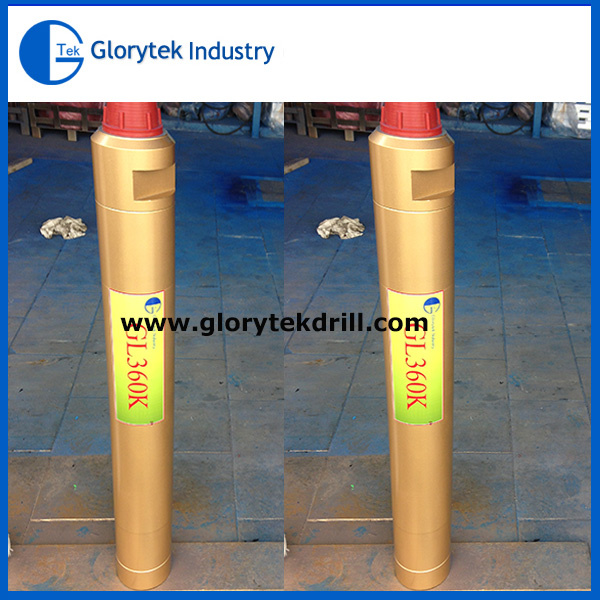

Multifunctional down the hole drill down hole hammer made in China



Description

Our DTH hammer and bits are compatible with CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc.
They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high
abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.


Our hammer and bits are made of high quality alloy steel with advanced heat threatment to assure the good drilling performance and long service life. They are widely used by our customers all over the world.

Advantage

1. Durable impact parts
2. High speed , most stable performance
3. Efficient energy transfer
4. Long life


Main Features

 1) DTH hammers series we supply
 A) High pressure series
 B) Medium pressure series
 C) Low pressure series
 D) High efficiency high pressure series
 E) Reverse circulation series

 2)Outside diameters: 61.2~275mm
 3)Drilling diameter: 68~508mm


 Application

 1. mine and quarry
 2. road construction for the drilling and blasting work
 3. water well drilling
 4. slope protection





----Type and Technical Specification of High Pressure DTH Hammers

Item

GL330

GL335

GL340A

GL345

GL350

GL355

GL360

GL380

GL3120

Drilling Dia.
( Φ/mm)

82-85

90-93

105-130

105-130

130-152

130-152

152-305

203-350

302-508

Hammer Length(mm)

867

908

1052

1034

1387

1220

1450

1551

1934

Outside Dia.
( Φ /mm)

71

81

92

98

114

124

136

181

275

Weight(kg)

19

21.8

38

39

69

74

126

277

642

Working Pressure(Mpa)

0.8-2.1

0.8-2.1

0.8-2.1

0.8-2.1

0.8-2.1

0.8-2.1

0.8-2.1

0.8-2.1

0.8-2.1

Air Consumption
(M3/Min.)

3-12

4.3-14.2

3.5-18

3.5-15

5.7-18

6.5-18

8.5-25

12-31

14-45

Torque(N.M)

150

205

304

335

590

700

822

1560

2410

Impact Frequency (Times/Min.)

≥800

950-1500

≥800

≥800

810-1470

810-1500

820-1475

860-1510

980-1446

Connection 1

48.8×4.2

API 2-3/8

API 2-3/8

API 2-3/8

API 3-1/2

API 2-3/8

API 3-1/2

API 4-1/2

API 6-5/8

Connection 2

Φ47-6

Φ53-8

Φ64-8

Φ64-8

Φ84-8

Φ84-8

Φ99.5-8

Φ128-10

Φ184-8



Our Services
Delivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.
EX: 1.Select the right most suitable products.
       2. According to the rock types, choosing the face type, button tooth type.
       3. According to the different purpose,. choosing the different body type



Our Company

Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Prod Model: all size
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type: Drilling Tool
Model Number: Gl330, Gl335, Gl340A, Gl345, Gl350, Gl355 ,Gl360,
Drilling Diameter: 82-508m
Length: 867-1934mm
Weight: 19-642kg
Processing Type: Forging
Working Pressure: 0.8-2.1 MPa
Air Consumption: 3-45
Glorytek Industry (Beijing)Co., Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Due to the continuous effort and improvement, Glorytek's market share keeps increasing rapidly, meanwhile, the perfect after-sales service is providing a strong support and guarantee for the expanding of business cooperation. Till now, we enjoy the good reputation and our products have been winning the confidence of a lot of domestic and overseas customers.

Scope of products:

Blasthole Drilling Rigs
1: Compressor Integrated Type
2: Compressor Separated Type

Water Well Drilling Rigs
1: Truck Mounted Type
2: Crawler Type
3: Trailer Type

Piling Machinery
1: Rotary Drilling Rigs
2: Anchor Drilling Rigs
3: Auger Drilling Rigs

Drilling Auxiliaries
1: DTH Hammer and Bits
2: Button bit, Chisel bit, Cross Bits
3: Drill Pipe or drill Rod
4: Tricone Bits
5: PDC Bits
6: Downhole motor or Mud Motor
7: Pumps
