Multi-Functional Portable Valve Grinding Tools
| Price: |
US $ 2000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Manufacturer of Valve grinder from China ,Metals Kingdom Industry LimtedPortable Grinding Machine for Grinding Globe Valve M series valve grinding machine mainly used to grinding the surface of valve, flange which need to be absolutely sealed. Usually it achieved by grinding valve seat, valve core and sealing surface of flange.
M series valve grinding machine is applicable to electric power petroleum chemical metallurgical paper which tube valve concentrated industry. Repairing the surface of gas, water, oil valve etc. There are 2 styles of valve grinding machine, portable style and desktop item. Portable valve grinding machine is applicable to the inconvenience of valve repairing both on site and off site repairing, desktop valve grinding machine is suitable for off site repairing.Features:*Split-type assembly makes installation easy and fast
*High-strength aluminum alloy grinding disc. This material with high strength, light weight and hard to deformation *Standard configure: Germany Metabo Motor and world famous bearing
*Grinding Paper, cheap and easy to replace
*Grinding speedy, good quality, grinding efficiency is 10-30 times by manual grinding
*Aluminum-plastic case packing, light, compact, and easy to carry Application:*Could grinding plane valve(valve seat and valve core),cone valve(valve seat),relief valve etc

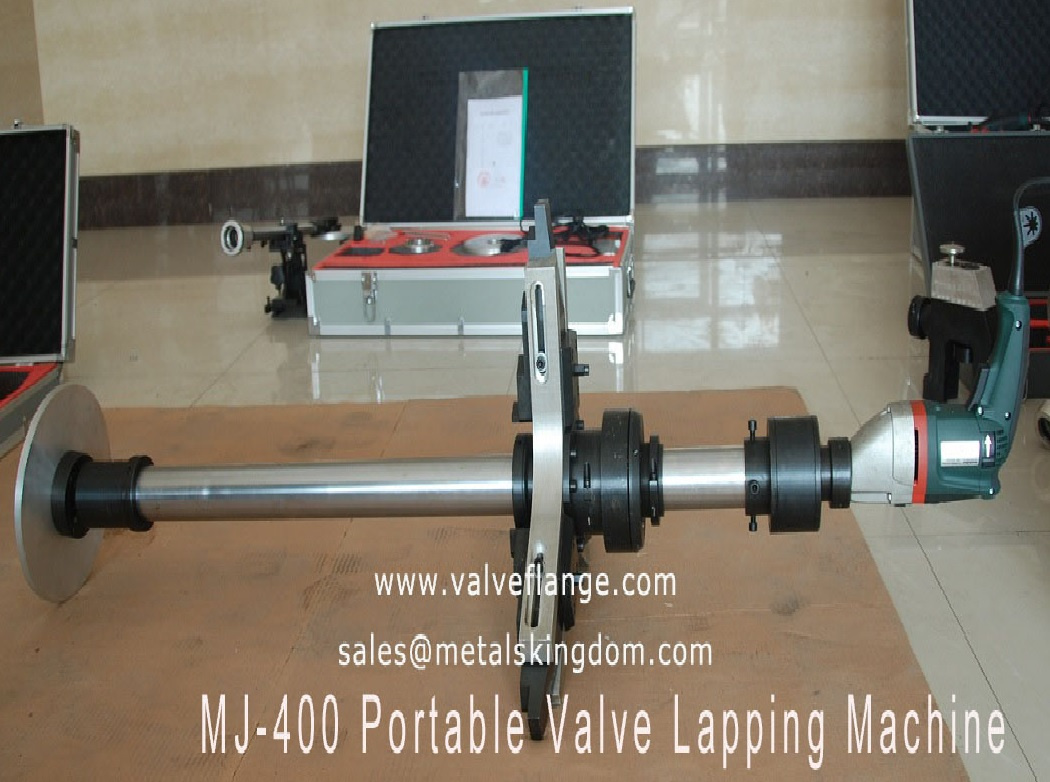

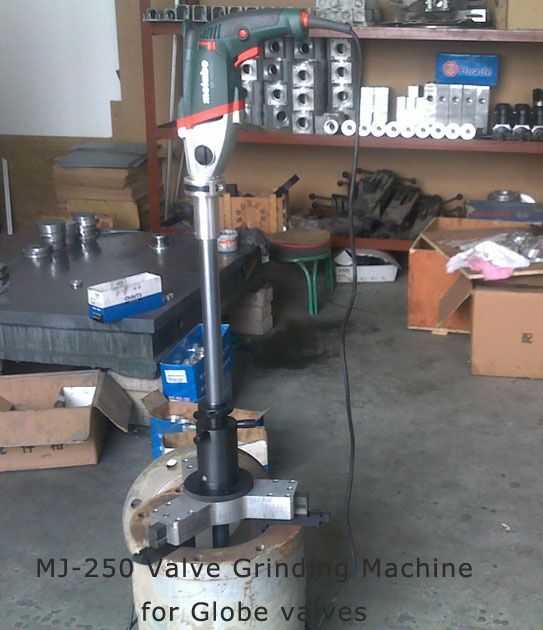

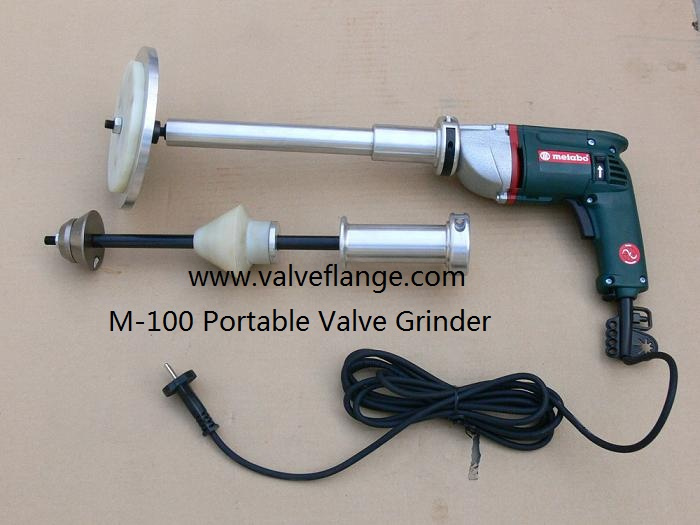

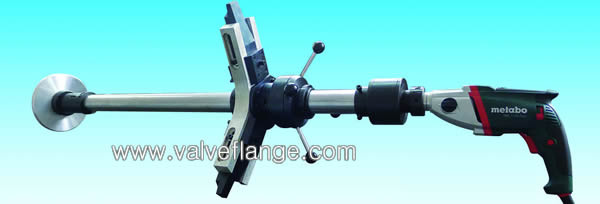

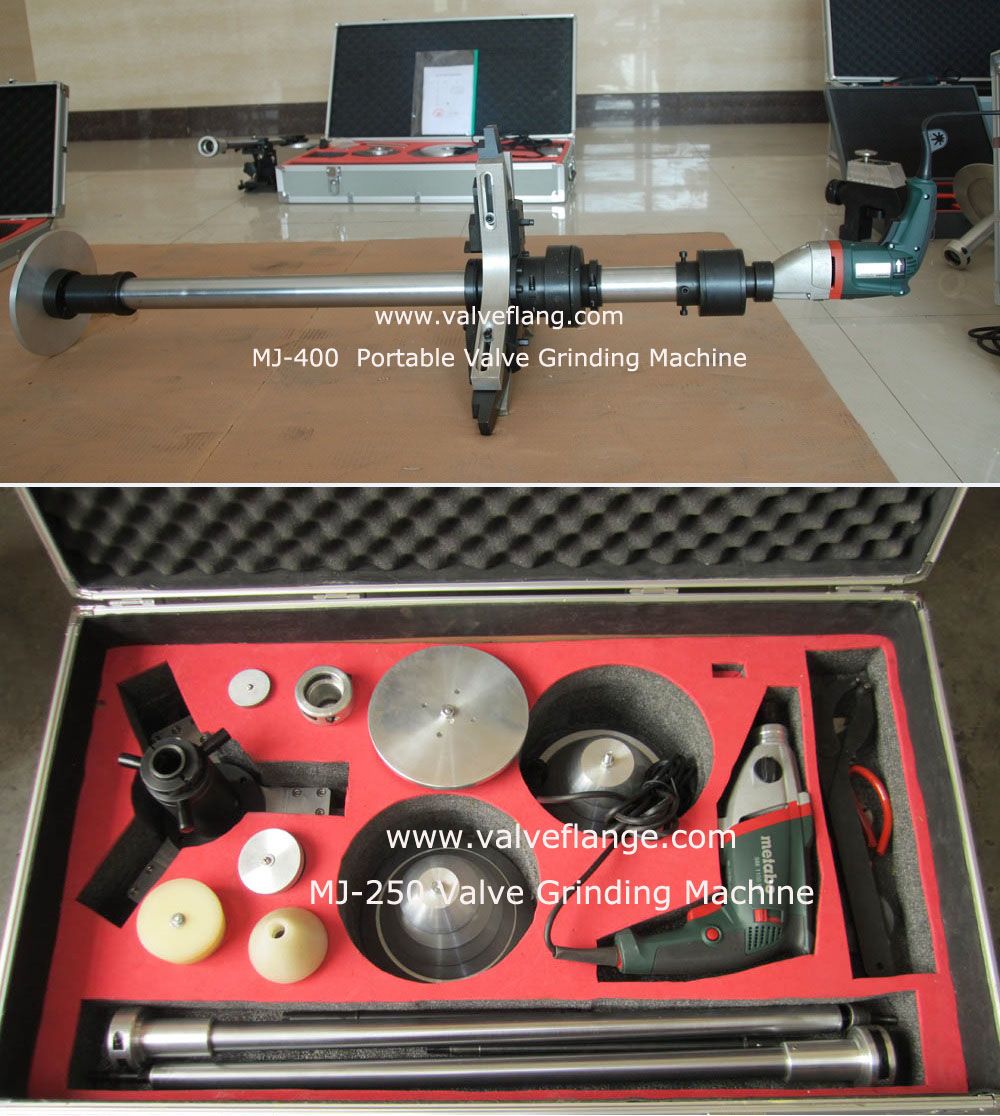

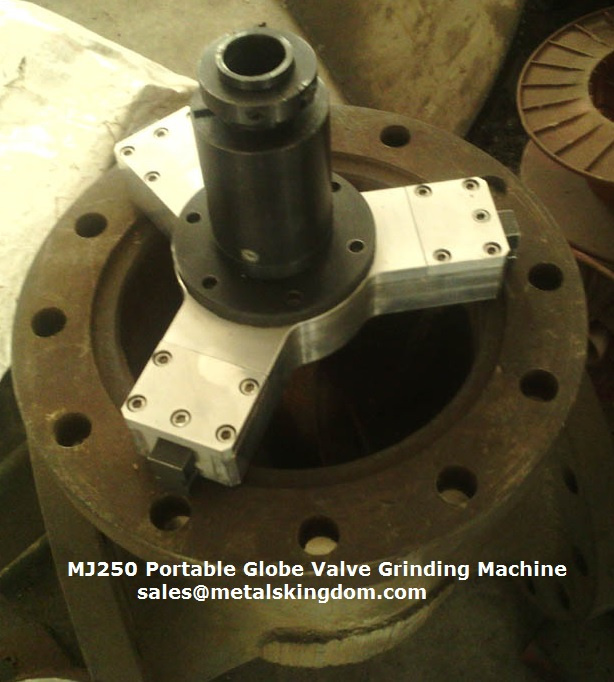

*Equipped with special grinding disc grinding high pressure pipe, equipped with self-centering grinding disc grinding high and low pressure bypass valve | Item | M-100 | MJ-250 | MJ-400 |
| Grinding Range(mm) | 60degree 75degree 90degree,
dia20-65 cone valve | dia80-275 cone valve, plane globe/Stop valve, relief valve(grinding disc optional) | dia150-400 cone valve, plane valve, relief valve(grinding disc optional)) |
| dia20-175 plane valve, relief valve |
| Voltage(V) | 220 | 220 | 220 |
| Power(W) | 750 | 1100 | 1100 |
| Frequency(HZ) | 50 | 50 | 50 |
| Max Grinding Depth(mm) | 250 | 450 | 700 |
| Gross Weight(kg)with case | 23.5 | 40 | 60 |
Globe valve and Cone valve grinding machine can be customized individually .
| Prod Model: |
M100, MJ250, MJ400 |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Grinding Scope: |
Dia 20-400mm |
| Operating Weight: |
25kg |
| Motor: |
Germany Metabo |
| Power Source: |
Electricity |
| Material: |
Aluminum Alloy |
| Type: |
Valve Ginder |
| Object: |
Globe Valves ,Cone Valves,Stop Valves |
| Application: |
Power Generation, Petroleum, Chemical, Metallurgy |
| Working Style: |
Portable,Electrical Motor |
| Disc Diameter: |
Dia 20-400mm |
Sincere Union Imp & Exp Co., Ltd(Metals Kingdom Industry Limited) is located in Baoding New Technology Development Zone, We are a integrated Corporation. We have our own manufacturing sites with complete Quality Management system ISO9001: 2008, ISO14000, GMP, FAMIQS and etc.
Our main products include Valve Grinding tools /Valve Grinder/Valve Grinding machine, Valve Lapping Machine, Valve Closed Test Bench, Pipe Bevelling and Cutting Machine, Besides, We have been dealing with Chemical Products for more than 10years.
We produce Portable Valve Grinding Machine (M-100, M-200, M-300, M-600, M-1200) and Valve Test Bench, Flanges include Blind Flange, Slip-on Flange, Welding Neck Flange, Socket Welding Flange, Thread Flange and Plate Flange. Valve series have Gate Valve and Butterfly Valves. They are used in low and middle pressure fluid pipeline, boiler, petroleum and natural gas industry, drilling, chemical industry, electric industry, shipbuilding, fertilizer equipment and pipeline, structure, petrochemical, pharmaceutical industry.
Pls refer to our website: Www. Valveflange. COM
We can also supply chemical products include Pharmaceutical Raw materials API with GMP and ISO9001 Certification, Zinc Compounds, Nickel Compounds, Cobalt Compounds, Copper Compounds, Lithium Compounds and etc.
They are mainly used for pharmaceuticl, Cosmetic, Animal Feed, Food, Ceramics and enamels, Pigments, Rubber, Electronic, Electroplating, Catalysts, Paint and etc.
Pls refer to our website: Www. Metalskingdom. COM
Meanwhile, we import raw materials for our own factories, including Cast Iron, Zinc Ingot, Low purity Cobalt Hydroxide, Nickel Hydroxide, Cobalt Concentrate, Nickel Concentrate, and etc.
Sincere Union Corp insists on the principle of Quality, Sincere, Credit. We will try our best to be your sincere partner forever.
