Multi-Blade Large Stone Block Cutting Machine Marble Granite Block Cutter

Multi-Blade Large Stone Block Cutting Machine Marble Granite Block Cutter
Price: US $ 25000-30000Set
Min Order: 1Set
Pay Type: T/T

multi-blade large stone block cutting machine marble granite block cutter

BTC-2500/2800 uses inverter to control left-right feeding adjusts the speed according to the stone material.It uses hydraulic lifting system(screw lifting system optional),forward-backward slicing uses high-precision screw nut driving,automatic slicing,main spare parts adopt imported good-quality materials;The block can be placed in the ground directly to save worktable and its maintenance costs;Thus the whole machine is featured as high cutting efficiency,high slicing precision,flatness of plate after cutting,high stability,easy-operating to suit specially cutting granite and marble block with high wave.

ParameterUnitBTC-2500BTC-2800
Max blade diametermmφ2500φ2800
Max processing lengthmm3000/35003200
Max processing widthmm2200/25002200/2500
Max lifting strokemm1100/13001300
Main motorkw37/45/5545/55
Gross motorkw47/56/6656/66
Outline dimensionmm7350/7850x4500/4800x3400/37007800x4500/4800x3700
Water consumptionm³/h1515
Gross weightkg12000/1400014500

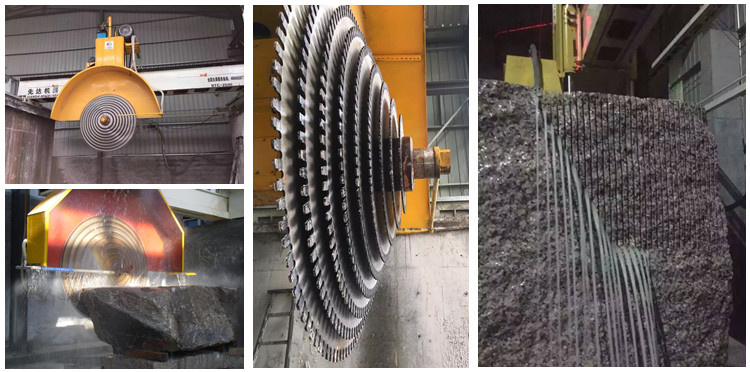

Product Show

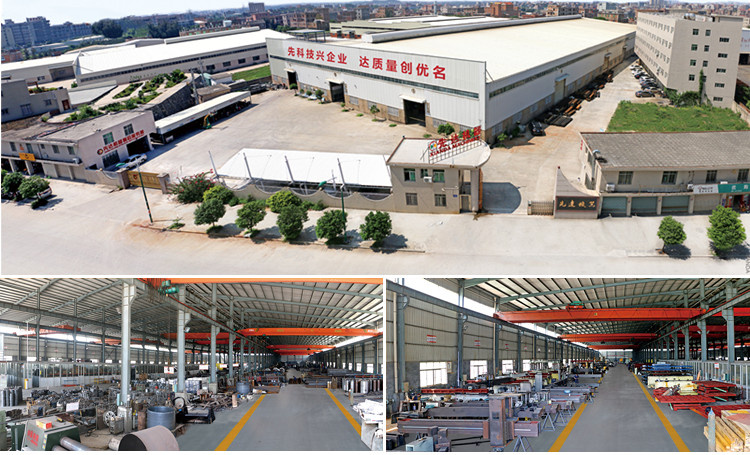

Factory Overviews





Certifications





Our Services




We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.

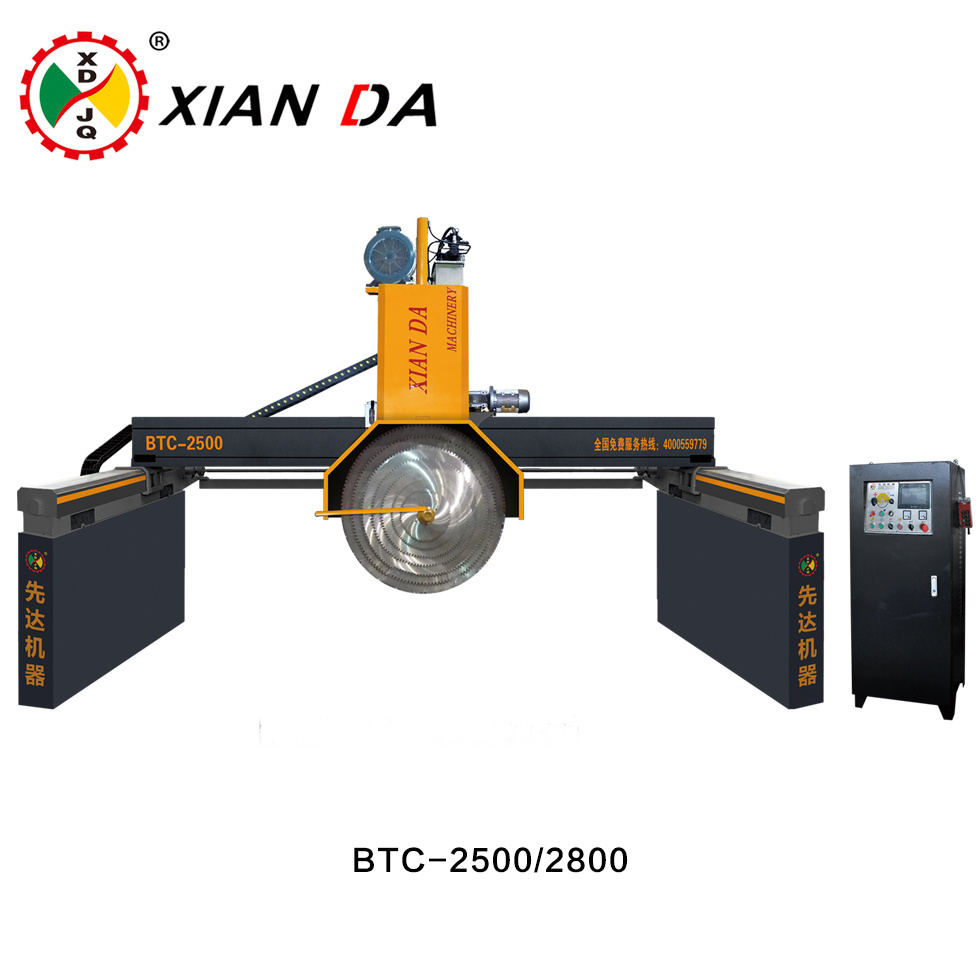

Prod Model: BTC-2500/2800
Color: Black and Yellow
Max Blade Diameter: 2500mm/2800mm
Max Processing Length: 3000/3200/3500mm
Max Processing Width: 2200/2500mm
Max Lifting Travel: 1100/1300mm
Main Motor: 37/45/55kw
Gross Motor: 47/56/66kw
Water Consumption: 15m³/H
Gross Weight: 12000/14000/14500kgs
Warranty: 12 Months
Usage: Marble
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic
Type: Bridge Cutting Machine
Control: PLC
Fujian Xianda Machinery Co., Ltd was established in 1985 and covers an area of 20, 000 Square meters. We are dedicated to the development and production of a series of column making machine, stone machine, wire saw stone cutting machine, block trimming machine, Infrared bridge saw, profiling stone machine.

With rapid development, we have attained ISO9001 certification and won many honorary titles, including International Gold Plant Quality Award, China construction recommend building materials production enterprises.

Our company is located in the rapidly developing overseas Chinese hometown-Quanzhou Anhai Cultural and Historial Town, with convenience transportation, by the well-know Wuli Bridge which was named "No a bridge is longer than Wuli".

Since its foundation in 1985 we keep "Advanced Technology and High Quality" as our aim, Moreover, our company dare innovate and develop, and invite the high quality engineers and own a group of strong team with modern technology. By the effort of the whole stuff, we have developed a range of "Xianda" Brand special shape stone processing machineries which is with good quality, new style, reasonable structure, and sold well around China as well as in South Korean and Southeast Asiaetc, It receives high opinions from customers.
