Moulds for EPS Foam Shape Molding Machine

Moulds for EPS Foam Shape Molding Machine
Price: US $ 5000-15000/Set
Min Order: 1/Set
Pay Type: T/T






1
: Material
Aluminum Ingot:        Ac4a High-Strength Magnesium Alloy
Aluminum Plate:        5052h112
Aluminum Support Bar:  6063 Alloy (Opposite Side 25mm)
Guide Sleeve:           Diameter 20mm Brass
Sprayer:                Copper Rotating Spray
Screw:                 Stainless Steel
Thread Protect:          Brass
Steam Jet:              Copper Slot Air Lock Size    ¢6  ¢8  ¢10
                      (Advantage: High Speed Heating, Long Working Life)

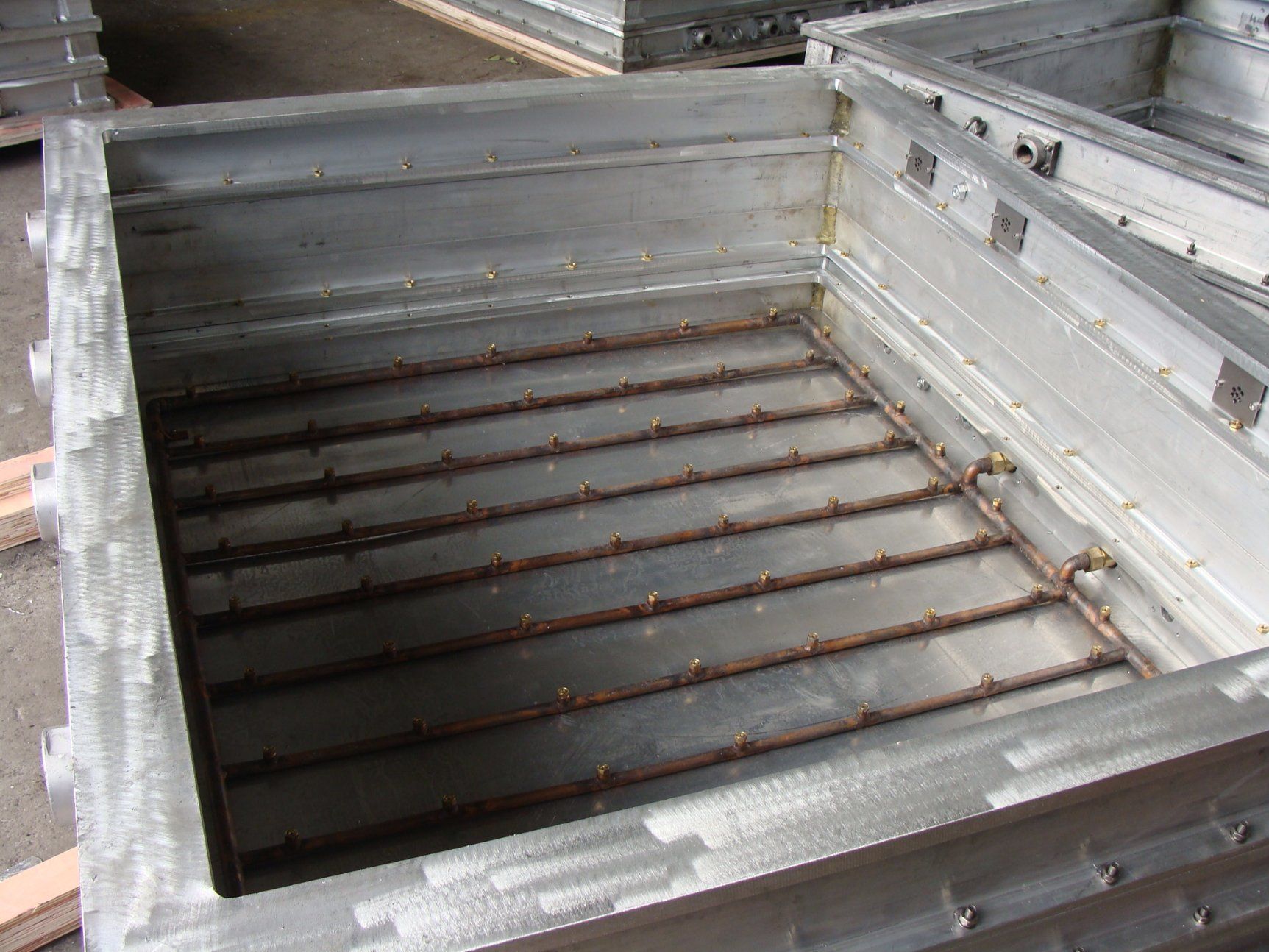

Copper Pipe:           Main Pipeline: ¢28      Looped Pipeline22,16



2: Relevant Parameter
The Pipe Size Of Entry/Exit Air And Water: 1", 1.5", 2"
The Separation Distance Of The Air Lock: 25x25mm
Screw Separation Distance: 120x120mm
Sprayer Separation Distance: 200x200mm
Mould Support: 25 Pcs Per Mould
Depth Of Thread:      15mm
Mould Tolerance Clearance: 0.3-0.7mm

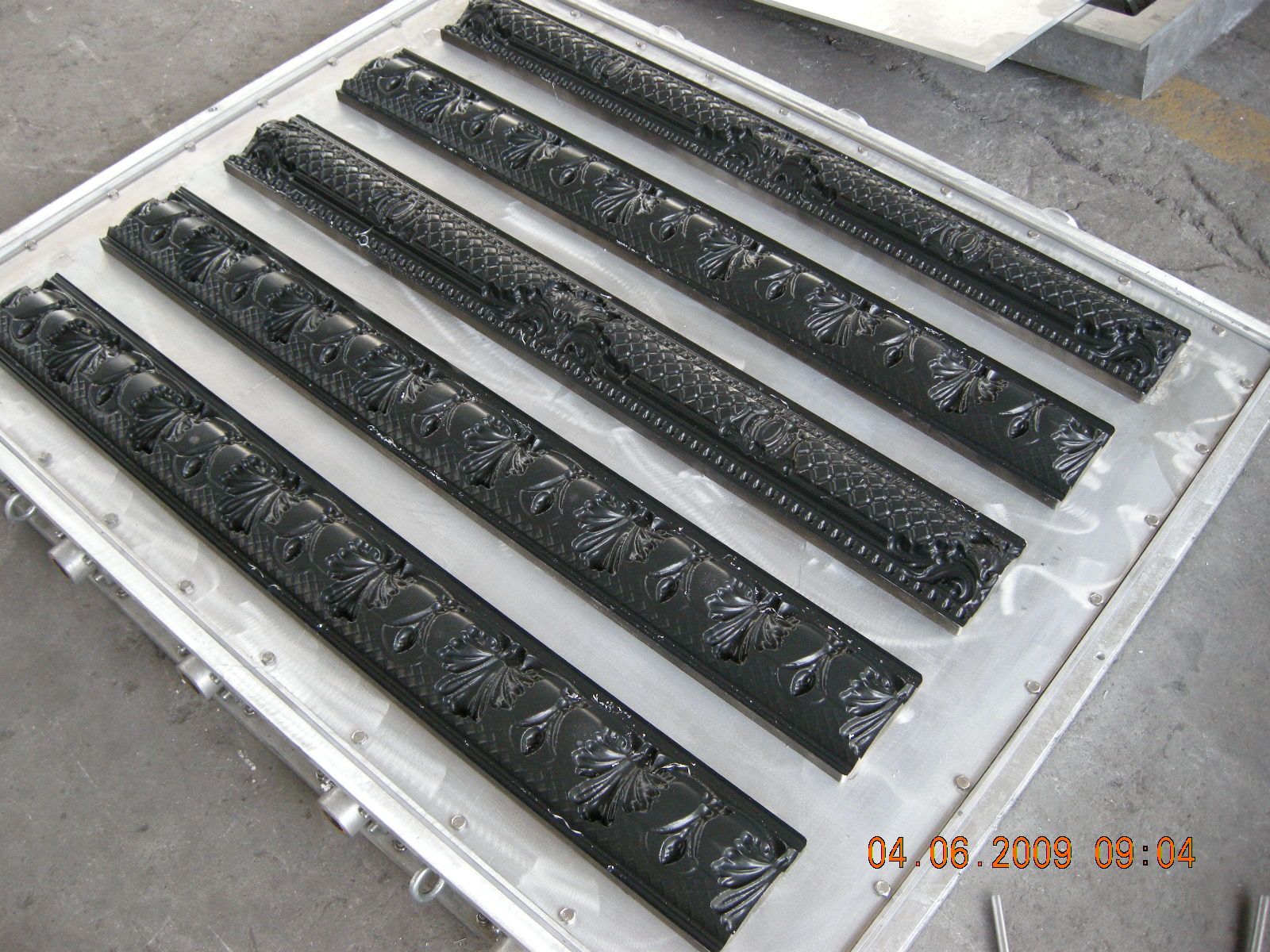

Mould Surface Treatment:  Teflon Coating
Mould Dimensional Tolerance: Length/Width: ±0.5mm
                         Height: ±1.0mm
Mould Locating Pin: Yes

3:Technological Structure
Casting: Common Casting

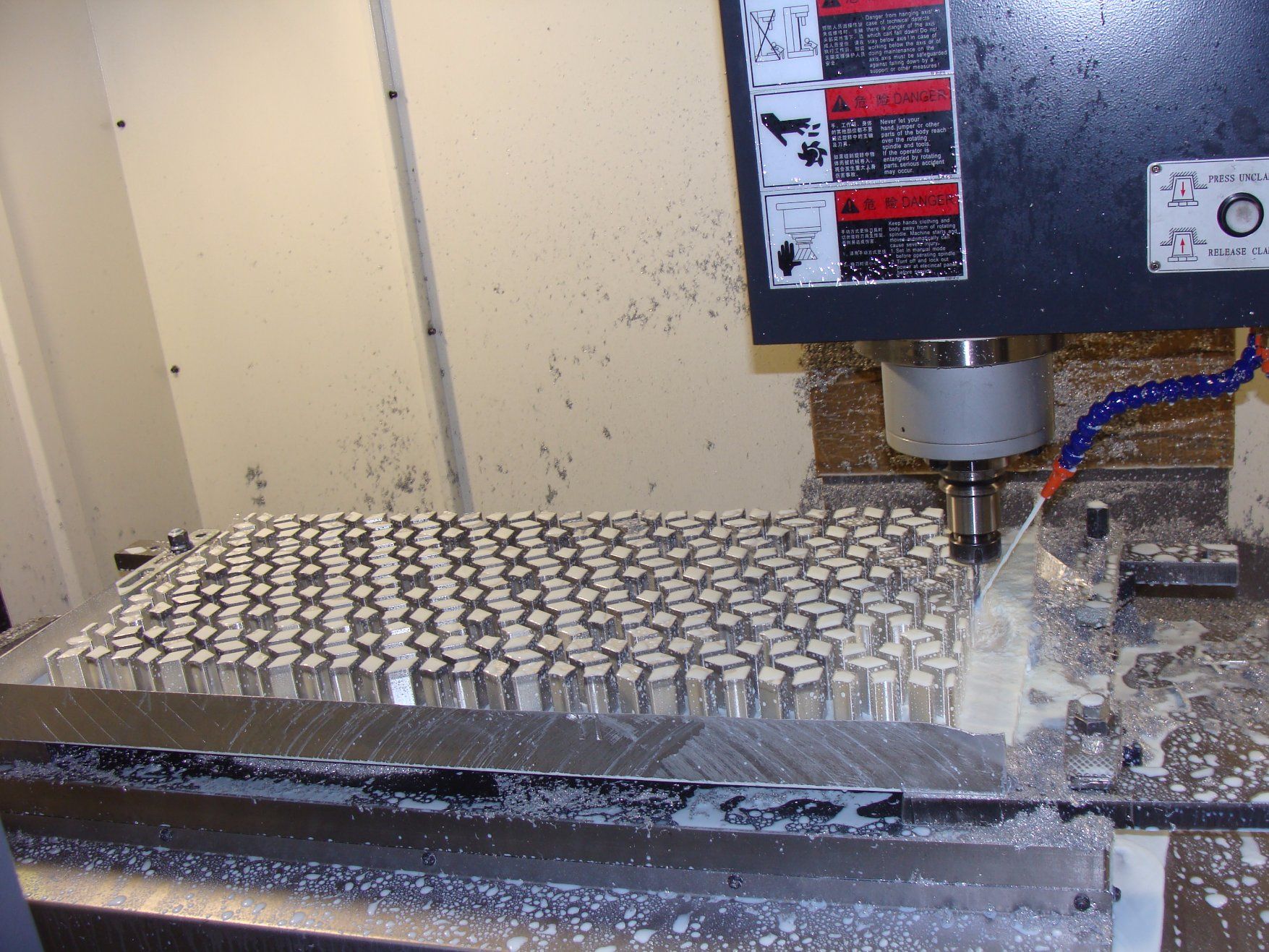

Process: CNC Process
Assembling: Precision Assembling


4: Inspection Standard
Mould Cavity Inspection: Inspect All Size in 0.3mm Accurate.
Product Inspection: Inspect Overall Size And Main Size.
5: Accessory Material And Others
  1. Packing Way: Completely Packing
  2. Testing: Yes
Prod Model: GB-M
Lanxi green building materials Co., Ltd, is a production, research and development, sales, installation of a comprehensive entity production enterprises. The company in digestion and integration based on the foreign advanced technology of independent research and development of EPS, GRC lightweight wall decorative component, the products has advantages, insulation, energy saving, environmental protection, high texture, optionally spliced, easy installation etc...

Positioning the company for wall decoration method of energy-saving system solutions expert, to create a green energy-saving wall decoration products, the company set up QC group 5, respectively, from the raw material control, production formula, semi-finished products supervision, product maintenance to storage and packaging of each link. The company has advanced equipment and strong R & D capabilities, to provide new and old customers with high quality products and services.
