Moulding Machine Bottle Preform Plastic Mould
Moulding Machine Bottle Preform Plastic Mould Application
This system is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items which are just a few examples.
How Moulding Machine Bottle Preform Plastic Mould Works

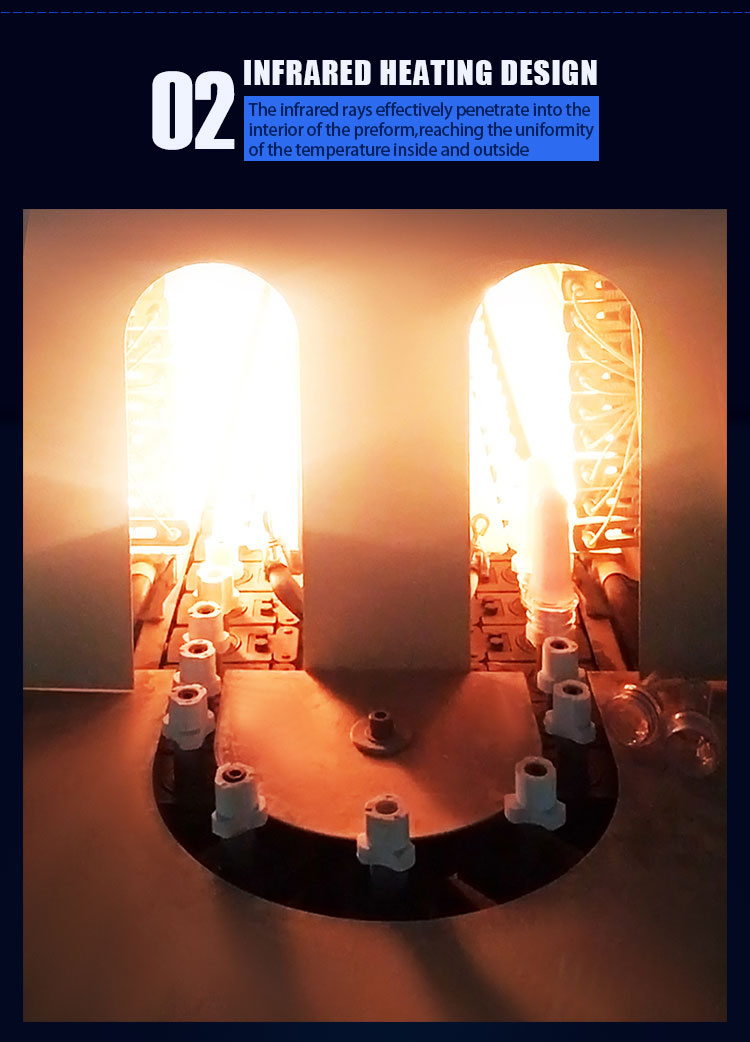

The Blow Molding system does not require highly trained operators to produce consistent quality bottles. The bottle making process starts by loading preforms into the preheater. The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance.
When the preforms have made one "trip" through the preheater, they are manually loaded two(three or four) at a time into the blow molder. After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use.

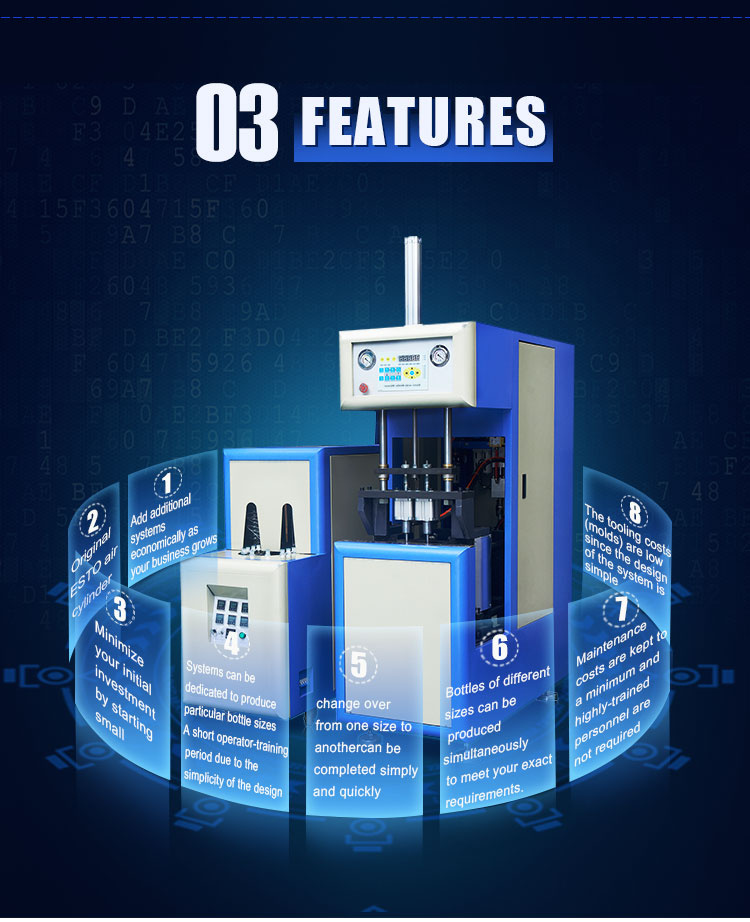

Moulding Machine Bottle Preform Plastic Mould Features

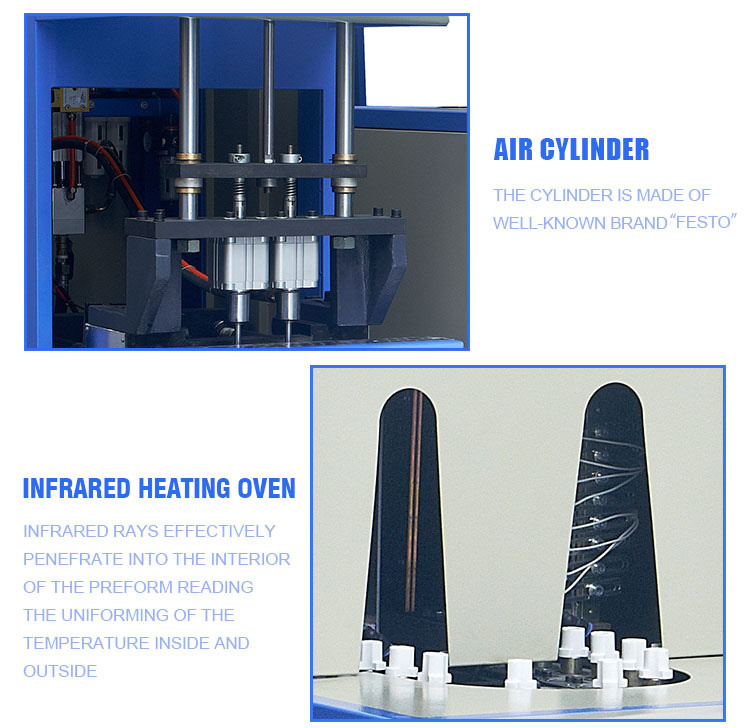

1.Original FESTO air cylinder.
2.Minimize your initial investment by starting small.
3.Add additional systems economically as your business grows.
4.Bottles of different sizes can be produced simultaneously to meet your exact requirements.
5.Change over from one size to another can be completed simply and quickly.
6.The tooling costs (molds) are low since the design of the system is simple.
7.Systems can be dedicated to produce particular bottle sizes.
8.A short operator-training period due to the simplicity of the design.
9.Maintenance costs are kept to a minimum and highly-trained personnel are not required.
Moulding Machine Bottle Preform Plastic Mould Specifications:
| Model No | 900BPH | 1800BPH |
| Material | PET/PP/PE/PC | PET/PP/PE/PC |
| Volume | 0.2-2.5L(2-cavity)/3-6L(1-cavity) | 0.05-2.5L(4-cavity)3-6L(1-cavity) |
| Output | 900/500Bottles/Hr | 1800/1000Bottles/Hr |
| Bottle Height(Max) | 360mm | 360mm |
| Bottle Diameter(Max) | 180mm | 180mm |
| Max Mold Plate Dimension | 420x500mm(LxH) | 420×500mm |
| Max Mold Thickness | 160-240mm | 160-240mm |
| Clamping Force | 180KN | 180KN |
| | | |
| Mold Opening Stroke | 200mm(Adjustable) | 200mm(Adjustable) |
| Power Consumption | 12kw | 24kw |
| Electric Supply | 220/380V/50-60HZ | 220/380V/50-60HZ |
| Blow Molder Dimension | 1.66x0.74x2.2Mtr(LxWxH) | 1.66×0.74×2.2Mtr(LxWxH) |
| Blow Molder weight | 700kgs | 700kgs |
| Preheater Dimension | 1.46x0.71x1.58Mtr(LxWxH) | 1.77×0.72×1.58Mtr(LxWxH) |
| Preheater Weight | 300kgs | 500kgs |

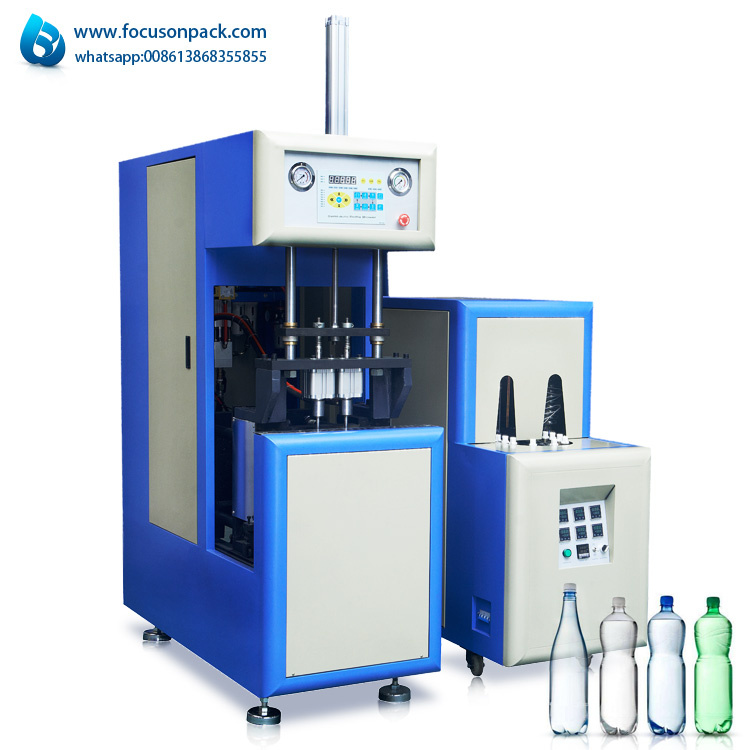

Moulding Machine Bottle Preform Plastic Mould Show
