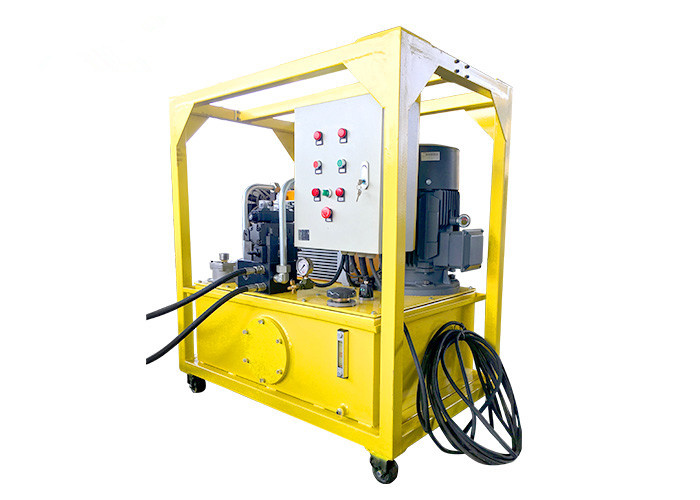

Mobile Efficient Hydraulic Power Station/Power Unit - HS10

Mobile Efficient Hydraulic Power Station/Power Unit - HS10
Price: US $ 4702-9404/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
BHY Reliable On-site Machining Solutions
Website: www.bohyarglobal.com

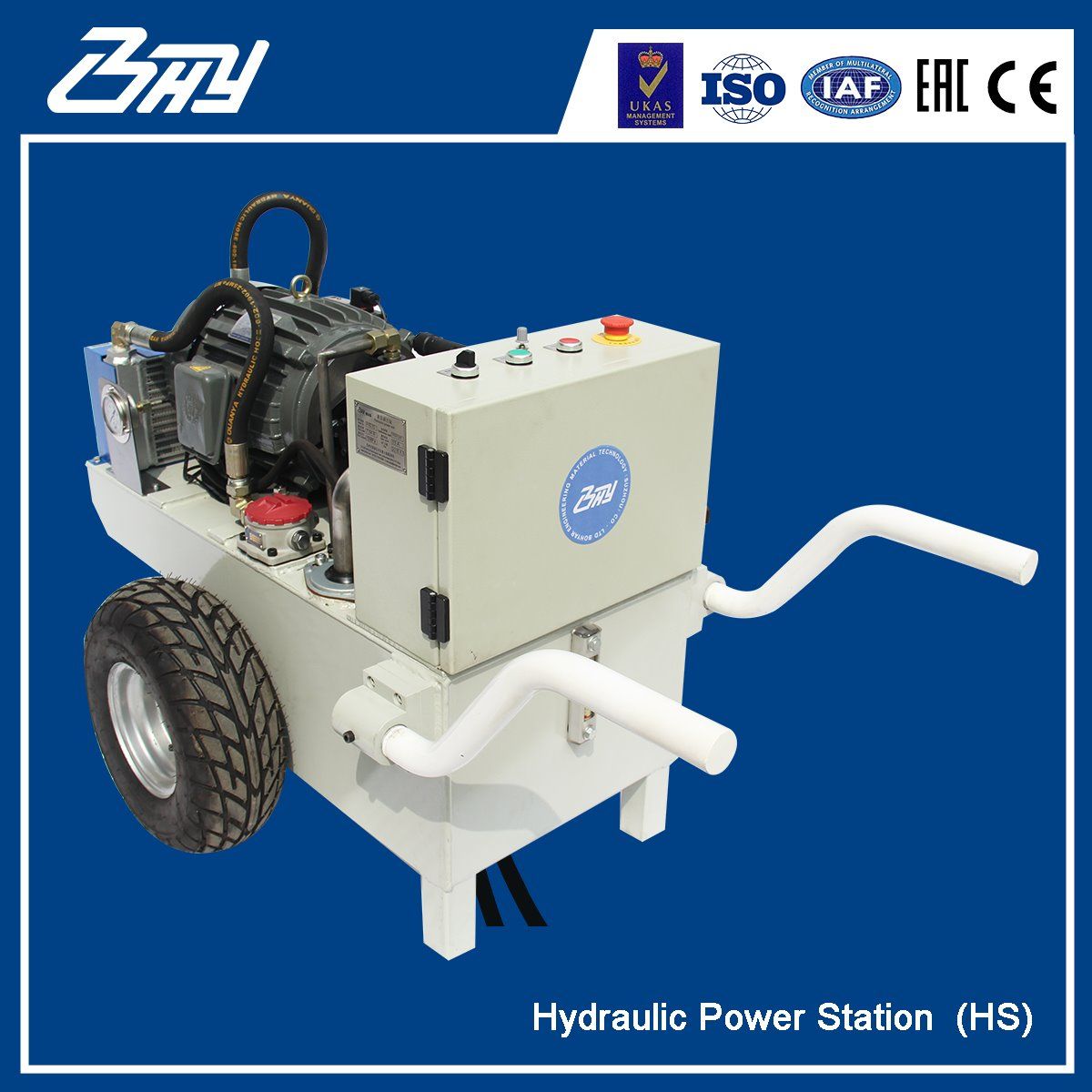

Hydraulic Power Station




★ Introduction:
•The hydraulic truck HS-10 consists of a motor and a variable piston pump. The entire hydraulic system, using a one-piece structure and equipped with casters and push hands, is easy to move. It also makes the pipe connection easier with quick change connector.
• The air cooling system can ensure that the equipment operate continuously within 40 ºC ambient temperature;
•The control panel has an emergency stop button for emergency use;
•It adopts stepless speed control system to adjust the different speed.
•The quick connector can be quickly plugged and pulled without leakage to ensure that users can quickly access.
•Hydraulic motor adopts imported brands which have small size, light weight, stable operation, strong power, impact resistance, high temperature as well as long life.

★Performance Characteristics
Hydraulic system uses variable high pressure piston pump. The output pressure is stable. As a result of the proportional function, the pressure responses to the load lag for about 10ms. The response lag can greatly improve the impact resistance of the tool, increase the life of the tool, save the cost and improve the efficiency. At the same time, proportional control can significantly reduce system power consumption by about 30% and reduce the hydraulic system heat.
- It uses stepless speed variation. A single person can complete all the operation
- It adopts compact design, reduces the installation volume and the quality. Compact structure facilitates the mobile transportation.


★ Technical Parameters

Model Technical ParametersHS-10
Rated PressureP=10Mpa
Rated FlowQ=38L/min
Hydraulic Motor Speedn=400r/min
Hydraulic Motor TorqueM=121N.M
Motor PowerN=7.5KW(10Hp)
Motor Speedn=1450r/min
Adjustable Speed Range0-20r/min


BHY-Reliable On-site Machining Solutions
No. 28Datong Road, Suzhou New District, PR China

Website: www.bohyarglobal.com





Prod Model: HS10
Rated Pressure: P=10MPa
Rated Flow: Q=38L/Min
Hydraulic Motor Speed: N=400r/Min
Hydraulic Motor Torque: M=121n.M
Electric Motor: N=7.5kw(10HP)
Electric Speed: N=1450r/Min
Rotation Range: 0-20r/Min
Overall Size: 1000*920*620(mm)
Overall Weight: 300kg
BHY is one of the leading manufacturers and suppliers of the pipe pre-fabrication machine, portable series products and reliable on-site machining solutions headquartered in Suzhou, Jiangsu Province.

After many years of research and development, Bohyar has created the world's leading products. What's more, we are improving our products continuously by exploring the practical usage of the site. There's no doubt that we have excellent team members and we can offer the best services.

Cutting and beveling machines made by Bohyar, meet the needs of oil and gas, power, marine, chemicals and other areas. In order to anticipate the needs of users and make better products, we are making great efforts to test our products, collect customer feedback and get more on-site opinions.

Bohyar is a trustworthy enterprise which has many years of experience in mechanical design and manufacturing. We have strict standards for selecting suppliers and we always aim to be the world's best. That's why we can build this high-end brand successfully.

BHY persists in the core belief of "Create China's High End Products" and strive to become the world's leading expert on on-site machining solutions. We will cooperate with global partners to provide high-end quality products and services and responsive to customers' needs. We will devote our earnings to philanthropy to help groups and individuals in need.

------------------------------------------------------------------------------------------------------------------------------

Product Range:

-Pipe Cutting and Beveling Machine( SFM Series)

-Pipe Beveling Machine (BPP Series)

-Travel Cutter(TC Series)

-Diamond Wire Saw(DWS Series)

-Hydraulic Power Station(HS Series)

-Flange Facer (FFT Series)
