Mine Machinery Parts 30244 Taper Roller Bearing

Name: Mine Machinery Parts 30244 Taper Roller Bearing
Brand: tool-buy.com
SKU: 714579102
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 20/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shandong XSY Bearing Co., Ltd.

Showroom Product Company Profile

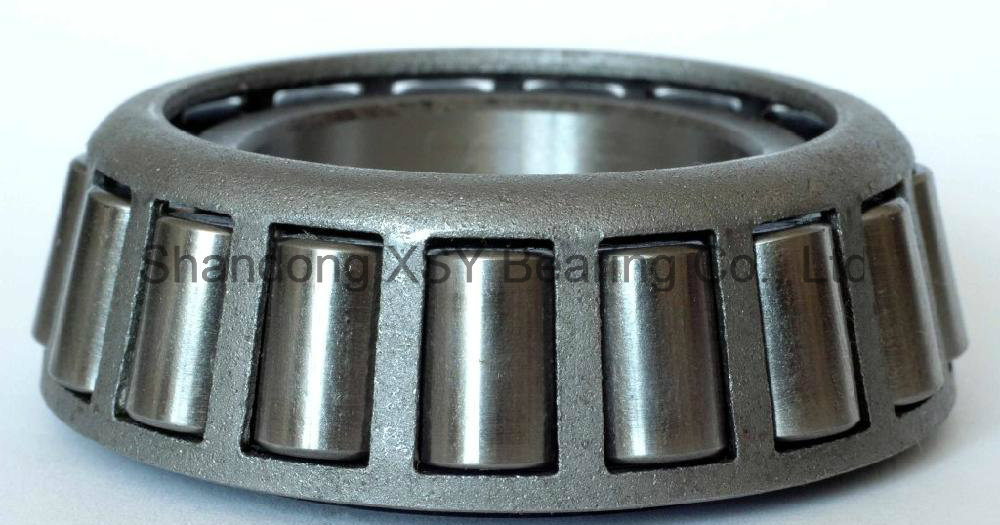

XSY 30244 Tapered Roller Bearing

Structure:	tapered roller bearing	Type:	Ball	Brand Name:	ZGXSY
Bore Size:	220 mm	Outside Diameter:	400 mm	Model Number:	30244
Precision Rating:	P0 P6 P5 P4 P2	Seals Type:	Open	Number of Row:	Single Row
Place of Origin:	Shandong China (Mainland)	Material:	Chrome Steel GCR15	Cage:	Steel plate stamping retainer
Service:	OEM Customized Services	Certificate:	ISO 9001:2008	Application:	Electric Motors
Lubrication:	Lubricated (Grease)	Vibration:	Z1V1 Z2V2 Z3V3 Z4V4	Package:	Single Box
Product name:	tapered roller bearing	Tolerance:	C0 C3 C5

Tapered roller bearings consist of four interdependent components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The taper angles allow the bearing to handle a combination of radial and thrust loads. The steeper the cup angle, the greater the ability of the tapered roller bearing to handle thrust loads. Tapered roller bearing is saparable. The rolling element type includes single, double, multi-row. The clearance should be adjusted when installed.

Advantages and Feathers of XSY Tapered Roller Bearings:

XSY bearing Co., Ltd. has its own factory. We make sure to offer you the most competitive price.
XSY bearing Co., Ltd. has a professional R&D team and an after-sale team, so what you buy is top-end, and what you use is quality & service guaranteed.
XSY bearing Co., Ltd. is a bearing manufacturer since 1990. Rich experience makes us more professional.
The bearing is long durability, high speed and low noise.
OEM & ODM are available.
All kinds of bearing simples are available.

Other sizes of XSY Tapered Roller Bearings(1-200)

Model	d	D	Width	Cr	Cor	Gresse	Oil	Weight
Model	(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)
30202	15	35	11	14.9	13.4	12000	16000	0.053
30244	220	400	73	-	-	-	-	35.5
30340	200	420	80	1120	1450	820	1100	53.5
30352	260	540	114	-	-	-	-	108
32205	25	72	24.25	-	-	-	-	0.174
30302	15	42	13	22.8	21.5	9000	12000	0.094
30203	17	40	12	20.8	21.8	9000	12000	0.079
30303	17	47	14	28.2	27.2	8500	11000	0.129
32303	17	47	19	31.9	29.9	9400	13000	0.17
32904	20	37	12	13.2	17.5	9500	13000	0.056
32004	20	42	15	25	28.2	8500	11000	0.095
30204	20	47	14	28.2	30.5	8000	10000	0.126
30304	20	52	15	30.5	28.4	8300	11000	0.17
32304	20	52	21	42.8	46.2	7500	9500	0.23
329/22	22	40	12	15	20	8500	11000	0.065
320/22	22	44	15	26	30.2	8000	10000	0.1
32905	25	42	12	16	21	6300	10000	0.064
32005	25	47	15	28	34	7500	9500	0.11
33005	25	47	17	32.5	42.5	7500	9500	0.129
30205	25	52	15	32.2	37	7000	9000	0.154
33205	25	52	22	47	55.8	7000	9000	0.216
30305	25	62	17	46.8	48	6300	8000	0.263
31305	25	62	17	40.5	46	6300	8000	0.262
32305	25	62	24	61.5	68.8	6300	8000	0.368
329/28	28	45	12	16.8	22.8	750D	9500	0.069
320/28	28	52	16	31.5	40.5	6700	8500	0.142
332/28	28	58	24	58	68.2	6300	8000	0.286
32906	30	47	12	17	23.2	7000	9000	0.072
32006X2	30	55	16	27.8	35.5	6300	8000	0.16
32006	30	55	17	35.8	46.8	6300	8000	0.17
33006	30	55	20	43.8	58.8	6300	8000	0.201
30206	30	62	17.5	43.2	50.5	6000	7500	0.231
32206	30	62	20	51.8	63.8	6000	7500	0.287
33206	30	62	25	63.8	75.5	6000	7500	0.342
30306	30	72	21	59	63	5600	7000	0.387
23334	170	360	120	-	-	-	-	-
31306	30	72	21	52.5	60.5	5600	7000	0.392
32306	30	72	27	81.5	96.5	5600	7000	0.562
329/32	32	52	14	23.8	32.5	6300	8000	0.106
320/32	32	58	17	36.5	49.2	6000	7500	0.187
332/32	32	65	26	68.8	82.2	5600	7000	0.385
32907	35	55	14	25.8	34.8	6000	7500	0.114
32007X2	35	62	17	33.8	47.2	5600	7000	0.21
32007	35	62	18	43.2	59.2	5600	7000	0.224
33007	35	62	20	40.8	53.8	6200	8200	0.25
30207	35	72	17	54.2	63.5	5300	6700	0.331
32207	35	72	23	70.5	89.5	5300	6700	0.445
33207	35	72	28	82.5	102	5300	6700	0.515
30307	35	80	21	75.2	82.5	5000	6300	0.515
31307	35	80	21	65.8	76.8	5000	6300	0.514
32307	35	80	31	99	118	5000	6300	0.763
32908X2	40	62	14	21.2	28.2	5600	7000	0.14
32908	40	62	15	31.5	46	5600	7000	0.155
32008X2	40	68	18	39.8	55.2	5300	6700	0.27
32008	40	68	19	51.8	71	5300	6700	0.267
33008	40	68	22	60.2	79.5	5300	6700	0.306
33108	40	75	26	84.8	110	5000	6300	0.496
30208	40	80	18	63	74	5000	6300	0.422
32208	40	80	23	77.8	97.2	5000	6300	0.532
33208	40	80	32	105	135	5000	6300	0.715
30308	40	90	23	90.8	108	4500	5600	0.747
31308	40	90	23	81.5	96.5	4500	5600	0.727
32308	40	90	33	115	148	4500	5600	1.04
32909X2	45	68	14	22.2	32.8	5300	6700	-
32909	45	68	15	32	48.5	5300	6700	0.18
32009X2	45	75	19	44.5	62.5	5000	6300	0.32
32009	45	75	20	58.5	81.5	5000	6300	0.337
33009	45	75	24	72.5	100	5000	6300	0.398
33109	45	80	26	87	118	4500	5600	0.535
30209	45	85	19	67.8	83.5	4500	5600	0.474
32209	45	85	23	80.8	105	4500	5600	0.573
33209	45	85	32	110	145	4500	5600	0.771
30309	45	100	25	108	130	4000	5000	0.984
31309	45	100	25	95.5	115	4000	5000	0.944
32309	45	100	36	145	188	4000	5000	1.4
32910X2	50	72	14	22.2	32.8	5000	6300	0.7
32910	50	72	15	36.8	56	5000	6300	0.181
32010X2	50	80	19	45.8	66.2	4500	5600	0.31
32010	50	80	20	61	89	4500	5600	0.366
33010	50	80	24	76.8	110	4500	5600	0.433
33110	50	85	26	89.2	125	4300	5300	0.572
30210	50	90	20	73.2	92	4300	5300	0.529
32210	50	90	23	82.8	108	4300	5300	0.626
33210	50	90	32	112	155	4300	5300	0.825
30310	50	110	27	130	158	3800	4800	1.28
31310	50	110	27	108	128	3800	4800	1.21
32310	50	110	42.5	178	235	3800	4800	1.89
32911	55	80	17	41.5	66.8	4800	6000	0.262
32011X2	55	90	22	63.8	93.2	4000	5000	0.53
32011	55	90	23	80.2	118	4000	5000	0.551
33011	55	90	27	94.8	145	4000	5000	0.651
33111	55	95	30	115	165	3800	4800	0.843
30211	55	100	21	90.8	115	3800	4800	0.713
32211	55	100	25	108	142	3800	4800	0.853
33211	55	100	35	142	198	3800	4800	1.15
30311	55	120	29	152	188	3400	4300	1.63
31311	55	120	29	130	158	3400	4300	1.56
32311	55	120	43	202	270	3400	4300	2.37
32912X2	60	85	16	34.5	56.5	4000	5000	0.24
32912	60	85	17	46	73	4000	5000	0.279
32012X2	60	95	22	64.8	98	3800	4800	0.56
32012	60	95	23	81.8	122	3800	4800	0.584
33012	60	95	27	96.8	150	3800	4800	0.691
33112	60	100	30	118	172	3600	4500	0.895
30212	60	110	22	102	130	3600	4500	0.904
32212	60	110	28	132	180	3600	4500	1.17
33212	60	110	38	165	230	3600	4500	1.51
30312	60	130	31	170	210	3200	4000	1.99
31312	60	130	31	145	178	3200	4000	1.9
32312	60	130	46	228	302	3200	4000	2.9
32913	65	90	17	45.5	73.2	3800	4800	0.295
32013X2	65	100	22	67	102	3600	4500	0.63
32013	65	100	23	82.8	128	3600	4500	0.62
33013	65	100	27	98	158	3600	4500	0.732
33113	65	110	34	142	220	3400	4300	1.3
30213	65	120	23	120	152	3200	4000	1.13
32213	65	120	31	160	222	3200	4000	1.55
33213	65	120	41	202	282	3200	4000	1.99
30313	65	140	33	195	242	2800	3600	2.44
31313	65	140	33	165	202	2800	3600	2.37
32313	65	140	48	260	350	2800	3000	3.51
32914X2	70	100	19	53.2	85.5	3600	4500	-
32914	70	100	20	70.8	115	3600	4500	0.471
32014X2	70	110	24	83.8	128	3400	4300	0.85
32014	70	110	25	105	160	3400	4300	0.839
33014	70	110	31	135	220	3400	4300	1.07
33114	70	120	37	172	268	3200	4000	1.7
30214	70	125	24	132	175	3000	3800	1.26
32214	70	125	31	168	238	3000	3800	1.64
33214	70	125	41	208	29.8	3000	3800	2.1
30314	70	150	35	218	272	2600	3400	2.98
31314	70	150	35	188	230	2600	3400	2.86
32314	70	150	51	257	315	2700	3600	4.11
32915	75	105	20	78.2	125	3400	4300	0.49
32015X2	75	115	24	85.2	135	3200	4000	0.88
32015	75	115	25	102	160	3200	4000	0.875
33015	75	115	31	132	220	3200	4000	1.12
33115	75	125	37	175	280	3000	3800	1.78
30215	75	130	25	138	185	2800	3600	1.36
32215	75	130	31	170	242	2800	3600	1.74
33215	75	130	41	208	300	2800	3600	2.17
30315	75	160	37	252	318	2400	3200	3.57
31315	75	160	37	208	258	2400	3200	3.38
32315	75	160	55	348	482	2400	3200	5.37
32916	80	110	20	79.2	128	3200	4000	0.514
32016X2	80	125	27	102	162	3000	3800	1.18
32016	80	125	29	140	220	3000	3800	1.27
33016	80	125	36	182	305	3000	3800	1.63
33116	80	130	37	180	292	2800	3600	1.87
30216	80	140	26	160	212	2600	3400	1.67
32216	80	140	33	198	278	2600	3400	2.13
33216	80	140	46	245	362	2600	3400	2.83
30316	80	170	39	278	352	2200	3000	4.27
31316	80	170	39	230	288	2200	3000	4.05
32316	80	170	58	388	542	2200	3000	6.38
32917X2	85	120	22	74.2	125	3400	3800	0.73
32917	85	120	23	96.8	165	3400	3800	0.767
32017X2	85	130	27	105	170	2800	3600	1.25
32017	85	130	29	140	220	2800	3600	1.32
33017	85	130	36	180	305	2800	3600	1.69
33117	85	140	41	215	355	2600	3400	2.43
30217	85	150	31	178	238	2400	3200	2.06
32217	85	150	36	228	325	2400	3200	2.68
23217	85	150	49	282	415	2400	3200	3.52
30317	85	180	41	305	388	2000	2800	4.96
31317	85	180	41	255	318	2000	2800	4.69
32317	85	180	60	422	592	2000	2800	7.31
32918X2	90	125	22	77.8	140	3200	3600	-
32918	90	125	23	95.8	165	3200	3600	0.796
32018X2	90	140	30	122	192	2600	3400	1.7
32018	90	140	32	170	270	2600	3400	1.72
33018	90	140	39	232	388	2600	3400	2.2
33118	90	150	45	252	415	2400	3200	3.13
30218	90	160	30	200	270	2200	3000	2.54
32218	90	160	40	270	395	2200	3000	3.44
33218	90	160	55	330	500	2200	3000	4.55
30318	90	190	43	342	440	1900	2600	5.8
31318	90	190	43	282	358	1900	2600	5.46
32318	90	190	64	478	682	1900	2600	8.81
32919	95	130	23	97.2	170	2600	3400	0.831
32019X2	95	145	30	122	192	2400	3200	1.7
32109	95	145	32	175	280	2400	3200	1.79
33019	95	145	39	230	390	2400	3200	2.26
33119	95	160	49	298	498	2200	3000	3.94
30219	95	170	32	228	308	2000	2800	3.04
30336	180	380	75	901	1110	940	1300	39.7
32219	95	170	43	302	448	2000	2800	4.24
33219	95	170	58	378	568	2000	2800	5.48
30319	95	200	45	317	368	2000	2600	6.32
31319	95	200	45	310	400	1800	2400	6.46
32319	95	200	67	427	544	2000	2600	9.35
32920	100	140	25	128	218	2400	3200	1.12
32020X2	100	150	30	125	205	2200	3000	1.79
32020	100	150	32	172	282	2200	3000	1.85
33020	100	150	39	230	390	2200	3000	2.33
35120	100	165	52	308	528	2000	2800	4.31
30220	100	180	34	255	350	1900	2600	3.72
32220	100	180	46	340	512	1900	2600	5.1

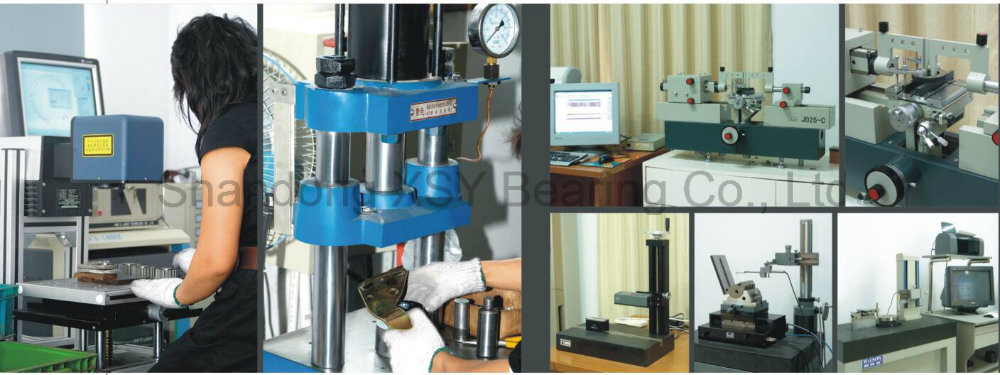

Testing:
All our products are tested sctrictly before delivery.

Packaging & Delivery
Packaging Details:
1.industrial packing+cartons+pallets
2.single box packing+cartons+pallets
3.tube packing+cartons+pallets
Delivery Details:
Less than 1000PCS, deliver within 5 days by Express or Airplane.
More than 1000PCS, deliver within 15 days by sea.

FAQ:
1. Are you a factory or a trading company?
Shandong XSY Bearing Co., Ltd. is a professional manufacture of deep groove ball bearings and other bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What is your terms of payment ?
You can pay by T/T, L/C, Westunion, Paypal,etc., and it can be negotiated according to different orders with different amount.
7. Can we visit your factory ?
Sure. Welcome to XSY Bearing Co., Ltd. and offer your kind guidance.

We always adhere to the business philosophy "research &develop attentively, offer service sincerely, make products meticulously, set brand strategy ", with integrity and fairness in cooperation with domestic and foreign customers. We believe XSY will be your best partner in bearing area.

Prod Model:	30244
Weight:	35.5kg
Rolling Body:	Roller Bearings
The Number Of Rows:	Single
Outer Dimension:	Small (',28-55mm)
Material:	Bearing Steel
Separated:	Separated
Load Direction:	Radial and Thrust

Shandong XSY Bearing Co., Ltd. is a professional manufacturer of bearings, base on R & D, producing and sales of precision bearings with more than 25 years experiences. Our own bearing brand is "ZGXSY", including Taper Roller Bearing, Deep Groove Ball Bearing, Thrust Ball Bearing, Thrust Roller Bearing, Spherical Roller Bearing, Angular Contact Ball Bearing, Self-aligning Ball Bearing and Cylindrical Roller Bearing. The inside diameter is from 50mm to 1000mm with CE ISO TUV certificate, besides we also offer the Bearings Accessories, such as Bearing Housings, Adapter Sleeve, Withdrawal Sleeve, Lock nut, Cage, Roller and Ball.

Our "ZGXSY" Bearings are widely used in metallurgy, electrical, mining, petroleum, chemical, coal, cement, paper, wind power, heavy machinery, engineering machinery, port machinery and other industries supporting products, which have been exported to DuBai, Mexico, Iran, Southeast Asia, Russia, Africa etc, and enjoy a high reputation on the domestic and overseas market.

About the products, we have self-developed team to design and improve the bearings to meet different customers' need, so the OEM and ODM are available. We have completed quality inspection system and professional after-sale team to make sure each product that customer get is perfect. XSY will offer our best products and service with most reasonable price for you.

We always adhere to the business philosophy "research &develop attentively, offer service sincerely, make products meticulously, set brand strategy ", with integrity and fairness in cooperation with domestic and foreign customers. We believe XSY will be your best partner in bearing area.

About Us Toolbuy Products Toolbuy Manufacturers Hot Toolbuy Toolbuy News Toolbuy Trade Shows Site Partners Contact Us Sitemap

Categories

Mine Machinery Parts 30244 Taper Roller Bearing

Send your message to this manufacturer

Categories

Mine Machinery Parts 30244 Taper Roller Bearing

Send your message to this manufacturer

Other Toolbuy Products with This Manufacturers
