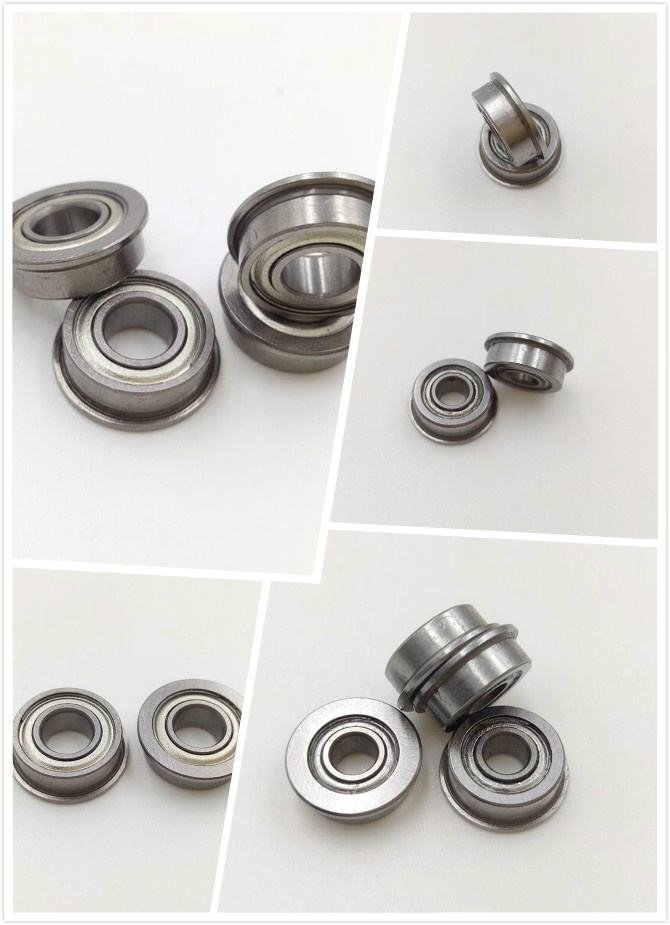

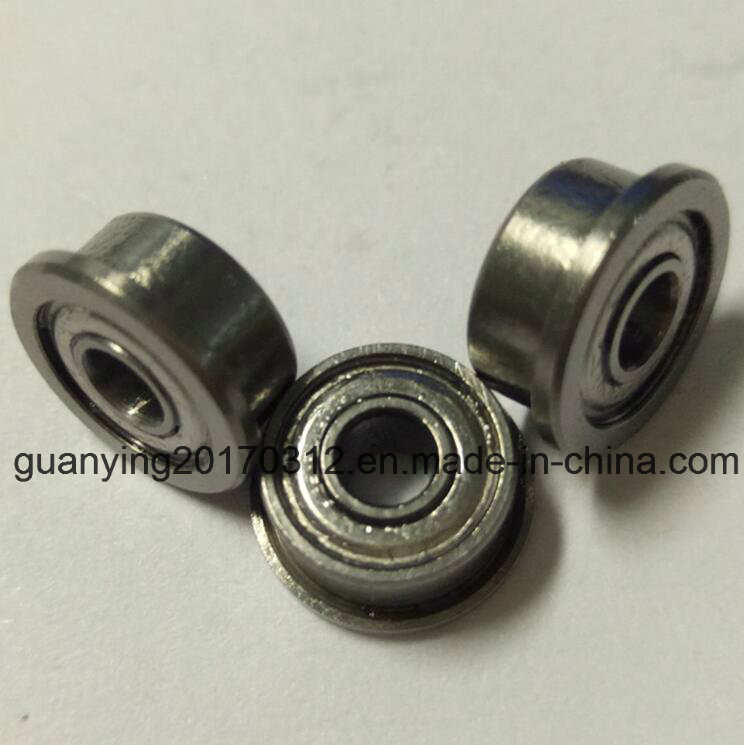

Flanged Bearing MF105ZZ Flanged Ball Bearings 5x10x4mmFlange bearings are the series of products with a flange on the outer ring, making the axial positioning simple. It is more economical because it does not require a bearing seat. In order to achieve low friction torque, high rigidity, good slewing accuracy of bearings, it uses small diameter ball. The use of hollow shafts ensures a lightweight and wiring space.
Characteristics of flange bearings:
The specialty of it is the flange and the bearings into one. When the end of the shaft is not connected and it need to be fixed in a flat such as the board, the wall, the flange bearing will show its advantages.
The ultra-small diameter micro-bearings can be divided into ZZ steel bearing dust cover series, RS rubber bearing ring series, teflon bearing ring series, flange series, stainless steel series, ceramic ball series. Miniature ball bearings have a wide range of uses, witch suitable for product requiring high-speed rotation, low friction torque, low vibration, low noise requirements.
Product Description
| Model | MF105ZZ |
| Size | 5x10x4mm |
| Material | Stainless,Chrome,Carbon steel |
| Application | Four - wheel drive bearing,Cash counter,Motor, propeller shaft, generator, internal combustion engine, gas turbine, gas turbine, machine tool spindle, home appliances, instrumentation, motor. |
| Model | Measurement | Model | Measurement |
| MF63ZZ | 3x6x2.5 | F696ZZ | 6×15×17×5 |
| F683ZZ | 3×7×8.1×3 | F606ZZ | 6×17×19×6 |
| F693ZZ | 3×8×9.5×4 | F626ZZ | 6×19×22×6 |
| F623ZZ | 3×10×11.5×4 | MF117ZZ | 7×11×12.2×3 |
| MF93ZZ | 3×9×10.2×4 | F687ZZ | 7×14×16×5 |
| MF83ZZ | 3×8×9.2×3 | F697ZZ | 7×17×19×5 |
| MF74ZZ | 4×7×8.2×2.5 | F607ZZ | 7×19×22×6 |
| MF84ZZ | 4×8×9.2×3 | MF128ZZ | 8×12×13.2×3.5 |
| F684ZZ | 4×9×10.3×4 | MF148ZZ | 8×14×15.6×4 |
| MF104ZZ | 4×10×11.2×4 | F688ZZ | 8×16×18×5 |
| F694ZZ | 4×11×12.5×4 | F698ZZ | 8×19×22×6 |
| F604ZZ | 4×12×13.5×4 | F608ZZ | 8×22×25×7 |
| F624ZZ | 4×13×15×5 | F689ZZ | 9×17×19×5 |
| F634ZZ | 4×16×18×5 | F6700ZZ | 10×15×16.5×4 |
| MF85ZZ | 5×8×9.2×2.5 | F6800ZZ | 10×19×21×5 |
| MF95ZZ | 5×9×10.2×3 | F63800ZZ | 10×19×21×7 |
| MF105ZZ | 5×10×11.2×4 | FR166ZZ | 4.762×9.525×10.719×3.175 |
| F685ZZ | 5×11×12.5×5 | FR188ZZ | 6.35x12.7x4.763 |
| MF115ZZ | 5×11×12.6×4 | F626ZZ | 6×19×22×6 |
| F695ZZ | 5×13×15×4 | F6901ZZ | 12×24×26.5×6 |
| F605ZZ | 5×14×16×5 | F6900ZZ | 10×22×25×6 |
| F625ZZ | 5×16×18×5 | F699ZZ | 9×20×23×6 |
| MF106ZZ | 6×10×11.2×3 | FR3ZZ | 4.762x12.7x4.978 |
| MF126ZZ | 6×12×13.6×4 | FR6ZZ | 9.525x22.225x7.142 |
| F686ZZ | 6×13×15×5 | F63900ZZ | 10x22x8 |

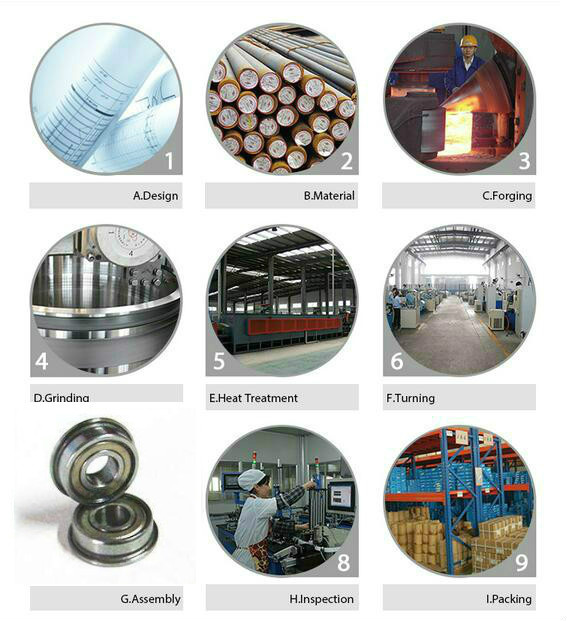

Procedure

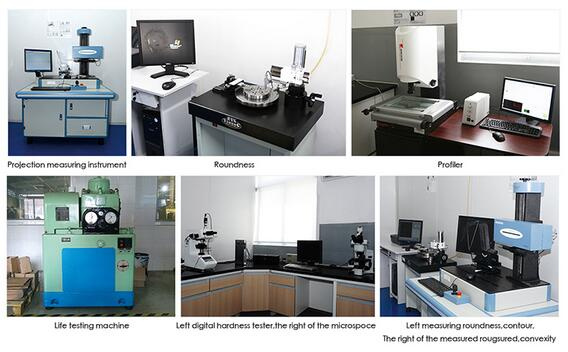

Quality Control
Packing and Shipment
FAQ
Q:Can I request sample?
A:Of course , sample is ok and we can give you a sample by free.
Q:What is your delivery time?
A:Sample order: Immediate delivery , bulk order: usually 30 days.
Q:What's the shipping way?
A:According to your demands.
Q:Can you accept OEM or ODM?
A:Yes, of course. logo is also acceptable.
Q:How is quality controlled?
A:Quality is the key ! Our QC team and engineer team works through all the process from an order placed to shipped.
