Metric Female 24 Deg Cone Seal Hydraulic Hose Fitting / Pipe Fitting (20411)

Name: Metric Female 24 Deg Cone Seal Hydraulic Hose Fitting / Pipe Fitting (20411)
Brand: tool-buy.com
SKU: 685702942
Availability: InStock
Rating: 4.8 (122 reviews)

Price:	US $ 0.23-1.85/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

LOMOFLEX CO., LTD.

Showroom Product Company Profile

Metric Female 24 Deg Cone Seal Hydraulic Hose Fitting / pipe fitting(20411)

Description
Model No.: 20411/20441/20491
Material: Carbon Steel, Stainless Steel
Surface Treatment: Yellow Zinc-Plated
Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
Export Markets: Global

Company Introduction

QINGDAO UNITE MACHINERY CO.,LTD is the professional manufacturer for the hydraulic fittings in China. Main products include : Hydraulic hose fitting , hydraulic adapter and hose assemblies.

We can supply full range of hydraulic hose fitting and adapters : Metric, BSP, BSPT, JIC, NPT, ORFS, SAE Flange etc. We also provide the OEM service for customers who have special requirements.

So far, our products have been exported to America, Canada, Chile, South Korea, Italy, UK, Switzeland, UAE and more than 40 countries. Totally believe our price and quality is pretty competitive in the market. Hope we can get a chance to compete with your current suppliers.

Statement

1. Payment term: L/C, T/T
2. Delivery time: 45-75 days after down payment

3. Galvanization : Zinc Plating (Cr3 ) Silver & Yellow

4. Salt Spray Test > 72 Hours, 96 Hours, 120 Hours, 240 Hours Available

5. Product Logo : "Unimach" or according to your requirements.

6. Packing : Hose Fitting and adapters are protected by plastic caps. Then packed in the carton box with plywood boxes.

7. Sample : Free samples will be provided upon customer request.
8. Certification: ISO9001

Number:20411
Name: O-RING METRIC FEMALE 24° CONE SEAL L.T.
Description:
PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	O RING	A	C	S2
20411-12-04	M12X1.5	6	4	6	O04.5X1.5	26	1	17
20411-14-04	M14X1.5	6	4	8	O06.5X1.5	27.5	2	19
20411-14-06	M14X1.5	10	6	8	O06.5X1.5	27.5	2	19
20411-16-04	M16X1.5	6	4	10	O08.0X1.5	28	2	22
20411-16-05	M16X1.5	8	5	10	O08.0X1.5	28	2	22
20411-16-06	M16X1.5	10	6	10	O08.0X1.5	28	2	22
20411-18-06	M18X1.5	10	6	12	O10.0X1.5	29	2.5	24
20411-18-08	M18X1.5	12	8	12	O10.0X1.5	29.5	2.5	24
20411-22-08	M22X1.5	12	8	15	O12.0X2.0	32	2.5	27
20411-26-10	M26X1.5	16	10	18	O15.0X2.0	35	2.5	32
20411-26-12	M26X1.5	20	12	18	O15.0X2.0	35	2.5	32
20411-27-12	M27X1.5	20	12	18	O15.0X2.0	35	2.5	32
20411-30-12	M30X2	20	12	22	O20.0X2.0	38	4	36
20411-18-05T	M18X1.5	8	5	12	O10.0X1.5	27.5	1.8	22
20411-22-05T	M22X1.5	8	5	15	O12.0X2.0	29.5	2.1	27
20411-22-06T	M22X1.5	10	6	15	O12.0X2.0	29	2.5	27
20411-27-10T	M27X1.5	16	10	18	O15.0X2.0	28	2.5	32
20411-30-10T	M30X2	16	10	22	O20.0X2.0	35	4	36
20411-36-12T	M36X2	20	12	28	O26.0X2.0	35	4	41
20411-36-14T	M36X2	22	14	28	O26.0X2.0	36	4	41
20411-45-16T	M45X2	25	16	35	O32.0X2.5	41	5	55
20411-45-20T	M45X2	32	20	35	O32.0X2.5	42	5	55
20411-52-20T	M52X2	32	20	42	O38.0X2.5	44	5.5	60
20411-52-24T	M52X2	40	24	42	O38.0X2.5	44	5.5	60
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20412-xx-xx;

Number:20441

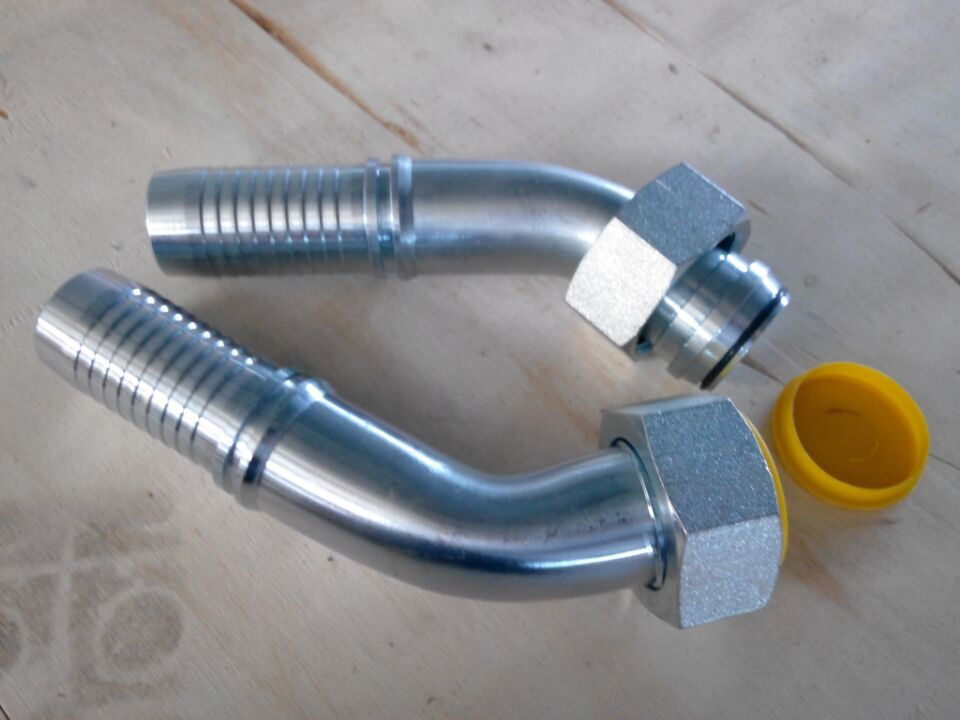

Name: 45° O-RING METRIC FEMALE 24° CONE SEAL L.T.
Description:
PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	O RING	A	C	H	S2
20441-14-04	M14X1.5	6	4	8	O06.5X1.5	49	2	27	19
20441-16-05	M16X1.5	8	5	10	O08.0X1.5	51.5	2	28.2	22
20441-16-06	M16X1.5	10	6	10	O08.0X1.5	53.4	2	29.2	22
20441-18-06	M18X1.5	10	6	12	O10.0X1.5	54.2	2.5	29.9	24
20441-22-08	M22X1.5	12	8	15	O12.0X2.0	68.1	2.5	33.2	27
20441-26-10	M26X1.5	16	10	18	O15.0X2.0	80.7	2.5	35.9	32
20441-26-12	M26X1.5	20	12	18	O15.0X2.0	86.9	2.5	39.5	32
20441-27-12	M27X1.5	20	12	18	O15.0X2.0	86.9	2.5	39.5	32
20441-30-12	M30X2	20	12	22	O20.0X2.0	89.1	4	41.7	36
20441-18-05T	M18X1.5	8	5	12	O10.0X1.5	46.2	2.5	22.9	22
20441-22-05T	M22X1.5	8	5	15	O12.0X2.0	48.3	2.5	25	27
20441-22-06T	M22X1.5	10	6	15	O12.0X2.0	50.4	2.5	25.7	27
20441-26-08T	M26X1.5	12	8	18	O15.0X2.0	62	2.5	26.1	32
20441-27-10T	M27X1.5	16	10	18	O15.0X2.0	72	2.5	27.7	32
20441-30-10T	M30X2	16	10	22	O20.0X2.0	75.1	4	30.3	36
20441-36-12T	M36X2	20	12	28	O26.0X2.0	82	4	33.9	41
20441-36-14T	M36X2	22	14	28	O26.0X2.0	83.7	4	33.3	41
20441-45-20T	M45X2	32	20	35	O32.0X2.5	99.6	5	40.8	55
20441-52-20T	M52X2	32	20	42	O38.0X2.5	103	5.5	41.9	60
20441-52-24T	M52X2	40	24	42	O38.0X2.5	117	5.5	45.8	60
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20441-xx-xx.

Number:20491
Name: 90° O-RING METRIC FEMALE 24° CONE SEAL L.T.
Description:
PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	O RING	A	C	H	S2
20491-12-03	M12X1.5	5	3	6	O04.5X1.5	26.5	1	41.5	17
20491-12-04	M12X1.5	6	4	6	O04.5X1.5	30	1	44.5	17
20491-14-04	M14X1.5	6	4	8	O06.5X1.5	30	2	46	19
20491-16-04	M16X1.5	6	4	10	O08.0X1.5	30	2	46.5	22
20491-16-05	M16X1.5	8	5	10	O08.0X1.5	33	2	49.5	22
20491-16-06	M16X1.5	10	6	10	O08.0X1.5	35.3	2	51.8	22
20491-18-06	M18X1.5	10	6	12	O10.0X1.5	35.3	2.5	53.3	24
20491-22-08	M22X1.5	12	8	15	O12.0X2.0	41	2.5	61	27
20491-26-10	M26X1.5	16	10	18	O15.0X2.0	56.5	2.5	67.5	32
20491-26-12	M26X1.5	20	12	187	O15.0X2.0	65.5	2.5	77	32
20491-27-12	M27X1.5	20	12	18	O15.0X2.0	65.5	2.5	77	32
20491-30-12	M30X2	20	12	22	O20.0X2.0	65.5	4	80	36
20491-18-05T	M18X1.5	8	5	12	O10.0X1.5	33	2.5	42	22
20491-22-06T	M22X1.5	10	6	15	O12.0X2.0	35.3	2.5	47.3	27
20491-26-08T	M26X1.5	12	8	18	O15.0X2.0	42	2.5	51	32
20491-27-10T	M27X1.5	16	10	18	O15X2.0	56.5	2.5	67.5	32
20491-30-10T	M30X2	16	10	22	O20.0X2.0	56.5	4	57.2	36
20491-36-12T	M36X2	20	12	28	O26.0X2.0	65.5	4	69	41
20491-36-14T	M36X2	22	14	28	O26.0X2.0	71.2	4	70	41
20491-45-16T	M45X2	25	16	35	O32.0X2.5	76.7	5	75	55
20491-45-20T	M45X2	32	20	35	O32.0X2.5	91.5	5	88.5	55
20491-52-20T	M52X2	32	20	42	O38.0X2.5	93	5.5	87	60
20491-52-24T	M52X2	40	24	42	O38.0X2.5	109.4	5.5	104	60
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20492-xx-xx;

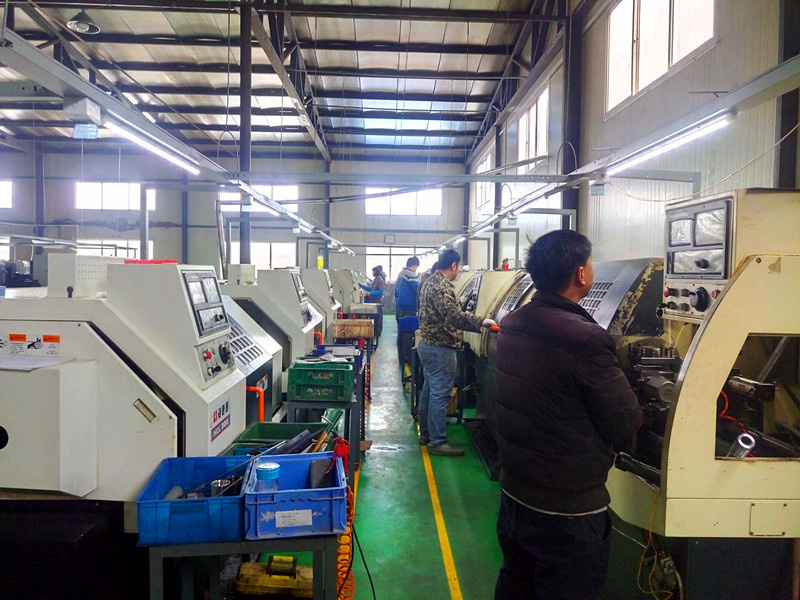

Workshop

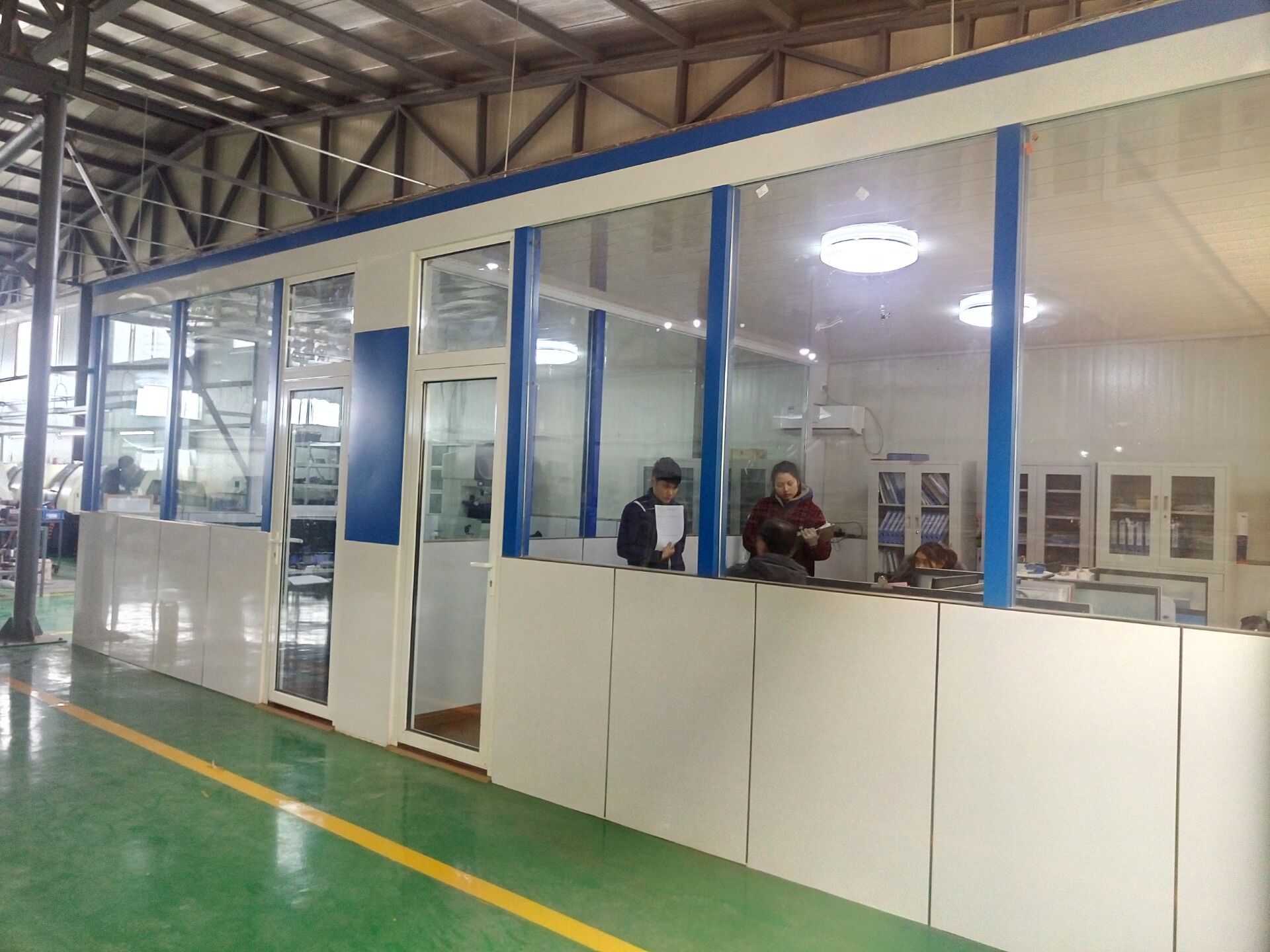

QC procedure:

We have 3 professional and technical QC inspectors. They will ensure products quality.

1. Material checking: Strictly control of material using, meet international requested standards;

2. Semi-finished products inspection: Product inspection before 100% finished;

3. Production line test: With work team or data engineer who will inspect matchines and lines at fixed period.

4. Finished prodcuct inspection: Quality and property test before products are plated zinc, packed and loaded.

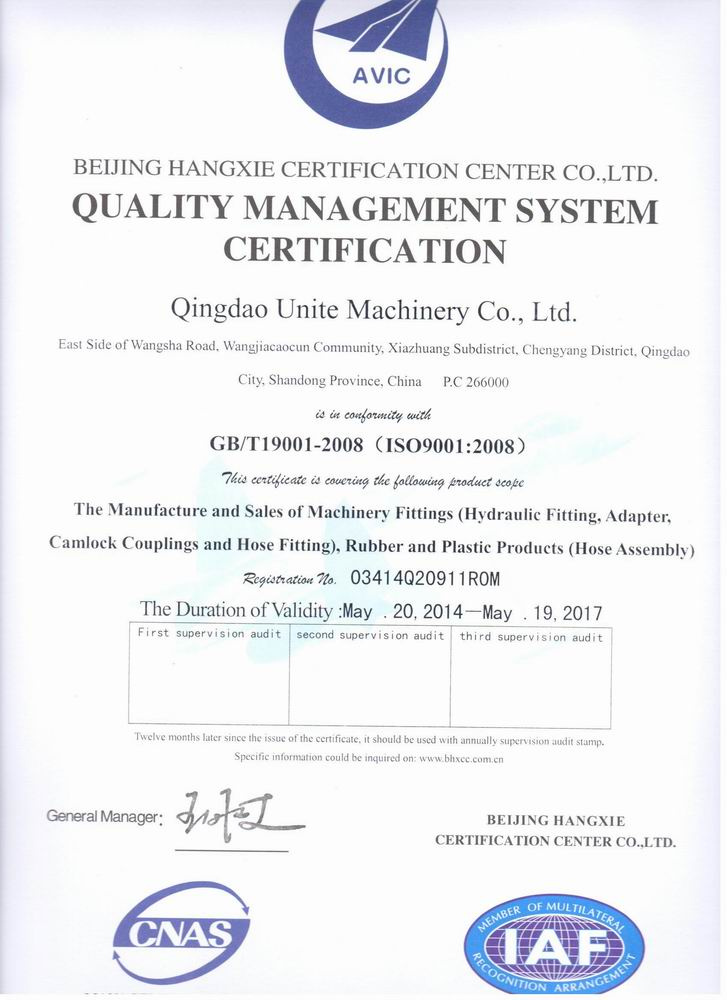

ISO(9001:2008) Certificate:

Wooden Boxes Package

Prod Model:	20411
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Part No:	20411
Surface:	White/Yellow
Manufacture:	Factory
Original Place:	Qingdao City
Standard:	DIN
Material:	Medium Carbon Steel
Connection:	Female

QINGDAO UNITE MACHINERY Co., Ltd(HAITE GROUP) is located in the beautiful seaside city-Qingdao China, which has very beautiful picturesque view and very convenient transportation. Qingdao port is one of the biggest ports of China and our factory is about 15 minutes to Qingdao airport. We specialize in the manufacturing of hydraulic fittings for many years and we have distributors and buyers all over the world.

Products: Our main products include: Ferrule, Hydraulic fitting(Metric, British, American, staplelok, etc. ), Banjo, Adaptor, Hose assembly, and Hose Crimper machinery.

R&D: We have big talent pool which has a large group of exporters and engineers. Some of them have been working in this field for more than 10 years and they have strong knowledge and experience in new product development and quality guarantee.

QC: We adopted an advanced and strict quality control system to guarantee our products comply with or exceed the quality standard.

Market: We focus on both domestic and international markets. Our buyers and distributors include some big and prestigious companies.

Principle: Quality first! Your satisfaction is our biggest goal!
