Metal CNC Flame and Plasma Cutting Machine Cutter (CNC-CG4000B)

Metal CNC Flame and Plasma Cutting Machine Cutter (CNC-CG4000B)
Price: US $ 3000-30000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

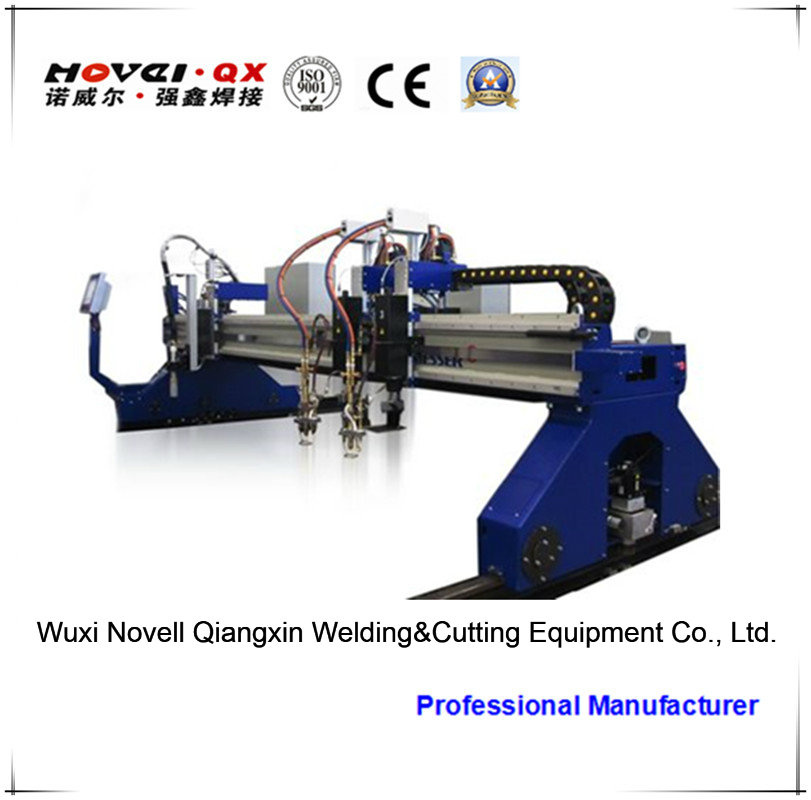

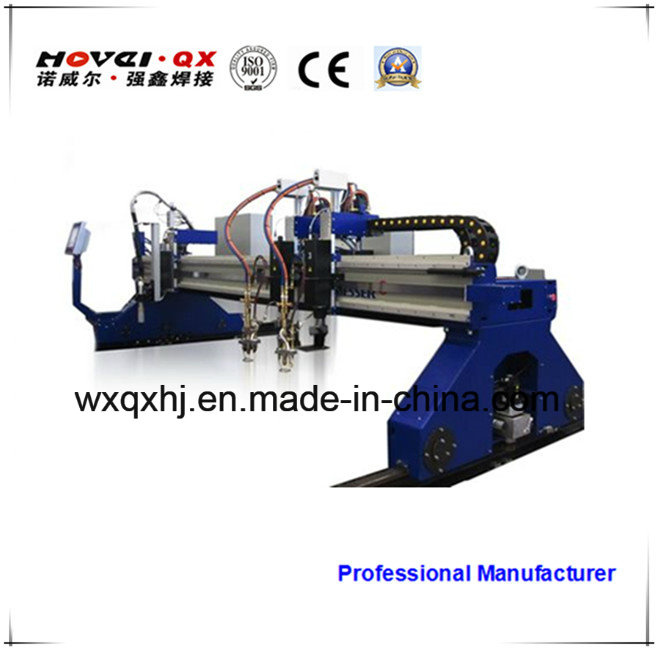

1. CNC Plasma and Flame Cutting Machine

WUXI NOVELL CNC Plasma and Flame Cutting Machine is a high efficiency and high performance
equipment, which uses gantry type, single drive or double drive and combines CNC control. This machine

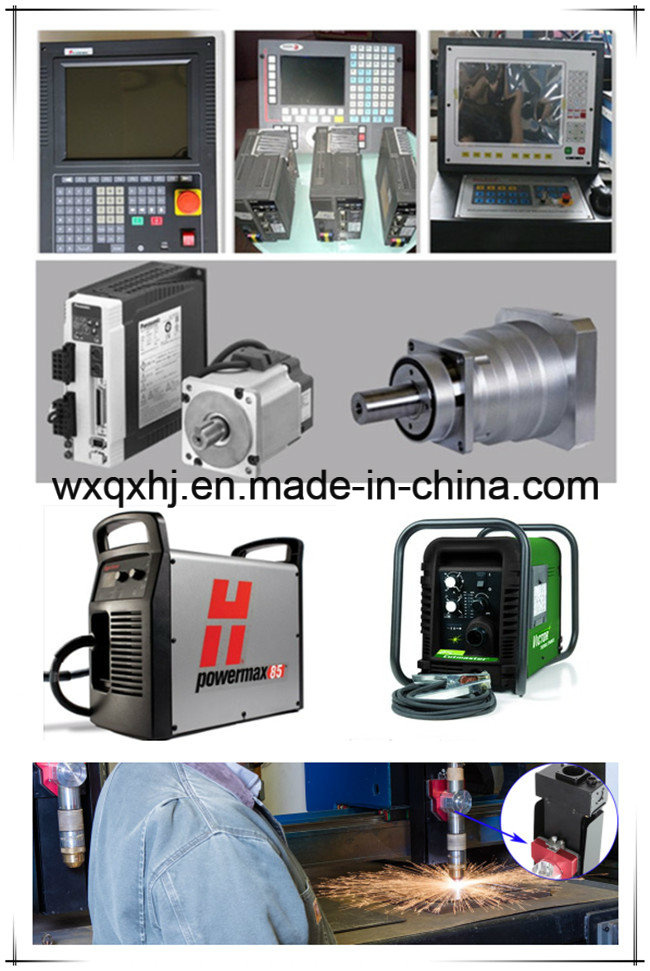

uses advanced CNC system from abroad, such as Spanish FARGO and American Hypertherm. Its excellent  cutting parameters, reliable and stable features ensure the perfect cutting effect. CNC flame/plasma torch
has auto height regulator and auto ignition functions, which is convenient for use.






2. Product Details


P.S.  Below are our standard models, we can design and customize other models as per customer's requirements.
ModelCNC-CG3000BCNC-CG4000BCNC-CG5000BCNC-CG6000BCNC-CG7000B
 Rail Gauge (mm)30004000500060007000
Cutting Width (mm)22003200420052006200
Rail Length (mm)15000
Plasma Cutting Torch1 or 2
Effective Cutting Length (mm)12500
Flame Cutting Thickness (mm)6-100As per customer's requirements
Plasma Cutting Thickness (mm)As per customer's requirements
Drive ModeSingleDouble
Cutting GasOxygen, Propane or acetylene or other cutting gas
Plasma Power SourceAmerican Hypertherm/ Victor
CNC SystemAmerican Hypertherm / Spanish FAGOR / Beijing Start
Nesting SoftwareAustralian FastCAM / American Hypertherm Pronest
Electrical componentsSiemens

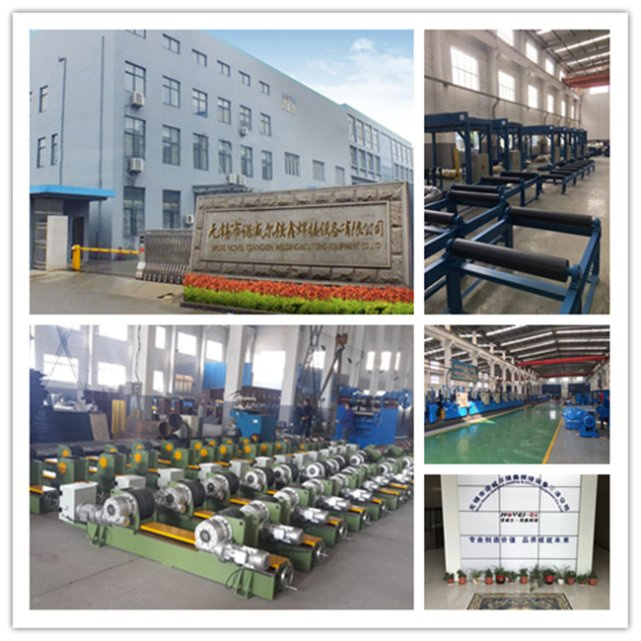

3. Factory Information



4. FAQ




5. Contact Information



Prod Model: CNC-CG4000B
CNC System: American Hypertherm/Spanish Fagor/Beijing Start
Nesting Software: Australian Fastcam / American Hypertherm Pronest
Electrical Components: Siemens
Plasma Power Source: American Hypertherm/ Victor
Wuxi Novell Qiangxin Welding&Cutting Equipment Co., Ltd is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and two production bases. Our main products are Complete Welding Equipment, CNC Cutting Equipment, Steel Structure Production Line, Wind Tower Production Line, Cleaning and Coating Equipment, etc, which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the only manufacturing enterprise participated in the editing of Welding Equipment Standard and Welding H-beam National Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: "Proceed from Optimum in Everything; And Satisfy Customer's Demand and Expectation with High Quality Products and Excellent Service. "

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
