MM-S181 / Saw / Cutting Saw / Band Saw / Cutting Machine / Table Saw / Sawing Mahine / Band Sawing Machine / Bandsaw / Saw Blade / Saw Machine
Such model of MM-S181 is the high-quality solid metal belt band saw for demanding sawing with driving belt and 4 sawing speeds. Such large capacity metal-cutting band saw has a small footprint as well as being completely mobile. This model of metal bandsaw features solid construction assuring high accuracy which is an economic alternative to frame and circular metal saws. The saw machine is particular popular price-point conscious consumers which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Any one of our metal sawing machine distinguishes itself by quality, accurate, sustainability and consistent value. Ideal for cutting of profiles, pipes, solid material and etc.

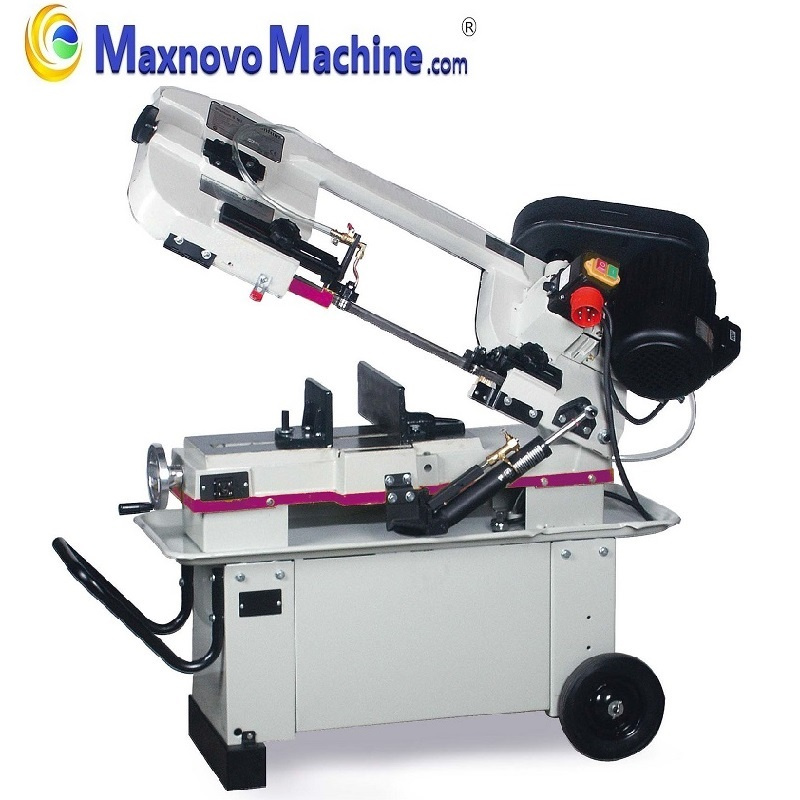

The MM-S181 Horizontal Cutting Metal Band SAW for demanding sawing with driving belts and 4 Sawing Speeds .
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
-Low-noise running
-Stable casting type
-Lowering of saw bow by means of hydraulic cylinder with infinitely variable throttle valve
-Micro switch for automatic limit stop
-Scale good read for angle adjustment
-With high-grade bimetallic saw band supplied as standard
-Saw belt tension at the front adjustable via hand-wheel
-Adjustable material stop for series productions
-Protective switch for the belt cover
-Fully equipped machine, the user can immediately start to work productively
-Ideal for cutting of profiles, pipes, solid materials and etc
-Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data :
| Product Name : | Solid Metal Belt Band Saw Machine |
| Product Item : | MM-S181 |
| General Information |
| Lifting the saw bow : | Manual |
| In Feed : | Continuously variable adjustable |
| Saw Band Speed : | 21/33.5/45/50 m/min |
| Saw Band Dimensions : | 2362 X 19 X 0.9 mm
( L X W X Thickness ) |
| Cutting Angle : | From 0 degree to 45 degree |
| Working Capacity |
| Cutting capacity Round at 0 degree : | Ø 180 mm |
| Cutting capacity Flat at 0 degree : | 180 X 240 mm |
| Cutting capacity Round at 45 degree : | Ø 110 mm |
| Cutting capacity Flat at 45 degree : | 170 X 110 mm |
| Electrical Connection |
| Connecting Voltage : | Single Phase 230V or Three Phase 400V |
| Main Motor : | 750W |
| Coolant Pump Motor : | 50W |
| Dimensions |
| Length : | 1295 mm |
| Width without material stop : | 450 mm |
| Width with material stop : | 600 mm |
| Bottom stop position of saw bow Height : | 1060 mm |
| Highest position of saw bow Height : | 1550 mm |
| Net Weight : | 130 KGS |
| Gross Weight : | 150 KGS |
| Packing Size : | 1300 X 520 X 1100 mm |
| Standard Equipment : | Bi-metal saw band
Machine substructure
Coolant Pump |
