Mechanical Punching Power Press Machine (JH21)

Name: Mechanical Punching Power Press Machine (JH21)
Brand: tool-buy.com
SKU: 812978475
Availability: InStock
Rating: 4.4 (57 reviews)

Price:	US $ 6000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Shanghai Huantu Technical Industry Co., Ltd.

Showroom Product Company Profile

Mechanical Punching Power Press Machine (JH21)

Model JH21-125

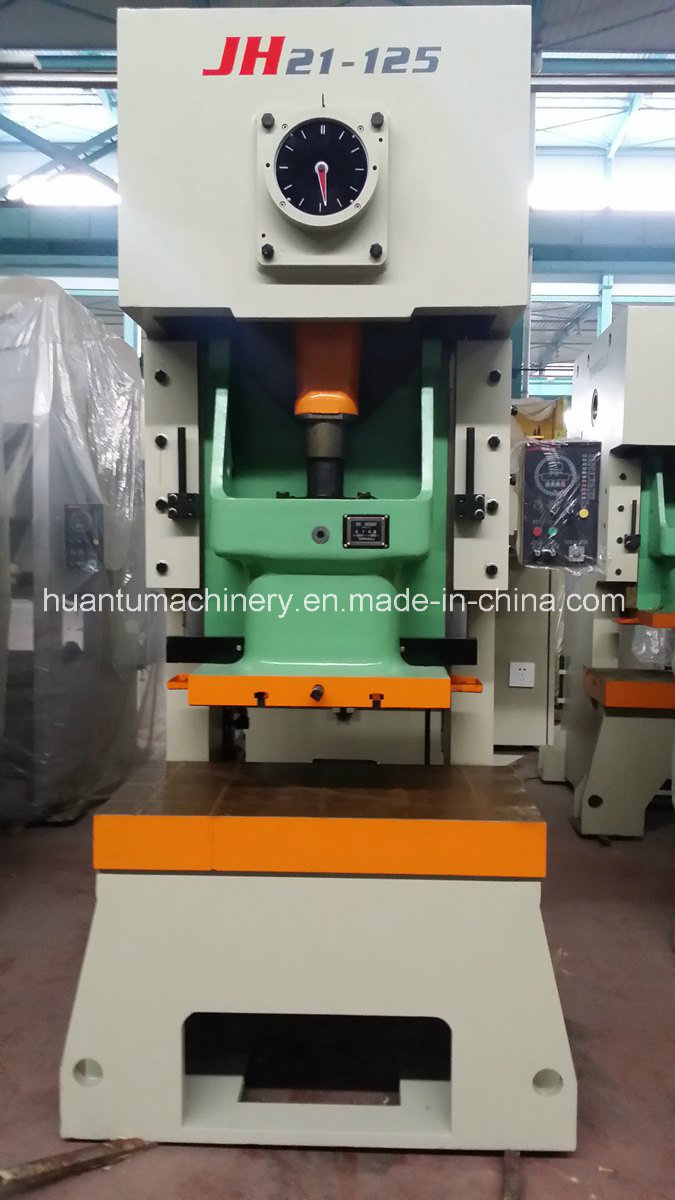

Open Back Press with Fixed Bed, a kind of thin sheet metal processing universal press imported advanced technology of AIDA company in Japan, which is suitable for shearing, punching, blanking, bending and shallow drawing.

II. Main Technical Specification

Technical specification Model Description		JH21-125
Technical specification Model Description		STANDARD
Nominal force	KN	125
Nominal force stroke	mm	6
Slide stroke	mm	160
SPM	Min^-1	50
Max. shut height	mm	350
Slide adjustment	mm	80
Bed dimension(FB×LR)	mm	680×1150
Bottom side of Slide (FB×LR)	mm	540×680
Bolster thickness	mm	140
Main motor power	kW	11

IIIBrief introduction of basic configuration

	Description	Model	Note	Manufacture
Mechanical part	Frame	Basic part	Welding with whole steel plate; ageing treatment when vibration; whole anneal treatment	HUANTU
	Bolster	Basic part	Cast HT200, anneal treatment	HUANTU
	Crank	Basic part	45 forged steelwork,surface quenching treatment	HUANTU
	Flywheel	Basic part	Cast HT200, anneal treatment	HUANTU
	Dry clutch	Part	OMPI, Italy brand	HUANTU
	Slide	Basic part	Cast HT200, anneal treatment	HUANTU
	Worm wheel	Part	Copper castingZQSn5-5-5	HUANTU
	Worm	Part	45 steel,surface nitrogen treatment	HUANTU
	Tie-rod	Basic part	Cast QT500-7,normalizing treatment	HUANTU
	Ball screw	Basic part	Forged steelwork 45,surface nitrogen treatment	HUANTU
	ACB	Part	The inner round of cylinder adopts lapping tech.	Yangzhou, Jiangsu
Electric part	Main motor	Y series	Wannan motor factory	Anhui
	Disc motor	YPE series	Beijing Fute disc motor co., ltd	Beijing
	PLC	CPM2AE-60CDR	OMRON products	Shanghai
	AC contactor		Schneider is sole proprietorship of TE company of France,which products get CE certification	Shanghai

	Button; Indicating lamp		Schneider is sole proprietorship of TE company of France,which products get CE certification	Shanghai
	Cam controller	YLK1-08J	8 proximity switches are installed in controller, which have reliable performance.	Yangzhou, Jiangsu

Seal part	ACB oil seal	Escort, Taiwan	seal part from Escort, Taiwan	Taiwan
	Hydraulic overload	High pressure oil seal	Dichtomatik, Germany	Germany
	Other seal parts		High quality made in China
Pneumatic component	Dual valve	MVS series	TACO, Japan, which has CE certification	Japan
Pneumatic component	Pneumatic control 2-unit	Rc1/2	AirTac, Taiwan	Ningbo
Oil pipeline component	Electric grease lubrication system	Standard configuration	Sino-Japanese joint venture Yongjia Lube products, which pieces oil distributor is combined with many pieces. Installed test switch, which has block alarm.	Zhejiang

Prod Model:	JH21
Nominal Force:	125kn
Nominal Force Stroke:	6mm
Slide Stroke:	160mm
Max. Shut Height:	350mm
Slide Adjustment:	80mm
Bed Dimension:	680X1150
Bottom Side Of Slide:	540X680
Type:	High-Speed Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Automatic
Power Source:	Mechanical Drive
Precision:	High Precision
