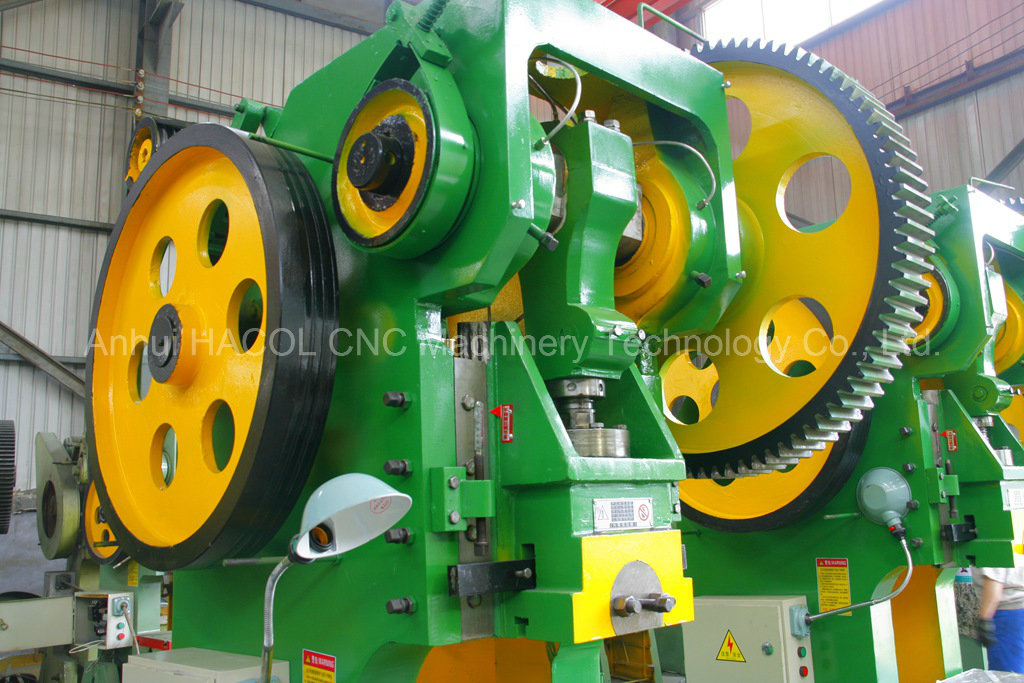

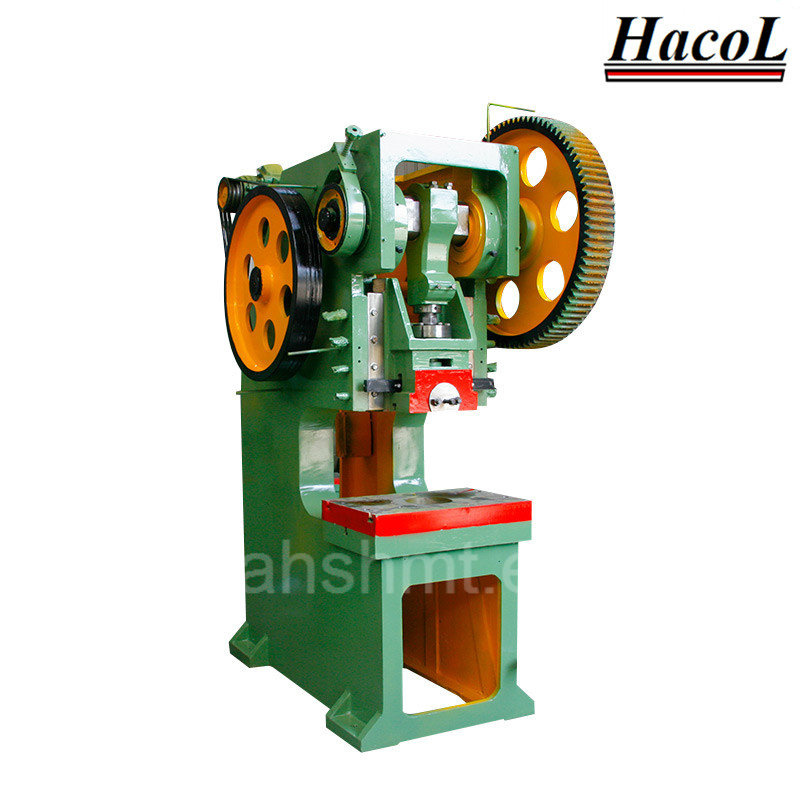

Mechanical J23-100ton C Frame Power Press, Punching Press

Mechanical J23-100ton C Frame Power Press, Punching Press
Price: US $ 4900/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
J23 series Open Tilting Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

Standard Accessories
1. Motor pulley
2. Clutch key
3. Clutch key springs
4. Slide adj. Spanner
5. Fly wheel & grar guard
6. Oil cups for lubrication point
7. Knock-out system
8. Inclination arrangement in 50 ton & abovem
Optional Accessories
1. Tow hand operated clutch
2. Single / continuous stroke
3. Lubrication pump automatic
4. Electrical
5. Tie - rod
6. Toomy bar
7. Extra base plate
8. Inclination arrangement



Our Services:
1 Standardization of Service "112"
1: Expect a response in 1 hour
1: a solution will be provided in 1 day
2: We will fix the issue in 2 days


2. Installation Service
Installation Services are available for HACOL machinery with disassemble machine. We dispatch technicians to customers' locations for installation and configuration of machines.( Customers only need to afford technician airfare and lodging)


3. Training Service
Our technicians are available to visit your factory and offer comprehensive training of how to operate our CNC machines. You may also send your technician to our facilities to undergo a more rigorous training program.


4. Quality Guarantee
1.All HACOL machines quality are in guarantee and produced according to the agreed technical data.
2. Each machine will be performed a final test after production and before shipment. We run the machines for a few days, and then use it under similar conditions that the customer will be using. After making sure the machines is performing properly, we will then make the shipment.
3.Each unit machine has a FIVE year warranty.




If you would like to know some more details about this product, please leave a message with your contact information, we will reply you at earliest time!
Prod Model: J23-100Ton
Application: Forming, Blanking, Punching, Cold Stamping
Color: Green( or as Per Your Request)
Delivery: 3-5days
Voltage: 380V, 50Hz, 3phase
Material: Cast Srtucture,
Feature: Durable, Precise, Reliable, and Easy to Operate
Type: Deep Throat Punching Machine
Controlling Mode: Artificial
Automatic Grade: Manual
Power Source: Mechanical Drive
Precision: Precision
Anhui HACOL CNC Machinery Technology Co., Ltd. (HACOL CNC) is a professional manufacture of Hydraulic CNC sheet metal processing equipment with over 15 years experience.

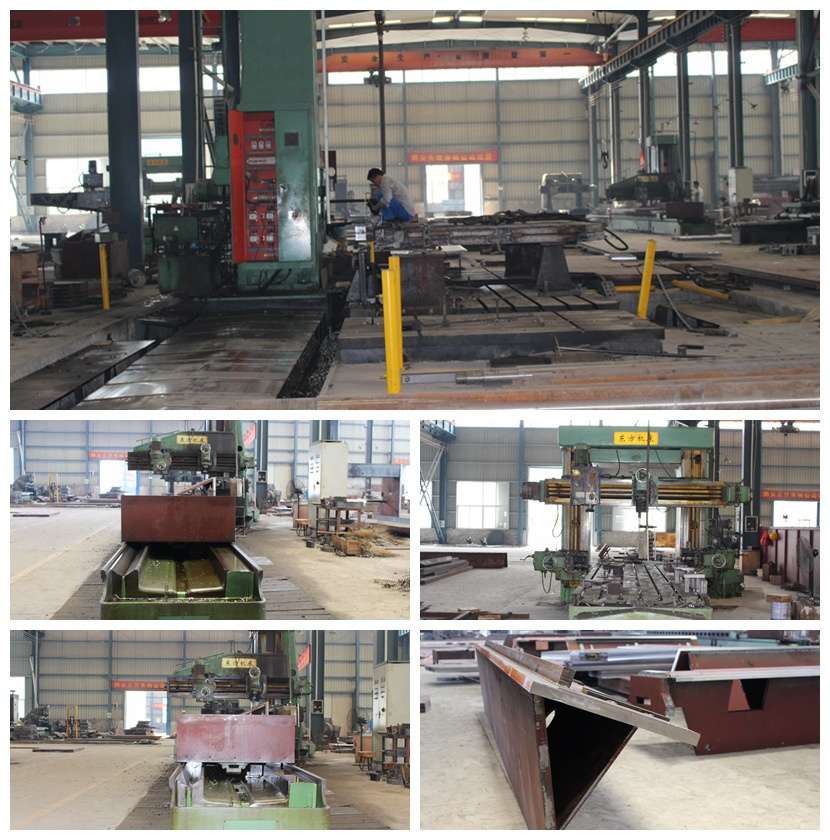

Our factory is located in Bowang District Industrial Area, closed to Nanjing Lukou Airport with just 30km, and we are conveniently located to the Yangtze River Delta, which is with developed shipping networks to facilitate the delivery in China.

The HACOL company supply mainly machines for sheet metal fabrication include CNC hydraulic shearing machines, CNC hydraulic press brakes, also hydraulic iron worker, power presses, rolling machines, and spare parts such as goose-neck blade and Multi-V die etc...

Our products are widely used in special production fields such as decoration, metallurgy, ship, automobile, machinery, aviation, etc. The Company has a strong technical development team and can satisfy your specific demand on a personalized product by providing Build-To-Order service.

Up to now, our products have been sold over 50 countries, include Australia, Brazil, Bangladesh, Kazakhstan, Pakistan, Ukraine, Russia, Spain, Saudi Arabia, Syria, India, Indonesia, Thailand, and Vietnam, etc...HACOL has also set up agents in many countries like Brazil, Chile, Colombia, Kazakhstan, and Peru etc...

All that we do is committed to our customers create the most value, and to provide the best technology, products and services!
