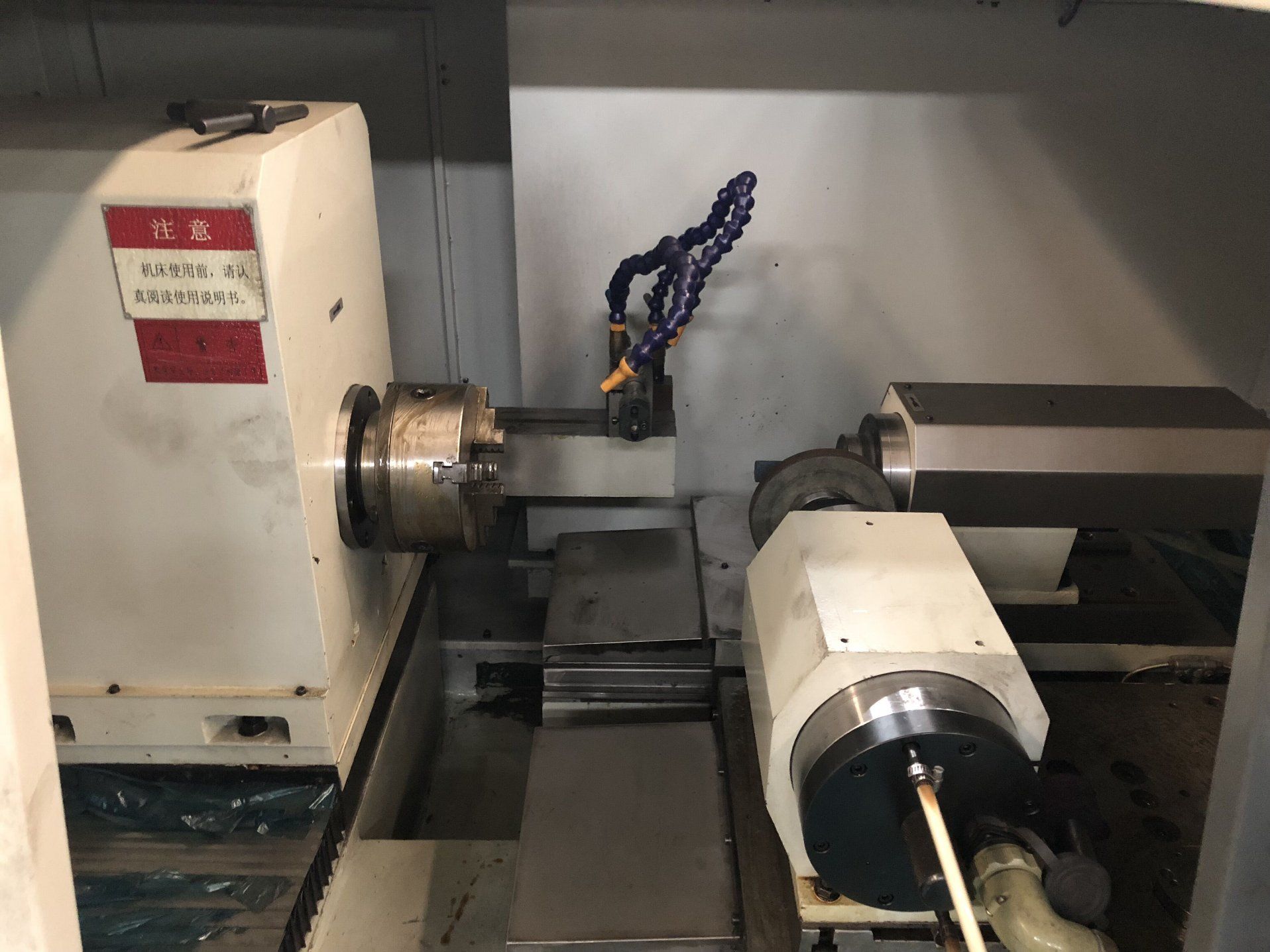

Mckf2120 Customized Internal Turning and Grinding Machine Tool

Mckf2120 Customized Internal Turning and Grinding Machine Tool
Price: US $ 80000-80600/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
MCKF 2120 is our new developed Model, Special use according to client's requirement, improve the efficiency. Once clamping, it can both milling and grinding. Milling is faster than grinding, grinding can promise the roughness rather than milling, so This is our special compound machine tool, we will apply for the patent for invention.

* Main characteristics of this machine tool
* This machine tool is mainly used for grinding internal hole, internal end face, external end face, stepped hole of work piece;
* Setting and adjustment of machine tool parameters adopt touch screen. Human-machine dialogue can be realized;
* All the movable guide rails of machine tool adopt high-precision linear rolling guide rails which have good sliding performance. Screws for feed and reciprocating motion adopt high-precision ball screws;
* The feed system and reciprocating system of machine tool adopt Siemens servo system for double-axis linkage control.
*  Grinding wheel spindle of machine tool adopt high-speed motorized spindle and is controlled by static frequency converter to realize stepless speed adjustment.
* The machine tool can be equipped with fixtures such as three-jaw chuck,hydraulic chuck,diaphragm chuck, pneumatic chuck,etc. for user to select.
* The machine tool adopt fully-closed shell with beautiful and elegant appearance.


Prod Model: MCKF212O
Roundness Of Internal Hole: 2um
Cylindricity Of Intenral Hole: 3um
Surface Roughness Of Internal Hole: Ra0.4um
Type: Internal Grinding Machine
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Processing Object: φ10-200mm Inner Hole.Stepped Hole,End Face
Cylindrical Grinder Type: Internal Grinding Machine
Wuxi Changyi Machine Tool Manufacturing Co., Ltd. is a professional manufacturer of internal grinding machine and centerless grinding machine. The company is located in South of the Yangtze River and along the Taihu Lake---Qianqiao Hengyuanxiang Industrial Park. The company is of convenient transportation and good geographical location with floor area up to 17000 square meters and construction area up to 9000 square meters. The company is five munities' walk from Shanghai-Nanjing Expressway and is near the National High Way 312. Wuxi Changyi Machine Tool Manufacturing Co., Ltd. Makes great efforts to improve accuracy, performance, automation and easy operation, etc of the machine tool, including internal grinding machine with specification of 5mm-500mm and centerless grinding machine with specification of 2mm-150mm in order to meet development requirements of all industries. Therefore the machine tools of our company are applicable for single unit and small production batch as well as large production batch. Semi-automatic and full-automatic machine tools of all series can be manufactured by our company.

The machine tools of typical model produced by Wuxi Changyi Machine Tool Manufacturing Co., Ltd. Are applicable for cylindrical hole, conical bore, step hole, surface end, external and centerless grinding. The user may choose machine tools with relevant functions according to processing parts, production scale and economic cost. Modification on machine tool is available according to special requirements of the user. We can also design and modify special grinding machine according to parts requirement of user.

WUXI CHANGYI MACHINE TOOL Co., Ltd. Was listed in Jiangsu equity trading center On 26th September. 2016. Our stock code: 690839.
