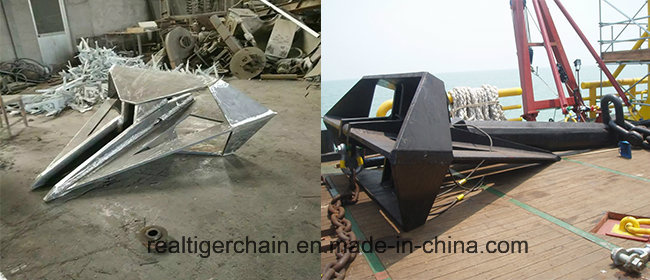

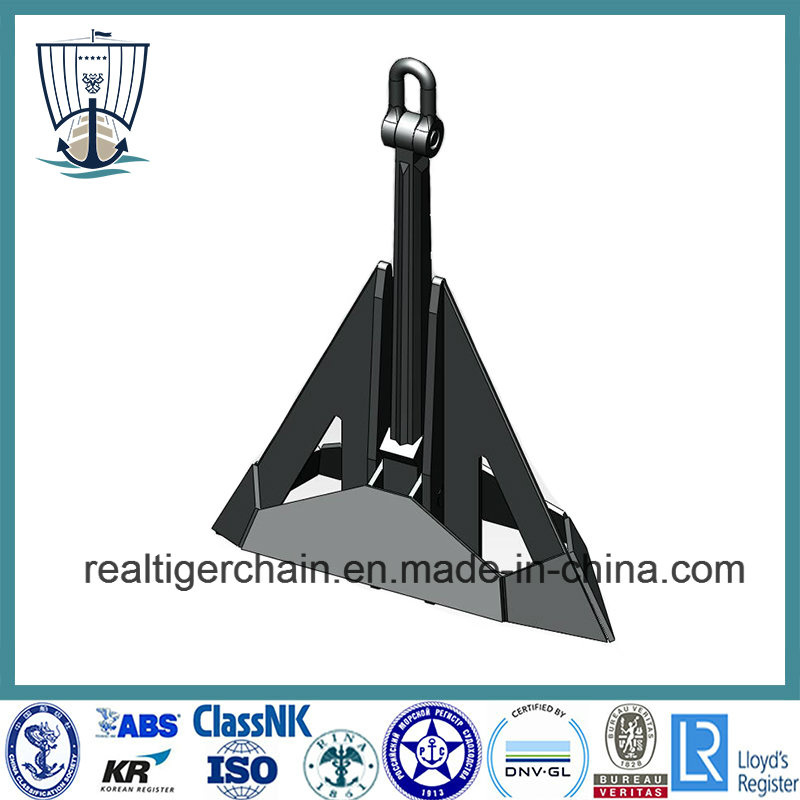

Marine High Holding Power Delta Flipper Ship Anchor
| Price: |
US $ 840-900/Ton |
| Min Order: |
1/Ton |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
*Product Name:Delta Flipper HHP Anchor
*Weight:300-100000kg
*Type: High Holding Power Anchor
*Material: Carbon Steel
*Technology: Welded
*Certificate: CCS ABS BV NK KR GL LR DNV RINA RMRS ISO9001
*Loading Port: Qingdao, Shanghai, other as required
*Payment Terms: T/T, L/C, D/P, other negotiable*Advantages: OEM Acceptable; Customerized Avaliable
*Other Products: Anchor Chain, Casting Ship Anchors, Mooring Rope, Wire Rope, Deck Outfittings, Rigging Hardware, Marine Fender

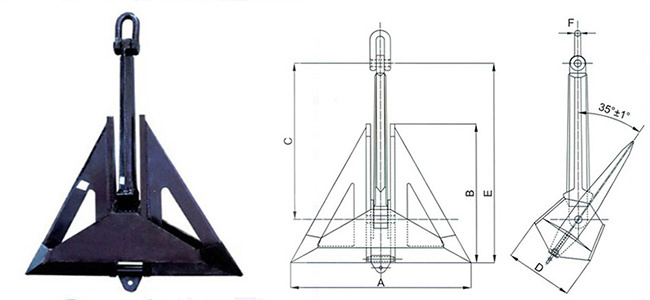

| Nominal Weight/kg | Size/mm |
| A | B | C | D | E | F |
| 300 | 1200 | 960 | 1080 | 457 | 1380 | 45 |
| 500 | 1500 | 1200 | 1350 | 571 | 1725 | 50 |
| 1000 | 1875 | 1500 | 1686 | 714 | 2155 | 62 |
| 1080 | 1915 | 1530 | 1686 | 722 | 2200 | 62 |
| 2000 | 2363 | 1890 | 2124 | 900 | 2715 | 82 |
| 3000 | 2700 | 2160 | 2430 | 1028 | 3105 | 90 |
| 4000 | 2975 | 2380 | 2676 | 1133 | 3420 | 100 |
| 5000 | 3250 | 2600 | 2922 | 1238 | 3735 | 110 |
| 7000 | 3575 | 2860 | 3216 | 1361 | 4116 | 117 |
| 7500 | 3650 | 2925 | 3290 | 1390 | 4210 | 117 |
| 8000 | 3730 | 2990 | 3360 | 1420 | 4300 | 130 |
| 9000 | 3950 | 3160 | 3555 | 1504 | 4543 | 135 |
| 10000 | 4100 | 3280 | 3690 | 1561 | 4715 | 140 |
| 12000 | 4300 | 3440 | 3942 | 1638 | 5017 | 145 |
| 13500 | 4670 | 3720 | 4195 | 1765 | 5535 | 150 |
| 15000 | 4845 | 3875 | 4355 | 1830 | 5735 | 150 |
| 18000 | 5140 | 4080 | 4610 | 1940 | 6080 | 160 |
| 20000 | 5330 | 4260 | 4790 | 2010 | 6310 | 170 |
| 22500 | 5490 | 4360 | 4905 | 2060 | 6470 | 180 |
| 25000 | 5740 | 4590 | 5160 | 2165 | 6532 | 195 |
| 30000 | 6100 | 4880 | 5486 | 2305 | 7225 | 195 |
| 35000 | 6424 | 5138 | 5775 | 2426 | 7605 | 205 |
| 40000 | 6715 | 5370 | 6036 | 2536 | 7948 | 210 |
| 45000 | 6986 | 5588 | 6184 | 2640 | 8270 | 220 |
| 50000 | 7230 | 5785 | 6500 | 2730 | 8560 | 225 |
| 55000 | 7470 | 5975 | 6715 | 2820 | 8840 | 230 |
| 60000 | 7690 | 6150 | 6910 | 2940 | 9100 | 240 |
| 65000 | 7900 | 6315 | 7100 | 2980 | 9350 | 245 |
| 70000 | 8095 | 6475 | 7275 | 3060 | 9580 | 250 |
| 75000 | 8235 | 6590 | 7405 | 3110 | 9750 | 255 |
| 80000 | 8460 | 6770 | 7610 | 3195 | 10020 | 260 |
| 85000 | 8625 | 6900 | 7750 | 3255 | 10210 | 265 |
| 90000 | 8800 | 7040 | 7910 | 3325 | 10420 | 270 |
| 95000 | 8960 | 7170 | 8055 | 3385 | 10610 | 280 |
| 100000 | 9110 | 7285 | 8190 | 3440 | 10780 | 280 |
| Prod Model: |
HHP Anchor |
| Product Material: |
Carbon Steel |
| Color: |
Black Bitumen Painted. Galvanized |
| Anchor Type: |
High Holding Power Anchor |
| Construction: |
Delta Anchor |
| Technology: |
Welded Anchor |
| Delivery: |
7-30 Days |
| Related Products: |
Anchor Chain, Anchor Shackle |
| Advantage1: |
Customerized Avaliable |
| Advantage2: |
OEM Acceptable |
| Usage: |
Ship Anchorage; Ship Docking |
| Certification: |
CCS ABS BV Nk Dnv Rina |
| Design: |
Hhp Anchor |
| Weight (',Kg): |
300-100000 |
Qingdao Real Tiger Marine Company is located in the beautiful coastal city of Qingdao, which is a professional one-stop marine equipment suppliers. Main products are anchor chain and accessories, ship anchor, mooring rope, wire rope, door, window, cover, bollard, chain stopper and other deck equipment. Products got CCS, DNV, GL, ABS, BV, LR, NK, KR, RINA classification society certificate, and passed the ISO9001-2008 international quality system certification.
Companies adhering to the "High Quality for Success, Sincere Credit for Cooperation
" concept, sincerely serve for the domestic and foreign customers, efforts to achieve win-win cooperation.

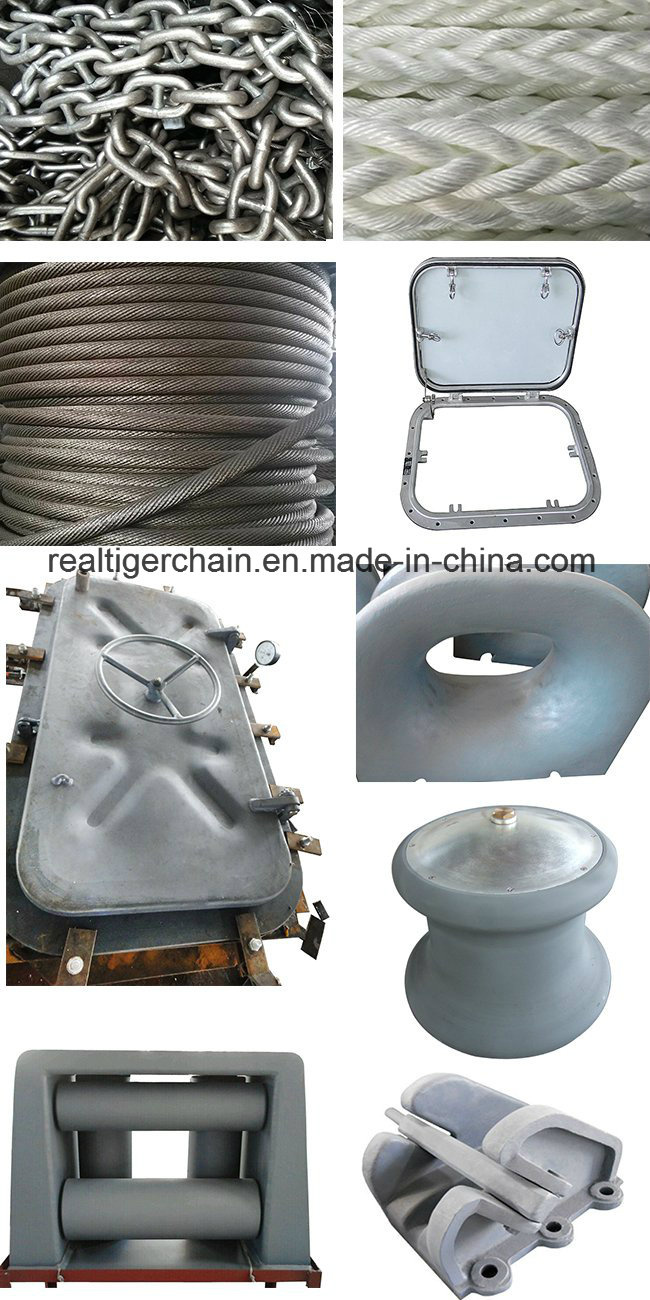

Maine Products:
*Anchor Chain: U1 U2 U3( Dia. 6-162mm)
*Offshore Mooring Chain: R3 R3S R4 R4S R5 R5S( Dia. 34-162mm)
*Anchor Chain Accessories: Kenter Shackle, Joining Shackle, End Shackle, Swivel, Pear Kenter Shackle, C Connector, Swivel Shackle, etc
*Ship Anchors: Hall Anchor, Spek Anchor, Admiralty Anchor, Japan Stockless Anchor, AC-14 HHP Anchor, Danforth Anchor, Pool Anchor, Delta Anchor, etc
*Mooring Rope: 3/4/6/8/12 Strands Ropes, Double Braided Ropes, UIIMWPE Ropes, and rope net
*Deck Equipments: DoorS, Windows, Hatch Cover, Manhole Cover, Chock, Roller Fairlead, Chain Stopper, Guide Roller, Bollard, etc
*Marine Rubber Fender: Pneumatic Rubber Fender, Super Cell Rubber Fender, Cone Rubber Fender, Semi-Circular Rubber Fender, Cylindrical Rubber Fender, Super Arch Rubber Fender, etc.
*Lashing Securing Series: Lashing Chain, Tension Lever, Ratchet Load Binder, D Ring, Hooks, etc
*Hardware: US Type Shackle (G209/210/2130/2150/2410/2160), Turnbuckle, D Ring, Hooks, Ratchet Load Binder, Wire Rope Clips, etc.
If you have requirements for OEM or CUSTOMERISED PRODDUCTS, are also available.
For more infomation, you can contact me at any time.
