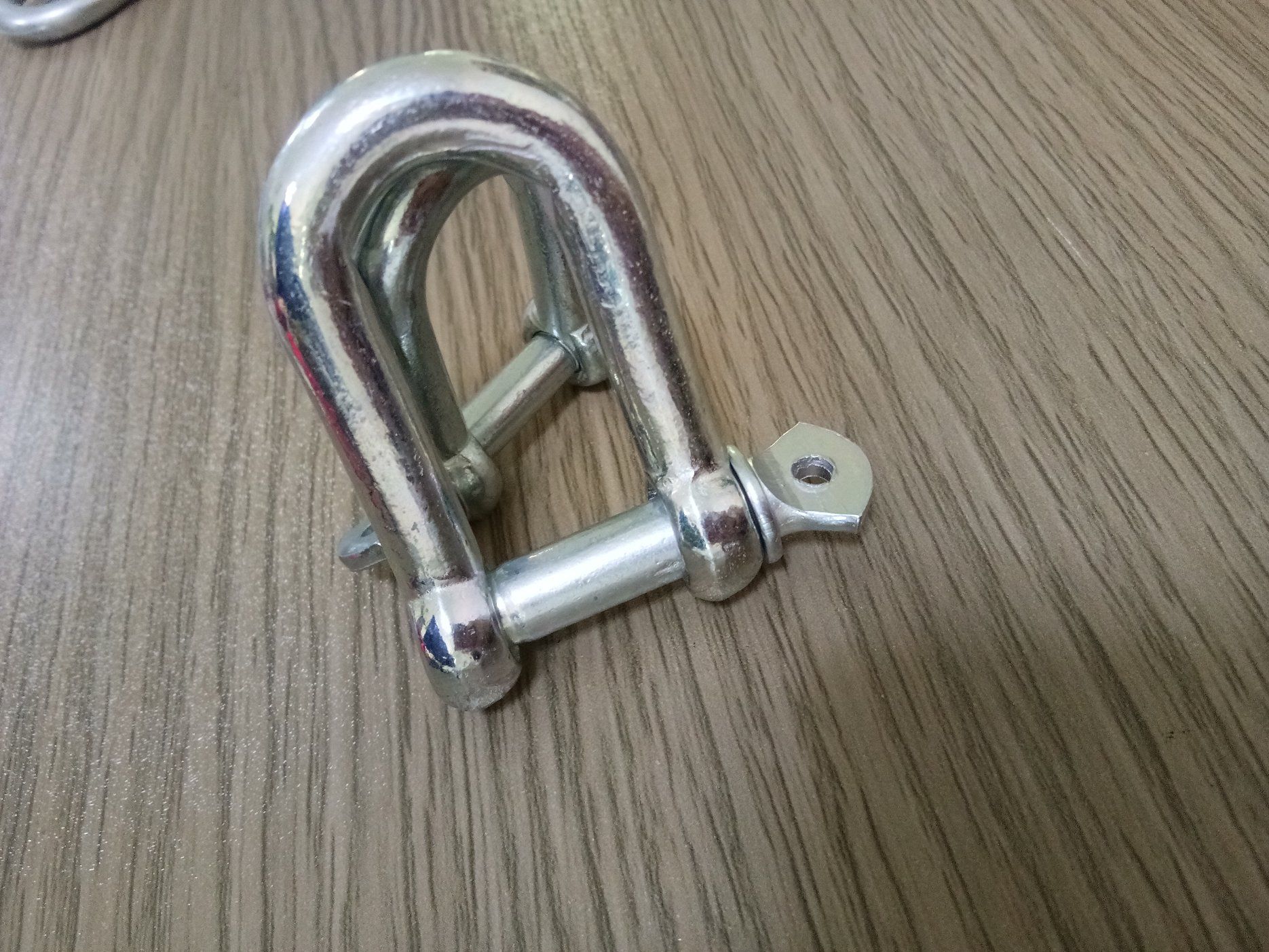

European type shackle
Type : D type , Bow type
Size: 5mm-50mm
Material: Carbon steel
Iron: Shackle
Function: Fastener conecting
Brand Name: TY
Process: Laying-off------forged---drill hole---heat treatment---phosphorization---powder plastified
PRODUCT DATAS ;
| ART.NO . | size | w.l.l.(kgs) | I.L. (MM) | N.W.(KGS/PC) |
| s0401 | 5mm | 100 | 19 | 0.014 |
| s0402 | 6mm | 125 | 25 | 0.025 |
| s0403 | 8mm | 250 | 32 | 0.06 |
| s0404 | 10mm | 300 | 38 | 0.105 |
| s0405 | 11mm | 400 | 41 | 0.15 |
| s0406 | 12mm | 500 | 51 | 0.2 |
| s0407 | 14mm | 600 | 56 | 0.3 |
| s0408 | 16mm | 800 | 64 | 0.43 |
| s0409 | 19mm | 1100 | 76 | 0.74 |
| s0410 | 22mm | 1500 | 89 | 1.15 |
| s0411 | 25mm | 2100 | 100 | 1.65 |
| s0412 | 28mm | 3000 | 115 | 2.5 |
| s0413 | 32mm | 3500 | 127 | 3.6 |
| s0414 | 38mm | 5000 | 152 | 6.3 |
| s0415 | 45mm | 7000 | 180 | 10.5 |
| s0416 | 50mm | 8000 | 200 | 12.3 |
|
|
|
|
|
Shackle are widely used in various industries.
Using range
Electric power, metallurgy, petroleum,
Machinery, railway, chemical industry,
Ports, mines, construction
Electric power, metallurgy, petroleum, machinery, railway, chemical
Industry, ports, mines, construction.
Sample: For free
Packing :
Pp bags+gunny bags, then on pallets
1)Gunny bag
Size: 30*50(cm)
Weight: 25Kg(only bag)
2) Carton
Size: 5mm-50mm
Weight: 25kg
Delivery time: We could suppy goods within 15-25days.after confirme the P/I
Payment term: T T payment or LC at sight :
30% advanced by T/T, the balance should be paid after see the copy of the
B/L; L/C at sight; Western Union.
1. Purchase order tracking
Follow up orders from material preparation to delivery. Professional in shipping, fast delivery,
Packed well in container, customs clearance smoothly, tracking the goods from the port of l
Oading to the port of destination.
2. Professional manufacturer
Specifications and Marks can be produced according to customers 'requirements.
Being in this field for 25 years as a manufacturer
3. Personalized Service
Quality assurance, reasonable prices, service country of origin, experience technical staff,
Excellent product performance.
4. Stock
There are emergency stocks for regular sizes perennially. This to save time for you.
