| Price: | US $ 710/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Power | Voltage: 110V AC 50/60hz |
| Motor & Spindle | The 1/4 HP equivalent variable speed ball bearing direct drive motor allows the saw to run fast enough to use ultra-thin diamond blades. Speed varies from 400 to 3250 RPM. |

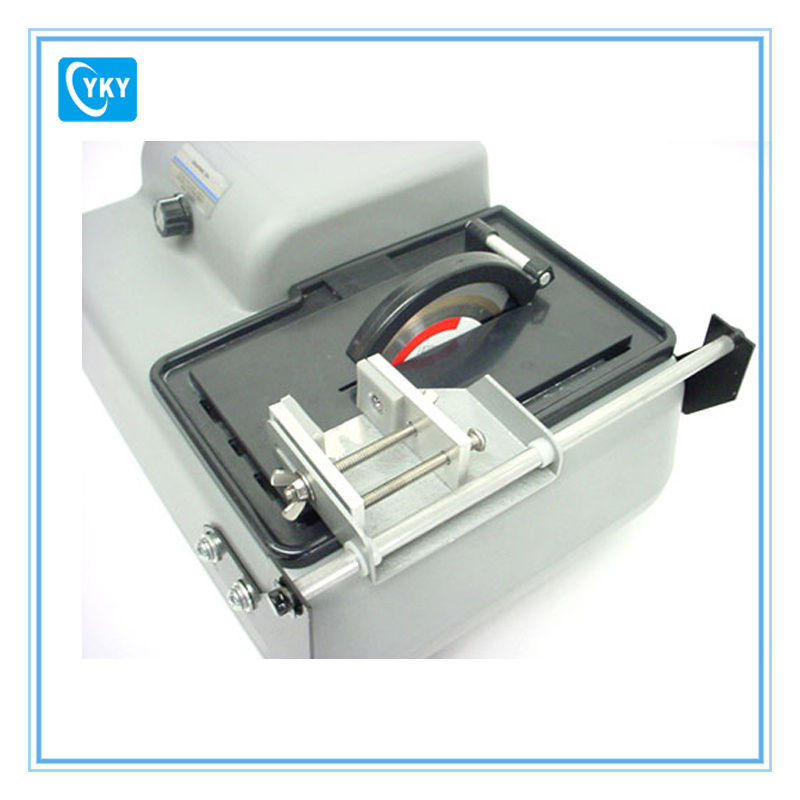

| Saw Table & Housing | The saw table is flat so it is easy to trim oversized slabs and removable so clean up is easy. Max. sample loading length: 6" The sturdy table measures 6" X 10", easy to operate. The saw housing is made of unbreakable cross-linked polyethylene - no rusting, no messy oil, uses water only. Max. cutting depth: 1" (25.4 mm) Max. cutting width: 40mm (limited by the max. opening of the sample holder |

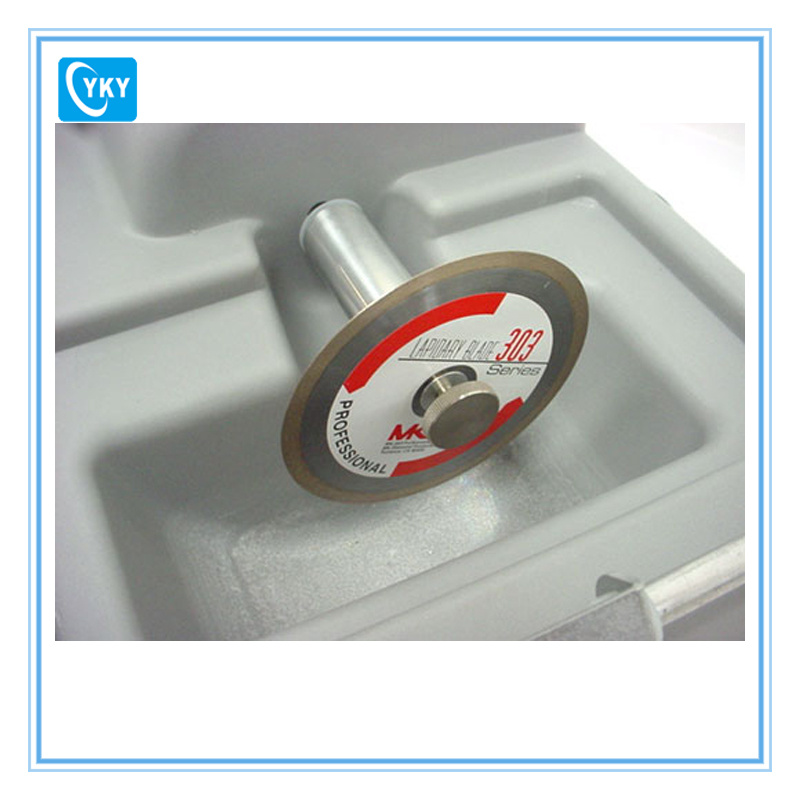

| Cutting Blade | Comes with 5 pcs of impregnated diamond blade of 4" Dia x 0.014" (0.35 mm) thickness x 1/2" arbor, as well as a mini-vise which allows you to handle the sample smoothly. To cut soft material, such as stainless steel, Ni, Cu or plastic For longer cutting life, please use sintered diamond blade and Lube-150 |
| Shipping Dimensions | 16" x 13" x 11" |
| Shipping Weigh | 16lbs |
| Compliance | CE |
| Warranty & Compliance | Two Years limited warranty |
| Prod Model: | CY-SYJ-40-LD |
|---|---|
| Max. Sample Loading Length: | 6" |

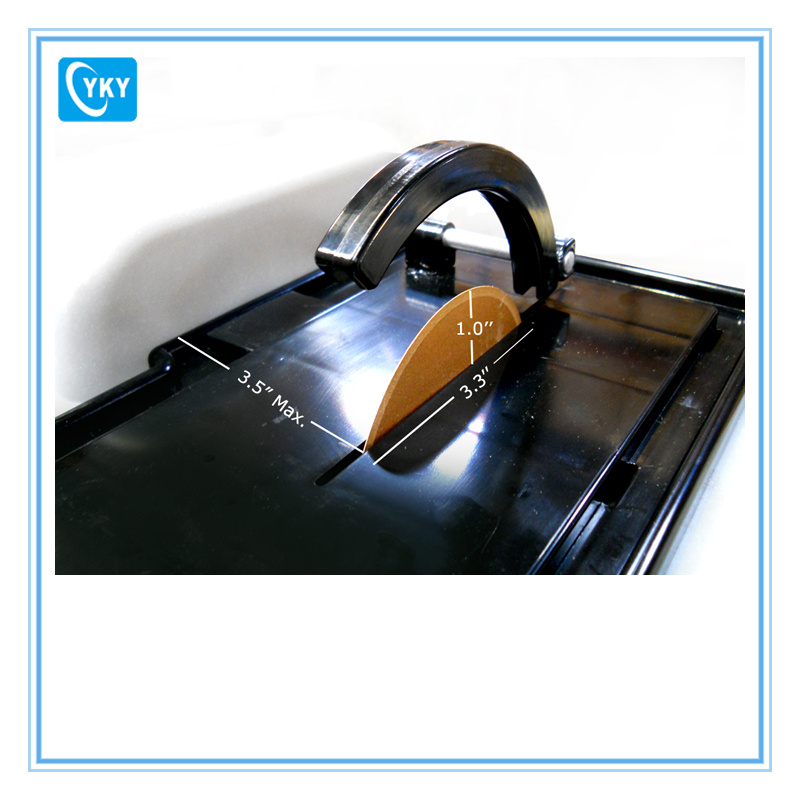

| Max. Cutting Depth: | 1" |
| Speed: | 400-3250rpm |
| Max. Cutting Width: | 40mm |

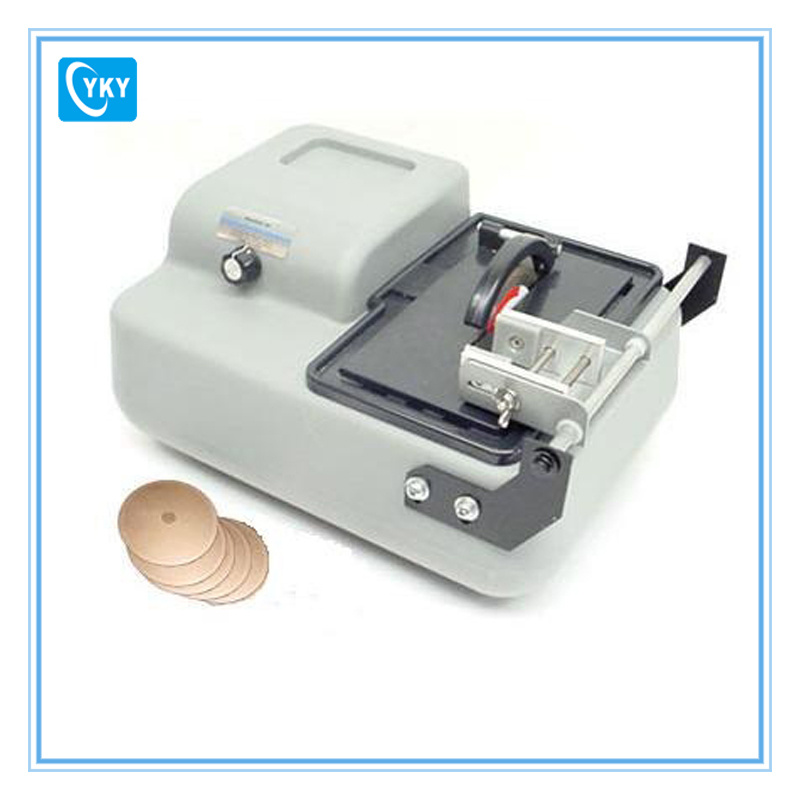

| Name: | Mini Metal Cutting Saw |
| Warranty: | One Year |
| Certificate: | Ce/TUV |
