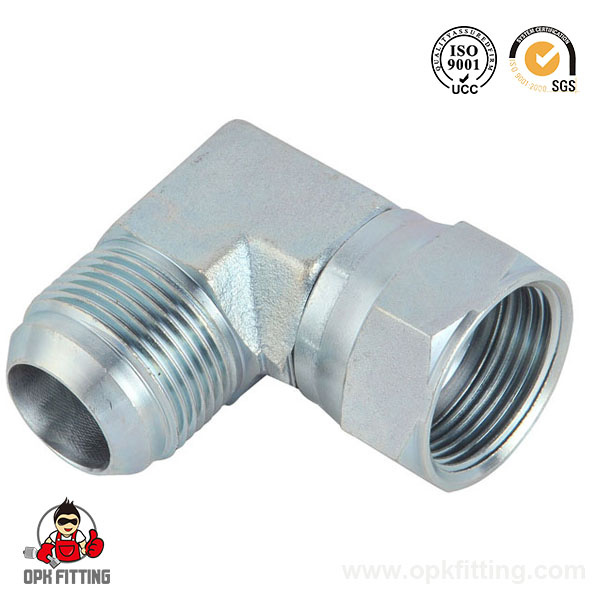

Male and Female Elbow 2j9 Hydraulic Hose Fitting Machine Nipple
| Price: |
US $ 0.2-1.5/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Description
hydraulic adaptor metric male O-Ring flat sealing pipe fittings
Material: Carbon Steel, Stainless Steel
Surface Treatment: White or Yellow Zinc-Plated
Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
Export Markets: Global
OEM: We can produce according to customers' (drawing or sample) |

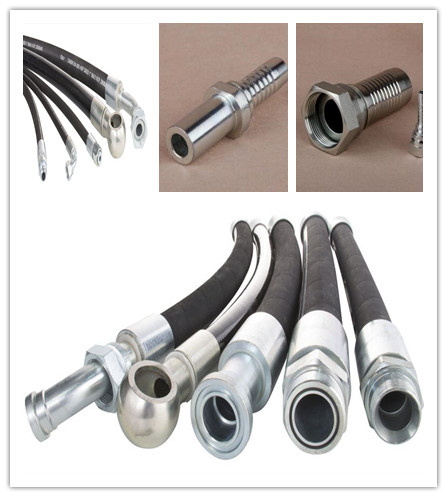

Main Products | hose fitting / flange/ adapter/ plug/ nipple/ |
Material | Carbon Steel / A3 steel etc. (as your requirement ) |
Standard | SEA, BSPT, JIC, JIS, ORF, DIN, BS,GB,NPT etc. |
Size range | M12*1.25-M64*2 |
connection / shape | male , female / straight, elbow, tee, cross/ equal , |
Shipping Ways | *1) sample and small order can be delivered By air / By express (DHL/ UPS/ FEDEX / TNT etc.) *2) large quantity can by sea . |
Packing | Usual packageing with carboard, wooden case,pallet or Long-distance seaworthy package according to clients' request |
Supply Ability | 300000pcs/ month |
Minimum Order | 100pcs (Samples are available upon you request) |
Delivery Time | Usually Within 30 days after the order date or as your requirement |
Payment | L/C ,T/T, western union (30% deposit by T/T in advance) |
| PART NO. | THREAD | | DIMENSIONS |
| E | F | | | A | B | S1 | S2 | |
| 2J9-02 | 5/16"×24 | 5/16"×24 | | | 21 | 5.6 | 11 | 12 | |
| 2J9-03 | 3/8"×24 | 3/8"×24 | | | 22 | 5 | 11 | 14 | |
| 2J9-04 | 7/16"×20 | 7/16"×20 | | | 24.5 | 9 | 11 | 15 | |
| 2J9-05 | 1/2"×20 | 1/2"×20 | | | 26.5 | 9.5 | 14 | 17 | |
| 2J9-06 | 9/16"×18 | 9/16"×18 | | | 26.9 | 10.5 | 14 | 19 | |
| 2J9-06-08 | 9/16"×18 | 3/4"×16 | | | 28.5 | 11 | 16 | 24 | |
| 2J9-08-06 | 3/4"×16 | 9/16"×18 | | | 32 | 10.5 | 19 | 19 | |
| 2J9-08 | 3/4"×16 | 3/4"×16 | | | 32 | 11 | 19 | 24 | |
| 2J9-08-10 | 3/4"×16 | 7/8"×14 | | | 32 | 13 | 19 | 27 | |
| 2J9-10 | 7/8"×14 | 7/8"×14 | | | 37.8 | 13 | 22 | 27 | |
| 2J9-10-08 | 7/8"×14 | 3/4"×16 | | | 37.8 | 11 | 22 | 24 | |
| 2J9-10-12 | 7/8"×14 | 1.1/16"×12 | | | 39.5 | 15 | 24 | 32 | |
| 2J9-12 | 1.1/16"×12 | 1.1/16"×12 | | | 44.2 | 15 | 27 | 32 | |
| 2J9-12-10 | 1.1/16"×12 | 7/8"×14 | | | 44.2 | 13 | 27 | 27 | |
| 2J9-12-16 | 1.1/16"×12 | 1.5/16"×12 | | | 46 | 16 | 30 | 41 | |
| 2J9-14 | 1.3/16"×12 | 1.3/16"×12 | | | 47.5 | 15 | 30 | 36 | |
| 2J9-16 | 1.5/16"×12 | 1.5/16"×12 | | | 48.8 | 16 | 33 | 41 | |
| 2J9-16-20 | 1.5/16"×12 | 1.5/8"×12 | | | 54 | 17 | 41 | 50 | |
| 2J9-20-16 | 1.5/8"×12 | 1.5/16"×12 | | | 55.5 | 16 | 41 | 41 | |
| 2J9-20 | 1.5/8"×12 | 1.5/8"×12 | | | 55.5 | 17 | 41 | 50 | |
| 2J9-20-24 | 1.5/8"×12 | 1.7/8"×12 | | | 59.5 | 20 | 48 | 55 | |
| 2J9-24-20 | 1.7/8"×12 | 1.5/8"×12 | | | 62.5 | 17 | 48 | 50 | |
| 2J9-24 | 1.7/8"×12 | 1.7/8"×12 | | | 62.5 | 20 | 48 | 55 | |
| 2J9-32 | 2.1/2"×12 | 2.1/2"×12 | | | 75.5 | 24.5 | 63 | 75 | |
| Prod Model: |
2J9 |
| HS Code: |
73071900 |
| Model Number: |
1e |
| Manufacure: |
Factory |
| Delivery Time: |
15 Days |
| Standard: |
DIN |
| Material: |
Medium Carbon Steel |
| Connection: |
Female |
OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes, adaptors production experience. Our managing scope relates to various fields such as hydraulic system etc; Including all kinds of the materials with different pressure levels, the flexible hydraulic hoses with various size criterions, hose fitting, adaptor etc. They have been respectively applied in the hydraulic and fluid conveyance system of the industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food and so forth.

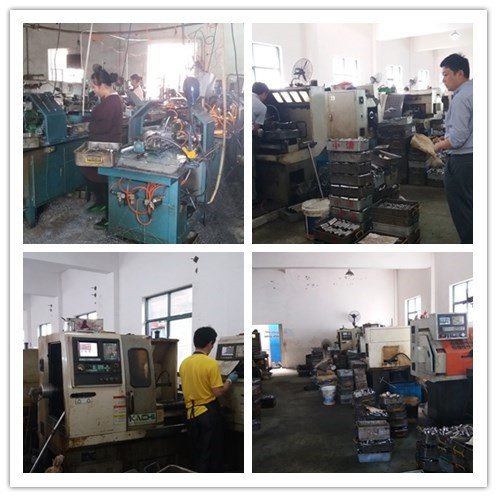

The factory owns a group of high quality and high-tech professional designers and personnel group. It possesses a series of the fully automatic computer NC machine tools and high precision lathes, the multiple spindle tool machines, hexangular tool machines and electric heated bent pipe machines. We have strictly adopted the professional personnels to carry on the tests and examinations for our products, in order to provide a assurance in the high-quality for all the customers.
Our factory aims are strict management style, high-quality, honestly and faithly style, sincerely services. It implements the pipe-cutting, rubber-stripping, hose crimping, trail-pressure, rinsing in aspect of the manufacture technology. Our products have the features of the consummate structure, advanced design. Theelbow joint adopts the integral production craft and technology and chooses the advanced high frequency heater and fully automatic computer pipe bender for the processing. It conforms with the requirements of pleasing appearance, fine pragmatism and low price. And our products exported to some MID-eastern nations and some European countries such as USA, Greece, British, etc. The factory is located on Hengxi industrial estate, Yinzhou, Ningbo, China. There is the cradleland of hydraulic pipes and has transport facilities, enough supply of goods. All staff members of this factory warmly welcome broad old and new consumers in all walks of life come to visit us and negotiate business with us. We are willing to wholeheartedly serve you by the superior products and preferential price. We wish we can sincerely cooperate with each other for the purpose of jointly creating afine future.
