Lz3626 Textile Machine Needle Bearing Professional Manufacturer

Lz3626 Textile Machine Needle Bearing Professional Manufacturer
Price: US $ 5-30/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Lz3626 Textile Machine Needle Bearing Professional Manufacturer
Roller bearing
  of all kinds are our main product and our advantage.
Part of the bearing specification :
Main types:

LZ2800  LZ2812  LZ2820  LZ3200  LZ3224  LZ3226  LZ3600

ZHH The needle roller bearing with inner ring has no shoulder,for this purpose,the inner ring,outer ring,complete set of needles and cage can be mounted respectively. This bearing does not limit the axial shift of shaft and outer housing.Since the cage seperates the needle so as to reduce firction. It can be used for the parts with high rotational speed.

BEARING ITEMDIMENSION(mm)WEIGHT(kg)
load carrying capacity
GBISODdBCH1H2WN
-0.05-0.01±0.025 minmax0.4-0.2
LZ2800UWL28002816.519221723-5.90.066
LZ2812-2816.51922162412.2-0.066
LZ2820UWL28202816.51922162420.2-0.066
LZ2822UWL28222816.51922162422.2-0.066
LZ3200UWL3200321920231925-5.90.0827
LZ3224UWL322432192023192724.2-0.0827
LZ3226UWL322632192023192726.2-0.0827
LZ3600UWL3600362122252127-5.90.11910
LZ3624UWL362436212225212924.2-0.11910
LZ3626UWL362636212225212926.2-0.11910
LZ4000UWL4000402323.5272329-5.90.1612
LZ4024UWL4024402323.527243224.2-0.1612
LZ16.5-3016.51923102422.4-0.076
LZ3000UWL30003018.519221827 5.90.0666
LZ18.5UWL30263018.51922182726.2-0.0666
LZ19-3619222612.528.525.4-0.1167
LZ22-42222327153325.4-0.1611
LZ25-4725252916.73828.2-0.21815
LZ3200G-32192023----0.087
Needle bearing-High-quailty
Product Description

Bottom roller bearings are used for supporting bottom roller in ring spinning frames & speed frames of textile industries. Every bearing is ground to strict quality norms which ensures accurate running of the bearing.with 'm'section nylon cage.

The rollers of these bearings are of spherical shape ,and the spherical raceway surface of the housing washer is selfaligned.These bearings are featured by the extremely big anxial load carrying capacity and meanwhile they can also take certain radial load .Oil lubrication is commonly used while working .Applications of these bearings can be found in hydroelectric generators ,vertical motors ,propeller axle of vessels ,tower cranes and squeezing presses Bottom roller bearings are needle roller bearings that support the bottom rollers(fluted rollers) on fine spinning machines, roving frames or drawing frames.

The rollers of these bearings are of spherical shape ,and the spherical raceway surface of the housing washer is selfaligned.These bearings are featured by the extremely big anxial load carrying capacity and meanwhile they can also take certain radial load .Oil lubrication is commonly used while working .Applications of these bearings can be found in hydroelectric generators ,vertical motors ,propeller axle of vessels ,tower cranes and squeezing presses
Part of the bearing specification :

PrecisionP0,p6,p5
Tolerance gradeGB/T307.1-205
Greese/OilAs you requirement, such as SRL ,PS2, Alvania R12 and so on
Quality standardISO 9001:2008 standard
      featureslong life with high quality
low noise with strict controlling of bearing quality
high load by the advanced high-technical design
competitive price
OEM service to meet your requirements
international standard .first- class in china
manufacture processWe have complete process for the production and quality assurance to make sure our products can meet your requirement.
1.Assembly
2.Windage test
3.Cleaning
4.Rotary test
5.Greasing and gland
6.Noise inspection
7.Appearance inspection
8.Rust prevention
9.Product packaging
sampleavailable
MOQONE
Delivery DateAs soon as possible for your requirement
Payment TermA: 30% T/T in Advance, 70% T/T Against Copy Of B/L
     30% T/T in adwance, 70% T/T before delivery
 B: 100% L/C At Sight
 C:  100%  Western Union   or Paypal in advance.(specially for air shipment or small amount)
BrandZHH or OEM,etc.
Packaging Details:1.Neutral packing(neutral plastic bag+neutral tan box+neutral carton+Plywood pallets 2.Color box packing(plastic bag+color box+carton)+Plywood pallets 3.As the clients' requirement
shipping1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest,  )
3) More than 200 KGS, we will send by sea. ( Cheapest )


port of shippment by seashanghai ningbo qingdao
WHY CHOOSE US
 1 . QUALITY CONTROL :
   More than 10 years of industry experience,and the factory equipment is from JAPAN AND   GERMAN,100% test the quality before delivery.
 2 . SUPPORT :
   24-hour response in english on line and provide technical support.
 3 . RICH STOCK :
   Huge stock goods ensure you Very Short Delivery Time(Generally 1- 3 days after payment for stocks.
 4 GOOD AFTER SALES SERIVICE :
  (One year quality warranty, money can be deducted or refund if any quality problem).
 5 . PROFESSIONAL :
  Well-trained & experienced staff are to answer all your inquiries in English of course.
 6 . CONFIDENTIAL :
  Your business relationship with us will be confidential to any third party.
 7 . GOOD  MATERAILS :
   We only use the best steel on the market.
 8 . POWERFUL PARTNER :
   Our Bearings are mated with many well-known enterpriss, such as Japan Mabuchimotor, Germany BBS, America Leeson  globally and domestic. Our Bearings are exported to more than 120 countries and regions including US, Italy, Germany, Egypt an the Middle East.
 9 . TESTING :
    100% test of the quality and packing will be done before delivery.
10. OVERSEAS EXHIBITIONS :
    We have more than five chances to attend exhibitions overseas , which means that we have the ability of providing professional suggestions and best service for our clients;

 OUR PROMISES
   Product quality standards are guaranteed. Our products have got ISO 9001 & CE international quality management system. They all produced with best advanced technology.We are proactive and we offer only products complying with top standards of quality and warranty.

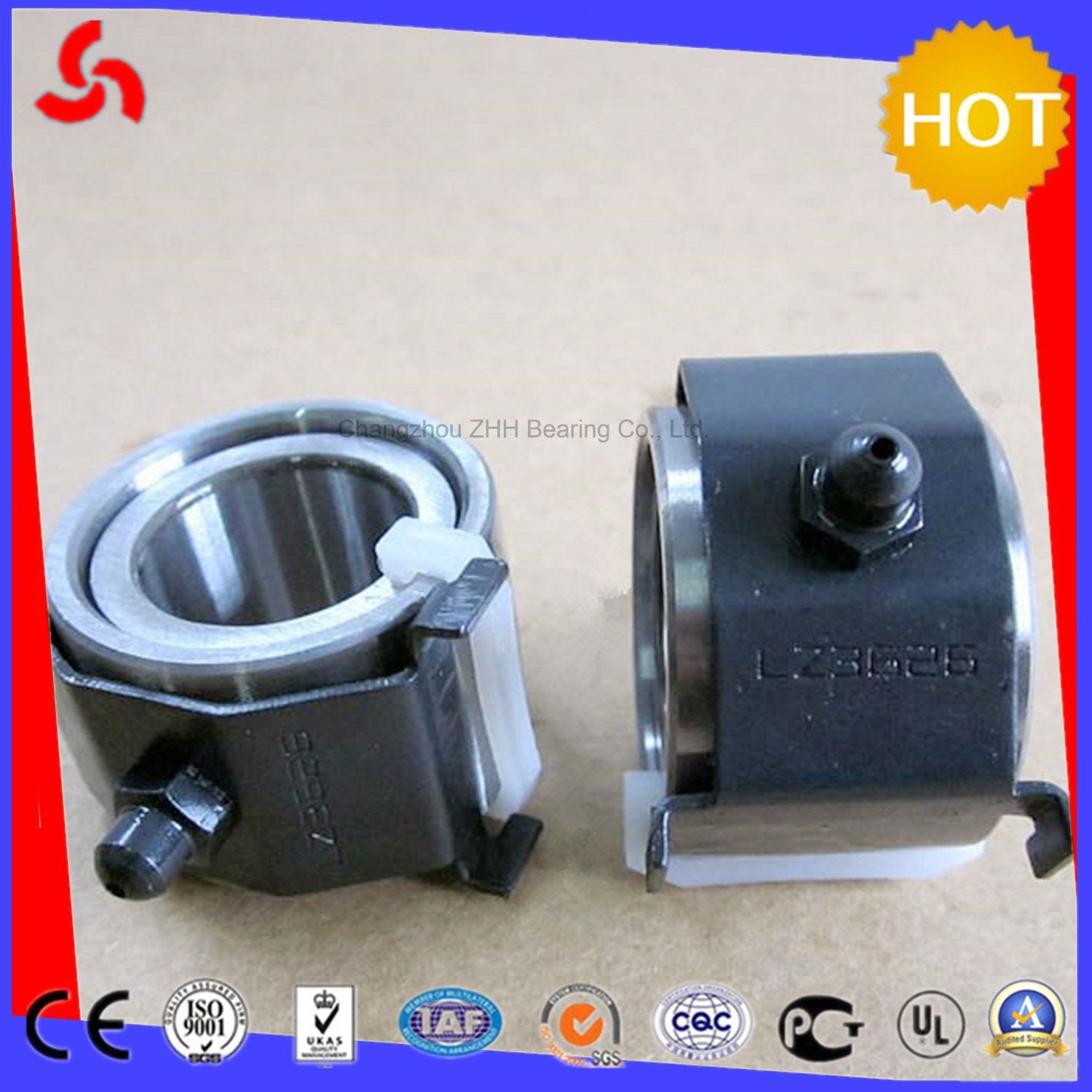

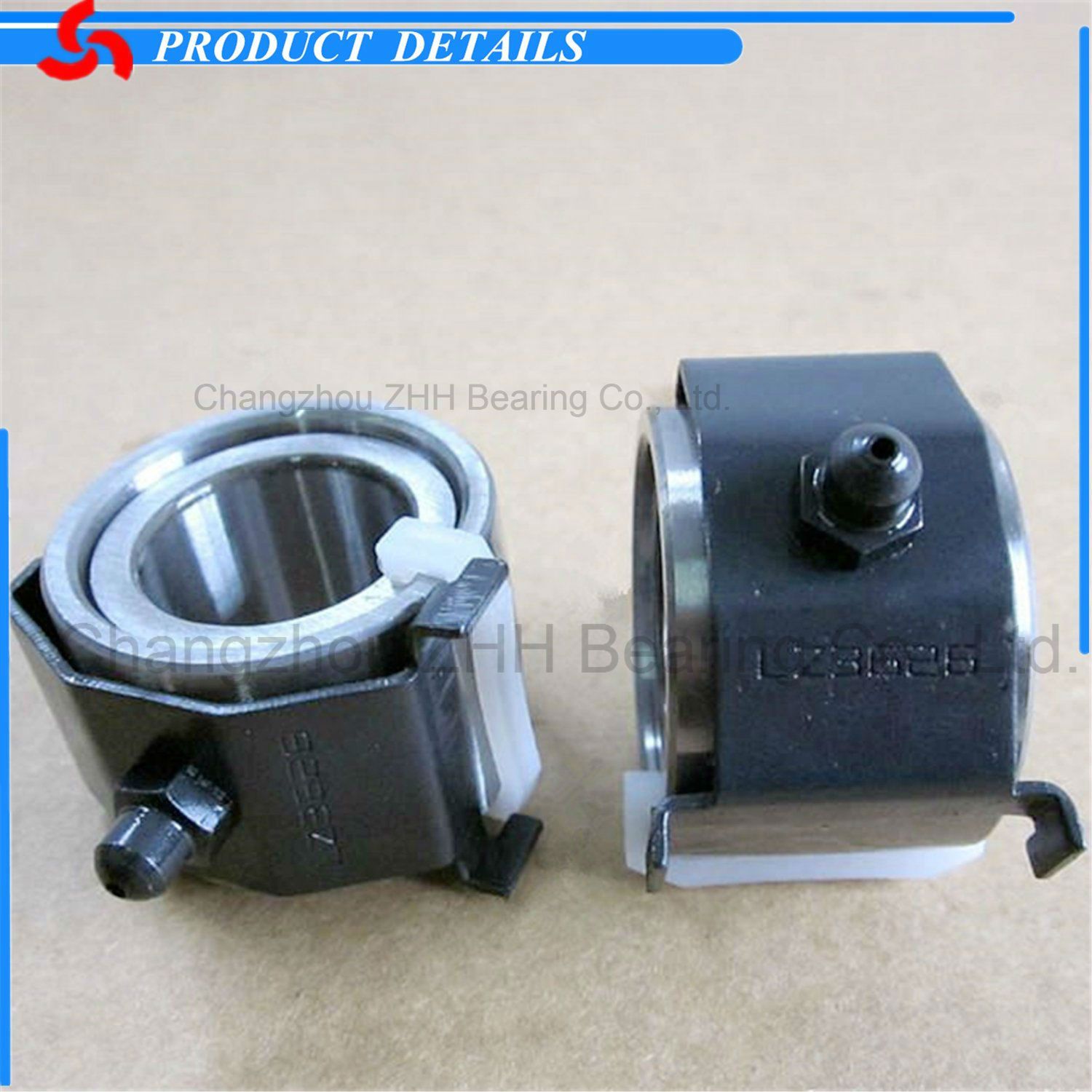

Prod Model: LZ3626
After Sales Service: One Year
Developing Ability: Client's Sample and Drawing Accepted
Stock: Rich
Free Sample: Avilable
OEM: Accepted
Lubrication: Grease
Fatigue Load Limit: 4.55kn
Rolling Body: Roller Bearings
Spherical: Non-Aligning Bearings
Separated: Unseparated
Changzhou ZHH Bearing C0., Ltd. Is a big manufacturer specialized in Producing Various NEEDLE BEARING, Such as

1. Needle roller bearing

2. Entity bushed needle roller bearing

3. Stud type track roller bearing

4. Drawn cup needle roller bearing

5. Radial needle roller bearing

6. Thrust needle bearing

7. Combined needle roller bearing

8. Needle roller clutch bearing

More than 3000 standard models of needle bearing with over 1000 designations of metric and inch series are regularly manufactured and widely used for motorcycles, electric and air powered tooling, printers, light and textile industries, machines, Construction machines, Cars Trucks, and office equipment in domestic and worldwide markets. In addition, special designed bearings are also provided in accordance upon customers' requirement for various applications. We have exported our products to Korea, Iran, Turkey, , Romania, Russia, Italy, , the USA, Canada, India. Brazil., Indonesia, the Philippines, Thailand, Duba In Mexico, etc.

"Quality and Service" must be your main concerns which we have put into practice, please browse our product category and let us know your inquiries. Our aim is to supply our customers with good quality and the best competitive prices. With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us. If you have any needs, please let us konw with no hesitation. You

You can give us a phone call, email is available. And you will be warmly welcomed
