| Price: | US $ 40-300/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal |
Feartures:

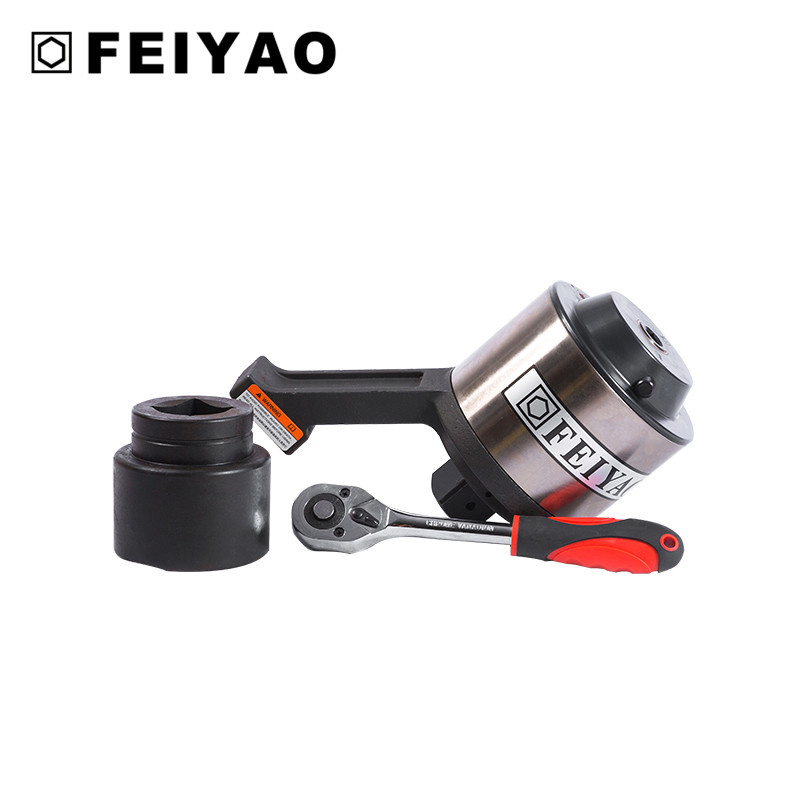

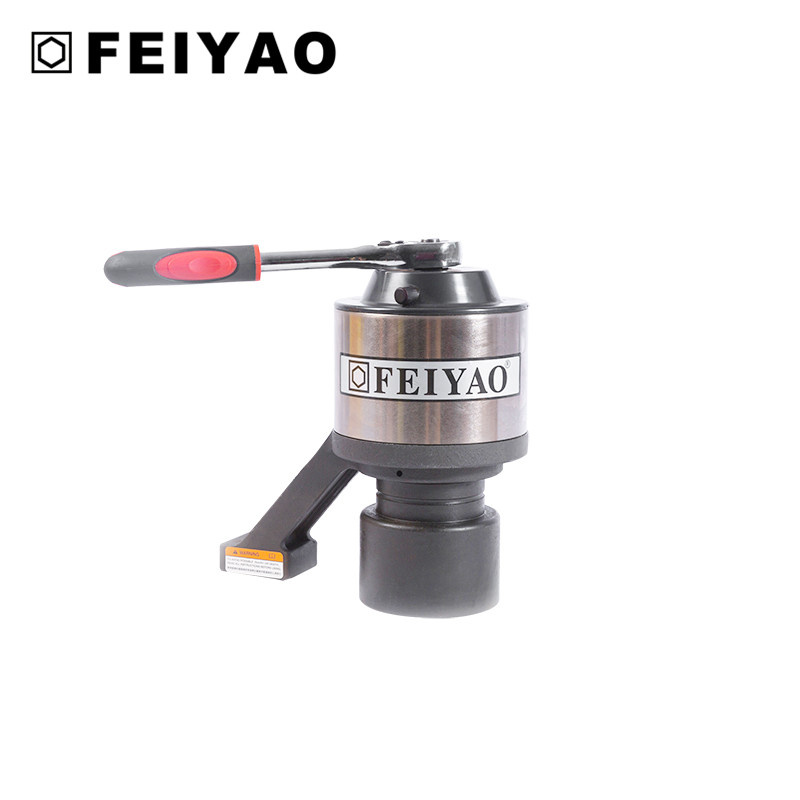

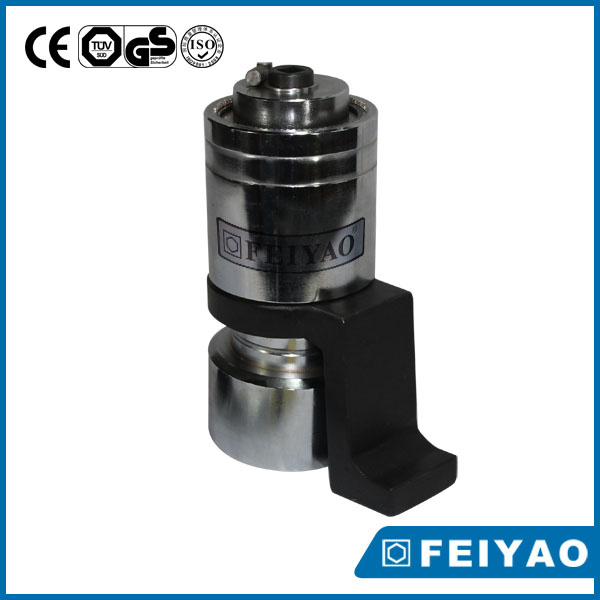

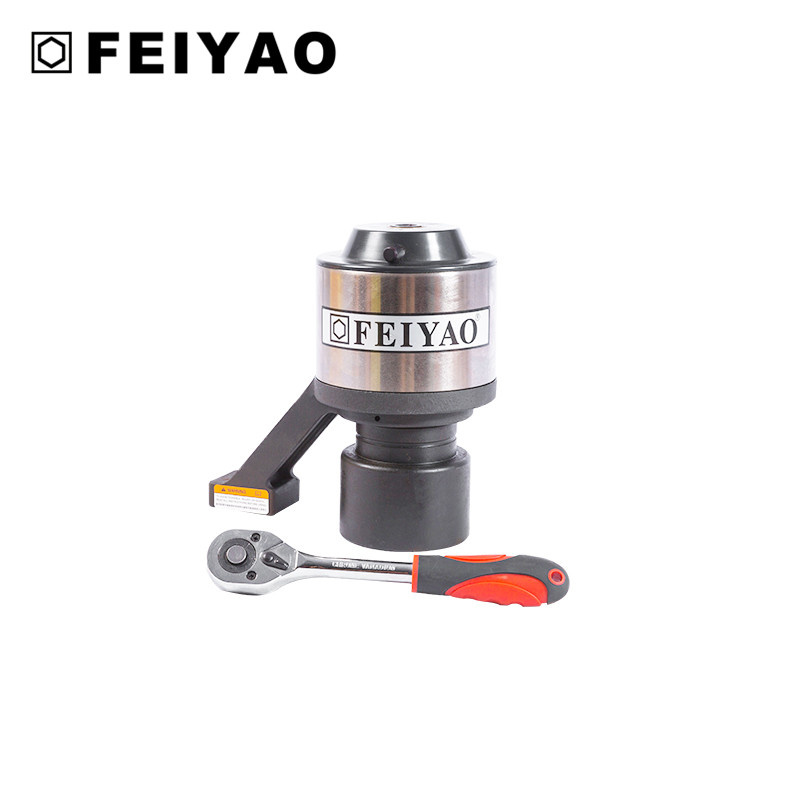

♦ A device that can multiply the moment of force to 4-60 times.
♦ Can be used in the difficult situation and places that big torque wrench is unable to use.
♦ The product operates easily and can save the manpower.
♦ People even can operate it with small torque.
♦ It applies to small size and poor working environment.
♦ All kinds of reaction torque arms can be used for many conditions.
♦ Match with the torque transducer.
Product Parameter| Model | FY-FDB-15 | FY-FDB-20 | FY-FDB-35 | FY-FDB-55 | FY-FDB-75 | FY-FDB-100 | FY-FDB-150 | FY-FDB-200 |
| Max torque(Nm) | 1500 | 2000 | 3500 | 5500 | 7500 | 10000 | 15000 | 20000 |
| Drive Ratio | 4.8 | 14 | 17 | 19 | 22 | 61 | 74.8 | 96.8 |
| Imput Square(mm) | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
| Output Square(mm) | 25 | 25 | 30 | 35 | 40 | 50 | 55 | 60 |
| Bolt Size(mm) | M20-30 | M22-36 | M30-45 | M36-52 | M42-60 | M52-68 | M60-76 | M72-80 |
| Nut to Edge(mm) | S30-46 | S32-55 | S46-70 | S55-80 | S65-90 | S80-105 | S90-115 | S105-135 |
| Dimension(mm) | 80×80× 119 | 74×74× 147 | 95×95× 162 | 105×105× 190 | 115×115× 210 | 134×134× 244 | 146×146× 305 | 146×146× 325 |
| Weight (kg) | 2.6 | 3.9 | 5.5 | 7.5 | 10 | 17 | 25 | 31 |
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE, 2. STROKE, 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

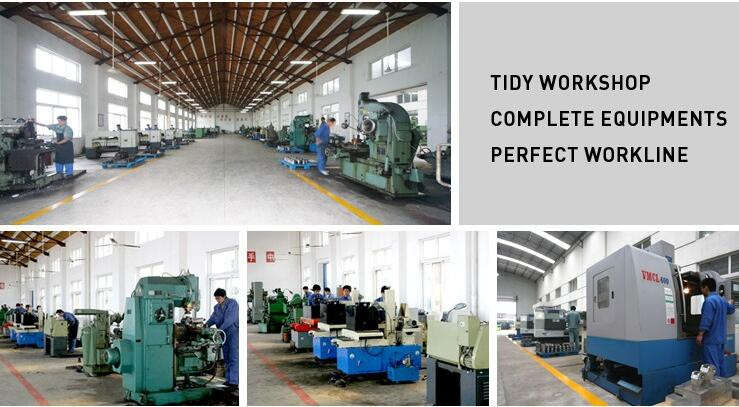

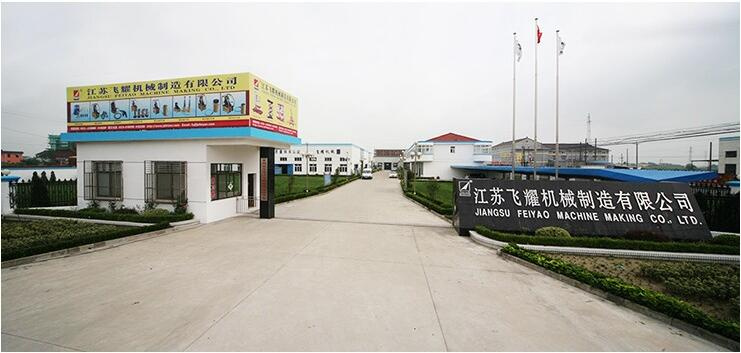

Factory Show
FAQ
Q1: How to contact sales?
A1: Please email or call: +86-132-7079-5135 for pre-sales.
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
Contact Information
Sales Manager:Angela Zhang
Tel: +86-523-86183388
Fax: +86-523-86186999
Mobile: +86 18036786358
Facebook:+86 18036786358
IMO: 0086 18036786358
| Prod Model: | FY-FDB |
|---|---|
| Product Name: | Low Price Manual Torque Multipliers in Wrench |
| Business Type: | Manufacturer |
| Material: | Steel |
| Max. Torque(Nm): | 1500-20000 |
| Bolt Size: | M20-M80 |
| Drive Ratio: | 4.8-96.8 |
| Warranty: | 1 Year |
| Weight: | 2.6-31kg |
| Payment Term: | T/T |
| Shipment: | by Sea, Air, Express |
