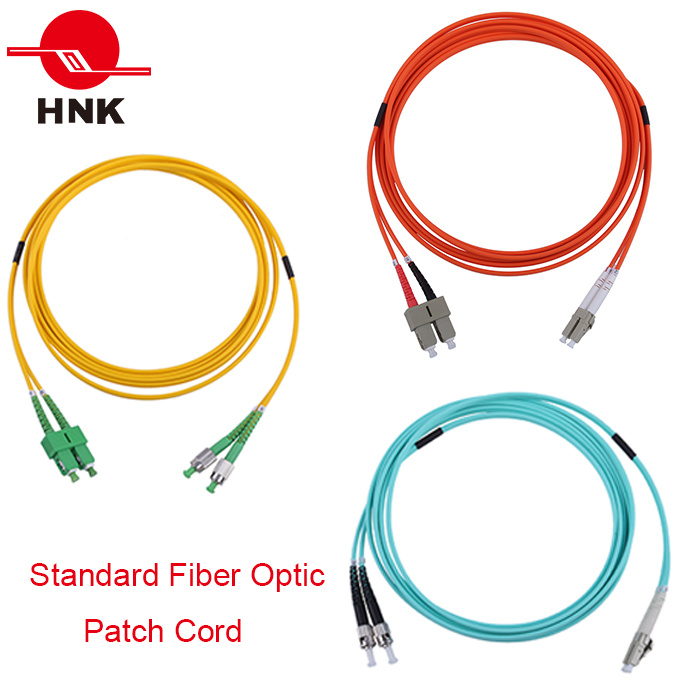

Our offers a wide range of patch cords, designed and manufactured for demanding network applications. It
comprises of multimode and singlemode. Both ends are terminated with a high performance hybrid or single
type connector comprising of a SC, ST, FC, LC, MU, MTRJ, E2000, DIN connector in simplex and duplex.
Standards Compliance
. Telcordia (formerly Bellcore) GR-326-CORE Generic requirements for
Single mode optical connectors and Jumper assemblies.
. IEC 874-1 Generic specification for fiber optic connectors and cables
. ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
. Cable flame resistant rate: OFNR or IEC60332-3 standard
Features
. 100% tested on optical performance
(Insertion Loss Customer specified length & Return Loss)
. Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request
. Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH)
. PC, UPC, APC connectors type available
. High concentricity 2.5mm ceramic ferrule for FC, ST, SC
and 1.25mm ceramic ferrule for LC and MU
. Available in G652D, G657A, OM1, OM2, OM3 and OM4
. Position A/Position B markings
. Available in 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm sizes
Mechanical, Environmental & Material Data
| Range of Mode | Single or Multimode |
| Cable Type | Simplex or Duplex Zipcord |
| Connector Style | SC, FC, ST, LC, MU, MTRJ, E2000, DIN |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm |
| Lengths | Standard & Custom Lengths |
| Strength Member | Aramid Yarn |
| Outer Jacket | PVC or LSZH |
| Cable Assembly Length (<15 meter Tolerance) | -0/+100mm |
| Cable Assembly Length (>15 meter Tolerance) | -0/+10% |
| Jacket Color (Multimode: OM1 & OM2) | Orange |
| Jacket Color (Multimode: OM3) | Aqua |
| Jacket Color (Multimode: OM4) | Aqua or Purple |
| Jacket Color (Single Mode: G652D & Gb57A) | Yellow |
| Durability | 500 cycles(0.2 dB max increase), 1000 mate/demate cycles |
| Operating Temp. | -20 C to +70C/+85C (armoured) |
| Storage Temp. | -40 C to +85C |
| Ferrule Concentricity | < 1μm, Other Ferrule Concentricity < 1μm |
| Humidity (FOTP-5) | 90-95% at 40°C |
| Strength of Coupling Mechanism (FOTP-185) | 33 N at 0° for 5 sec |
| Cable Retention (FOTP-6) | 50 N at 0° for 5 sec. |
| Twist (FOTP-36) | 15 N at 0° 5 turns, 10 cycles |
| Flex (FOTP-1) | 0.5 Kg at 25 cm, +90° to -90°, 100 cycles |
| Fiber Type | Max. Attenuation(dB/km) | Min.Overfill Launch Bandwidth (Mhz.km) | Min.Gigabit Ethernet Link Distance (m) | ||||||
| Gigabit | 10Gigabit | ||||||||
| 850nm | 1300nm | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm | 850nnm | |
| OM1 62.5/125µm | ≤2.7 | ≤0.6 | - | - | ≥500 | ≥600 | 275 | 550 | - |
| OM2 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥500 | ≥500 | 750 | 600 | 150 |
| OM3 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
| OM4 50/125µm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1100 | 600 | 550 |
| G652D 9/125µm | - | - | ≤0.30 | ≤0.18 | - | - | - | - | - |
| G657A 9/125µm | - | - | ≤0.35 | ≤0.21 | - | - | - | - | - |
| Item | Single mode | Multimode | ||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
| Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.3dB Max. (0.25dB typ.) | ||||
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A | ||
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) | ||||
| Pull Strength | ≥98N | ≥98N | ||||
| AA | BB | C | D | E | F | G | CL |
| Connector Type | Connector T ype | Fiber Type | Fiber Count | Boot fit for cable diameter | Length | Jacket Materia | Jacket Color(CL) |
| FP,SP, SA,LP | FP,SP, SA,LP | OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A | SX=Simplex DX=Duplex 4F=4 cores 6F=6 cores 12F=12 cores | 09=0.9mm 16=1.6mm 20=2.0mm 30=3.0mm | 0015=1.5M 0200=20M | 1=PVC 2=LSZH 3=PE | As noted in Color code chart |
| Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector | Code | Connector |
| FP | FC/PC | FA | FC/APC | LP | LC/PC | LA | LC/APC | MU | MU | DN | DIN |
| SP | SC/PC | SA | SC/APC | TP | ST/PC | TA | ST/APC | MT | MTRJ | E2 | E2000 |
| Part Number | Description |
| PC-SP-LA-G652DSX3000302YE | SC/PC-LC/APC Fiber Optic Patch Cord, Singlemode G652D, Simplex, 3.0mm, LSZH, Yellow, 3M. |
| Prod Model: | FC, SC, ST, LC, MU, MTRJ, E2000, DIN, MPO |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Colour: | Yellow, Orange, Aqua or Purple |
| Connectors Type: | PC, Upc, APC |
| Cable Sizes: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm |
| Length: | According to Requirement |
| Connector: | According to Requirement |
| Application: | Communication |
| Certification: | ISO9001 |
| Type: | Singlemode Fiber or Multimode Fiber |
| Connection Structure: | Sc, St, FC, LC, Mu, MTRJ, E2000, DIN |
| Brand: | HNK or OEM |
| Sheath Material: | PVC, LSZH, PE |
