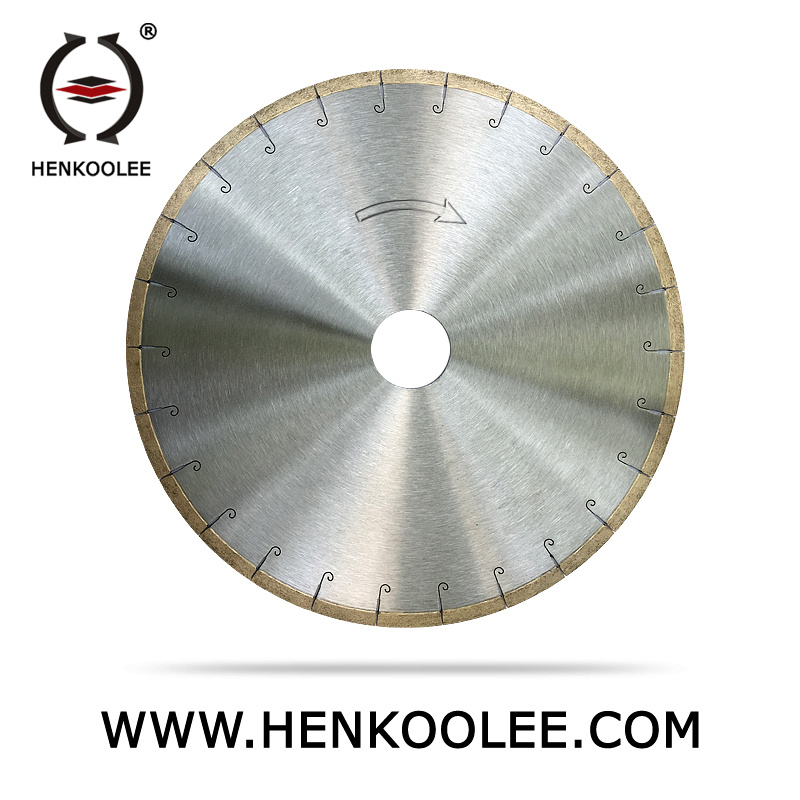

Laser Welded Premium Concrete Diamond Saw Blade

Laser Welded Premium Concrete Diamond Saw Blade
Price: US $ 2-20/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P

CONCRETE BLADE CIRCULAR SAW DIAMOND CUTTING DISC

Concrete saw blades are used for cutting concrete, hard concrete, hard concrete with reinforced bar, block, brick, hard brick, pavers, clay pavers and field stones. Our concrete cutting blades come laser welded, polished, sintered, jumbo segmented, u-gullets, key hole gullets, tear drop gullets, turbo or with undercut protection with a heavy duty core. Concrete diamond saw blades are intended to withstand hard use. Although a concrete blade provides better speed and longevity, they are designed for cutting a limited variety of materials.



FEATURE
1.Adopt high quality steel blank,long working life

2.self-produced diamond powder as raw material to produce diamond segments

3.Good sharpness,high efficiency and stable performance

4.Mature production process

5.Strict product quality inspection process

Above specification is only for Reference, other or special specification can be ordered by clients

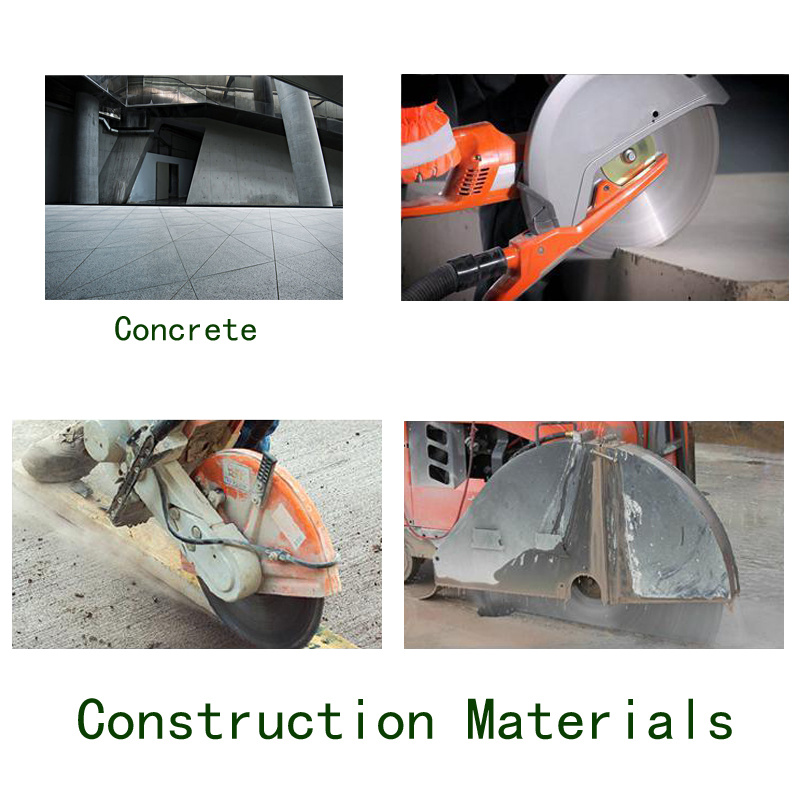

APPLICATION
This product is used to make cutting and grooving on ceramic tiles on automatic and manual cutting machines. There are four normal working modes; manual single-blade full cutting, automatic single- blade full cutting, automatic two-blade full cutting and pre-cutting, chamfering and full cutting Our diamond cutting disc are approved for their high working speed, fine and precise cutting effect, low tiles edge-breaking ratio and long working lifetime.


SPEC AND PARAMETER
1.1 Continuous Rim Diamond Saw Blade
DIAMETER
(MM)
BORE
DIAMETER
(MM)
SEGMENT
WIDTH
(MM)
SEGMENT HEIGHT
(MM)
∅10516/20/22.231.45/7/10/12
11016/20/22.231.55/7/10/12
11516/20/22.231.65/7/10/12
12516/20/22.231.95/7/10/12
15016/20/22.231.95/7/10/12
∅18016/20/22.231.95/7/10/12
20016/20/22.232.25/7/10/12
23016/20/22.232.25/7/10/12
∅25016/20/22.232.85/7/10/12
∅30020/25.4/503.05/7/10/12
∅35020/25.4/503.05/7/10/12
∅40020/25.4/503.25/7/10
 1.2 Segmented Diamond Saw Blade
DIAMETER
(MM)
BORE
DIAMETER
(MM)
SEGMENT
WIDTH
(MM)
SEGMENT HEIGHT
(MM)
∅10516/20/22.231.87/10/12
11016/20/22.231.87/10/12
11516/20/22.231.87/10/12
12516/20/22.232.17/10/12
15016/20/22.232.17/10/12
∅18016/20/22.232.17/10/12
20016/20/22.232.47/10/12
23016/20/22.232.47/10/12
∅25016/20/22.233.07/10/12
∅30020/25.4/503.27/10/12
∅35020/25.4/503.27/10/12
∅40020/25.4/503.47/10
 1.3 Turbl Diamond Saw Blade
DIAMETER
(MM)
BORE
DIAMETER
(MM)
SEGMENT
WIDTH
(MM)
SEGMENT HEIGHT
(MM)
∅10516/20/22.232.27/10/12
11016/20/22.232.47/10/12
11516/20/22.232.47/10/12
12516/20/22.232.47/10/12
15016/20/22.232.67/10/12
∅18016/20/22.232.67/10/12
20016/20/22.232.67/10/12
23016/20/22.233.07/10/12
∅25016/20/22.233.07/10/12
∅30020/25.4/503.27/10/12
∅35020/25.4/503.47/10/12
∅40020/25.4/503.47/10
 OTHER SPESC ARE AVAILABLE UPON REQUEST.

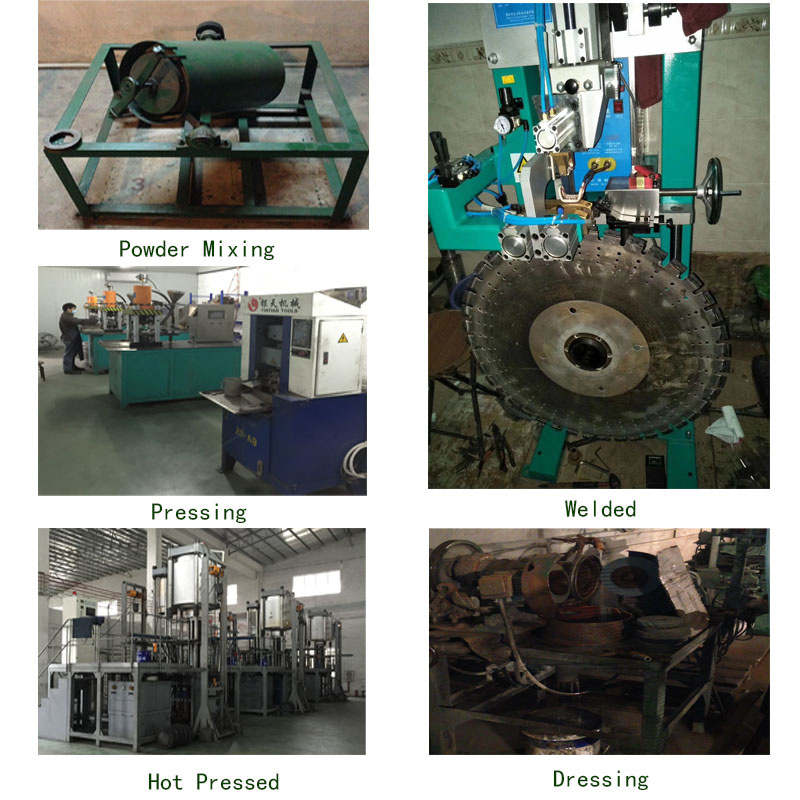

Procedure



FAQ

1. Can we use our brand?
Sure, we provide OEM service ,just send us your packing design and company logo .

2.Can you supply sample for test and your samples are free?
Yes, we will make sample specially according to clients' request,sample cost and freight charge will be paid by clients, but sample cost will be return back to client after order confirmed in future.

3:  What are your payment terms?
For small order, pay 100% in advance. Air Cargo or air express, the payment should be 100% T/T before shipment. For the big order, pay 30% or 50% in advance, pay the balance after complete the production of order. We can also accept other payment terms, for example L/C to support our clients.

4: What should we do if your tools can not work well?
Give us detailed report about the usage and we should analyze the reason. If the problem is not caused by unproper operation or different stone type and you can prove our tools problem, we will make another batch of tools to replace the bad one. Besides, we will try to find a way to solve the problem.

5: How can I get the best suitable diamond saw blades and diamond segment for my work?
Provide more details about your stone and saw machine parameters:
1. tell us your target output/performance, such as lifespan and sharpness,
2. Stone Hardness, Abrasiveness and Grit Size of diamond, pictures or samples if possible.
3. Machine type to be used for example Diamond saw blades, Bridge Saw, Table Saw, Brick Saw, etc.
4. Main Motor of Machine, Spindle RPM, Feeding Speed and Cutting Depth.
5. Thickness of blade core blank (blade without diamond segments) for suitable diamond segment width.
Please provide more details as possible as you can.



Prod Model: HKL1421
Working Conditions: Water Cooling
Usage: Dry and Wet
Advantage: Fast Cutting and Long Life
Shape: Segment,Continuous,Turbo
HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.

Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.

Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
