Large Torque Hexagon Hydraulic Spanner Torque Wrench

Large Torque Hexagon Hydraulic Spanner Torque Wrench
Price: US $ 800-5000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Large Torque Hexagon Hydraulic Wrench

Features:
360° Reaction Arm to ensure operate in the confined situation.
Rigid Steel Body Construction.
Reactive force in one line to reduce the inner torque abrasion.
Floating Piston Design.
Consistent and accurate Torque Output.


Parameter
ModelKET-2XLCTKET-4XLCTKET-8XLCT     KET-14XLCT     KET-30XLCT
Torque Nm232~2328585~58581094~109411852~185214188~41882
Bolt Diameter M(mm)16-3624-4230-6433-7676-115
Screw S(mm)24-5536~6546~9550~110110~165
Rotary Head Model2XLCT4XLCT8XLCT14XLCT30XLCT
Working Head Model2XLCTA-504XLCTA-658XLCTA-9014XLCTA-11530XLCTA-
Weight(kg) 2.4 5.0 9.3 16.9 30.9
L(mm) 196.4 245 300 361 430
H1(mm) 125.9 177 207 239 303
H2(mm) 102.3 135.7 170 203 272
W1(mm) 32 42 53 64 85
W2(mm) 51 66 83 99 131

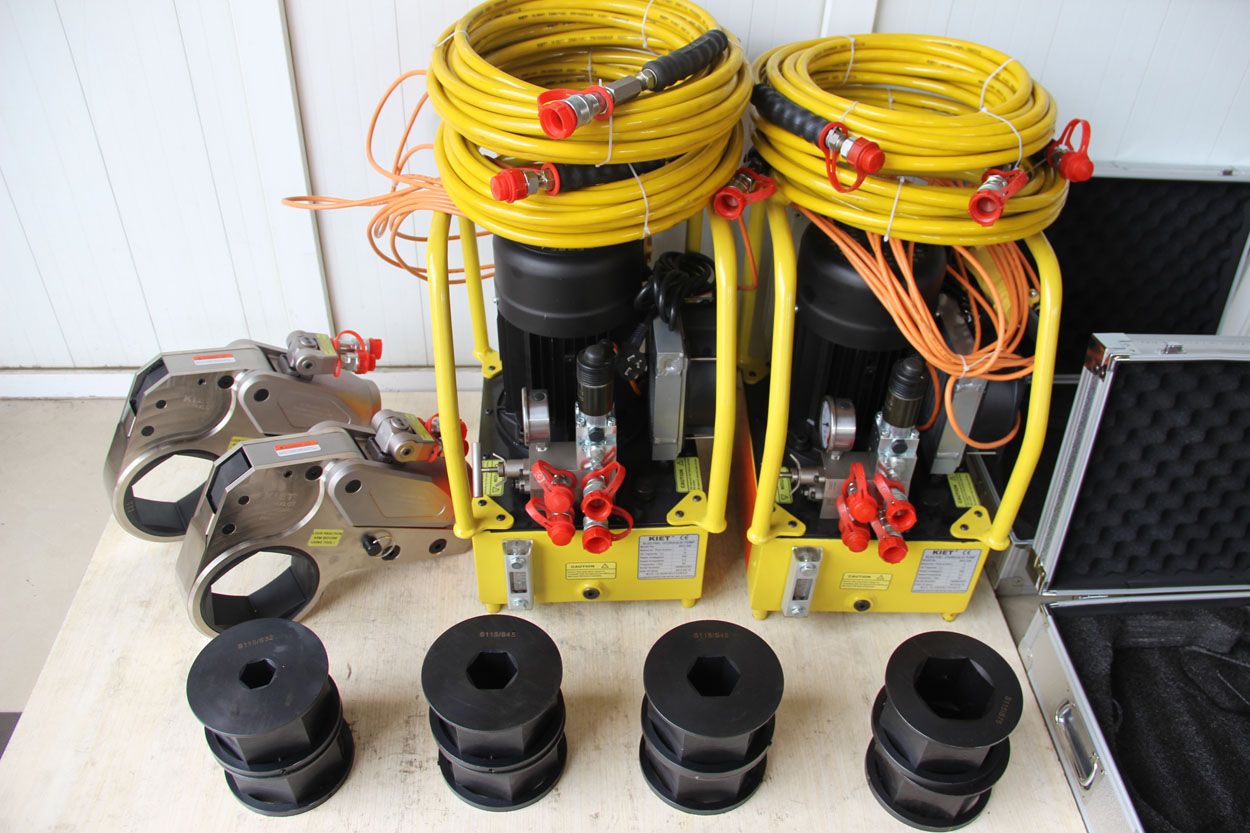

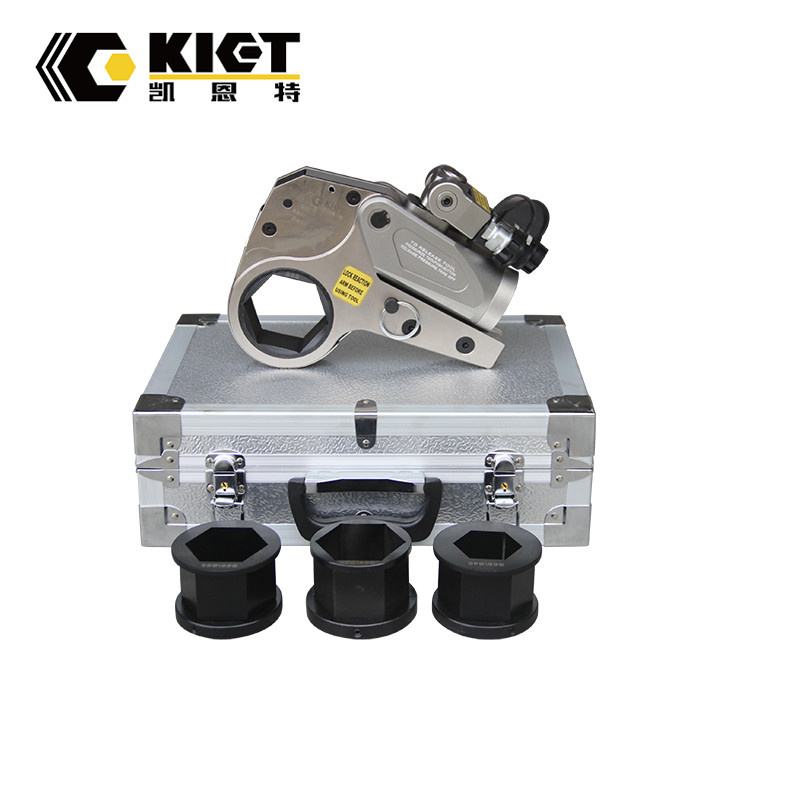

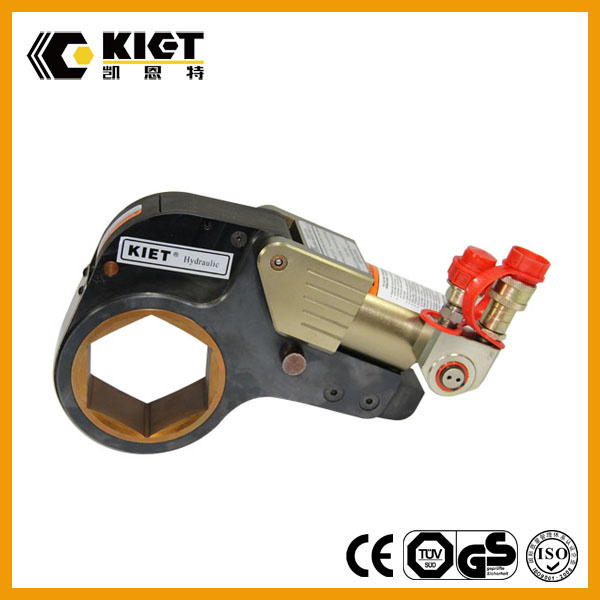

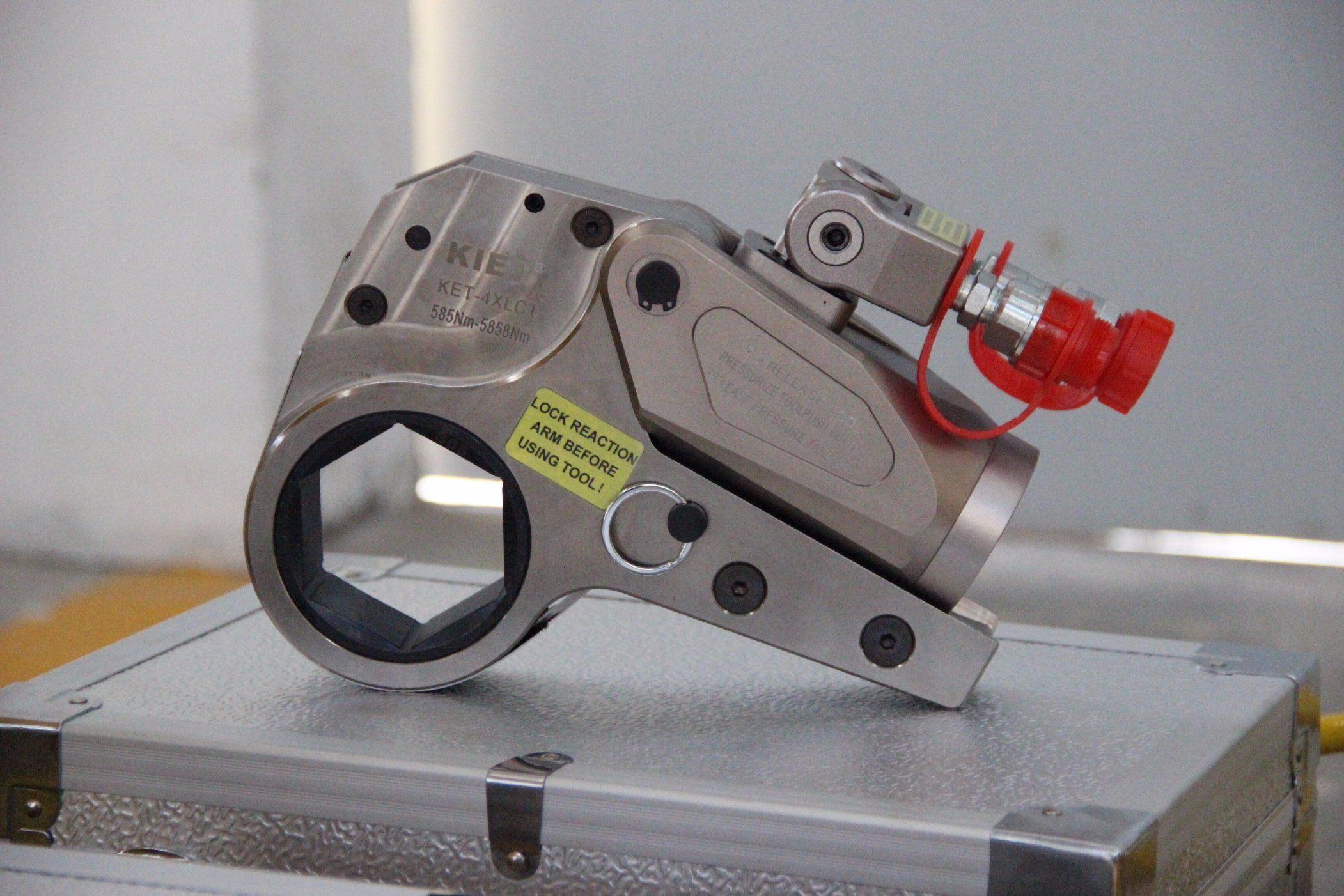

Photos

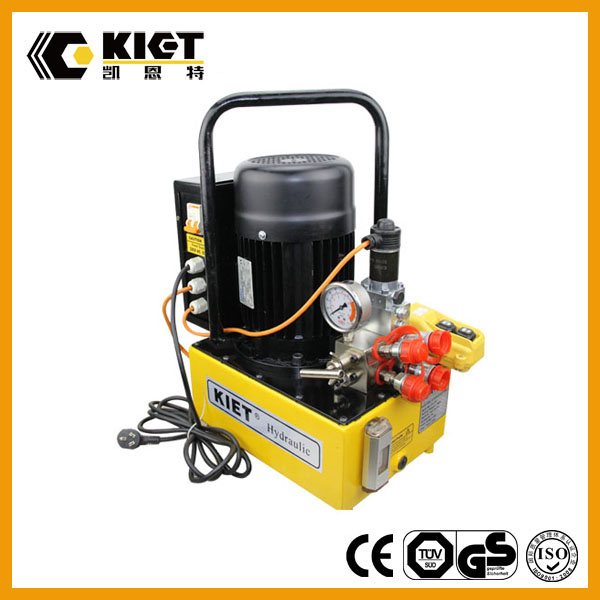

Electric hydraulic pump for hydraulic wrench:
ModelFlow(L/min)Motor Power
(kw)
Voltage(V)Oil Capacity
(L)
Working
Pressure
(MPa)
KET-EP-22022.22201670

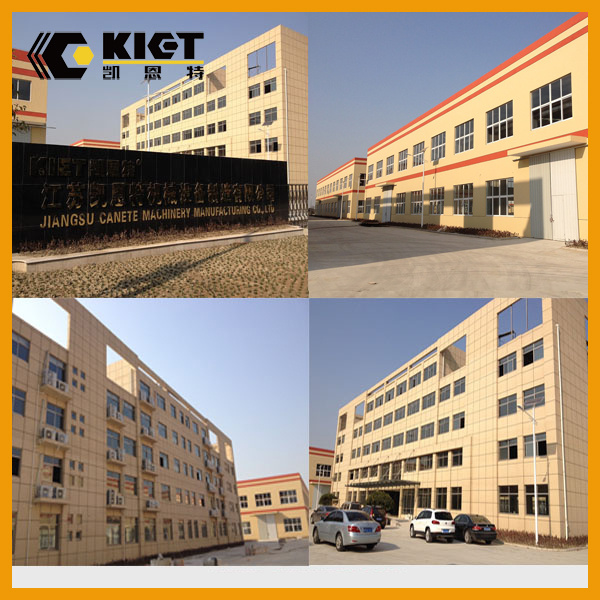

About Our Factory:

1. Jiangsu Cantet Machinery Manufacturing Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

2. Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.

3. Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in Hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)


Cooperation Terms
1) Our warranty
We guarantee our product for 1 year and we will also provide 1% free parts.
2) Delivery time: 15-30 days after deposit received.
3) Payment Terms: 30% T/T, Balance before shipment.
4) MOQ: 1 set.

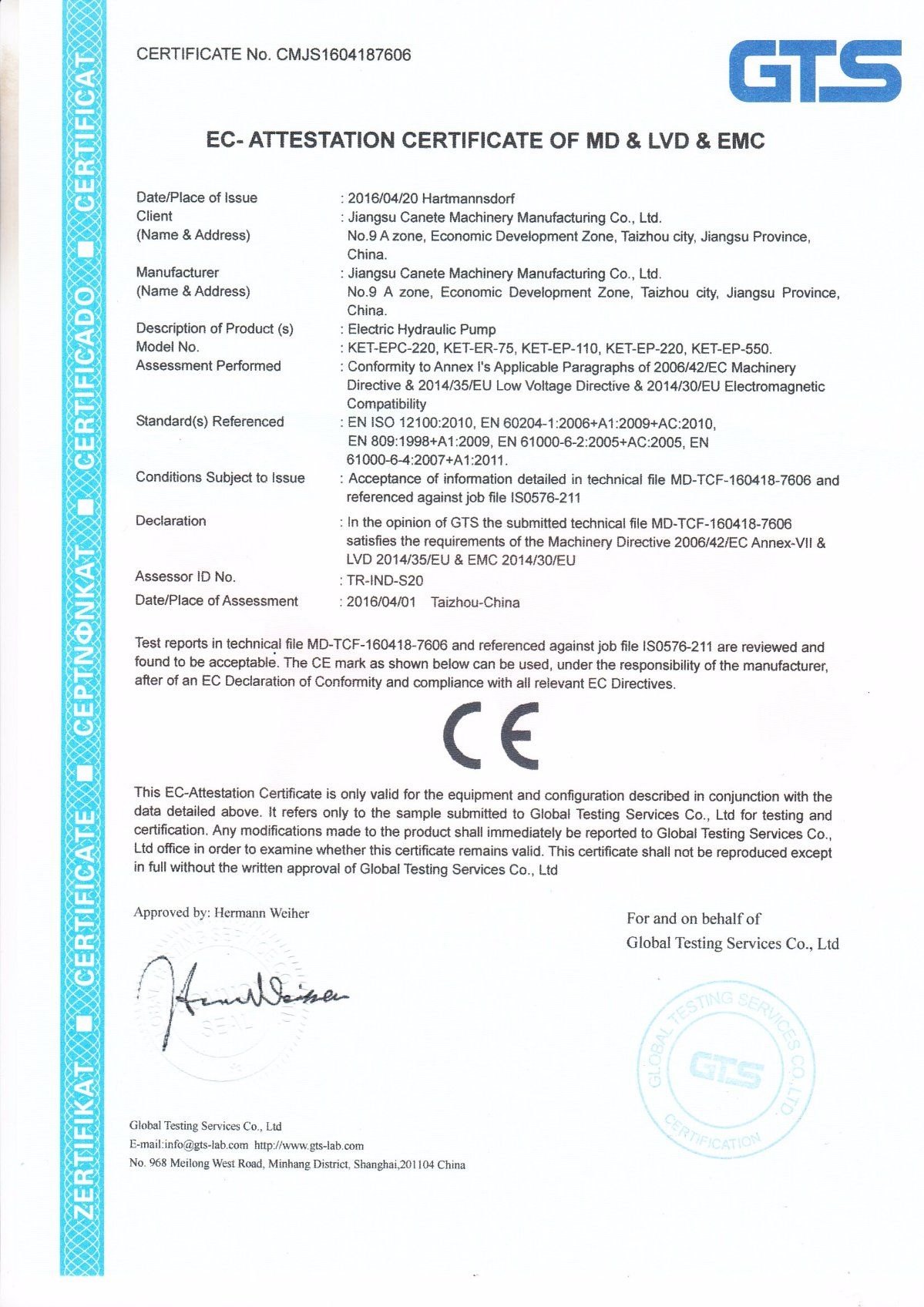

Certificates: CE; ISO9001:2008

Contact Information:
Tel: +86 523-81569666
Hydraulic Tools Manufacturing Leader!
Jiangsu Canete Machinery Manufacturing Co., Ltd
Factory: No.199, JingEr Road Economic Development Zone, Taizhou City, Jiangsu of China
Website: www.kaientehydraulic.com
Prod Model: KET-XLCT Series
Product Name: Large Torque Hexagon Hydraulic Wrench
Maximum Pressure: 700 Bar
Min.Torque Range: 232-4188nm
Bolt: 16-36 to 76-115mm
Nut: 24-55 to 110-165mm
Max. Torque: 2328-41882nm
Color: Customize
OEM: Yes
Warranty: 1 Year
Working Pressure: 70MPa
Type: Hex Wrench
Material: Aluminum Alloy
Standard: European Type
Feature: Ordinary
Brand: Kiet
Surface Treatment: -
Handle Color: Customize
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,

We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.

We are a manufacturer in hydraulic tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;

Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
