Laboratory Small Scale Diamond Wire Cutting Machine/Lab Compact Mini Precision Wire Saw

Laboratory Small Scale Diamond Wire Cutting Machine/Lab Compact Mini Precision Wire Saw
Price: US $ 2800/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram

Diamond cutting saw machine with wire

Description of the low speed diamond saw:

CY-201 is a CE Certified precision endless wire saw, designed to provide a very smooth cutting for almost all kinds of materials
by using either a diamond impregnated or a plain wire blade with an abrasive slurry.
It is an ideal tool suitable for cutting valuable delicate and fragile crystals such as SrTiO3, YVO4, and GaAs etc.

Specification of the low speed diamond saw:

Stage travel
distance
Max. 50.8 mm (2")  travel length
360 degree horizontal rotating and 30 degree tilt stage

Traveling position
accuracy
2'' Digital Micrometer Head with accuracy of +/- 0.005 mm   ( 5 microns)

Size of sample
 stage
80 x 51 mm
Wire traveling
speed
0-3m/sec
Rotate speed50-900rpm




Diamond Wire
One piece loop type diamond wire (840 mm long, 0.3mm dia. Diamond coated) is
 included for immediate use.
A Diamond Blade Dressing Stone is included for keeping
 the wire sharp.
Anti-corrosive colant is requied during cutting
The diamond wire is consumable.
Cutting thicknessUp to 50 mm
Power SupplyAC 110~220 50/60Hz,  50W

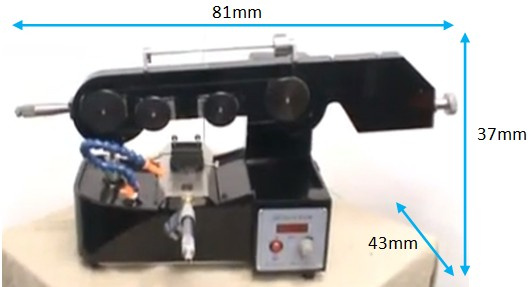

Product dimensionWith saw closed: 81Lx 43Wx 37H cm

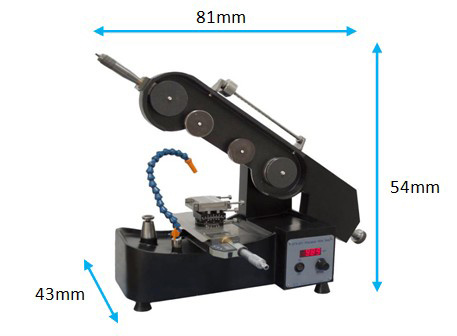

With saw fully open: 81Lx 43Wx 54H cm
Package
dimension
40" x 25" x 30"
Warranty One year limited manufacture warranty with life time
 support (cutting wire is not covered by the warranty)
CertificationCE certified
NoteDiamond wire is very easy broken. Please carefully
 install the wire and balance gravity before cutting.

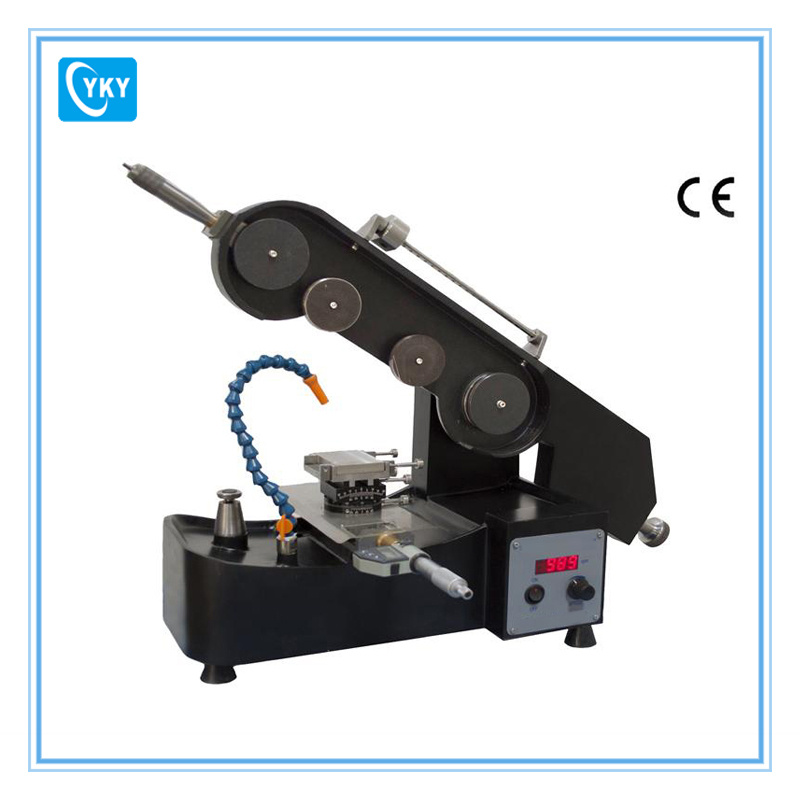

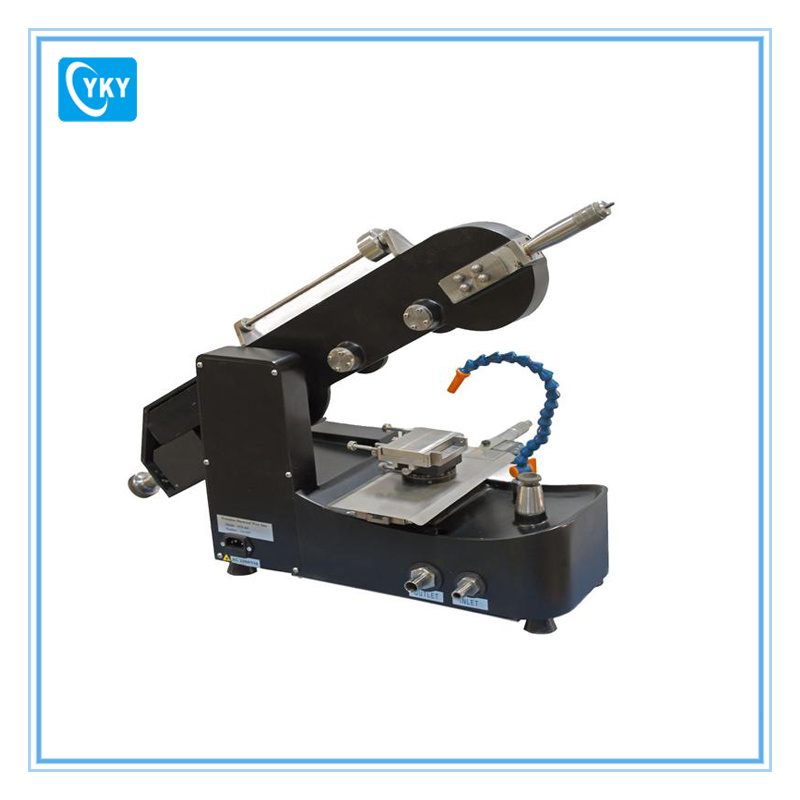

reference picture of the low speed diamond saw:











STANDARD PACKAGE:
Part No.Description
1.CY-2 Wire Saw (main machine), 1 set
2.2" Rotatable and tilt-able Sample Holder, 1 pc
3.Digital Micrometer Head 2" Travel 0.005 mm accuracy, 1 set
4.Cross Vise for Holding Sample, 1 pc
5.90 degree Sample Mount, 1 pc
6.840 mm long, 0.3mm dia. Diamond Loop Wire, 1 pc
7.Diamond Blade Dressing Stone, 1 pc
8.Driving Belt, 1 pc
9.Wax Bulk, 1 pc
10.Resin Bonded Ceramics for Samples Holding (50 x 50mm), 2 pcs
11.Screw Driver, 1 set
12.Allen hex-wrench 3 & 2.5mm, 1 set
13.Fuse, 1 pc
14.Leading wheel, 2 pcs
15.Tension wheel, 2 pcs
16.Water pipe , 2 pcs
17.AC Power Cord ,1 pc
18.Operation Manual, 1 pc

Contact Information:






Prod Model: CY-201
Weight: 100-500Kg
Power Source: AC220V
