| Price: | US $ 250-2000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |

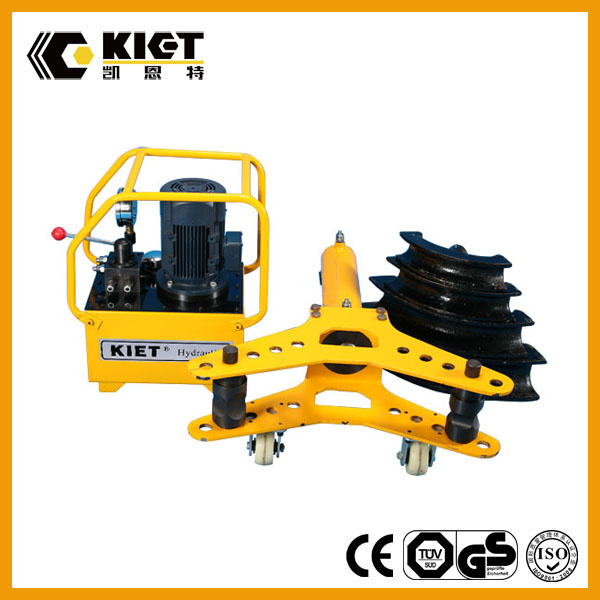

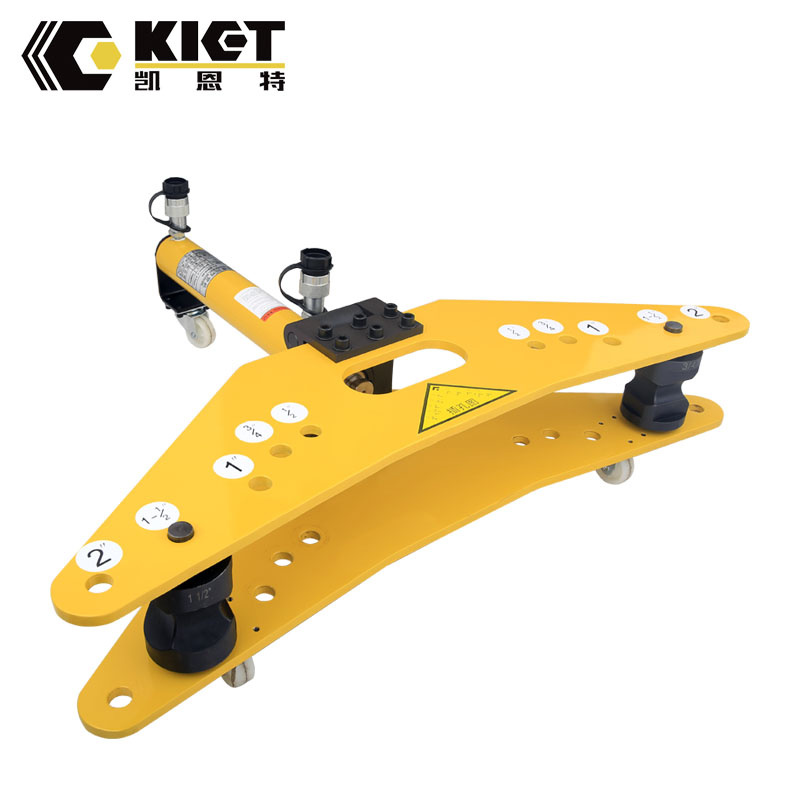

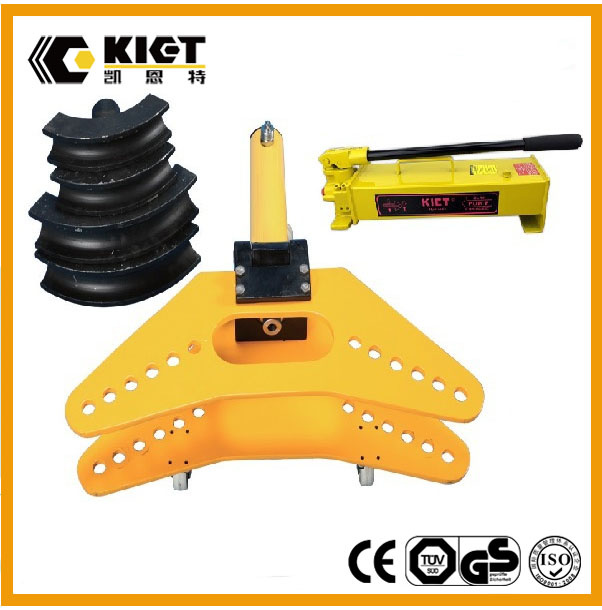

Product Description for Integrated Hydraulic Pipe Bending Machine:
1. Portable design, applicable for any construction site
2. The adjustable bending support can improve operation height and reduces the operation strength.
3. The curve radian is smooth with no wrinkle.
4. There are scales displayed on the bracket base plate and the profile modeling, with convenient and simple design.
5. One-way cylinder and spring reset.
6. It is applicable for the common pipeline, wire conduit, gas pipe and thick walled tube, etc,
7. The maximum angle of bending is 90 degree.
| Model | Output(T) | Elbow Range | Diameter(mm) | Pressure (bar) | Contain Mold | Weight (kg) |
| KT15PZ10 | 10 | 1/4"-1" | 13-34 | 700 | 6 | 18 |
| KT15PZ16 | 16 | 1/2"-2" | 22-60 | 700 | 6 | 40 |
| KT15PZ20 | 20 | 1/2"-3" | 22-89 | 700 | 6 | 86 |
| KT15PZ30 | 30 | 1/2"-4" | 22-108 | 700 | 6 | 120 |
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Photos of hydraulic tools for your reference:
Contact Information:
Tel: +86-523-86183388
Web: http://www.chinakiet.com/EN/

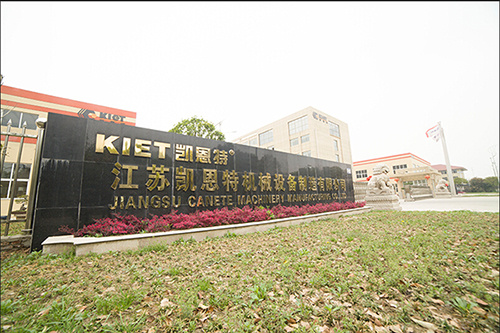

Welcome to visit our factory!
| Prod Model: | KT15PZ Hydraulic Pipe Bending Machine |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Integrated Hydraulic Pipe Bending Machine |
| Certificate: | Ce\ ISO9001:2008 |
| Color: | Yellow, Black, OEM |
| OEM: | Yes |
| Delivery Time: | 7-15days |
| Working Pressure: | 700bar |
| Output(T): | 10-30t |
| Weight: | 18-120kg |
| Diameter(mm): | 13-34mm to 22-108mm |
| Type For Pipe And Tube Bending Machine: | Electric Hydraulic Pipe Bender |
