KC8018 Chain and Sprocket Coupling for Metallurgical Machinery

KC8018 Chain and Sprocket Coupling for Metallurgical Machinery
Price: US $ 26-35/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

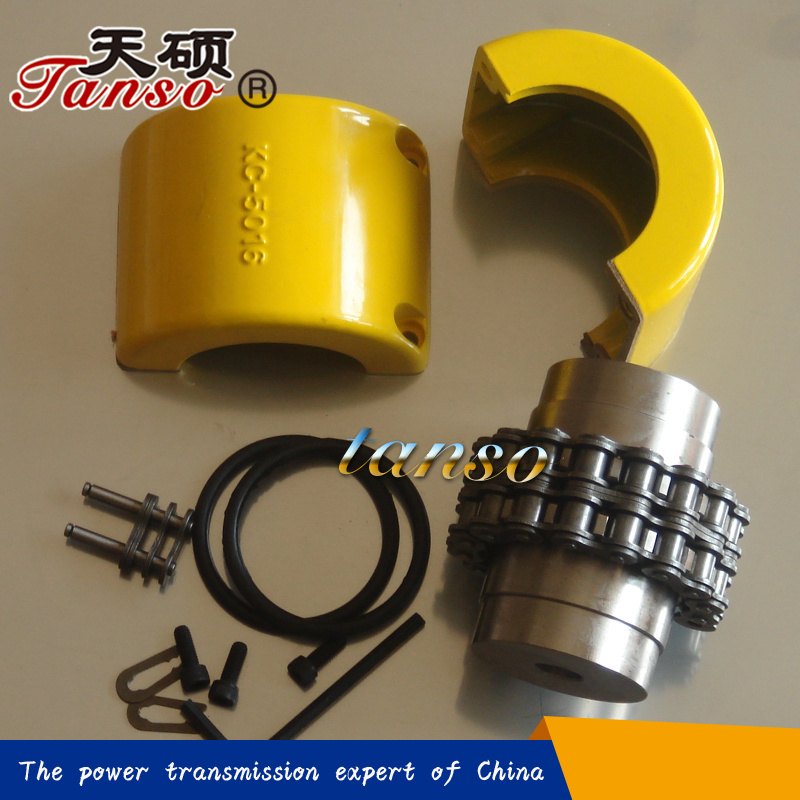

Roller chain coupling consists of a common chain ,two side by side sprockets which have the same number of teeth and a cover.There are following types of roller chain coupling:double roller chain coupling,single roller chain coupling,toothed chain coupling,nylon chain coupling,etc.Double roller chain coupling structure is superior to other types of couplings and widely used.
Features of roller chain coupling:
1.Simple structure,easy essembly and disessembly.
2.Light weight,and long service life
3.Have a certain ability to compensate for installation less precision
4.Suitable for high temperature,wet and dusty industrial environment
5.Can not for high speed,violent vibration


TypeMax Angular DegreeBoltBCMax Torque NmMax Revolution rpmReqired Amount of Grease(kg)G(kg)
KC3012M66310.219050000.10.4
KC4012M67214.424948001.10.8
KC4014M67514.432948000.131.1
KC4016M67514.441948000.171.4
KC5014M88518.162036000.222.2
KC5016M88518.179136000.262.7
KC5018M88518.197930000.363.8
KC6018M1010522.8181025000.56.2
KC6020M1010522.8221025000.67.8
KC6022M1011722.8261025000.710.4
KC8018M1212929.3392020000.912.7

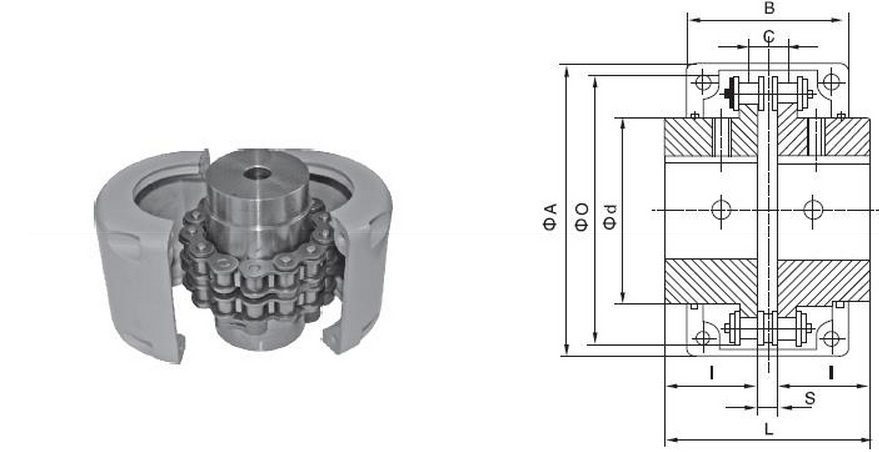

TypeApplicable rangePilotAdOLIS
of shaft
KC301212-161669234564.829.85.2
KC401212-221277336279.4367.4
KC401412-281284436979.4367.4
KC401614-321292487787.4407.4
KC501415-3514101538699.7459.7
KC501616-4014111609399.7459.7
KC501816-45161227010699.7459.7
KC601820-5616142851271213.55611.5
KC602020-602015898139123.55611.5
KC602220-7120169110151123.55611.5
KC881820-8020190110169141.26315.2







Prod Model: KC8018
Certification: ISO9001:2008
Surface Treatment: Blankening
Cangzhou Tanso Couplings Co., Ltd. (the former Botou Tianshuo Couplings Factory) specializes in the research and production of expansion coupling sleeve, mechanical drives and mechanical seals. Thanks to our years of experience in research and development of couplings, and favorable conditions and dominant advantages in research and development of high-precision products and mass production, the company can meet customers' demands. The company has passed the certification of ISO9001-2000 Quality Management System, and realized CAD computer aided design and information management, integrating research, development and manufacturing. The company boasts its rich manufacturing experience, strong technical force, complete testing meanings, complete range of specifications and stable and reliable quality. Since its establishment, the company has sold its products throughout China, winning wide appreciation from customers. Based on credit principle, the company has established long-term cooperative relationships with a number of customers. At present, the company, by further strengthening staff training, improving technology level and injecting high-tech contents into products, strives to offer products of top quality and preferential prices.

Our main products include rubber tire couplings, roller chain couplings, safety couplings, diaphragm couplings, drum gear couplings, star-shaped flexible coupling, rubber-cushioned sleeve pin coupling, oldham coupling, plum-shaped flexible coupling, roller chain couplings, flexible pin coupling, flexible pin gear coupling, and so on. In order to meet customers' demands, we, with rich experience, also undertake the plotting and manufacturing of other types of couplings. Under the tenet of "Develop by Technology, Survive by Quality, Benefit by Customers", the company makes all efforts to provide customers with quality products and satisfactory service through advanced production management and strict quality requirements".
